Model # JBS60DK8BB Official GE electric range

Here are the diagrams and repair parts for Official GE JBS60DK8BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

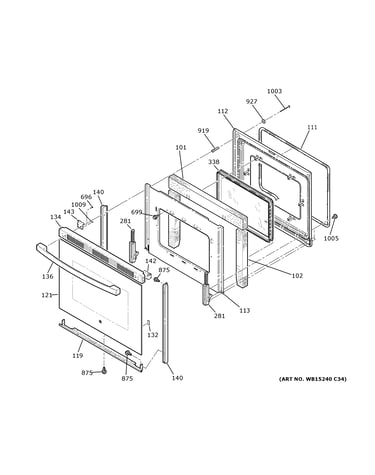

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

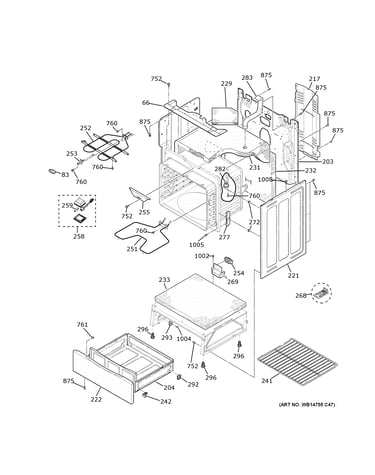

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

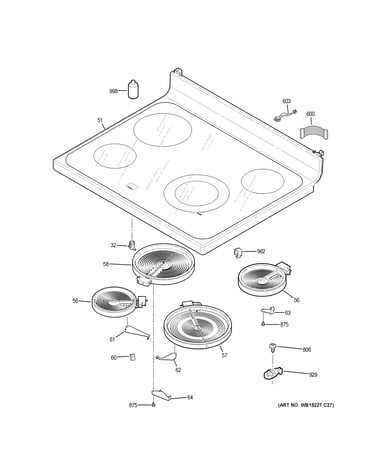

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Surface Element Control Switch WB24T10146
#23

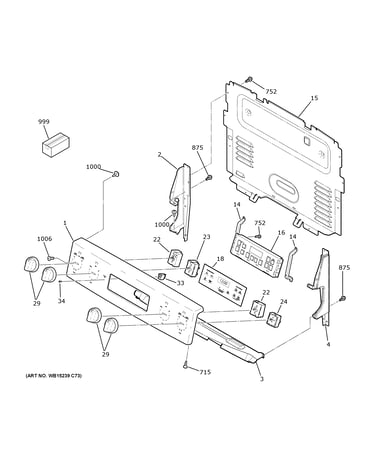

Control panel diagram

Range surface element control switch

Part #WB24T10146

BEST SELLER
$35.14 |
15% OFF Phone Price : $41.14
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#58

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Control Oven To9 (elec) WB27X42667
#16

Control panel diagram

Control oven to9 (elec)

Part #WB27X42667

Replaced by #WB27X45467

?
Manufacturer substitution
This part replaces WB27X42667. Substitute parts can look different from the original.
BEST SELLER
$153.30 |
7% OFF Phone Price : $165.30
In Stock
Range Bake Element WB44T10060
#251

Body parts diagram

Range bake element

Part #WB44T10060

Replaced by #WB44X45494

?
Manufacturer substitution
This part replaces WB44T10060. Substitute parts can look different from the original.
BEST SELLER
$66.58 |
8% OFF Phone Price : $72.58
In Stock
Lens WB25X24023
#34

Control panel diagram

Lens

Part #WB25X24023

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Indicator Light WB25X20005
#33

Control panel diagram

Indicator light

Part #WB25X20005

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Storage Drawer Support, Rear WB48T10030
#292

Body parts diagram

Range storage drawer support, rear

Part #WB48T10030

Replaced by #WB02X33180

?
Manufacturer substitution
This part replaces WB48T10030. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
