Kenmore
Gas Water Heater

Model # 183338111 Official Kenmore 55 gas water heater

Here are the diagrams and repair parts for Official Kenmore 183338111 55 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
F/183.338111 119118-19
#30B

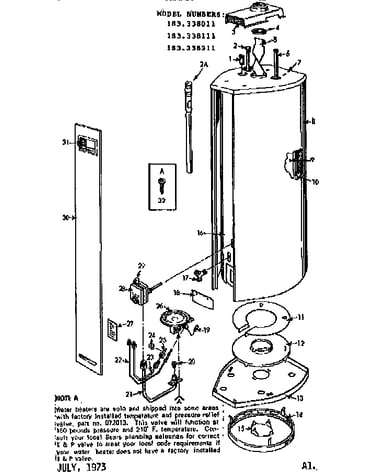

Replacement parts diagram

F/183.338111

Part #119118-19

The manufacturer no longer makes this part, and there's no substitute part

F/183.338111 119136
#13B

Replacement parts diagram

F/183.338111

Part #119136

The manufacturer no longer makes this part, and there's no substitute part

F/183.338111 183.338311 119135-19
#7B

Replacement parts diagram

F/183.338111 183.338311

Part #119135-19

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 012073
#5

Replacement parts diagram

Flue baffle

Part #012073

The manufacturer no longer makes this part, and there's no substitute part

Nipple Pipe 056048
#1

Replacement parts diagram

Nipple pipe

Part #056048

The manufacturer no longer makes this part, and there's no substitute part

F/183.338311 013039
#10C

Replacement parts diagram

F/183.338311

Part #013039

The manufacturer no longer makes this part, and there's no substitute part

Clip, Orifice F145-0089
#24

Replacement parts diagram

Clip, orifice

Part #F145-0089

The manufacturer no longer makes this part, and there's no substitute part

Inner Door 039003
#18

Replacement parts diagram

Inner door

Part #039003

The manufacturer no longer makes this part, and there's no substitute part

Knob Pilot On-off F145-0086
#29

Replacement parts diagram

Knob pilot on-off

Part #F145-0086

The manufacturer no longer makes this part, and there's no substitute part

Anode, Mag Primary 016010
#2

Replacement parts diagram

Anode, mag primary

Part #016010

The manufacturer no longer makes this part, and there's no substitute part
