Model # AHM10AWQ1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AHM10AWQ1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Indoor Fan Blade WJ76X22150
#14

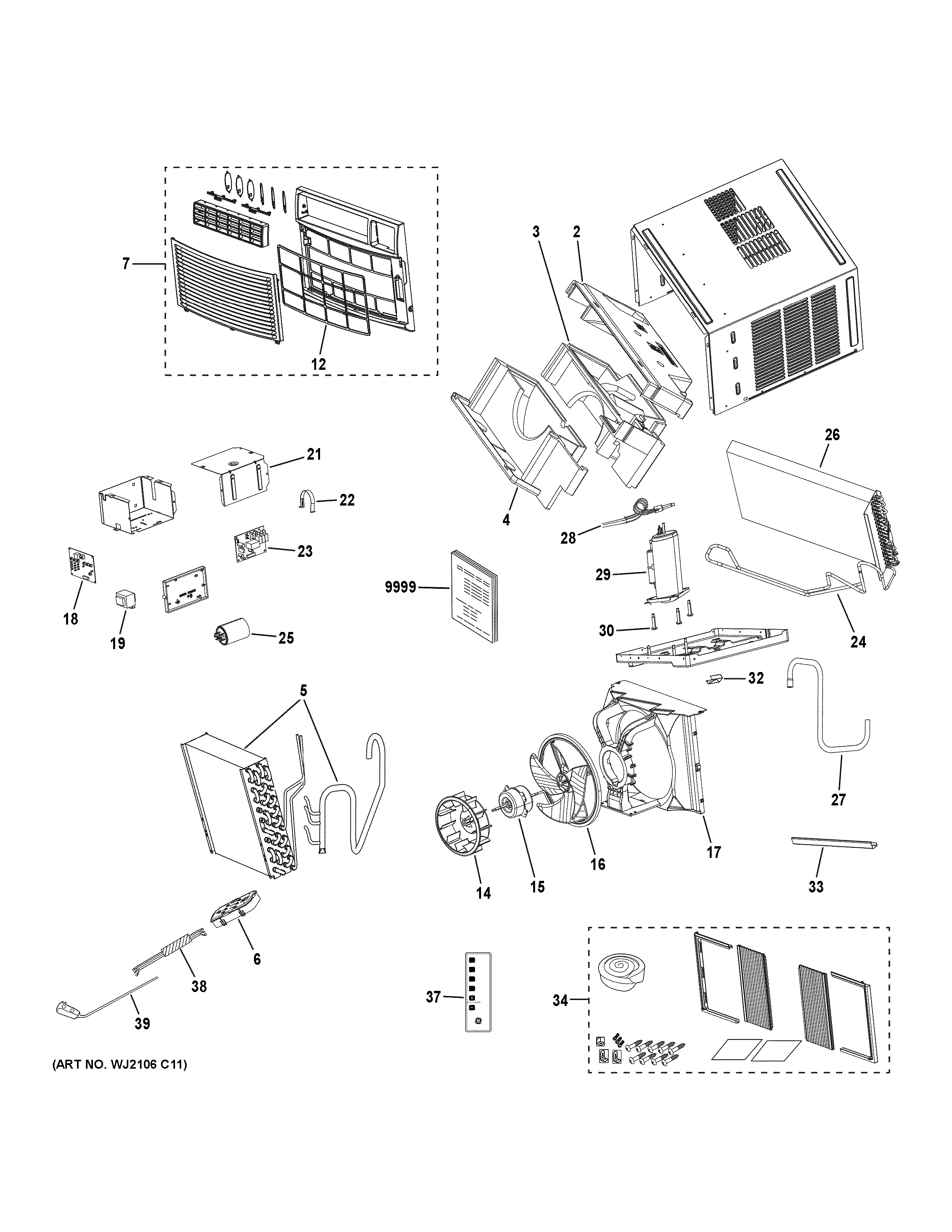

Room air conditioner diagram

Indoor fan blade

Part #WJ76X22150

$32.38 |
16% OFF Phone Price : $38.38
In Stock
Bolt WJ01X22140
#30

Room air conditioner diagram

Bolt

Part #WJ01X22140

$11.23
In Stock
Evaporator Assembly WJ87X24709
#5

Room air conditioner diagram

Evaporator assembly

Part #WJ87X24709

$107.53
In Stock
Wire Harness WJ36X20102
#38

Room air conditioner diagram

Wire harness

Part #WJ36X20102

$20.23
In Stock
Compressor WJ98X22142
#29

Room air conditioner diagram

Compressor

Part #WJ98X22142

$199.80
In Stock
Control Panel WJ71X22144
#6

Room air conditioner diagram

Control panel

Part #WJ71X22144

$13.72 |
13% OFF Phone Price : $15.72
In Stock
Tubing WJ53X24710
#24

Room air conditioner diagram

Tubing

Part #WJ53X24710

$25.11
In Stock
Indoor Fan Shroud, Lower WJ76X22151
#4

Room air conditioner diagram

Indoor fan shroud, lower

Part #WJ76X22151

$38.51
In Stock
Indoor Fan Shroud, Middle WJ76X22152
#3

Room air conditioner diagram

Indoor fan shroud, middle

Part #WJ76X22152

$35.71
In Stock
Front Panel Assemble WJ71X22149
#7

Room air conditioner diagram

Front panel assemble

Part #WJ71X22149

$43.91
In Stock
