Amana
Electric Range

Model # ARR301W-P8531202S Official Amana electric freestanding range

Here are the diagrams and repair parts for Official Amana ARR301W-P8531202S electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

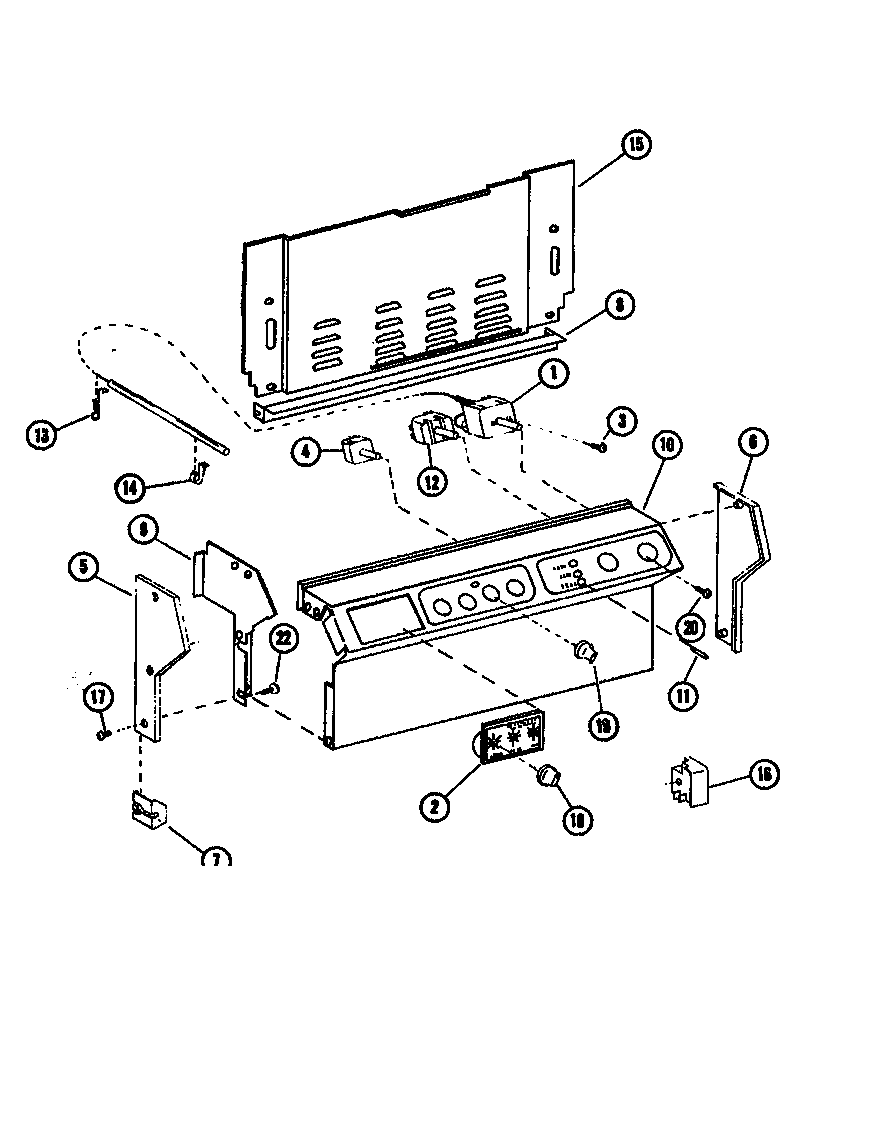

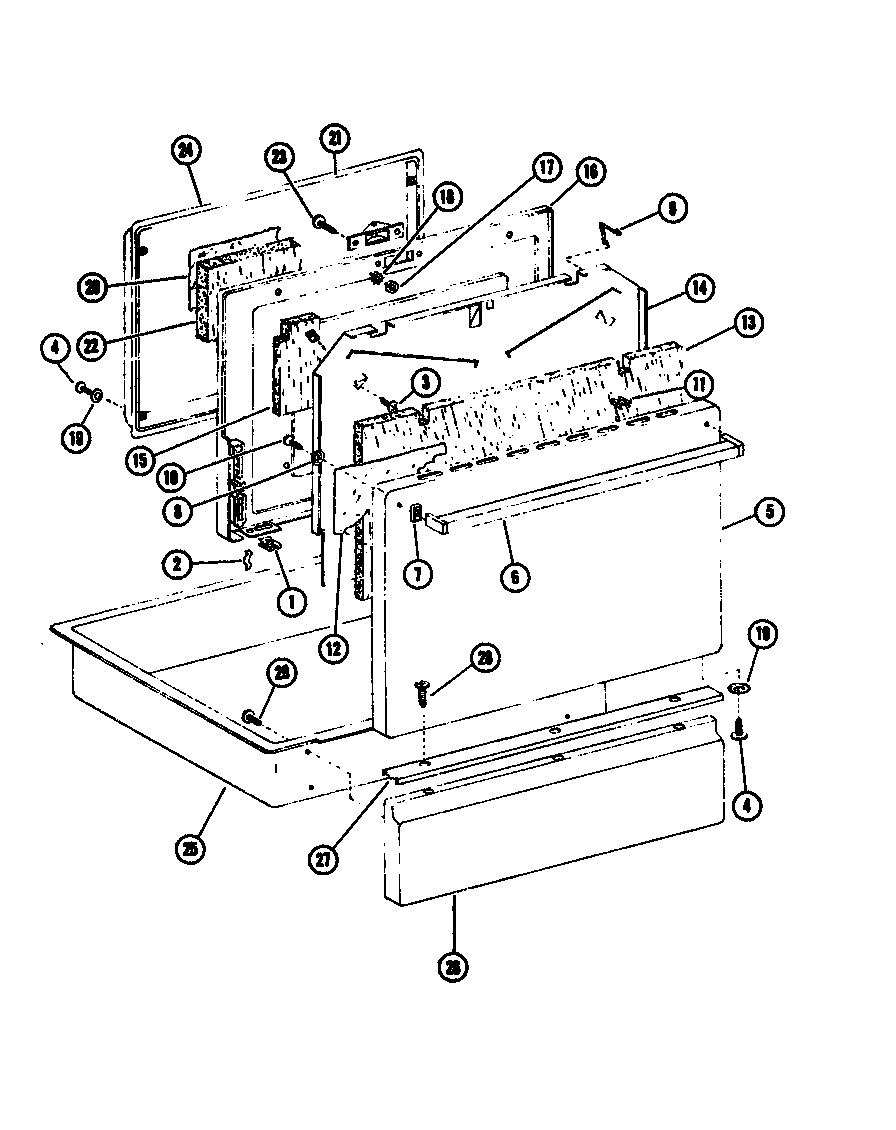

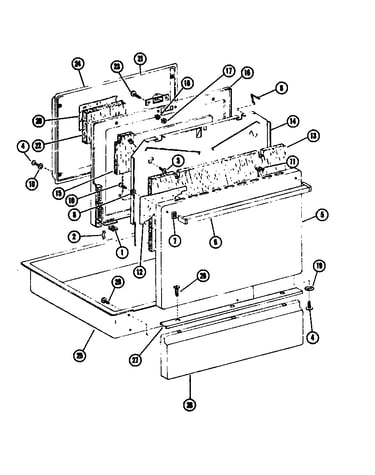

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Lamp A0282803
#34

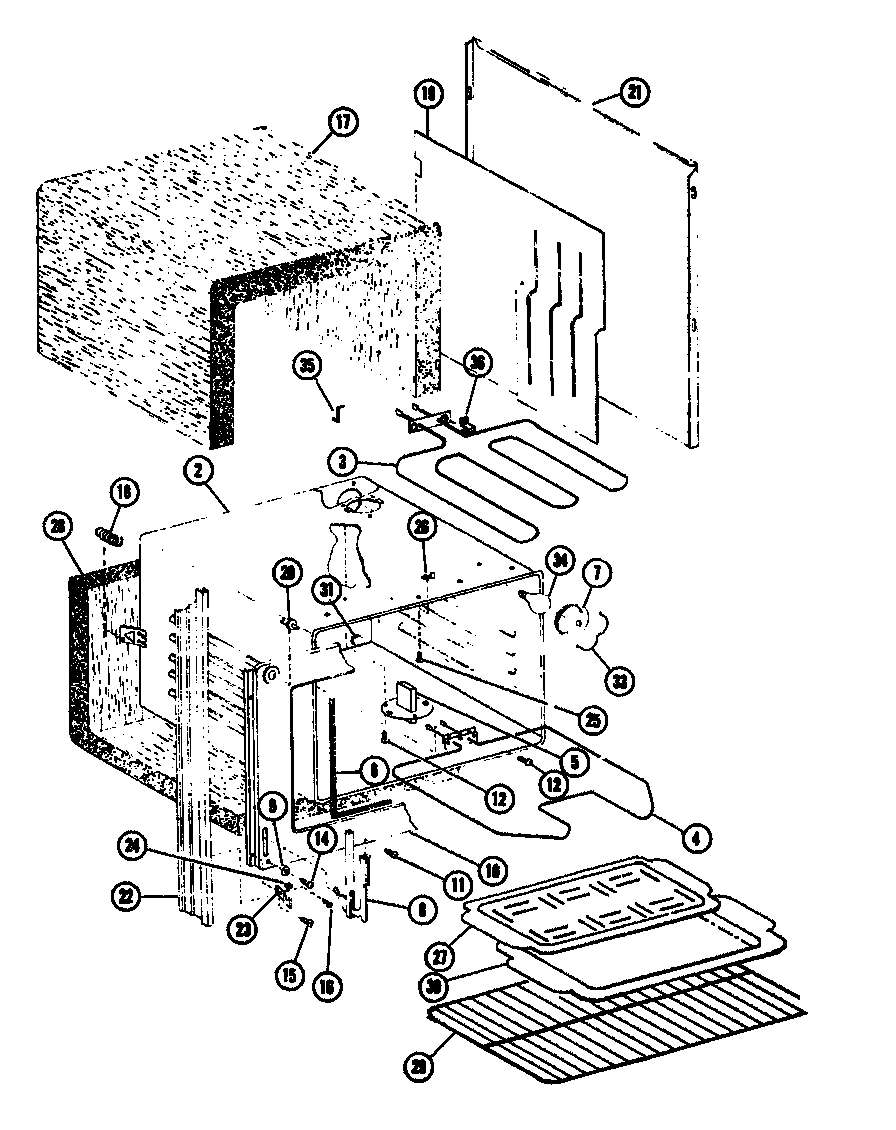

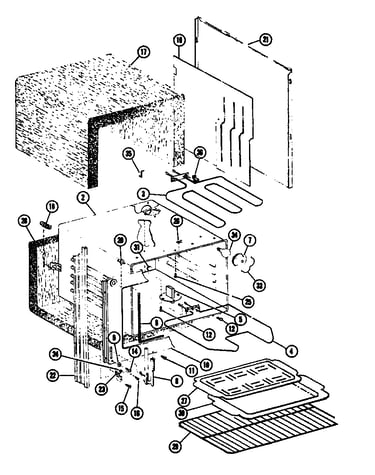

Page 3 diagram

Lamp

Part #A0282803

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282803. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Screw M0211531
Screw

Part #M0211531

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0211531. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Element- 3 C2714601
#9

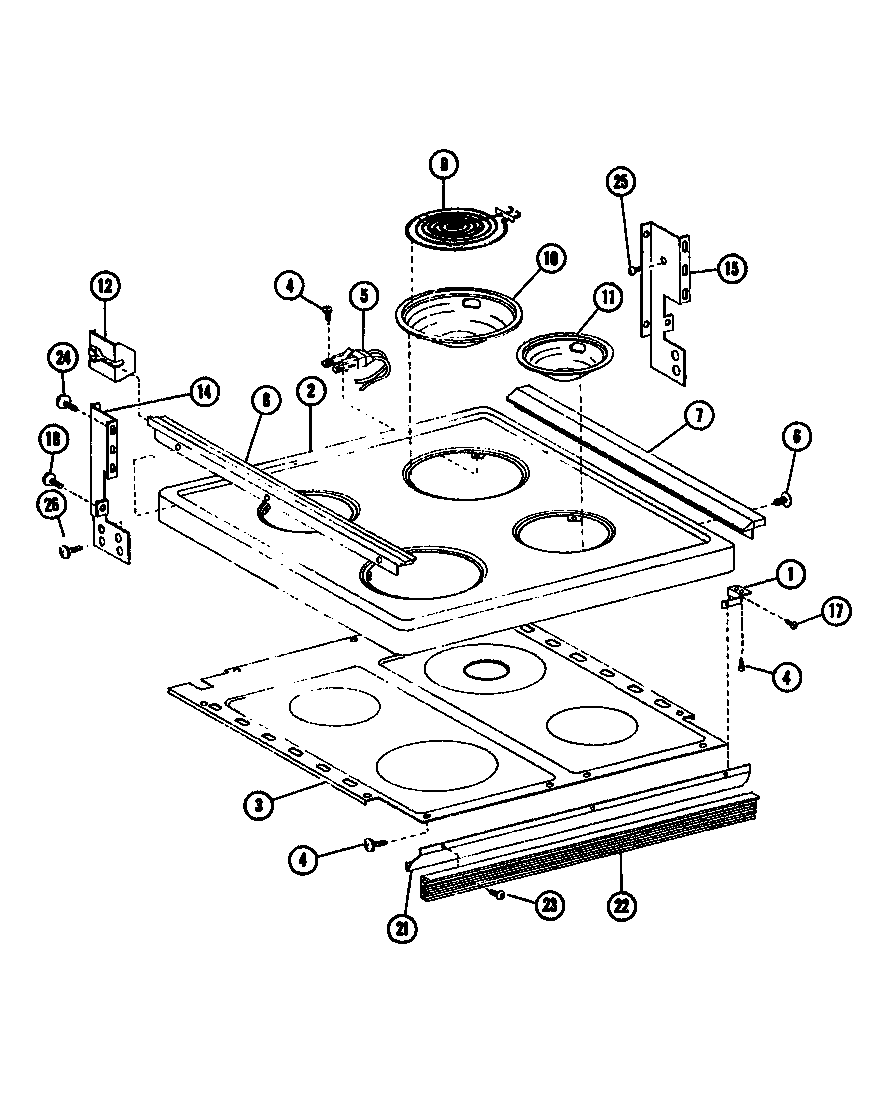

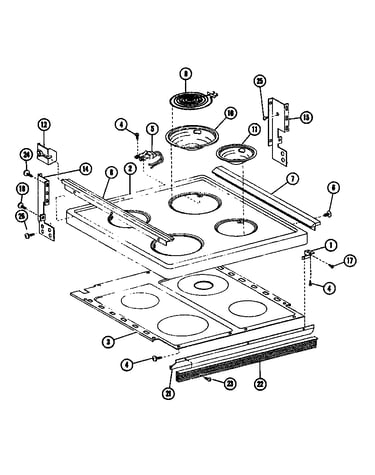

Page 1 diagram

Element- 3

Part #C2714601

Replaced by #WPW10345407

?
Manufacturer substitution
This part replaces C2714601. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
Screw M0228015
#6

Page 1 diagram

Screw

Part #M0228015

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0228015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211016
Screw

Part #M0211016

This item is not returnable
$3.40
In Stock
"screw, Sm" M0211117
#25

Page 3 diagram

"screw, sm"

Part #M0211117

Replaced by #M0211018

?
Manufacturer substitution
This part replaces M0211117. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0228030
#4

Page 1 diagram

Screw

Part #M0228030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0228030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock

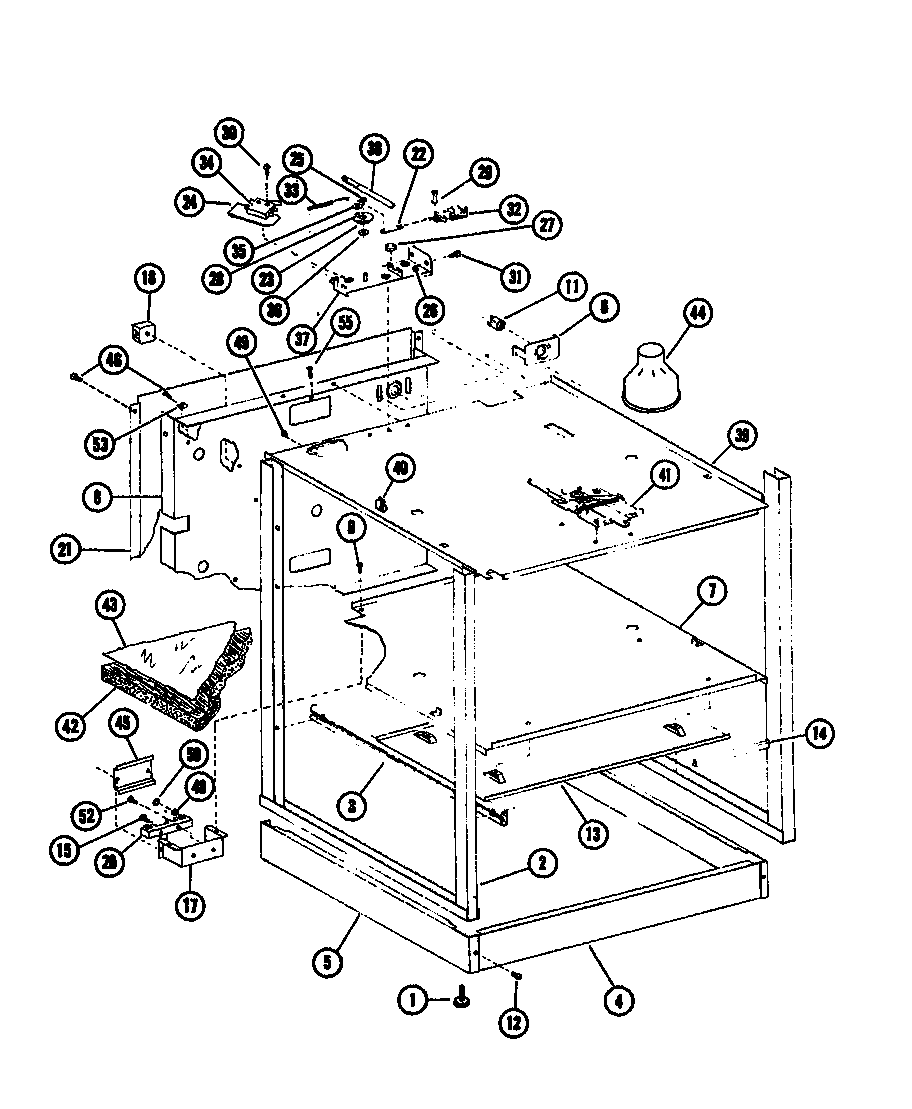

Oven Socket A4400701
#11

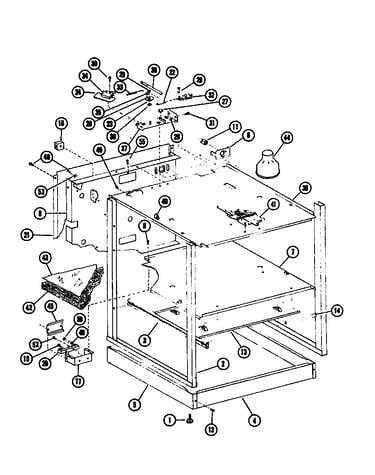

Page 2 diagram
