Craftsman
Drill/Driver

Model # 973271950 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973271950 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Gr. Chnge A. 971004-000
#3

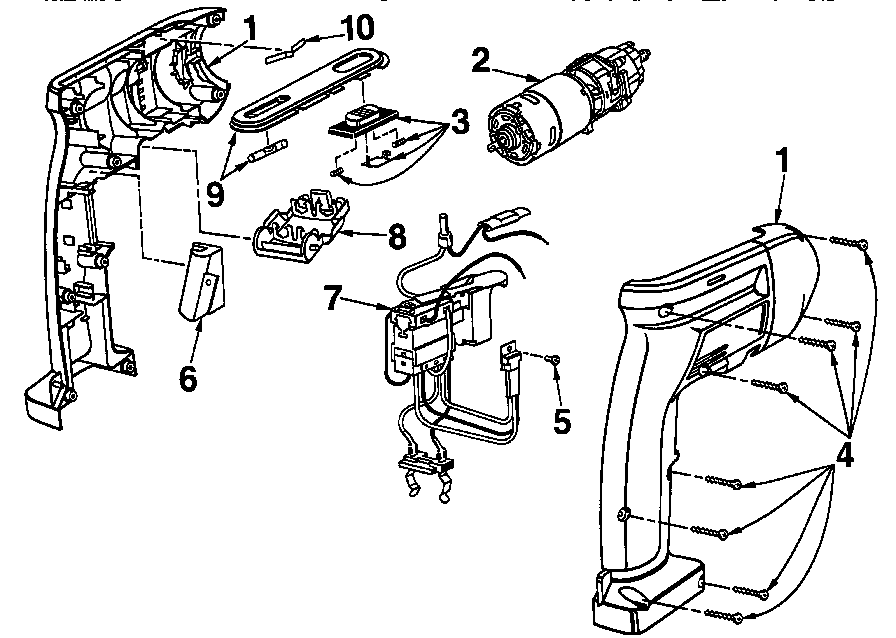

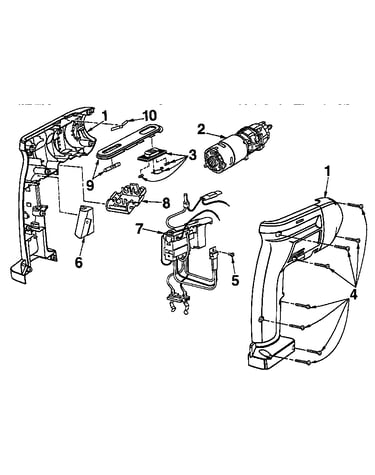

Motor diagram

Gr. chnge a.

Part #971004-000

The manufacturer no longer makes this part, and there's no substitute part

Case 973881-000
#12

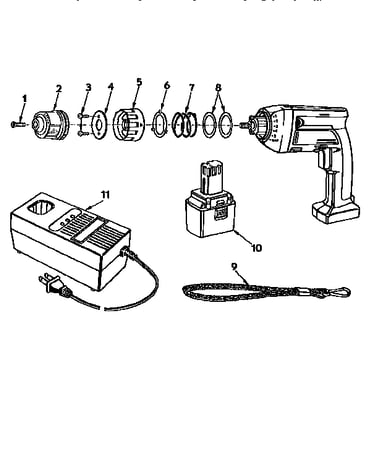

Unit parts diagram

Case

Part #973881-000

The manufacturer no longer makes this part, and there's no substitute part

Strap 967216-004
#9

Unit parts diagram

Strap

Part #967216-004

The manufacturer no longer makes this part, and there's no substitute part

Shim Kit 970837-000
#8

Unit parts diagram

Shim kit

Part #970837-000

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 974689-000
#7

Motor diagram

Switch assembly

Part #974689-000

The manufacturer no longer makes this part, and there's no substitute part

Flat Spring 972685-000
#10

Motor diagram

Flat spring

Part #972685-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 970861-000
#4

Motor diagram

Screw

Part #970861-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 971294-000
#6

Motor diagram

Heat sink

Part #971294-000

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 974682-000
#1

Motor diagram

Housing assembly

Part #974682-000

The manufacturer no longer makes this part, and there's no substitute part

T. Plate W/1 970367-000
#9

Motor diagram

T. plate w/1

Part #970367-000

The manufacturer no longer makes this part, and there's no substitute part
