Model # JSP39DN1CC Official GE electric range

Here are the diagrams and repair parts for Official GE JSP39DN1CC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

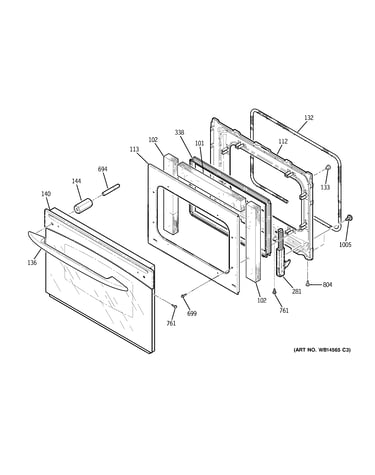

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Oven Lamp WB08T10022
#257

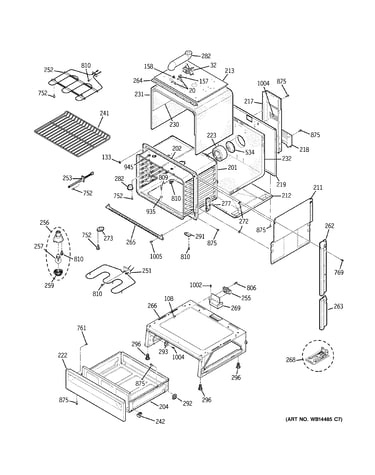

Body parts diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Element Control Switch, 2,600-watt WB24T10025
#22

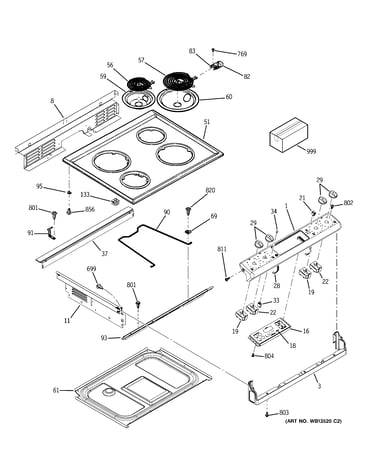

Control panel & cooktop diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$36.13 |
14% OFF Phone Price : $42.13
In Stock
Range Oven Control Board WB27T10489
#16

Control panel & cooktop diagram

Range oven control board

Part #WB27T10489

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T10489. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Hotpoint Range Surface Element Receptacle (replaces Wb17k10003, Wb17t10001, Wb17x10007) WB17T10006
#82

Control panel & cooktop diagram

Hotpoint range surface element receptacle (replaces wb17k10003, wb17t10001, wb17x10007)

Part #WB17T10006

BEST SELLER
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Range Drip Pan (replaces Wb32x10014) WB31T10011
#60

Control panel & cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.02 |
12% OFF Phone Price : $17.02
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Control panel & cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$17.64 |
10% OFF Phone Price : $19.64
In Stock
Oven Lamp Holder WB08T10002
#256

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Broil Element (replaces Wb44k10007) WB44T10043
#252

Body parts diagram

Range broil element (replaces wb44k10007)

Part #WB44T10043

$70.47 |
8% OFF Phone Price : $76.47
In Stock
Screw WB01X1293
#856

Control panel & cooktop diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Clip Receptacle WB02X8228
#83

Control panel & cooktop diagram

Clip receptacle

Part #WB02X8228

Replaced by #WB2X8228

?
Manufacturer substitution
This part replaces WB02X8228. Substitute parts can look different from the original.
This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
In Stock
