Model # SC24C7WTLC Official Gibson portable dishwasher - lg33087020

Here are the diagrams and repair parts for Official Gibson SC24C7WTLC portable dishwasher - lg33087020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

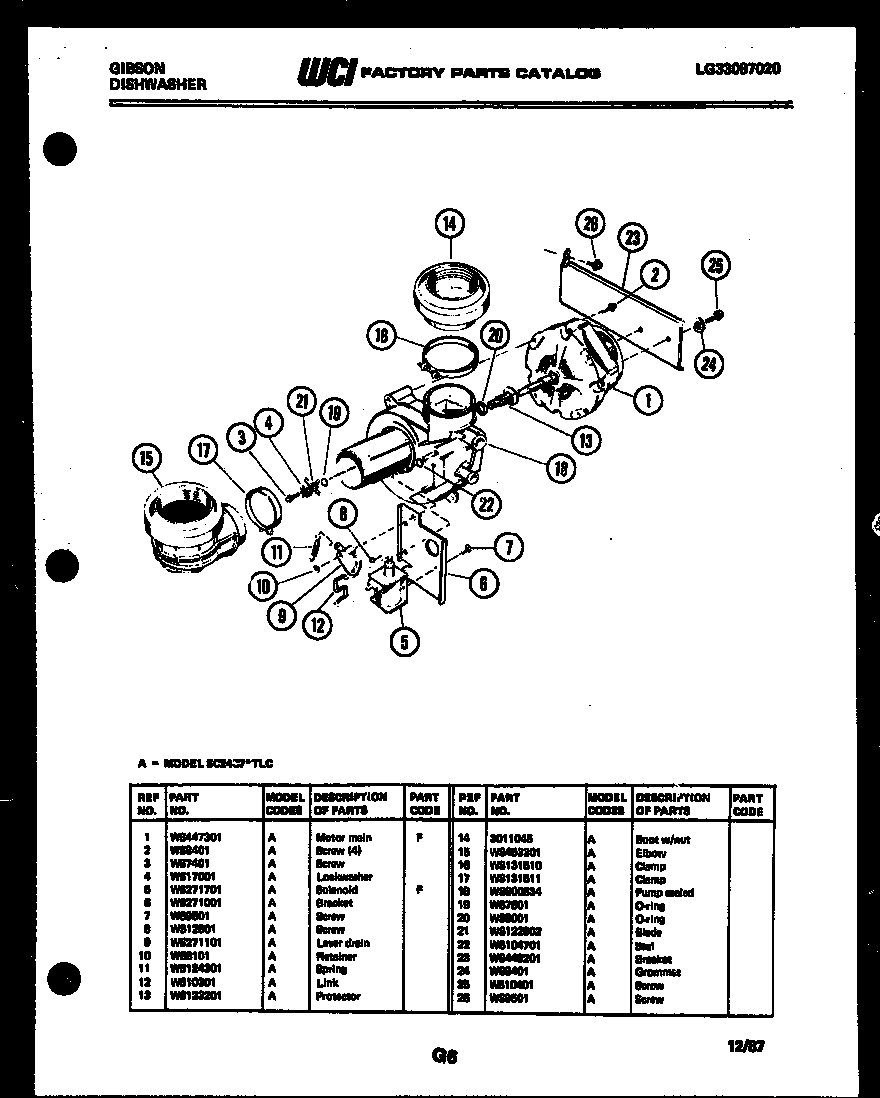

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Nut WS7201
#10

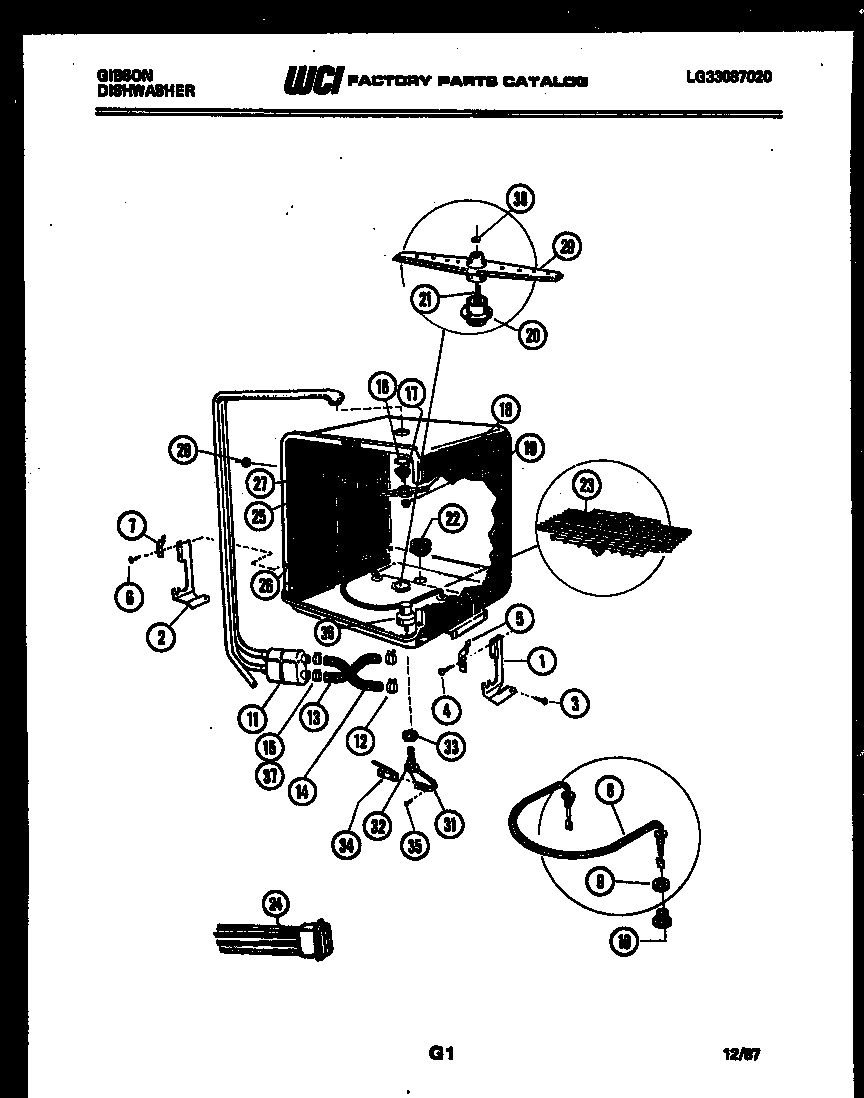

Inner tub parts diagram

Nut

Part #WS7201

Replaced by #154106202

?
Manufacturer substitution
This part replaces WS7201. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Silverware Basket WS403504
#14

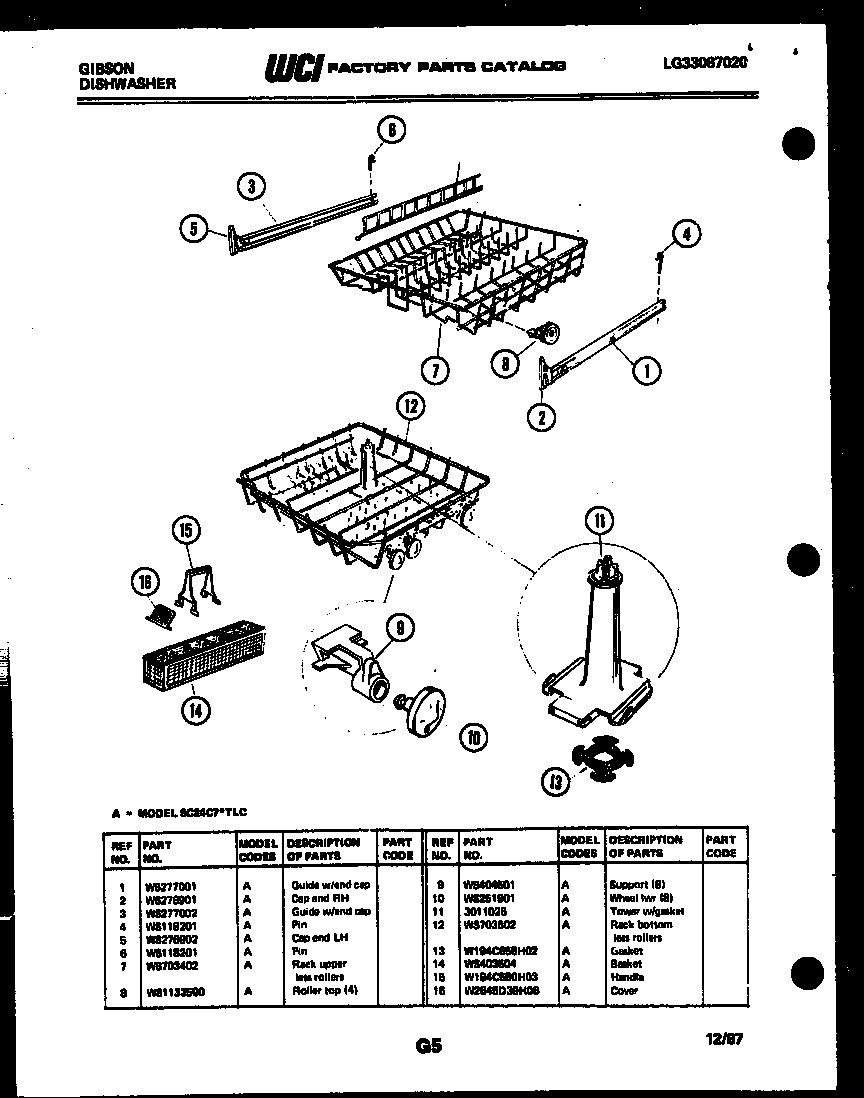

Racks and trays diagram

Silverware basket

Part #WS403504

Replaced by #5304509753

?
Manufacturer substitution
This part replaces WS403504. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Frigidaire Screw 3010906
#4

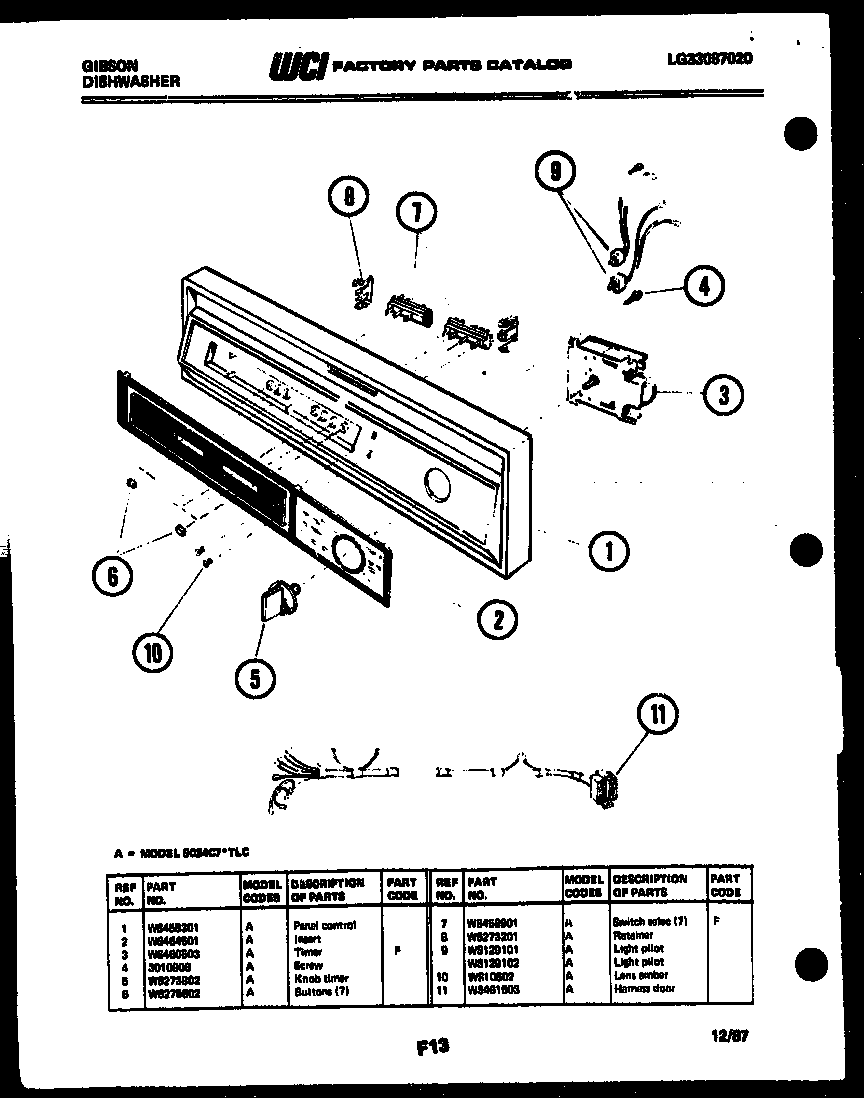

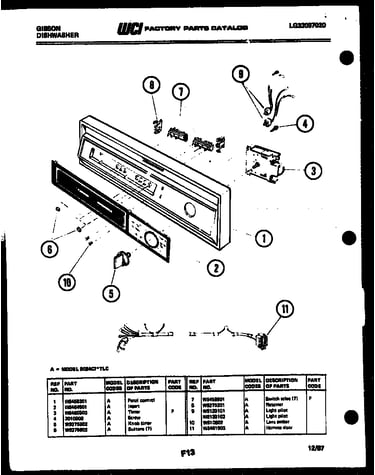

Console and control parts diagram

Frigidaire screw

Part #3010906

This item is not returnable
$2.16
In Stock
Support WS468201
#2

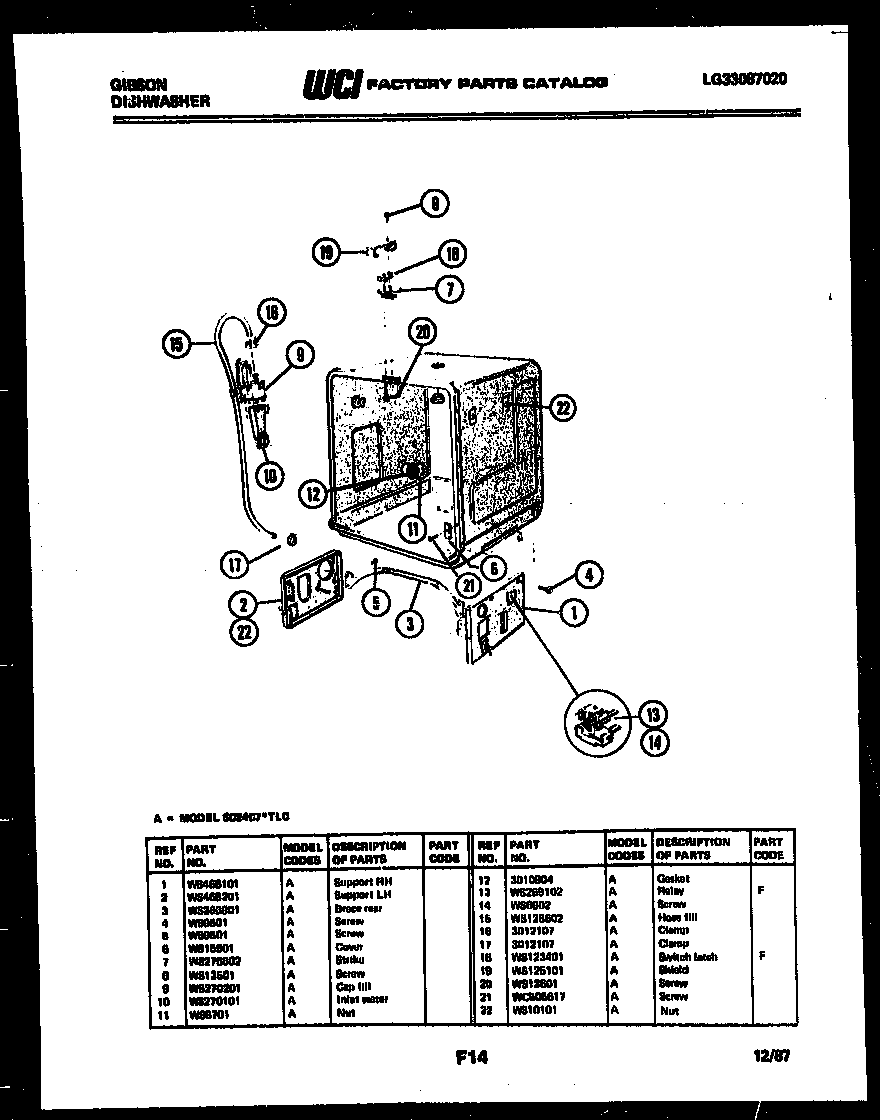

Tub and frame parts diagram

Support

Part #WS468201

Replaced by #08057445

?
Manufacturer substitution
This part replaces WS468201. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Panel W2647D25H03
#3

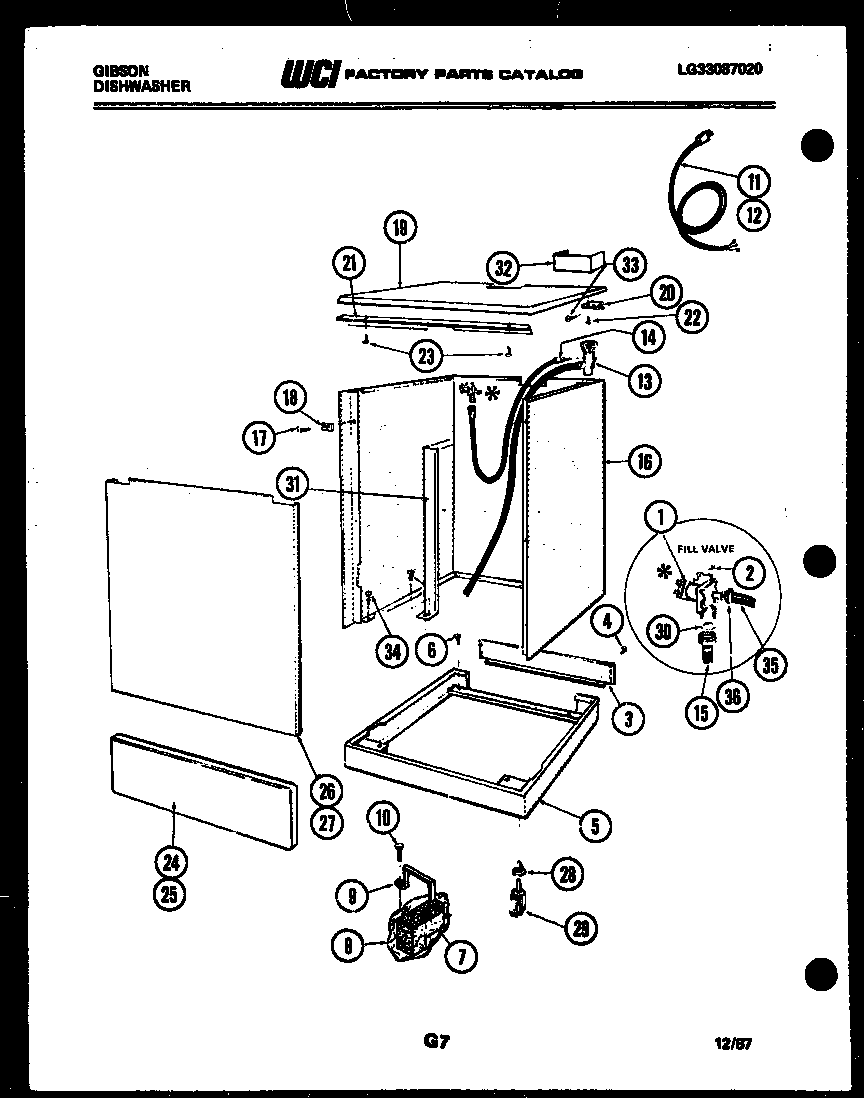

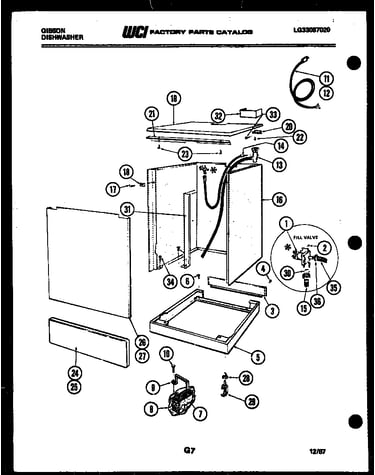

Cabinet parts diagram

Panel

Part #W2647D25H03

Replaced by #08007081

?
Manufacturer substitution
This part replaces W2647D25H03. Substitute parts can look different from the original.
$21.49
In Stock
Screw WS12801
Screw

Part #WS12801

Replaced by #WS13901

?
Manufacturer substitution
This part replaces WS12801. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw WS13101
#40

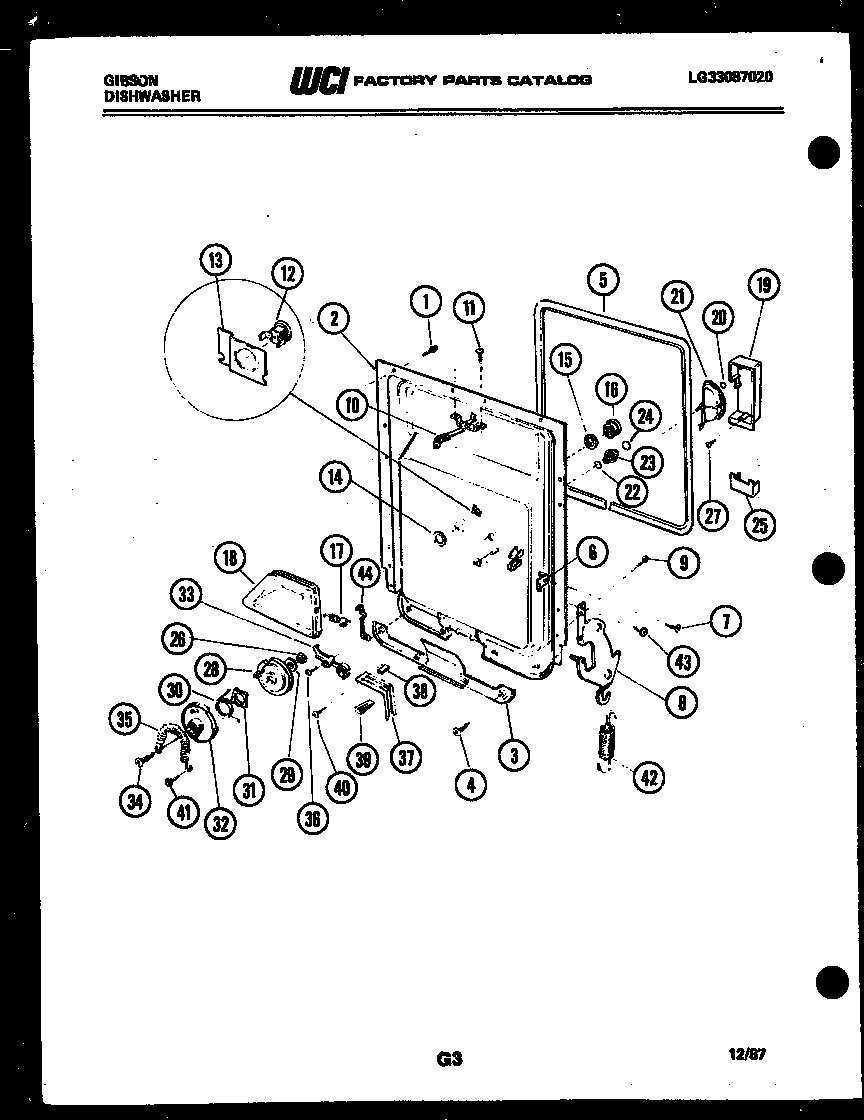

Inner door parts diagram

Screw

Part #WS13101

Replaced by #08014826

?
Manufacturer substitution
This part replaces WS13101. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Hinge WS442311
#8

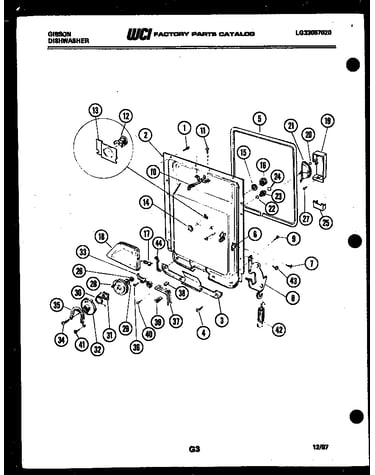

Inner door parts diagram

Hinge

Part #WS442311

Replaced by #5303351095

?
Manufacturer substitution
This part replaces WS442311. Substitute parts can look different from the original.
$24.73
In Stock
Screw WS6902
#14

Tub and frame parts diagram

Screw

Part #WS6902

Replaced by #5300006902

?
Manufacturer substitution
This part replaces WS6902. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Motor Relay WS269102
#13

Tub and frame parts diagram

Motor relay

Part #WS269102

The manufacturer no longer makes this part, and there's no substitute part
