Tappan
Gas Range

Model # 30-3991-00-03 Official Tappan gas range - 5995221719

Here are the diagrams and repair parts for Official Tappan 30-3991-00-03 gas range - 5995221719, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

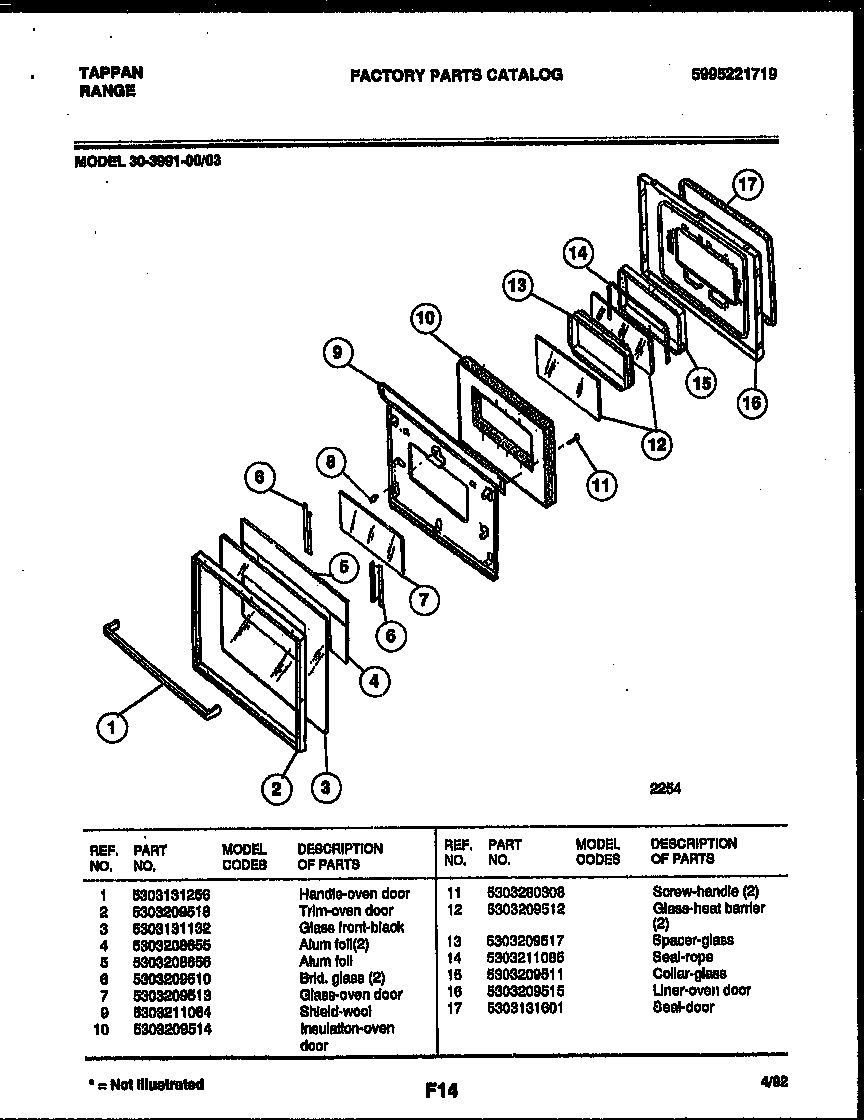

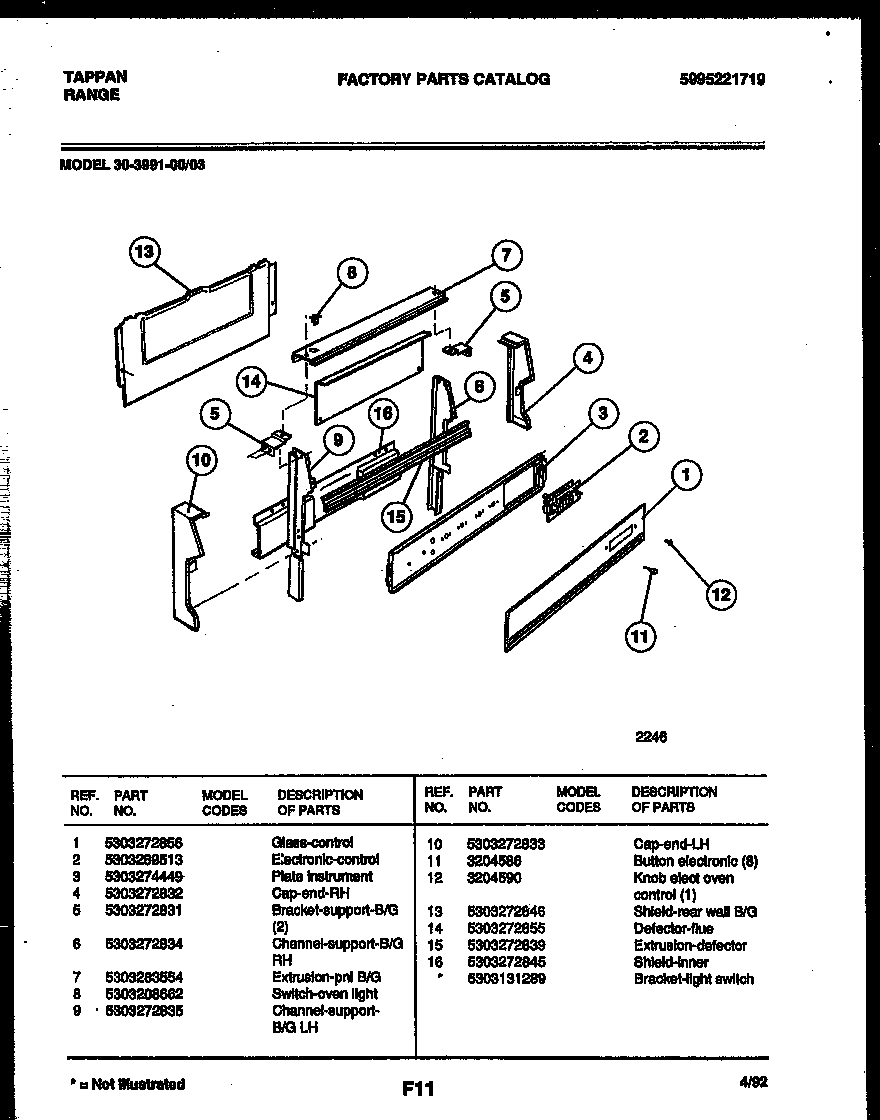

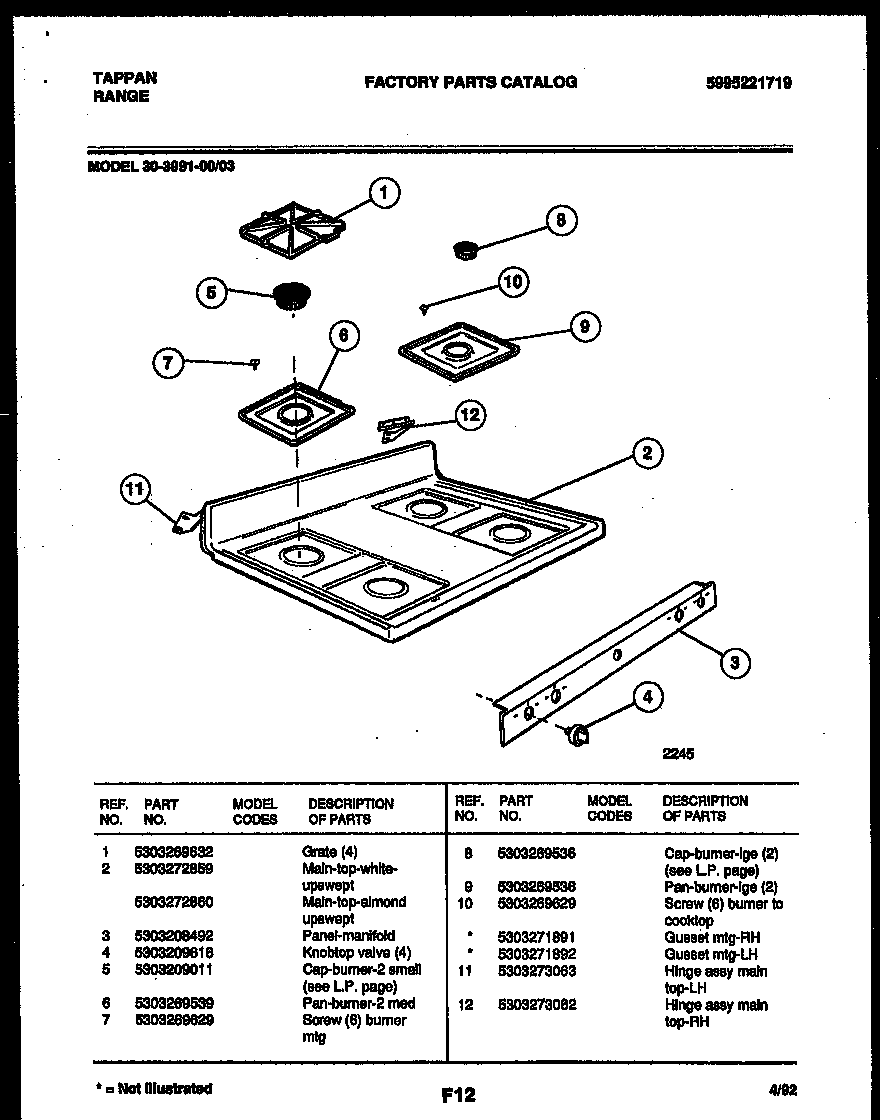

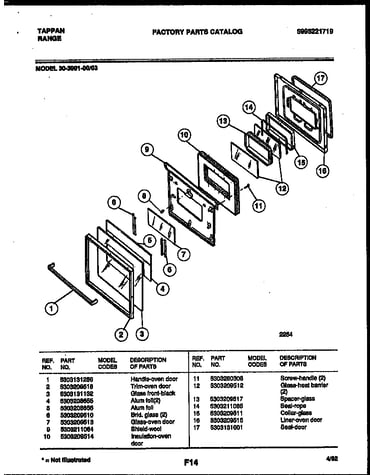

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Igniter 5303131300
#15

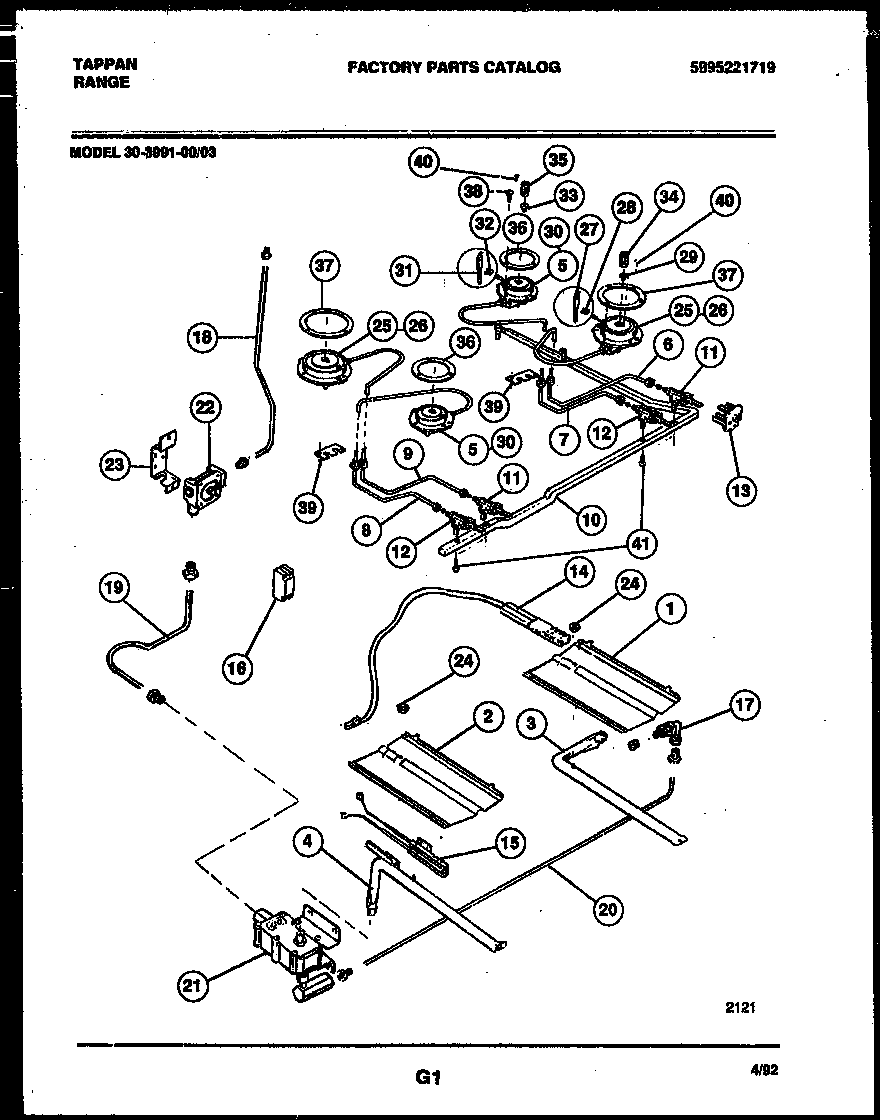

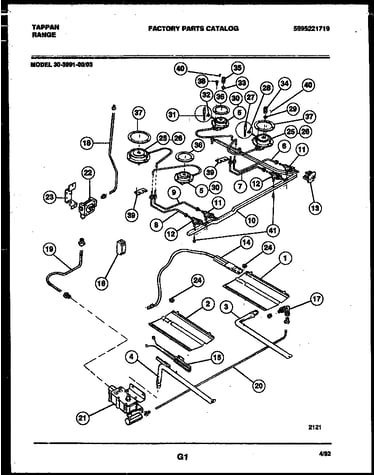

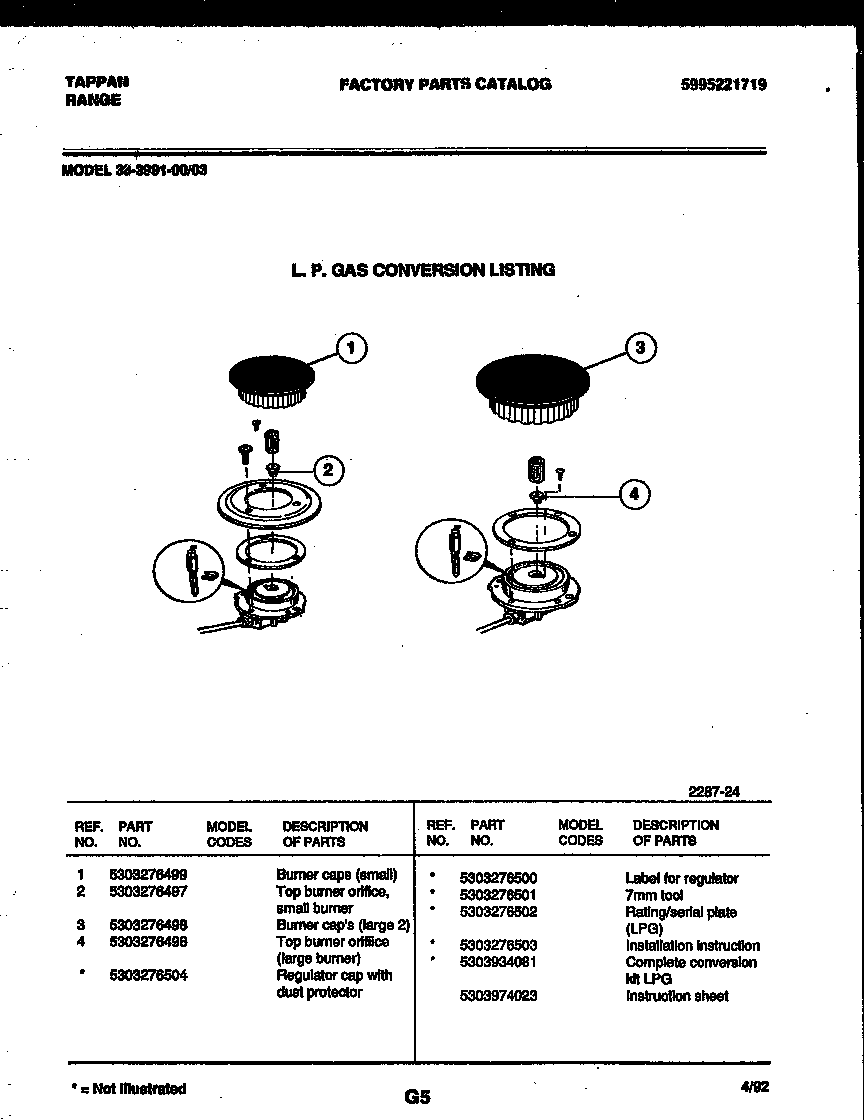

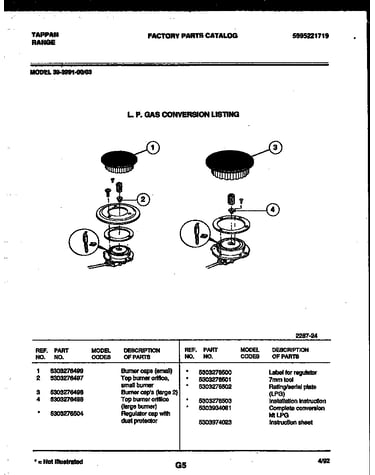

Burner, manifold and gas control diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Lamp 5303208582
#5

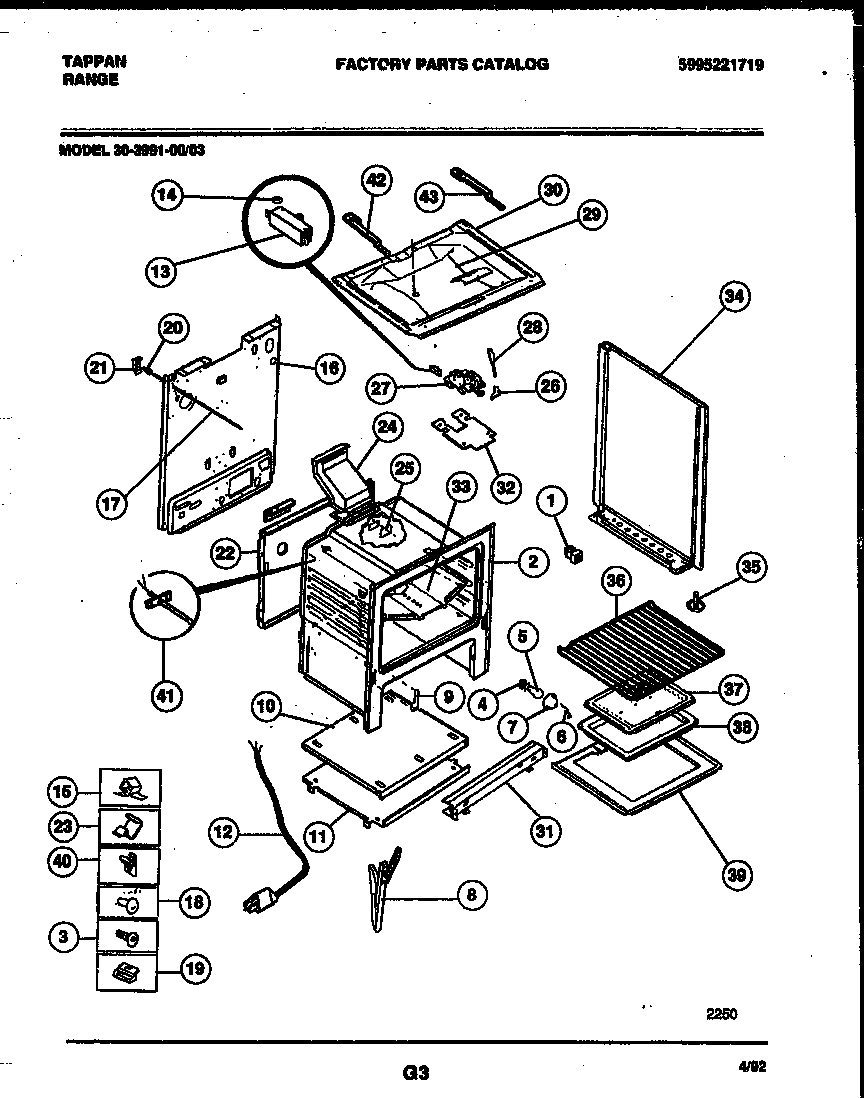

Body parts diagram

Lamp

Part #5303208582

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303208582. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Drawer Glide, Front (replaces 08067766, 3012698, 3051361, 3131687) 3051162
#40

Body parts diagram

Range drawer glide, front (replaces 08067766, 3012698, 3051361, 3131687)

Part #3051162

BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#2

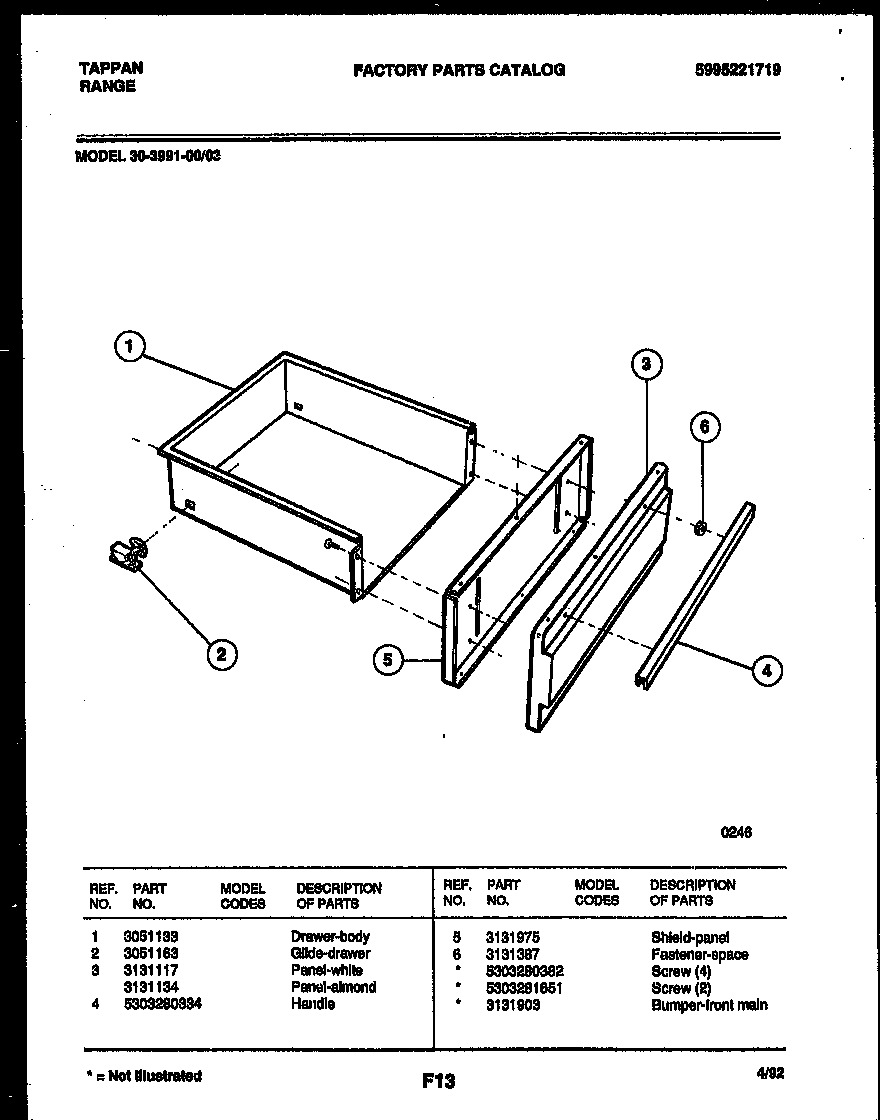

Drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Socket 3014073
#4

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Cover 08011086
#7

Body parts diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Cord 3202006
#12

Body parts diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Oven Temperature Probe 3204593
#41

Body parts diagram

Oven temperature probe

Part #3204593

Replaced by #5304497424

?
Manufacturer substitution
This part replaces 3204593. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Range Hex Nut 5303013272
#24

Burner, manifold and gas control diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Rack 5303131973
#36

Body parts diagram

Rack

Part #5303131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
