Model # 564504910 Official LXI solid state stereo 8-track tape player with am/fm radio

Here are the diagrams and repair parts for Official LXI 564504910 solid state stereo 8-track tape player with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Reflector 4-4144
#49

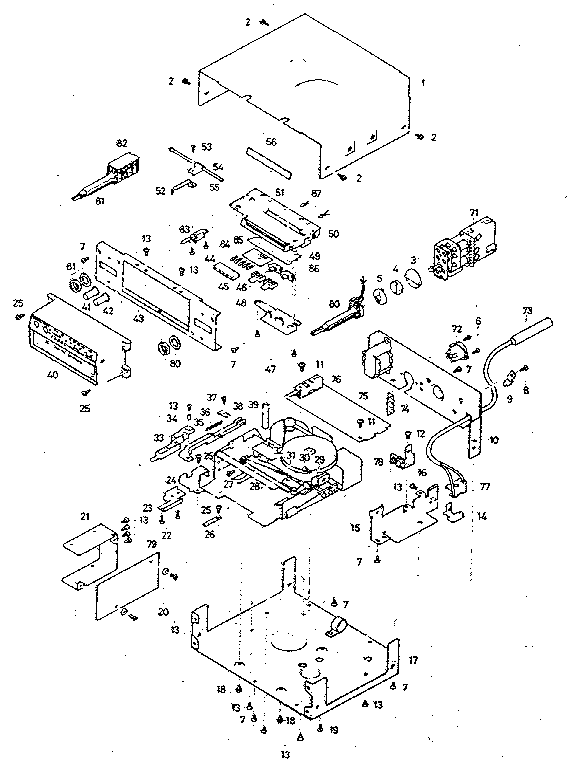

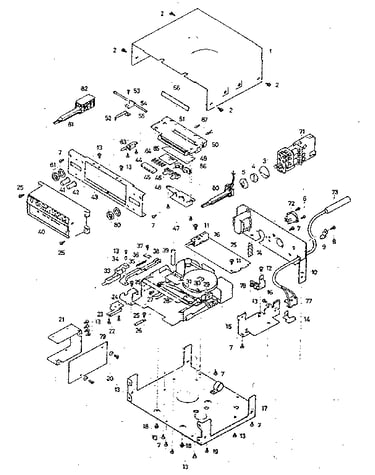

Cabinet & chassis diagram

Reflector

Part #4-4144

The manufacturer no longer makes this part, and there's no substitute part

Switch 4-3480
#83

Cabinet & chassis diagram

Switch

Part #4-3480

The manufacturer no longer makes this part, and there's no substitute part

Spec. Washer 4-4031
#25

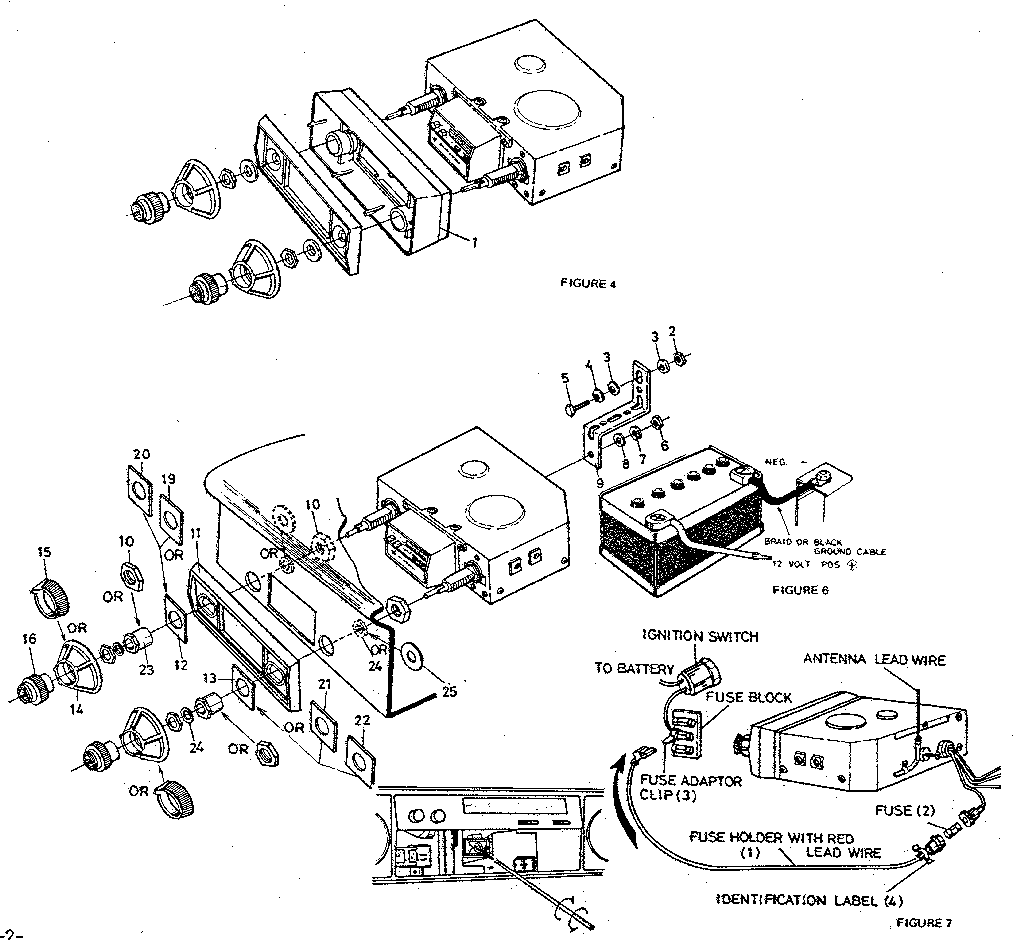

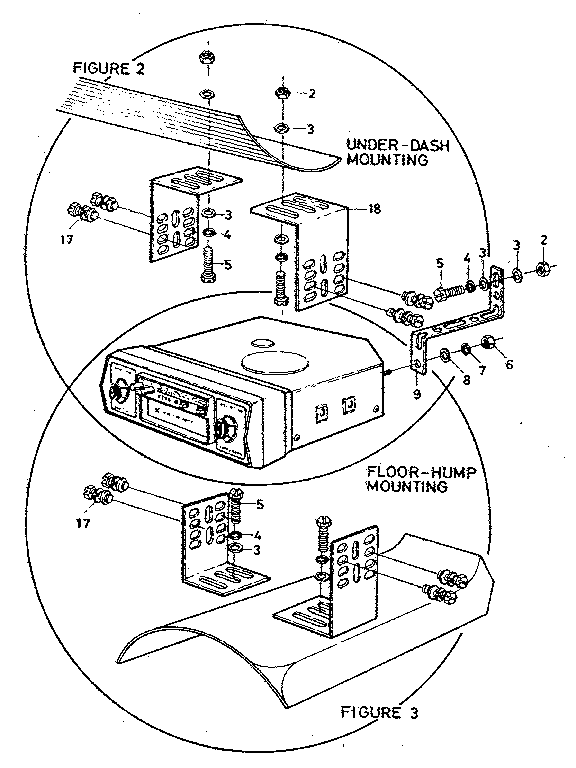

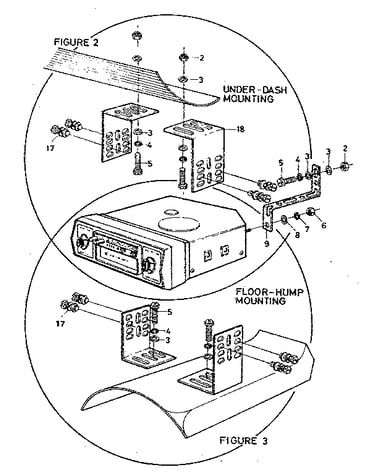

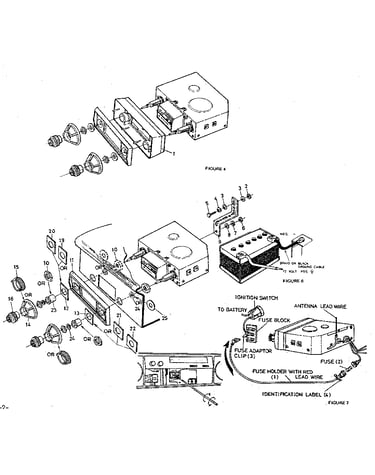

Unit diagram

Spec. washer

Part #4-4031

The manufacturer no longer makes this part, and there's no substitute part

Marking Plt 4-3688
#13

Unit diagram

Marking plt

Part #4-3688

The manufacturer no longer makes this part, and there's no substitute part

Cabnt Btm 4-4134
#17

Cabinet & chassis diagram

Cabnt btm

Part #4-4134

The manufacturer no longer makes this part, and there's no substitute part

Fixr Ant 4-4130
#9

Cabinet & chassis diagram

Fixr ant

Part #4-4130

The manufacturer no longer makes this part, and there's no substitute part

Tape Head 4-3534
#29

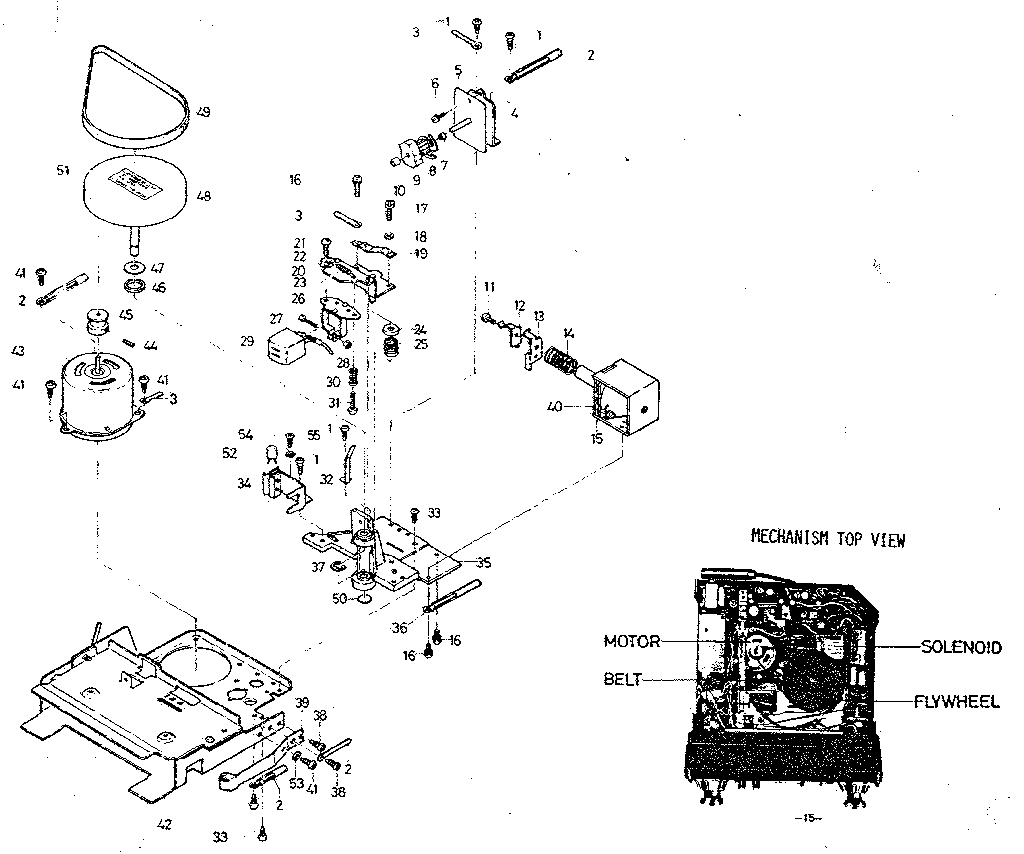

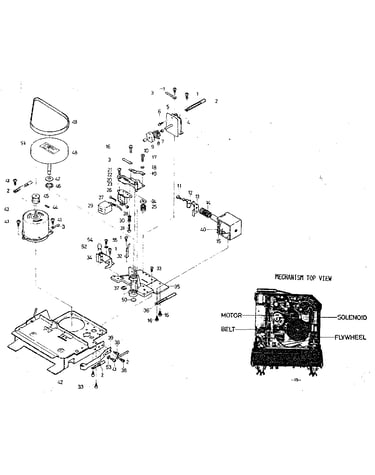

Mechanism diagram

Tape head

Part #4-3534

The manufacturer no longer makes this part, and there's no substitute part

Pcb Bracket 4-4132
#14

Cabinet & chassis diagram

Pcb bracket

Part #4-4132

The manufacturer no longer makes this part, and there's no substitute part

Star 3mm 4-39
#54

Mechanism diagram

Star 3mm

Part #4-39

The manufacturer no longer makes this part, and there's no substitute part

Vr Res Bal 4-4154
#80

Cabinet & chassis diagram

Vr res bal

Part #4-4154

The manufacturer no longer makes this part, and there's no substitute part
