Kenmore
Gas Water Heater

Model # 153336270 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153336270 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Water Heater Manifold Door Gasket 9006141
#9

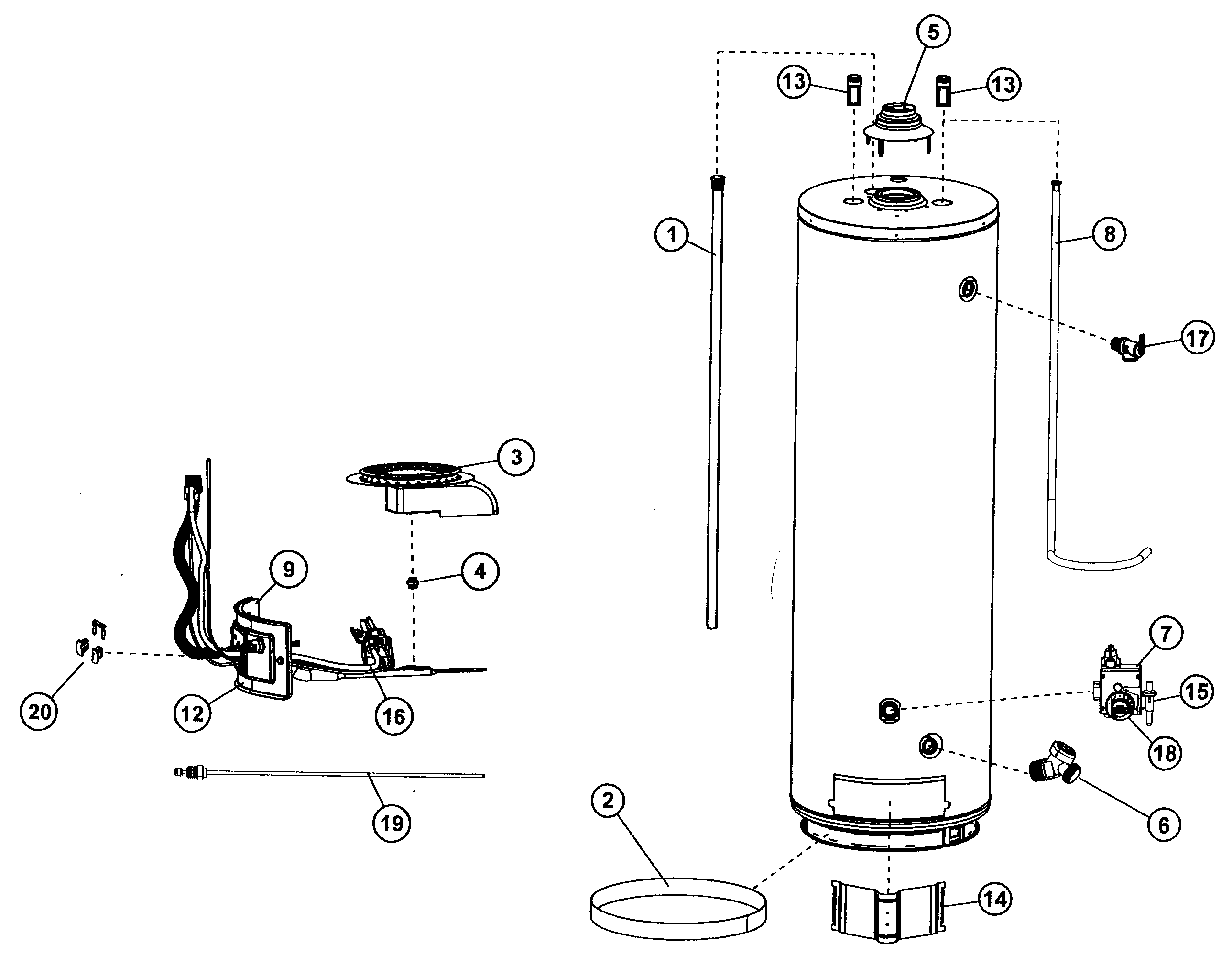

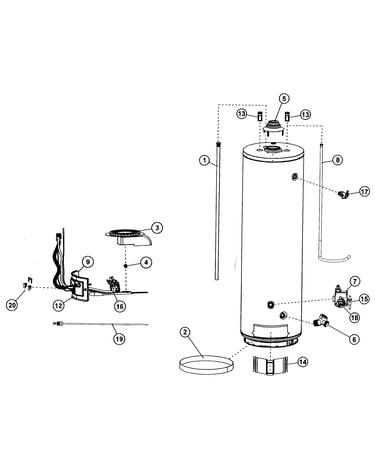

Water heater diagram

Water heater manifold door gasket

Part #9006141

This item is not returnable
$25.47 |
19% OFF Phone Price : $31.47
In Stock
Water Heater Burner 9006136
#3

Water heater diagram

Water heater burner

Part #9006136

$23.89 |
20% OFF Phone Price : $29.89
In Stock
Water Heater Pilot Assembly 9006666
#16

Water heater diagram

Water heater pilot assembly

Part #9006666

Replaced by #100111380

?
Manufacturer substitution
This part replaces 9006666. Substitute parts can look different from the original.
$53.33
In Stock
Water Heater Pilot Igniter 9006143
#15

Water heater diagram

Water heater pilot igniter

Part #9006143

Replaced by #100110936

?
Manufacturer substitution
This part replaces 9006143. Substitute parts can look different from the original.
$32.22
In Stock
Control Valve F145-1554
#7

Water heater diagram

Control valve

Part #F145-1554

The manufacturer no longer makes this part, and there's no substitute part

Orifice 9006698
#4

Water heater diagram

Orifice

Part #9006698

Replaced by #100111409

?
Manufacturer substitution
This part replaces 9006698. Substitute parts can look different from the original.
$22.86
In Stock
Water Heater Burner Access Door 9006648
#14

Water heater diagram

Water heater burner access door

Part #9006648

Replaced by #100111363

?
Manufacturer substitution
This part replaces 9006648. Substitute parts can look different from the original.
$35.56
In Stock
Filter Base 9006660
#2

Water heater diagram

Filter base

Part #9006660

Replaced by #100111375

?
Manufacturer substitution
This part replaces 9006660. Substitute parts can look different from the original.
$34.44
In Stock
Water Heater Water Line Connector 9003719
#13

Water heater diagram

Water heater water line connector

Part #9003719

Replaced by #100108381

?
Manufacturer substitution
This part replaces 9003719. Substitute parts can look different from the original.
$22.86
In Stock
Water Heater Vent Draft Hood (replaces 185917-002, 700795-020) 9006647
#5

Water heater diagram

Water heater vent draft hood (replaces 185917-002, 700795-020)

Part #9006647

Replaced by #100111362

?
Manufacturer substitution
This part replaces 9006647. Substitute parts can look different from the original.
$34.44
In Stock
