Model # NF80D090T4B52 Official GE gas furnace
Here are the diagrams and repair parts for Official GE NF80D090T4B52 gas furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
NF80D090T4B52 Gas Furnace
#60
Cabinet (2) diagram
102907-01 roll out switch (210f)
Part #71W49
$37.07
Back Order
#290

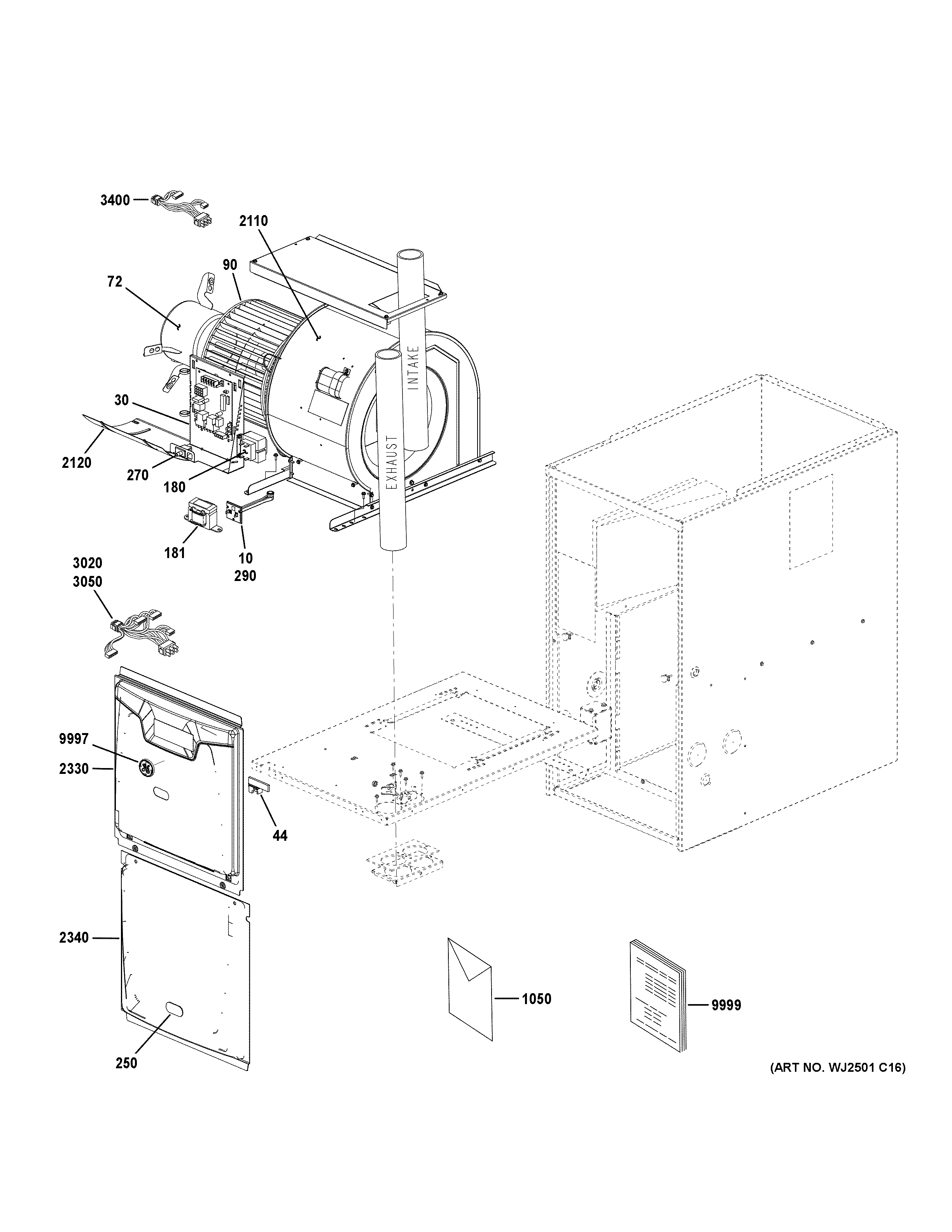

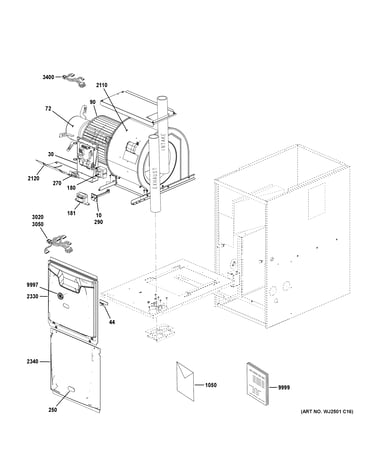

Cabinet (1) diagram
Control-limit (au x ) 135f 69m3801
Part #69M38
$78.05
In Stock
#4
Cabinet (2) diagram
102906-02 orifice-lp .034
Part #71W48
$47.69
In Stock
#181
Cabinet (1) diagram
104007-01 transformer power choke
Part #10Y66
$35.27
In Stock
#180
Cabinet (1) diagram
42j3201 transformer
Part #42J32
$32.84
In Stock
#23
Cabinet (2) diagram
102737-11 switch-pressure 2 stg(.30/.60)
Part #91W53
$68.49
In Stock
#7

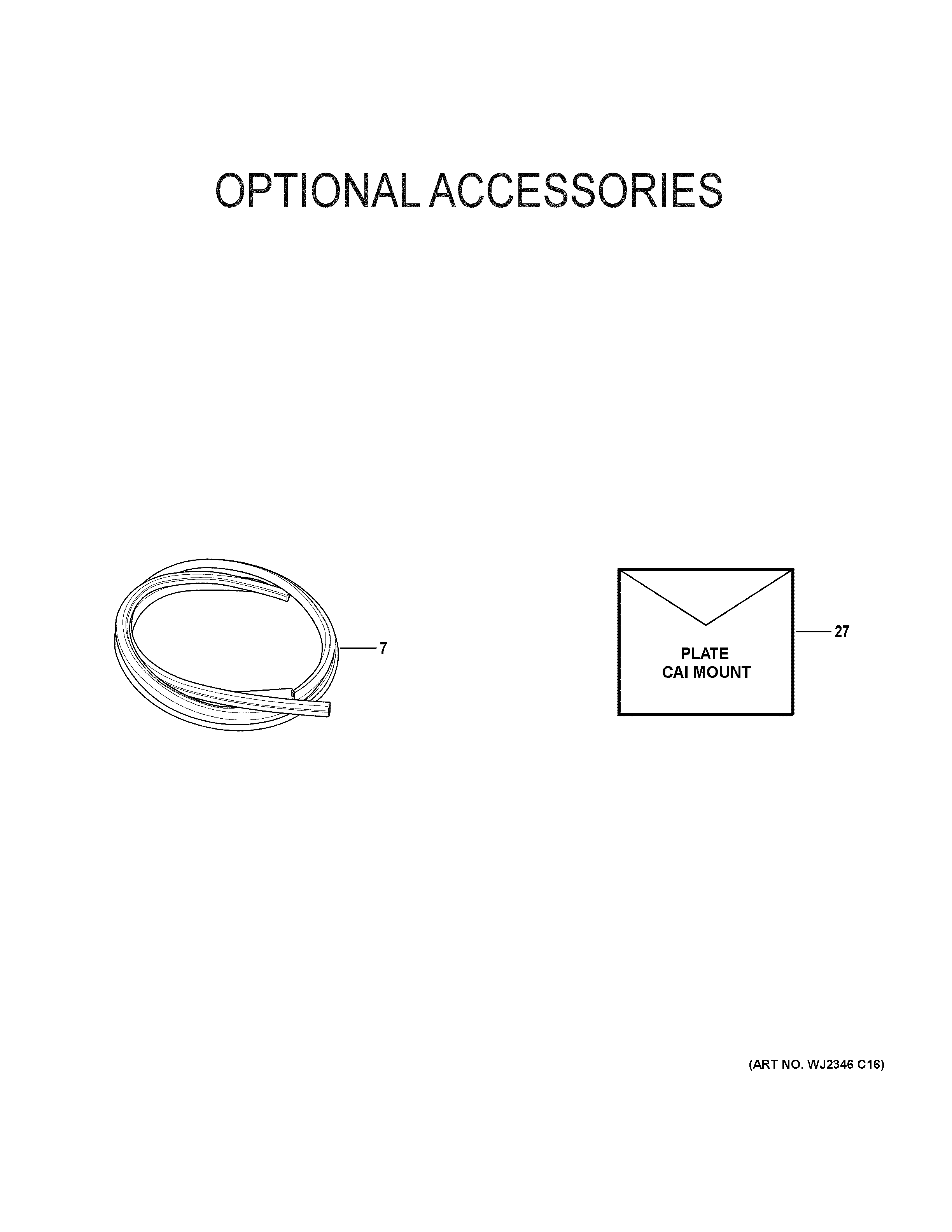

Optional accessories diagram
Lb-97803a tubing-pressure switch
Part #98L78
$68.31
In Stock
#210
Cabinet (2) diagram
Lb-74940b flame sensor kit (102431-02)
Part #69W43
$75.07
In Stock
#50
Cabinet (2) diagram
Lb-94724p blower-comb / inducer
Part #70W38
$306.84
In Stock
#20
Cabinet (2) diagram
102737-09 switch-pressure 2 stg(.55/.25)
Part #73W35
$69.87
In Stock
