Amana
Countertop Microwave

Model # LP83620.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana LP83620A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Screw Thermal Protector Mounting M1D666
#45B

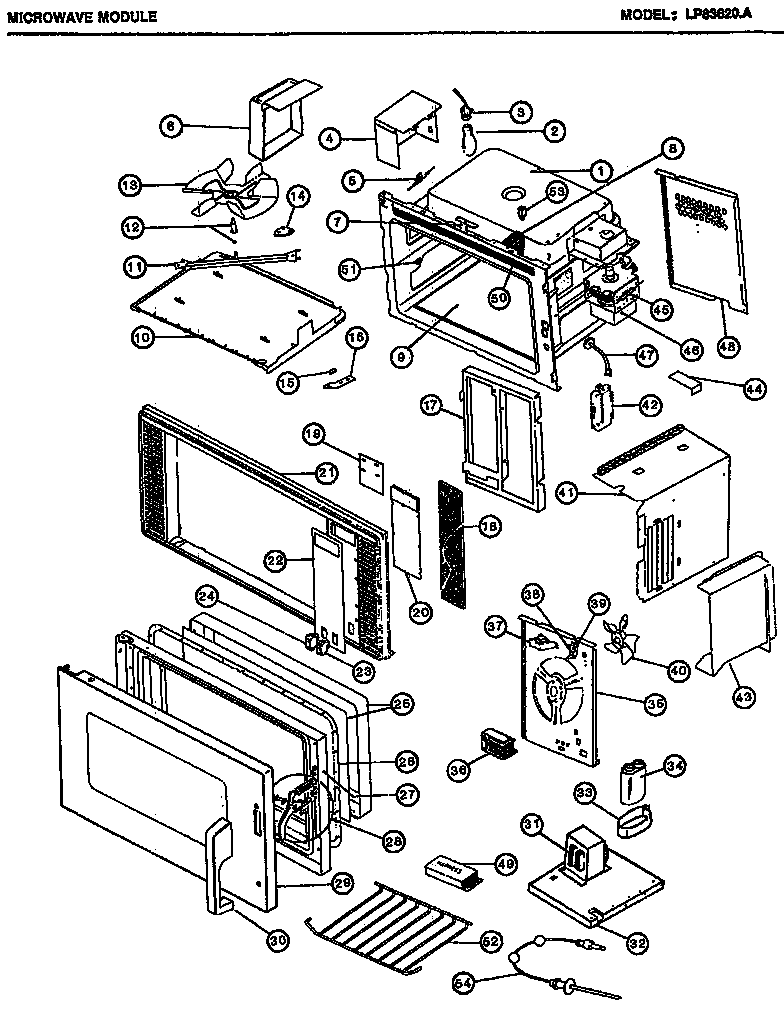

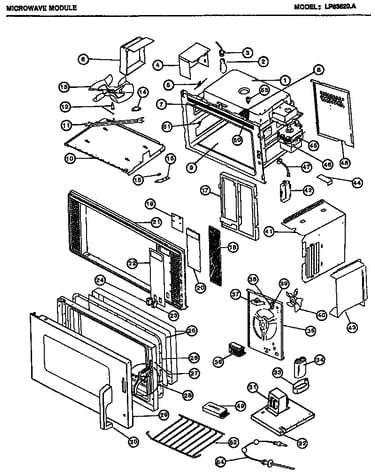

Microwave module diagram

Screw thermal protector mounting

Part #M1D666

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket M5D356
#3

Microwave module diagram

Lamp socket

Part #M5D356

The manufacturer no longer makes this part, and there's no substitute part

9-pin Receptacle Connector M5D399
#49E

Microwave module diagram

9-pin receptacle connector

Part #M5D399

The manufacturer no longer makes this part, and there's no substitute part

Filter, Top Grille M48D32
#6

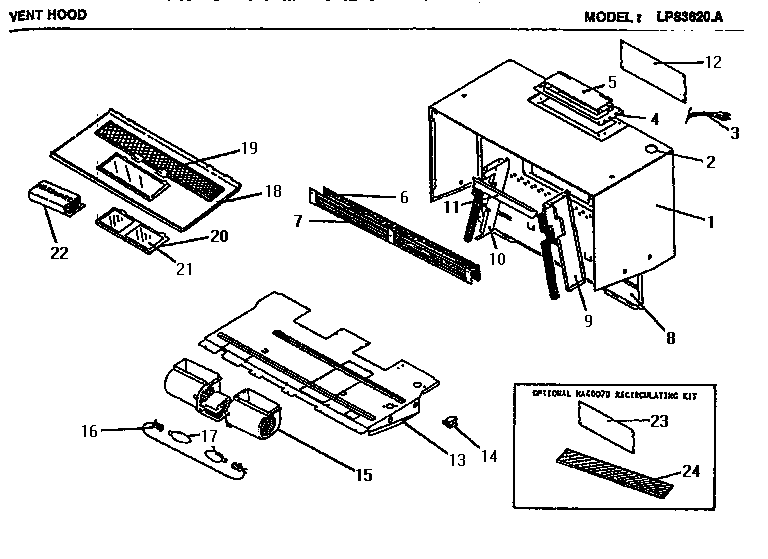

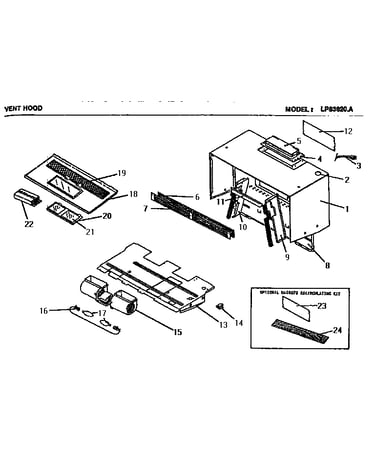

Vent hood diagram

Filter, top grille

Part #M48D32

The manufacturer no longer makes this part, and there's no substitute part

Insert Stirrer (includes Bearing) M2D571
#12A

Microwave module diagram

Insert stirrer (includes bearing)

Part #M2D571

The manufacturer no longer makes this part, and there's no substitute part

Ground Lead Kit M5D351
#49C

Microwave module diagram

Ground lead kit

Part #M5D351

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions M94D592

#NI

All parts diagram

Installation instructions

Part #M94D592

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle, Foam M2D772
#8

Microwave module diagram

Air baffle, foam

Part #M2D772

The manufacturer no longer makes this part, and there's no substitute part

Light Switch/ W Diode M14D309
#24

Microwave module diagram

Light switch/ w diode

Part #M14D309

The manufacturer no longer makes this part, and there's no substitute part

Interlock Switch Module M14D305
#42A

Microwave module diagram

Interlock switch module

Part #M14D305

The manufacturer no longer makes this part, and there's no substitute part
