Hotpoint
Top-Mount Refrigerator

Model # CTX20EFCR Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTX20EFCR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

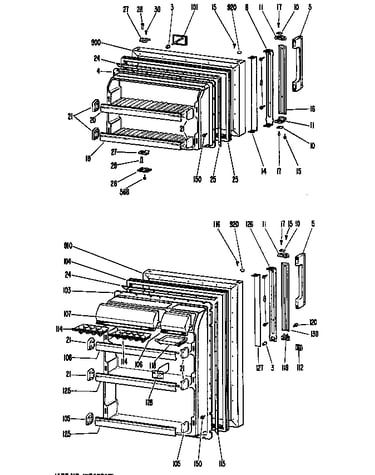

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Refrigerator Thermostat WR50X36
#620

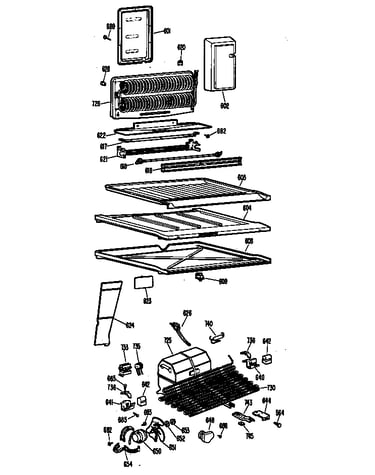

Unit diagram

Refrigerator thermostat

Part #WR50X36

Replaced by #WR50X60

?
Manufacturer substitution
This part replaces WR50X36. Substitute parts can look different from the original.
$12.22 |
14% OFF Phone Price : $14.22
In Stock
Refrigerator Fan Blade WR2X3198
#613A

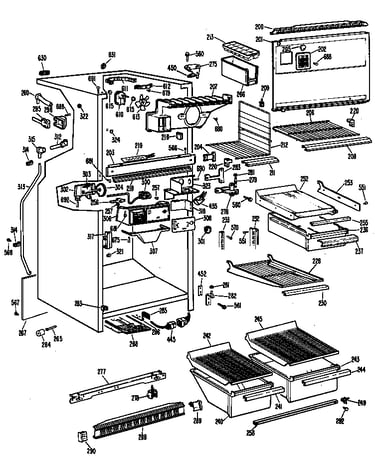

Chassis diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Screw, 2-pack WR1X1466
#690

Chassis diagram

Refrigerator screw, 2-pack

Part #WR1X1466

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Crisper Drawer Cover WR32X5206
#242

Chassis diagram

Refrigerator crisper drawer cover

Part #WR32X5206

$57.18 |
9% OFF Phone Price : $63.18
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Condenser Fan Motor WR60X156
#650

Unit diagram

Condenser fan motor

Part #WR60X156

Replaced by #WR60X177

?
Manufacturer substitution
This part replaces WR60X156. Substitute parts can look different from the original.
$159.18 |
7% OFF Phone Price : $171.18
In Stock
Refrigerator Ice Tray WR30X5101
#213

Chassis diagram

Refrigerator ice tray

Part #WR30X5101

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X5101. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
O D Panel Ff WR78X7438

#NI

All parts diagram

O d panel ff

Part #WR78X7438

$77.49
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Chassis diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Screw WR1X1596
#685

Unit diagram

Refrigerator screw

Part #WR1X1596

This item is not returnable
$2.49
In Stock
