Model # 113179345 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179345 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Hose Clamp 826881
#29

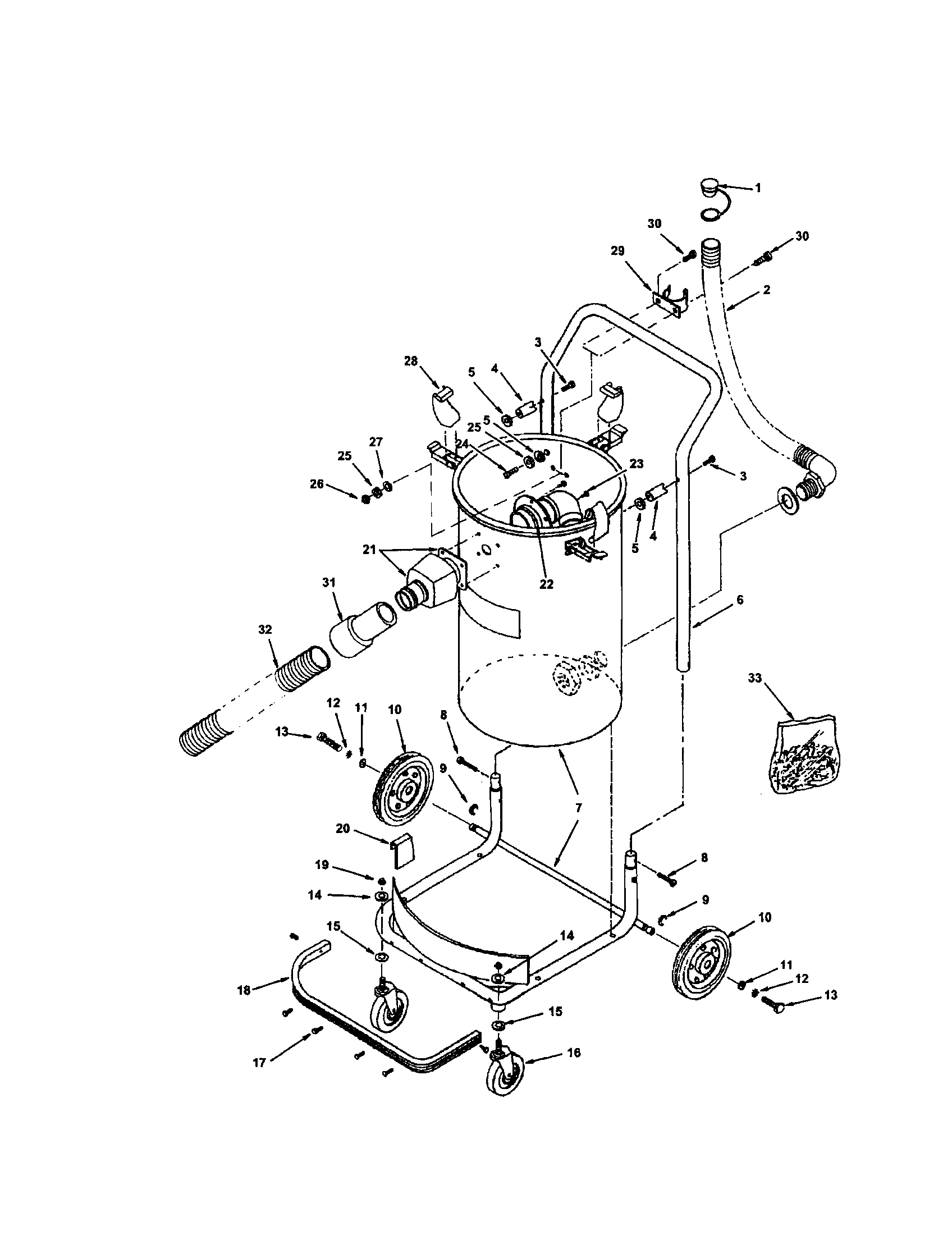

Drum and chassis diagram

Hose clamp

Part #826881

The manufacturer no longer makes this part, and there's no substitute part

Float Gskt 827420
#32

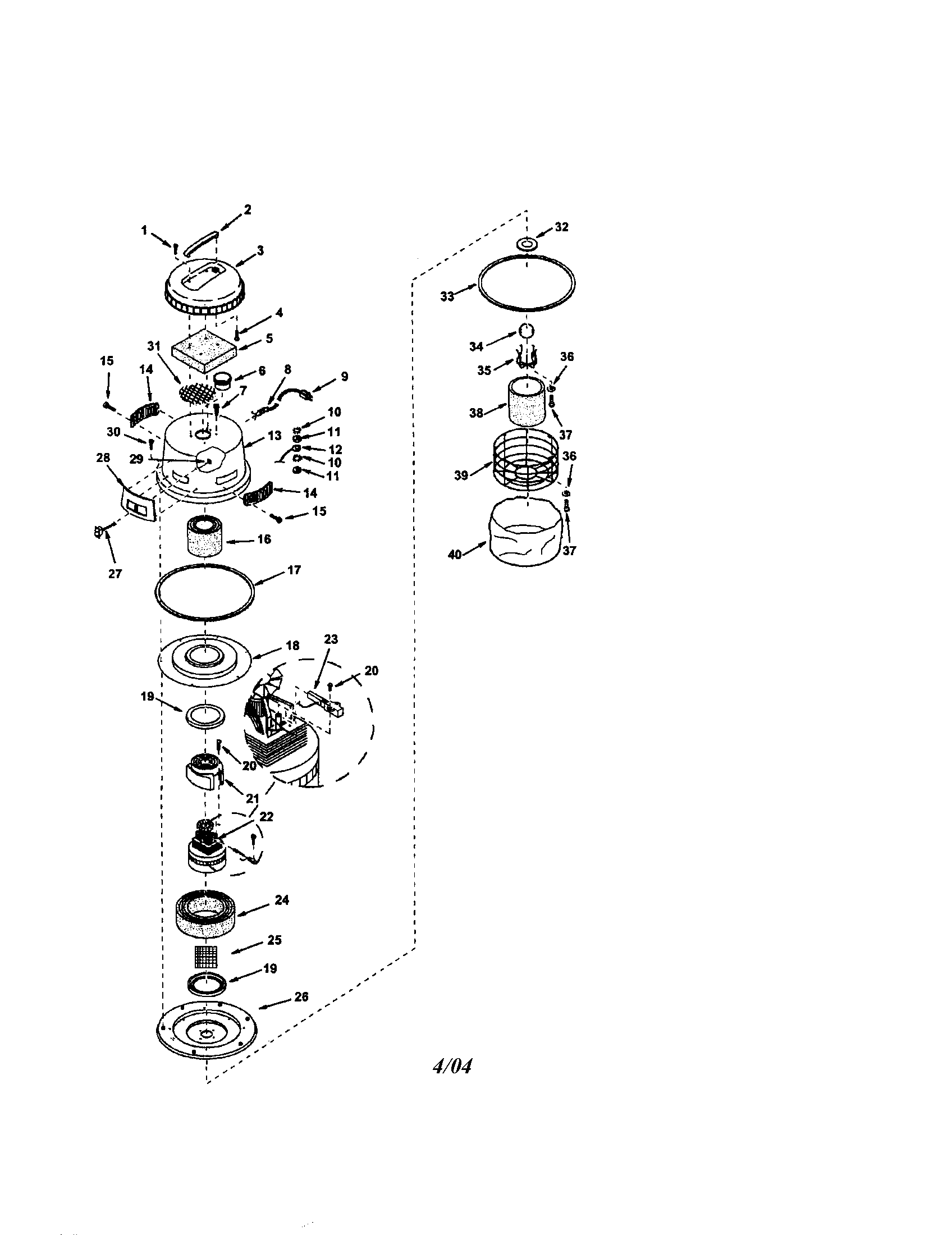

Motor/motor cover diagram

Float gskt

Part #827420

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover 826893
#2

Motor/motor cover diagram

Handle cover

Part #826893

The manufacturer no longer makes this part, and there's no substitute part

Blower Gd 827425
#25

Motor/motor cover diagram

Blower gd

Part #827425

The manufacturer no longer makes this part, and there's no substitute part

Screw 805512
#8

Drum and chassis diagram

Screw

Part #805512

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Cart Handle 827440
#6

Drum and chassis diagram

Craftsman cart handle

Part #827440

The manufacturer no longer makes this part, and there's no substitute part

Frt Caster 827437
#16

Drum and chassis diagram

Frt caster

Part #827437

The manufacturer no longer makes this part, and there's no substitute part

Screw Ty Ab 826896
#1

Motor/motor cover diagram

Screw ty ab

Part #826896

The manufacturer no longer makes this part, and there's no substitute part

Grommet 827401
#6

Motor/motor cover diagram

Grommet

Part #827401

The manufacturer no longer makes this part, and there's no substitute part

Gasket Motor 827415
#19

Motor/motor cover diagram

Gasket motor

Part #827415

The manufacturer no longer makes this part, and there's no substitute part
