Kenmore
Charcoal Grill

Model # 2582308280 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582308280 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Rotissorie 10004-657
#129

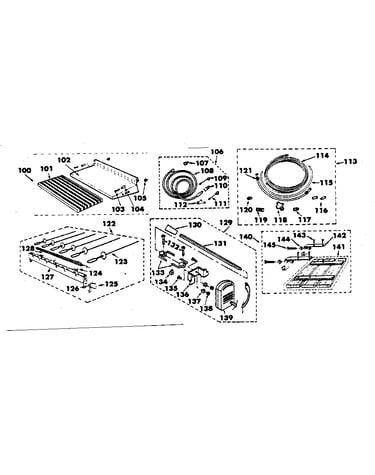

Optional accessories diagram

Rotissorie

Part #10004-657

The manufacturer no longer makes this part, and there's no substitute part

Tank 10930-12
#64

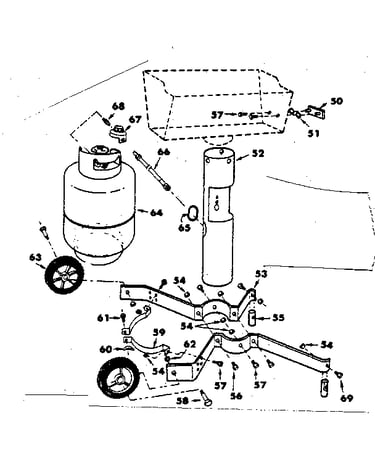

Cart section diagram

Tank

Part #10930-12

The manufacturer no longer makes this part, and there's no substitute part

Shiskabob 7720
#122

Optional accessories diagram

Shiskabob

Part #7720

The manufacturer no longer makes this part, and there's no substitute part

Drive Assembly 7540-2
#128

Optional accessories diagram

Drive assembly

Part #7540-2

The manufacturer no longer makes this part, and there's no substitute part

Shelf Kit 10004-637
#140

Optional accessories diagram

Shelf kit

Part #10004-637

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-37
#141

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Union 10109-3
#119

Optional accessories diagram

Union

Part #10109-3

The manufacturer no longer makes this part, and there's no substitute part

Bracket 10184-154
#59

Cart section diagram

Bracket

Part #10184-154

The manufacturer no longer makes this part, and there's no substitute part

Liquid Propane Valve 10691-66
#15

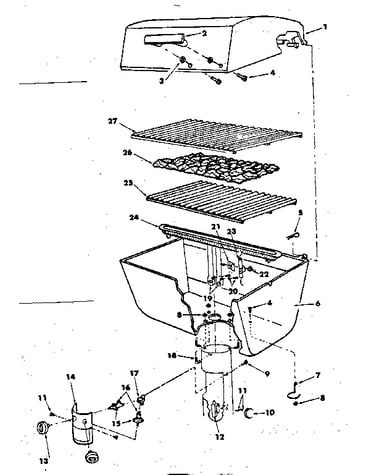

Grill and burner section diagram

Liquid propane valve

Part #10691-66

The manufacturer no longer makes this part, and there's no substitute part

Bracket 10164-38
#21

Grill and burner section diagram

Bracket

Part #10164-38

The manufacturer no longer makes this part, and there's no substitute part
