Model # AGN24DAM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGN24DAM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Inlet Grille WJ71X10180
#202

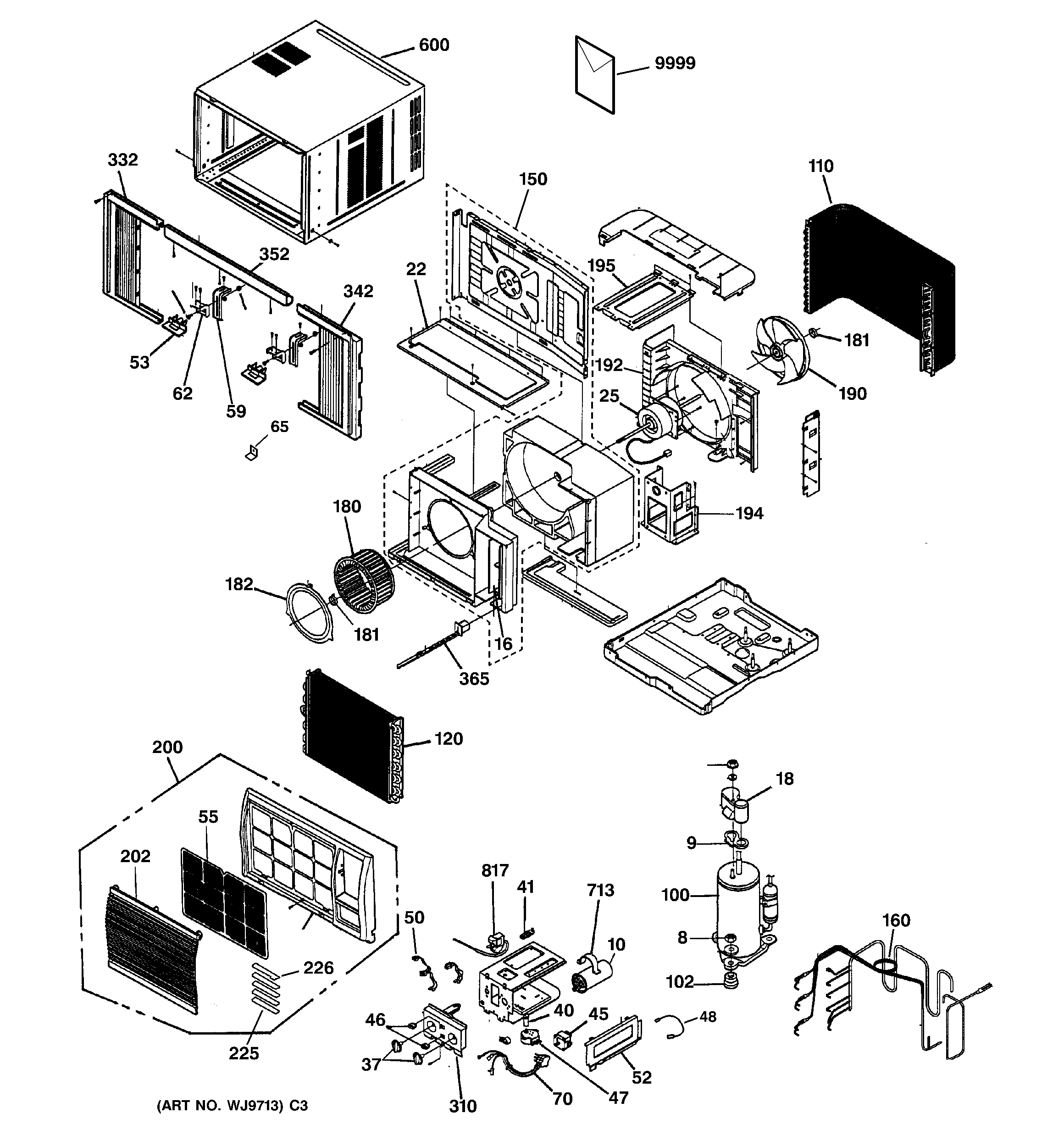

Room air conditioner diagram

Inlet grille

Part #WJ71X10180

$19.99
In Stock
Agm14 + Use/ 49-7429
#9999

Room air conditioner diagram

Agm14 + use/

Part #49-7429

$17.99
In Stock
Control Panel WJ07X10054
#310

Room air conditioner diagram

Control panel

Part #WJ07X10054

The manufacturer no longer makes this part, and there's no substitute part

Damper Lever WJ14X10024
#365

Room air conditioner diagram

Damper lever

Part #WJ14X10024

The manufacturer no longer makes this part, and there's no substitute part

Bracket WJ01X10145
#65

Room air conditioner diagram

Bracket

Part #WJ01X10145

The manufacturer no longer makes this part, and there's no substitute part

Guide Frame WJ05X10024
#53

Room air conditioner diagram

Guide frame

Part #WJ05X10024

The manufacturer no longer makes this part, and there's no substitute part

Cabinet - Outer Panel WJ90X10028
#600

Room air conditioner diagram

Cabinet - outer panel

Part #WJ90X10028

The manufacturer no longer makes this part, and there's no substitute part

Fan Frame WJ76X10078
#192

Room air conditioner diagram

Fan frame

Part #WJ76X10078

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ37X10016
#10

Room air conditioner diagram

Capacitor

Part #WJ37X10016

The manufacturer no longer makes this part, and there's no substitute part

Bracket Washer WJ01X10126
#8

Room air conditioner diagram

Bracket washer

Part #WJ01X10126

The manufacturer no longer makes this part, and there's no substitute part
