Amana
Side-By-Side Refrigerator

Model # SPD22NL-P1181306WL Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana SPD22NL-P1181306WL side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

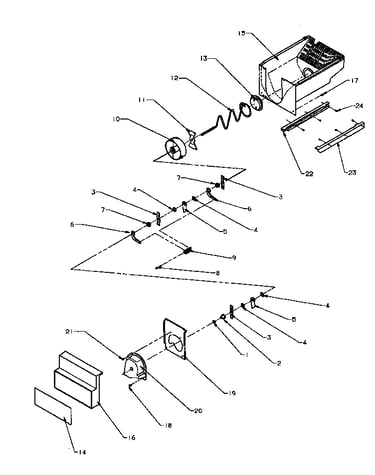

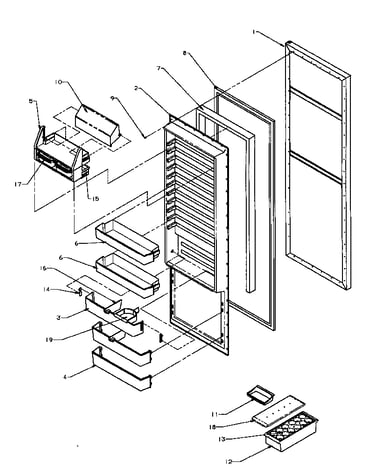

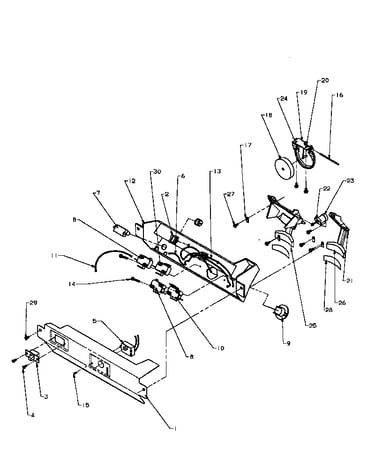

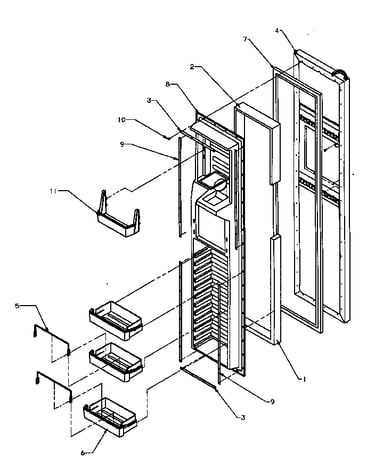

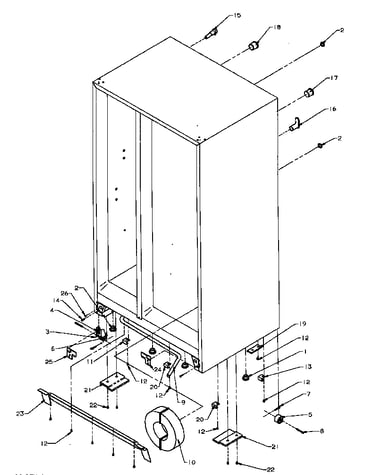

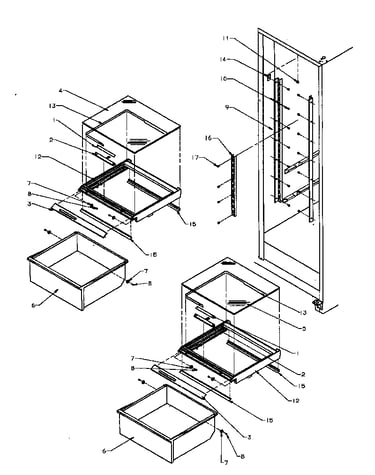

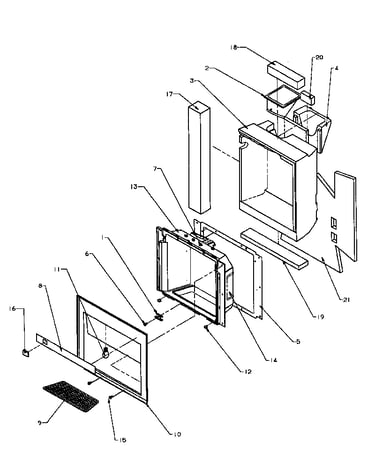

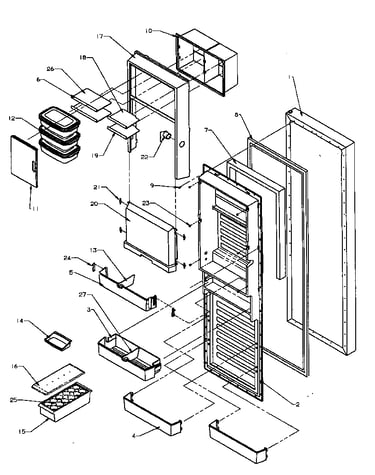

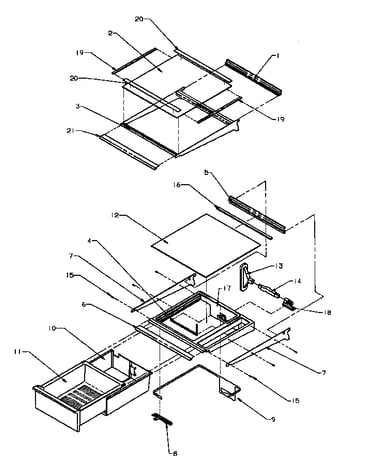

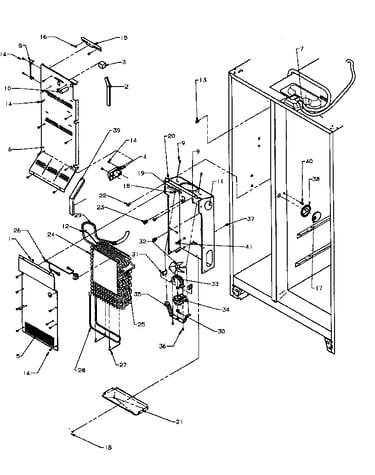

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 424 parts  |

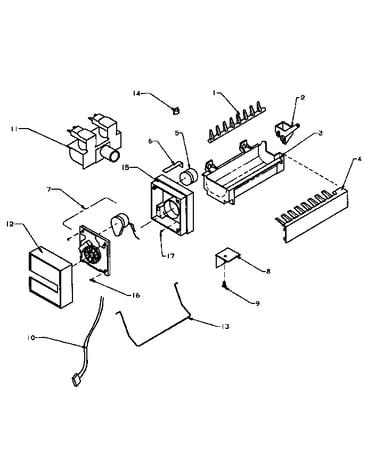

Refrigerator Ice Maker (red) D7824702
Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

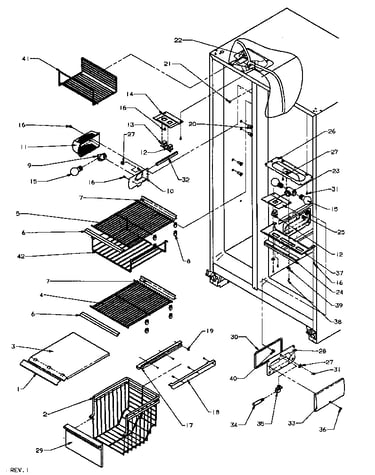

Freezer shelving & refrigerator light (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#12

Freezer shelving & refrigerator light (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Capacitor C8931605
#13

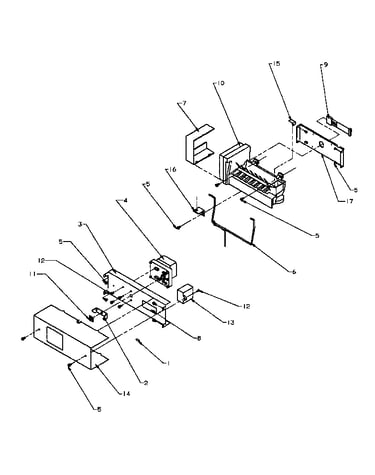

Ice maker (not a warranted item) (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator capacitor

Part #C8931605

Replaced by #W10613606

?
Manufacturer substitution
This part replaces C8931605. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Drier B2150503
#25

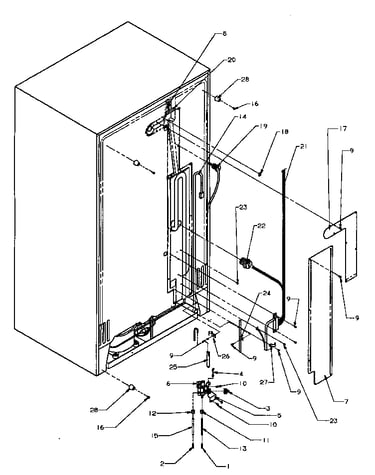

Cabinet back (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator drier

Part #B2150503

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150503. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Condenser Motor 10448603
#24A

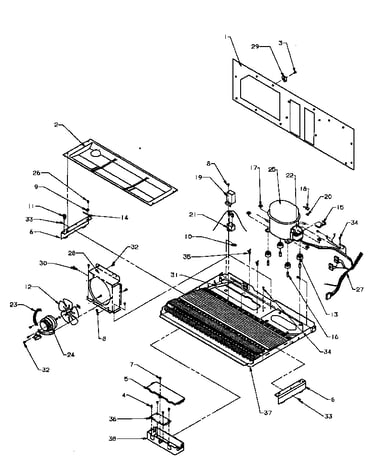

Machine compartment (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator condenser motor

Part #10448603

The manufacturer no longer makes this part, and there's no substitute part

Fitting M0753001
#11

Cabinet back (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tubing B5705321
Refrigerator tubing

Part #B5705321

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705321. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Tubing B5705320
#6

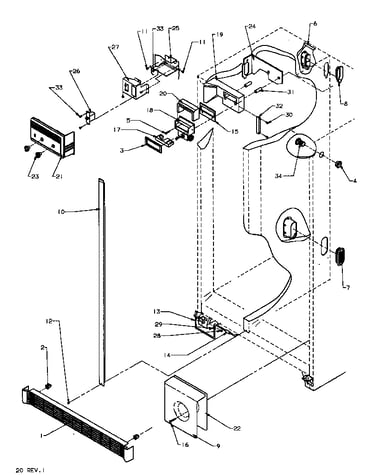

Refrigerator/freezer controls & cabinet parts (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator tubing

Part #B5705320

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705320. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Dispenser Water Tube B5705308
#2

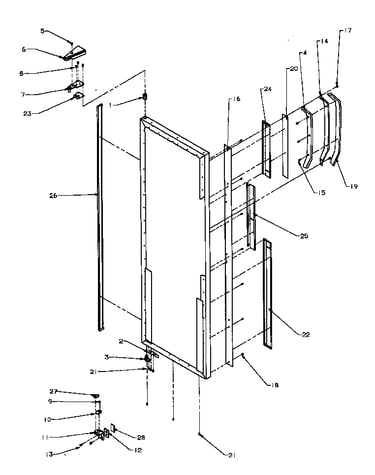

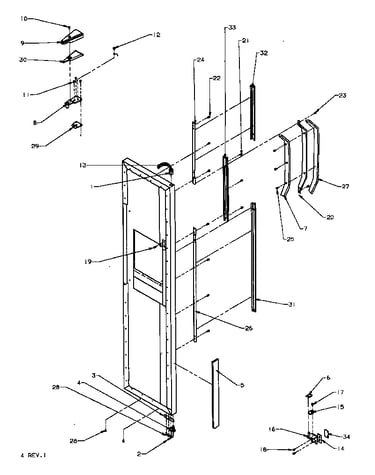

Freezer door hinge & trim parts (spd22nl/p1181306wl) (spd22nw/p1181306ww) diagram

Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
