Model # RGBS300DM1BB Official Hotpoint gas freestanding range

Here are the diagrams and repair parts for Official Hotpoint RGBS300DM1BB gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Bake Burner Ignition WB13K0021
#218

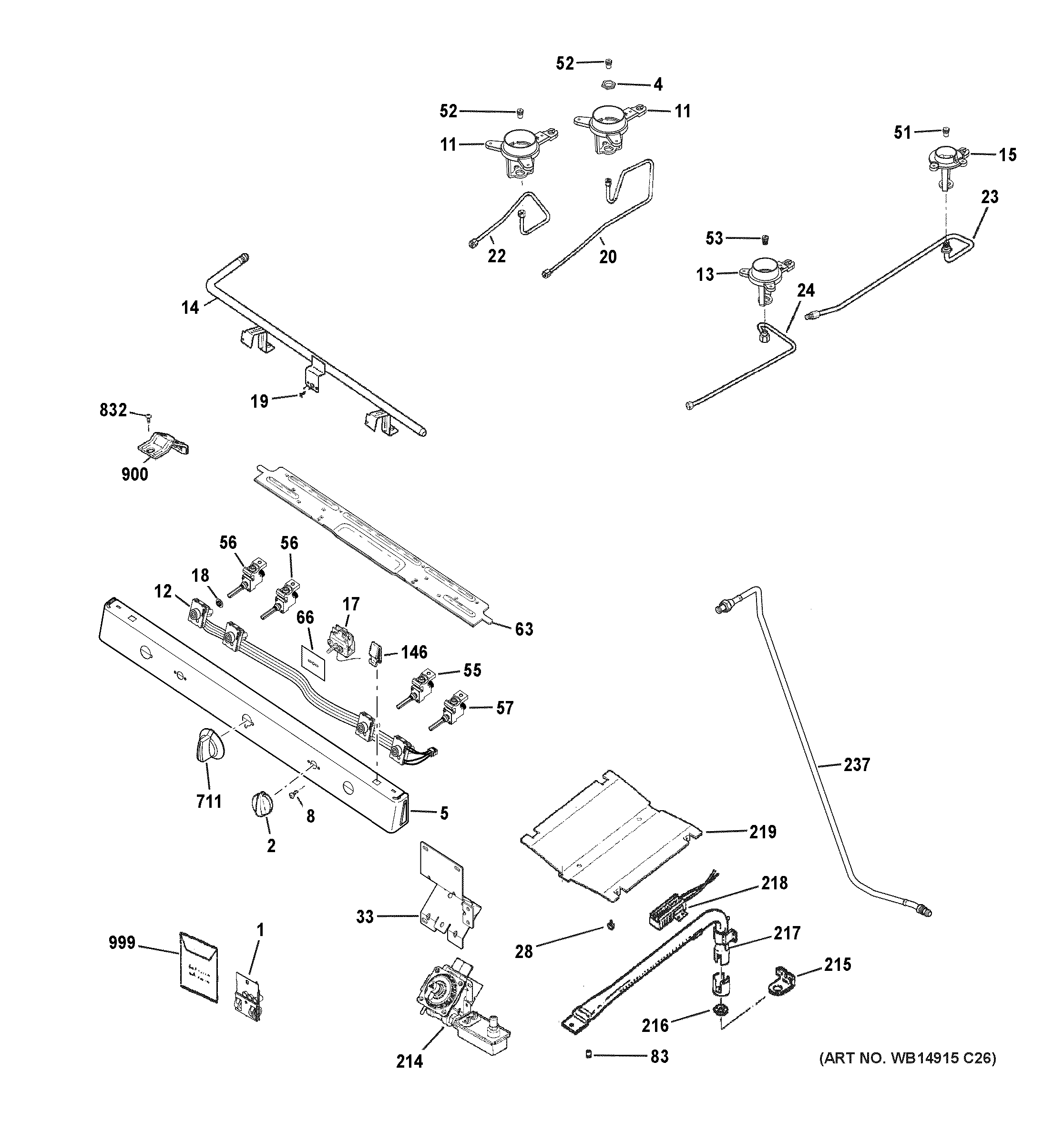

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
Range Screw WB01X24735
#122

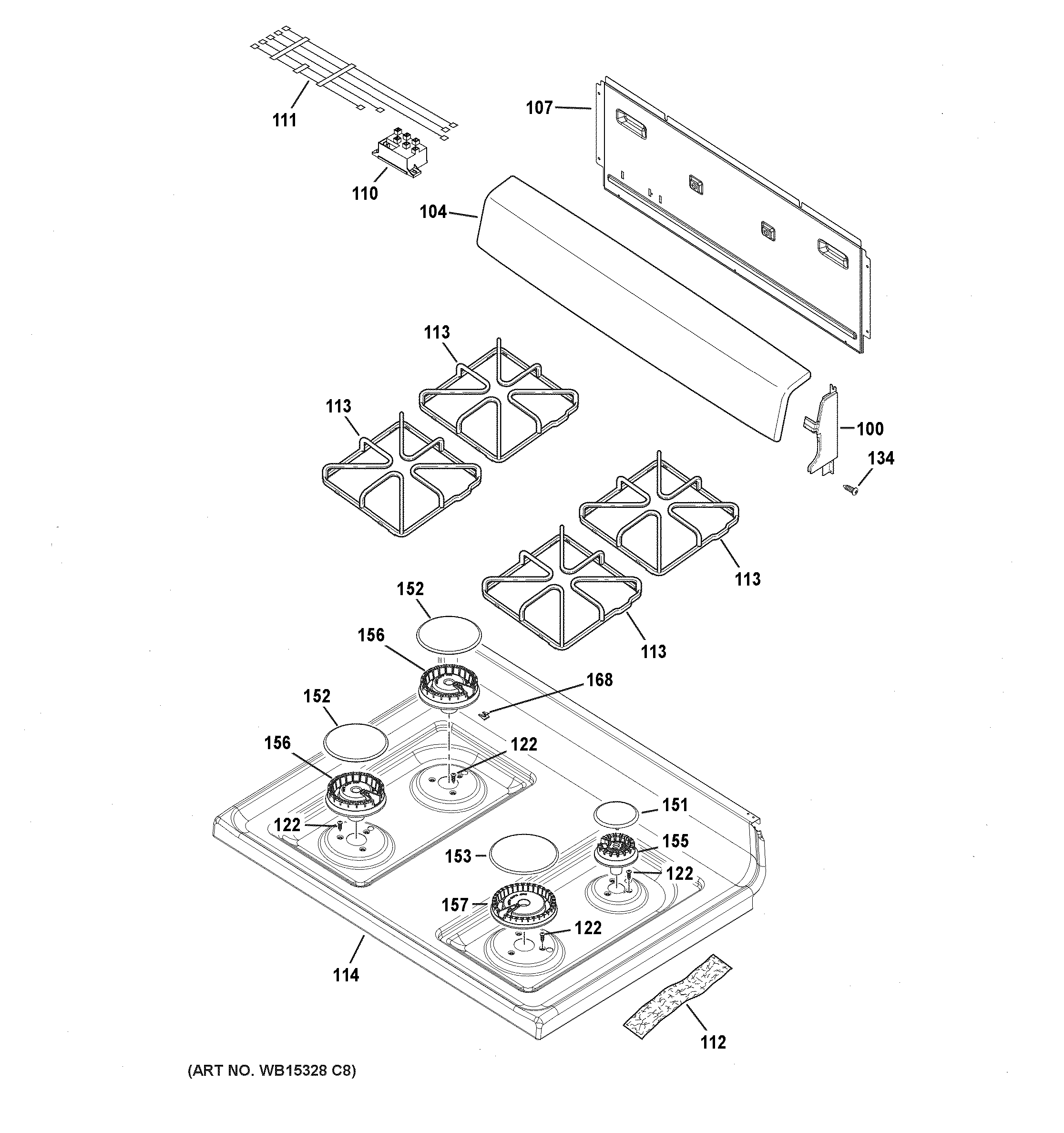

Control panel & cooktop diagram

Range screw

Part #WB01X24735

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket (replaces Wb35x21191, Wb35x29721) WB35X29720
#318

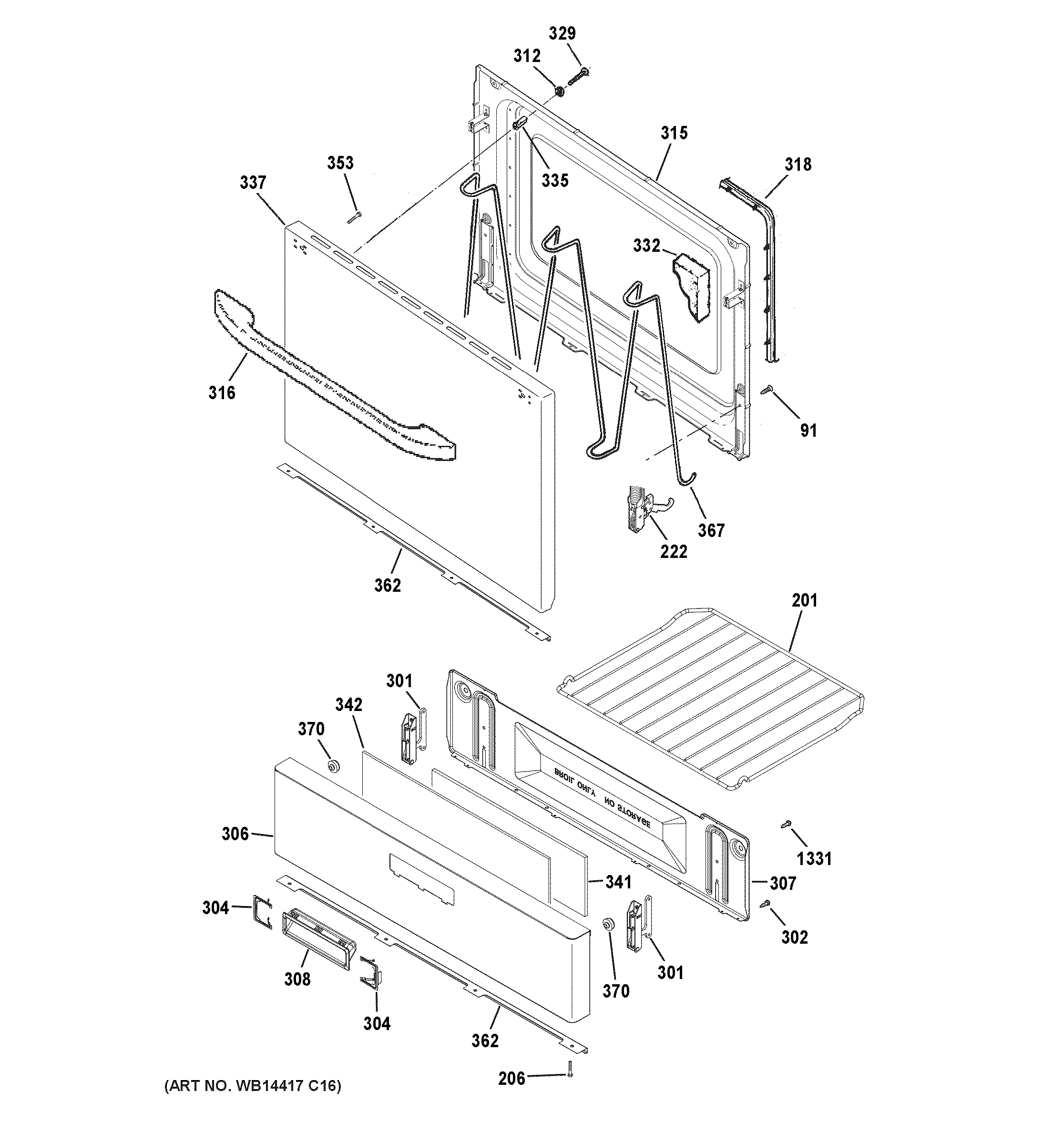

Door & drawer parts diagram

Range oven door gasket (replaces wb35x21191, wb35x29721)

Part #WB35X29720

$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Surface Burner, Medium WB16X24724
#156

Control panel & cooktop diagram

Range surface burner, medium

Part #WB16X24724

This item is not returnable
$24.26 |
20% OFF Phone Price : $30.26
In Stock
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Spark Module WB13X24323
#110

Control panel & cooktop diagram

Range spark module

Part #WB13X24323

$21.96 |
21% OFF Phone Price : $27.96
In Stock
Range Oven Door Hinge Receiver WB10X20220
#1330

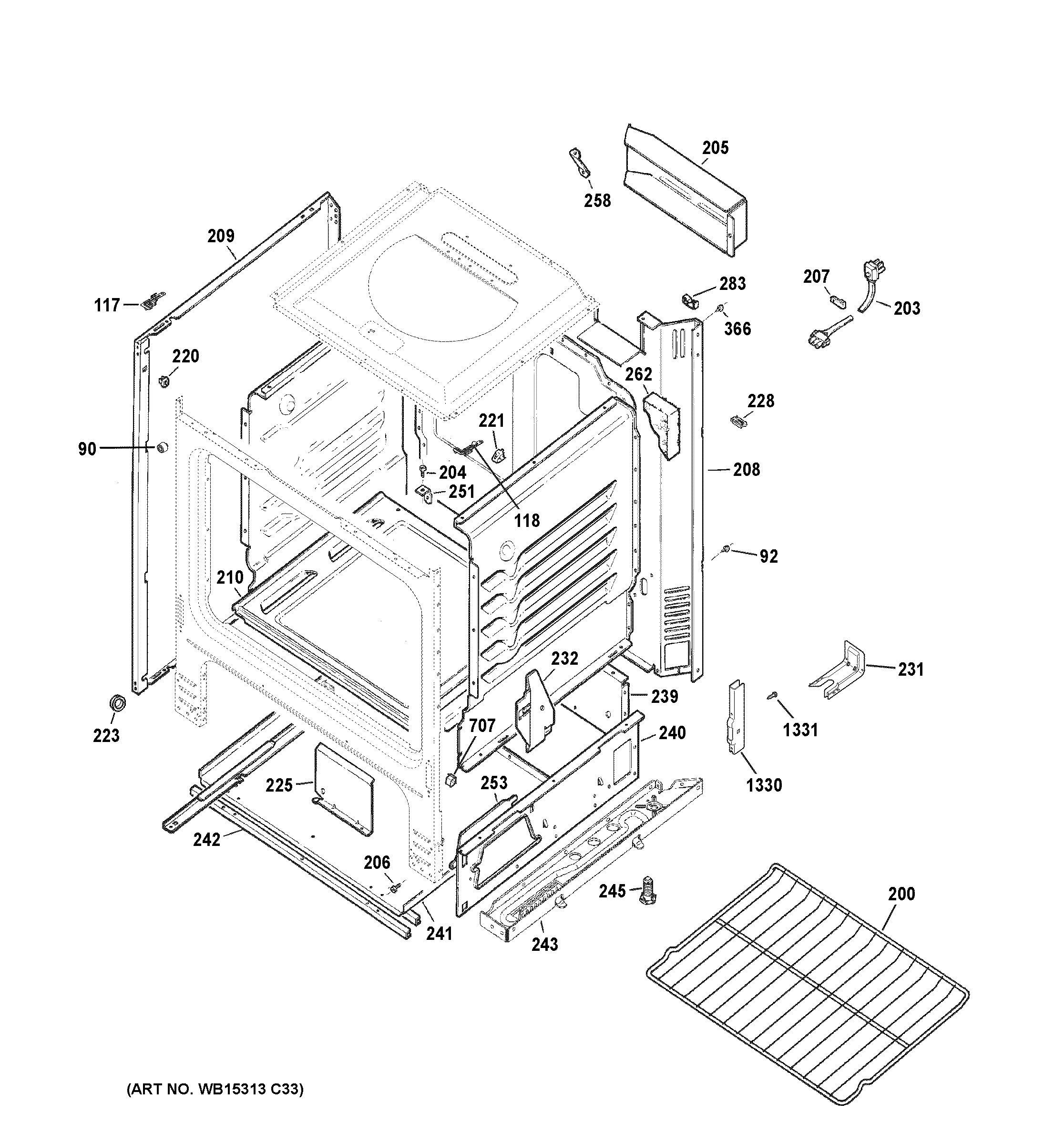

Body parts diagram

Range oven door hinge receiver

Part #WB10X20220

This item is not returnable
$7.84 |
11% OFF Phone Price : $8.84
In Stock
Range Surface Burner Orifice WB28K10023
#52

Gas & burner parts diagram

Range surface burner orifice

Part #WB28K10023

This item is not returnable
$11.67 |
15% OFF Phone Price : $13.67
In Stock
Range Nut WB01K10037
#4

Gas & burner parts diagram

Range nut

Part #WB01K10037

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner, 12,000-btu WB16X24723
#157

Control panel & cooktop diagram

Range surface burner, 12,000-btu

Part #WB16X24723

This item is not returnable
$25.64 |
19% OFF Phone Price : $31.64
In Stock
