Model # DPXH46EA3WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DPXH46EA3WW electric dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

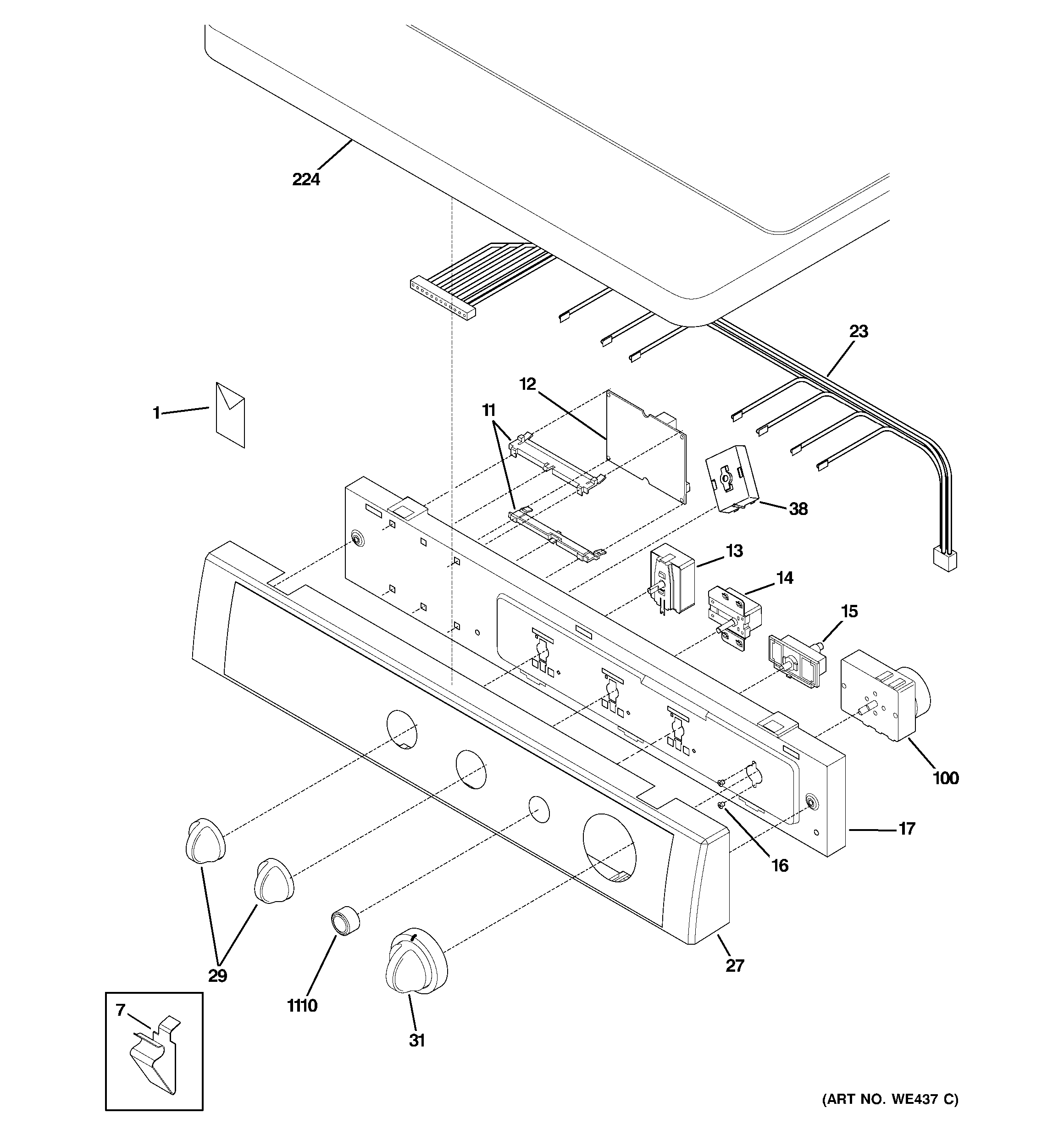

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DPXH46EA3WW Electric Dryer
Dryer Drum Felt Seal, Upper WE09X10013
#1220

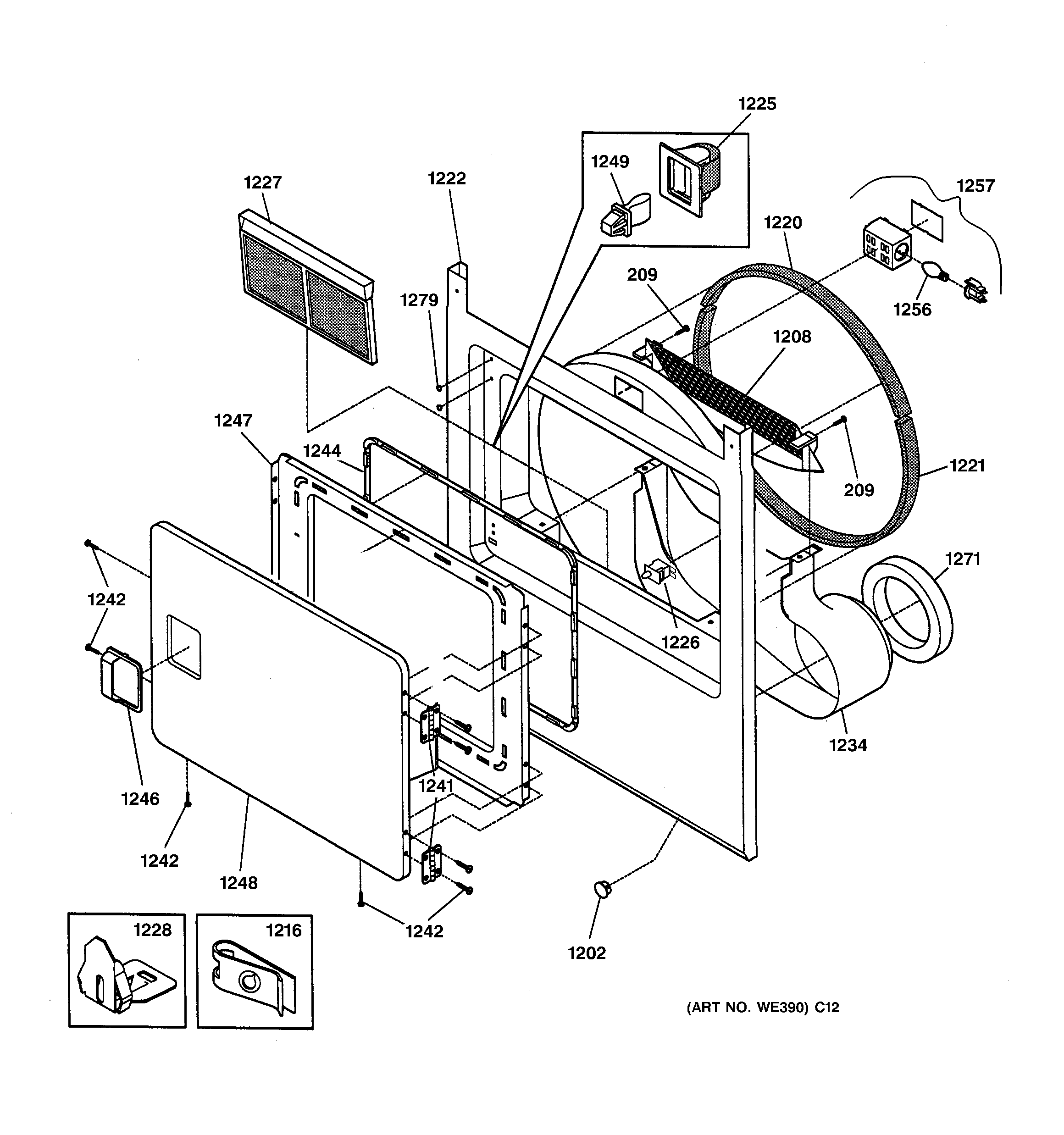

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

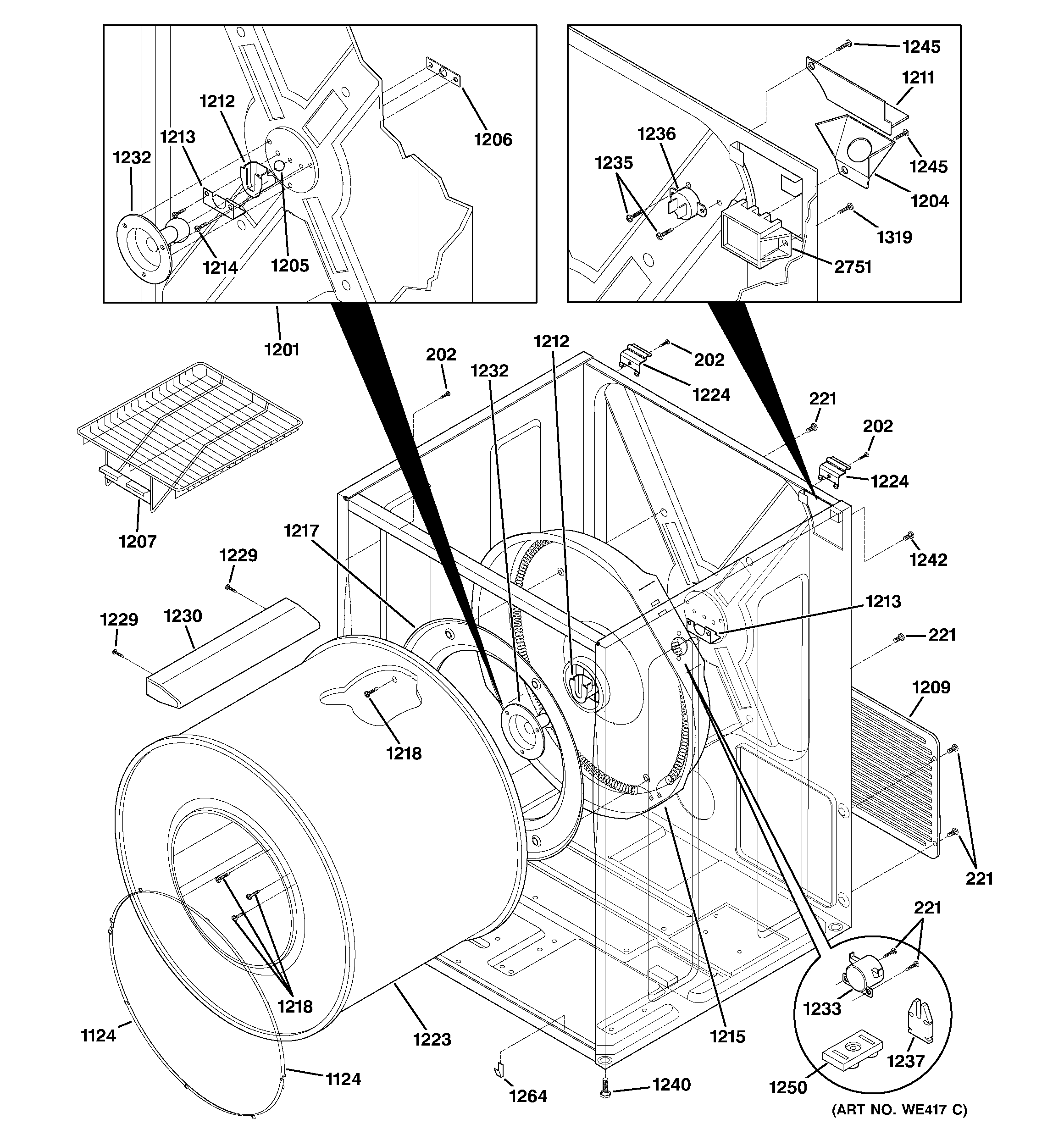

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$73.06
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$110.57 |
10% OFF Phone Price : $122.57
In Stock
Cabinet Clip WE02X10013
#1264

Cabinet & drum diagram

Cabinet clip

Part #WE02X10013

$25.14
In Stock
Screw WE02X10011
#1245

Cabinet & drum diagram

Screw

Part #WE02X10011

$20.09
In Stock
Dryer Drum Front Glide WE03X10007
#1124

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

3 (2)
$57.48 |
9% OFF Phone Price : $63.48
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$100.50 |
11% OFF Phone Price : $112.50
In Stock
Dryer Thermal Limiter WE04X10094
#1236

Cabinet & drum diagram

Dryer thermal limiter

Part #WE04X10094

$63.50 |
9% OFF Phone Price : $69.50
In Stock
Dryer Drum Belt (replaces We12x10001, We12x90) WE12X10009
#1325

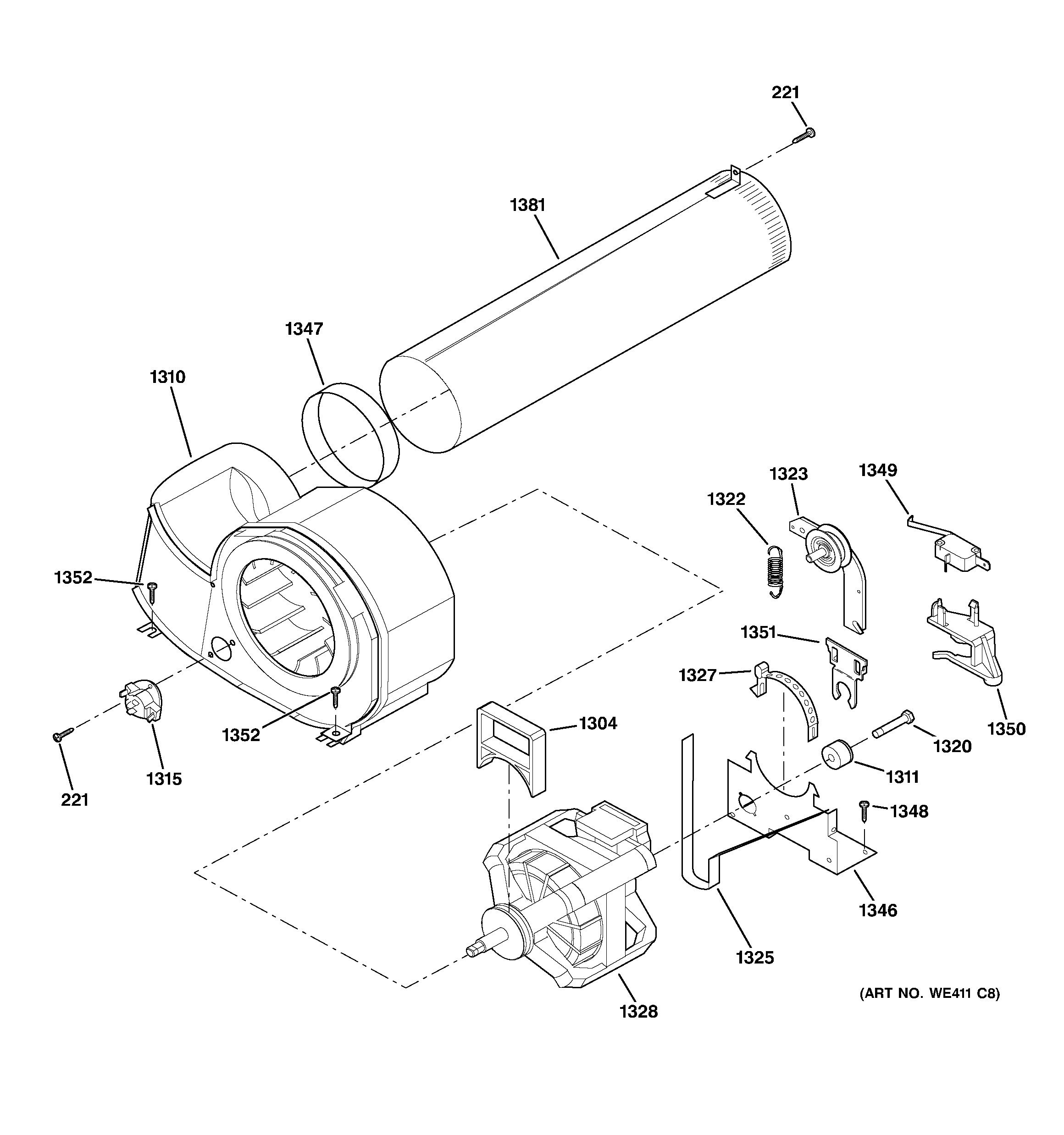

Motor diagram

Dryer drum belt (replaces we12x10001, we12x90)

Part #WE12X10009

5 (1)
$73.21
In Stock
Thermostat WE04X10002
#1233

Cabinet & drum diagram

Thermostat

Part #WE04X10002

Replaced by #WE4X757

?
Manufacturer substitution
This part replaces WE04X10002. Substitute parts can look different from the original.
$61.15 |
9% OFF Phone Price : $67.15
In Stock
