Model # 58771890 Official Kenmore undercounter dishwasher

Here are the diagrams and repair parts for Official Kenmore 58771890 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Screw 804636
#5

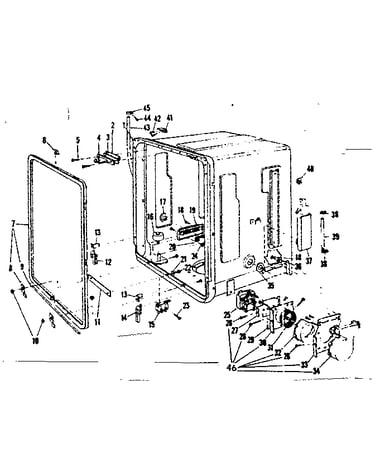

Tub details diagram

Screw

Part #804636

Replaced by #131302901

?
Manufacturer substitution
This part replaces 804636. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Nut 804527
#32

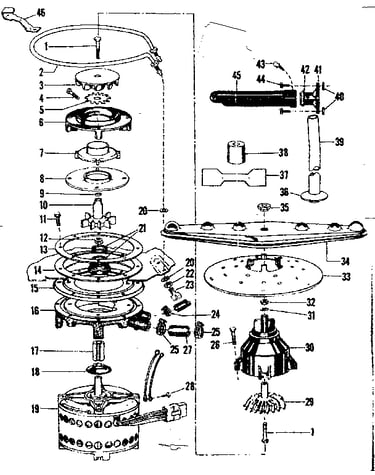

Motor heater & spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Gasket 805763
#6

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Spray Arm 805577
#34

Motor heater & spray arm details diagram

Spray arm

Part #805577

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 805577. Substitute parts can look different from the original.
$142.10
In Stock
Arm Assembly 805681
#27

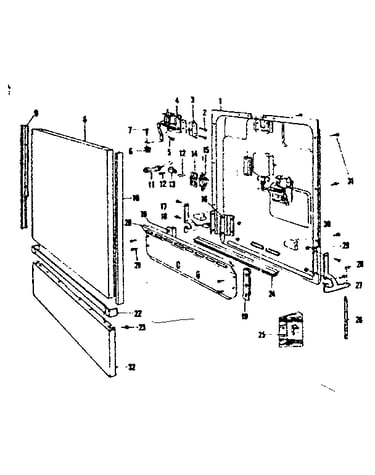

Door details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$79.52
In Stock
Lower Rack 806588
#1

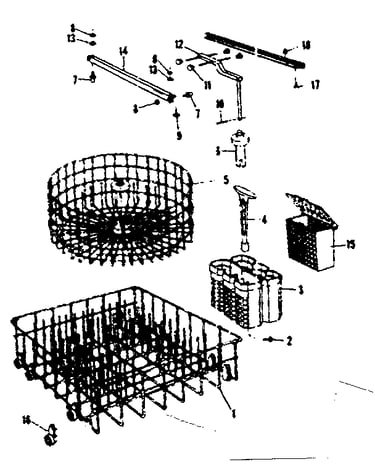

Rack assemblies diagram

Lower rack

Part #806588

The manufacturer no longer makes this part, and there's no substitute part

Tub Gasket 806543
#7

Tub details diagram

Tub gasket

Part #806543

The manufacturer no longer makes this part, and there's no substitute part

Screw No. 6 GM273367
#29

Tub details diagram

Screw no. 6

Part #GM273367

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw GM454033
#3

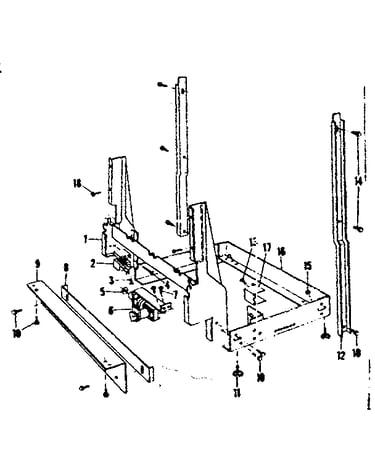

Frame details diagram

Washer screw

Part #GM454033

The manufacturer no longer makes this part, and there's no substitute part

Hsg W/difvsr 806573
#30A

Motor heater & spray arm details diagram

Hsg w/difvsr

Part #806573

The manufacturer no longer makes this part, and there's no substitute part
