Frigidaire
Wall Oven/Microwave Combo

Model # FGMC3065PBB Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC3065PBB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

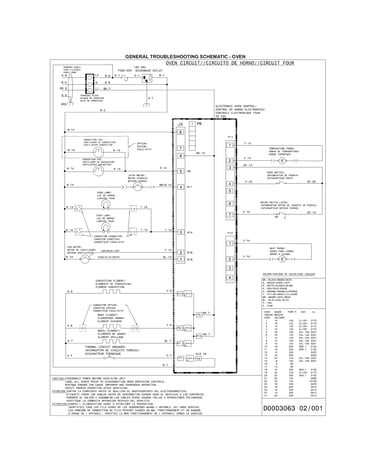

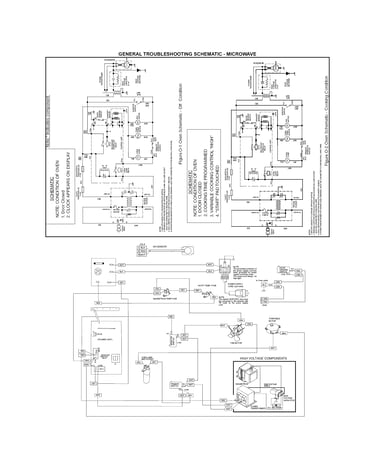

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Range Oven Temperature Sensor 318562500
#37

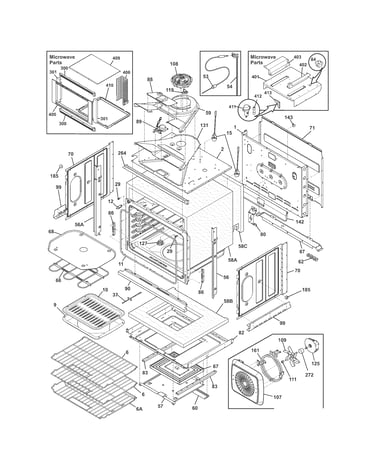

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Lower oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Wall Oven Bake Element 808650402
#67

Lower oven diagram

Wall oven bake element

Part #808650402

Replaced by #318601604

?
Manufacturer substitution
This part replaces 808650402. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Range Oven Door Inner Glass 316117502
#8

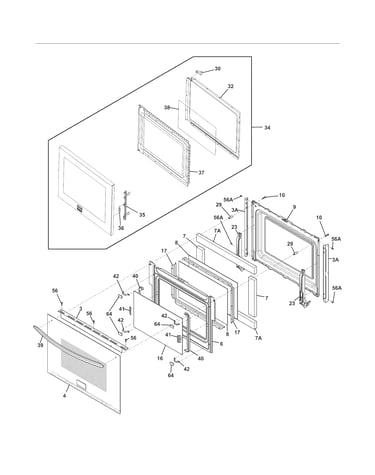

Doors diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Latch Hook 5304483410
#23

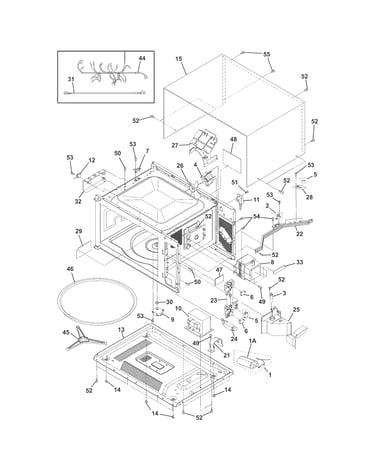

Microwave diagram

Latch hook

Part #5304483410

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304483410. Substitute parts can look different from the original.
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Range Oven Door Outer Glass 316446400
#16

Doors diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Broil Element 139008900
#66

Lower oven diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$56.03 |
10% OFF Phone Price : $62.03
In Stock
