Digital Camcorder

Model # DCR-DVD610 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD610 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

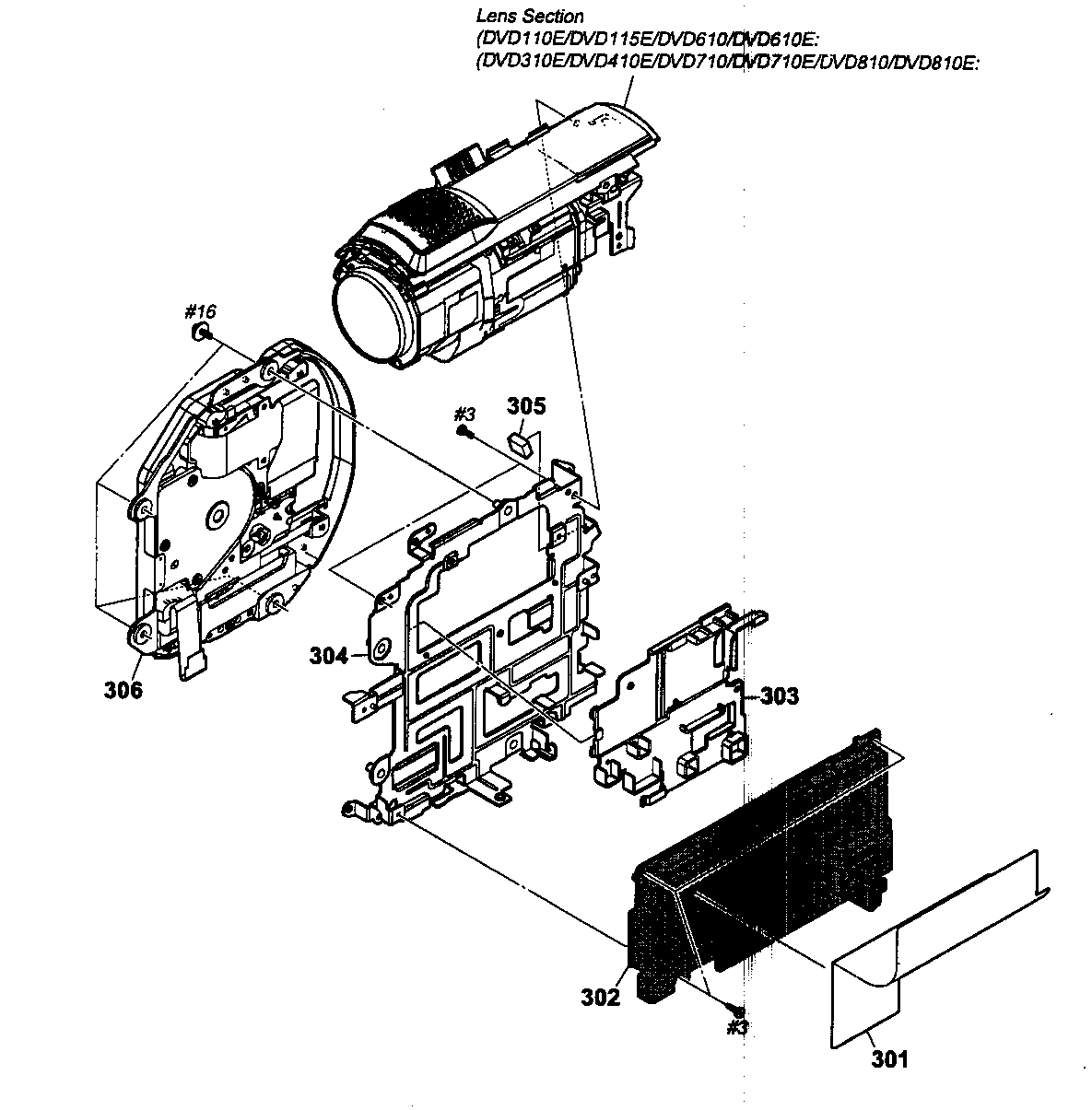

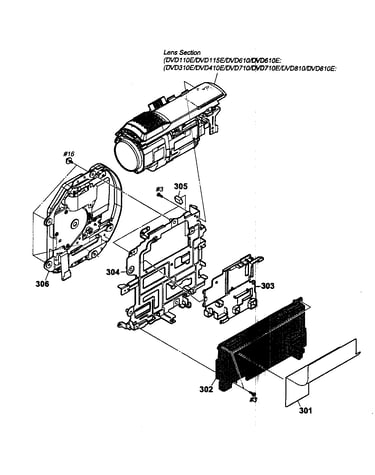

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Sensor 147902261
#NI

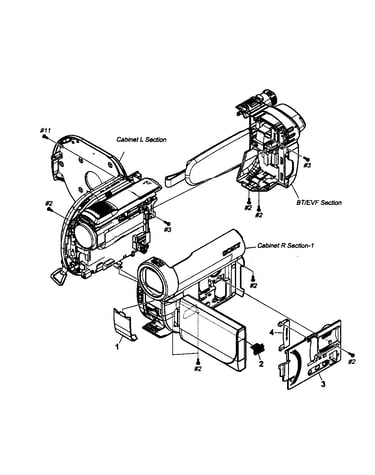

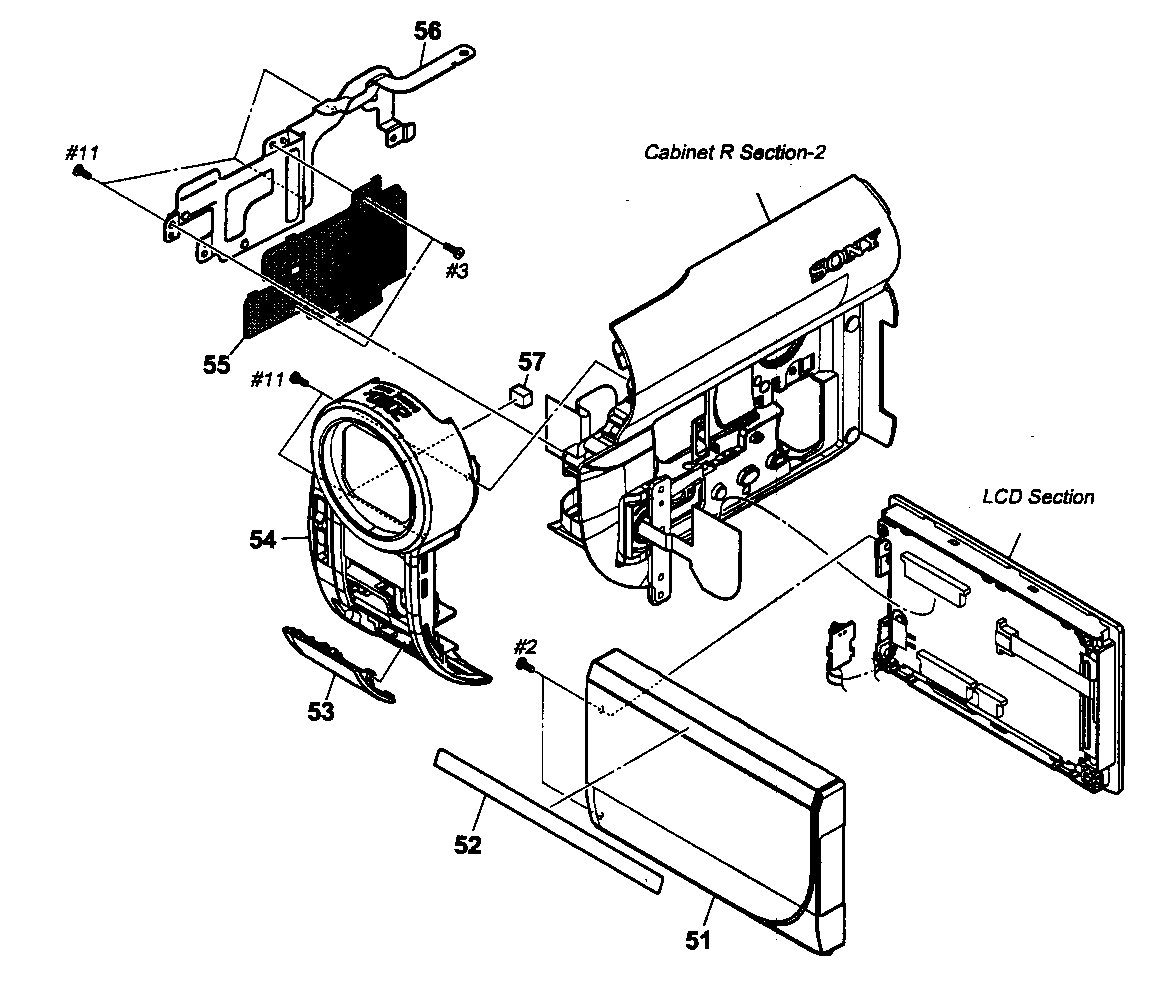

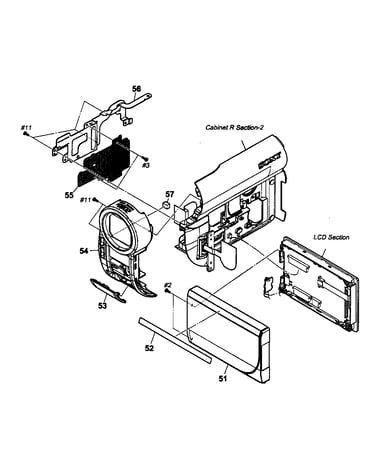

Cabinet parts diagram

Sensor

Part #147902261

The manufacturer no longer makes this part, and there's no substitute part

Ck-191 Pcb A1439630A
#111

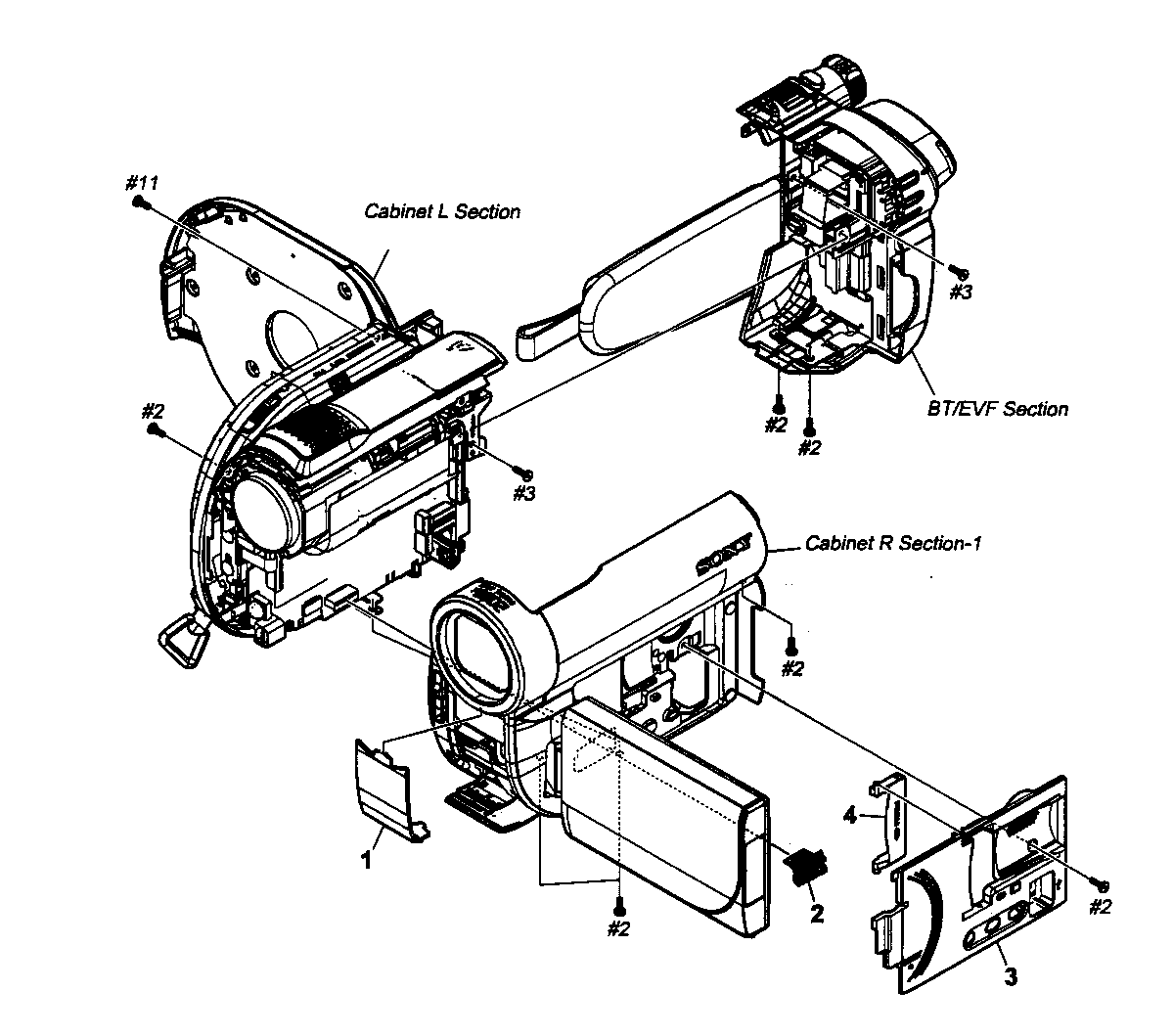

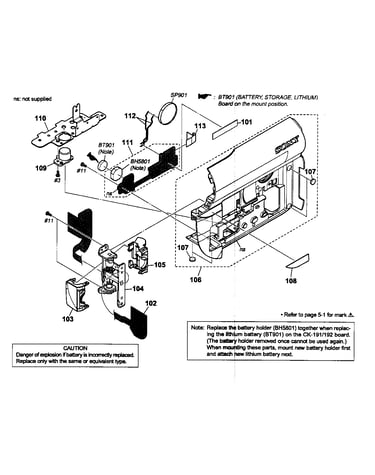

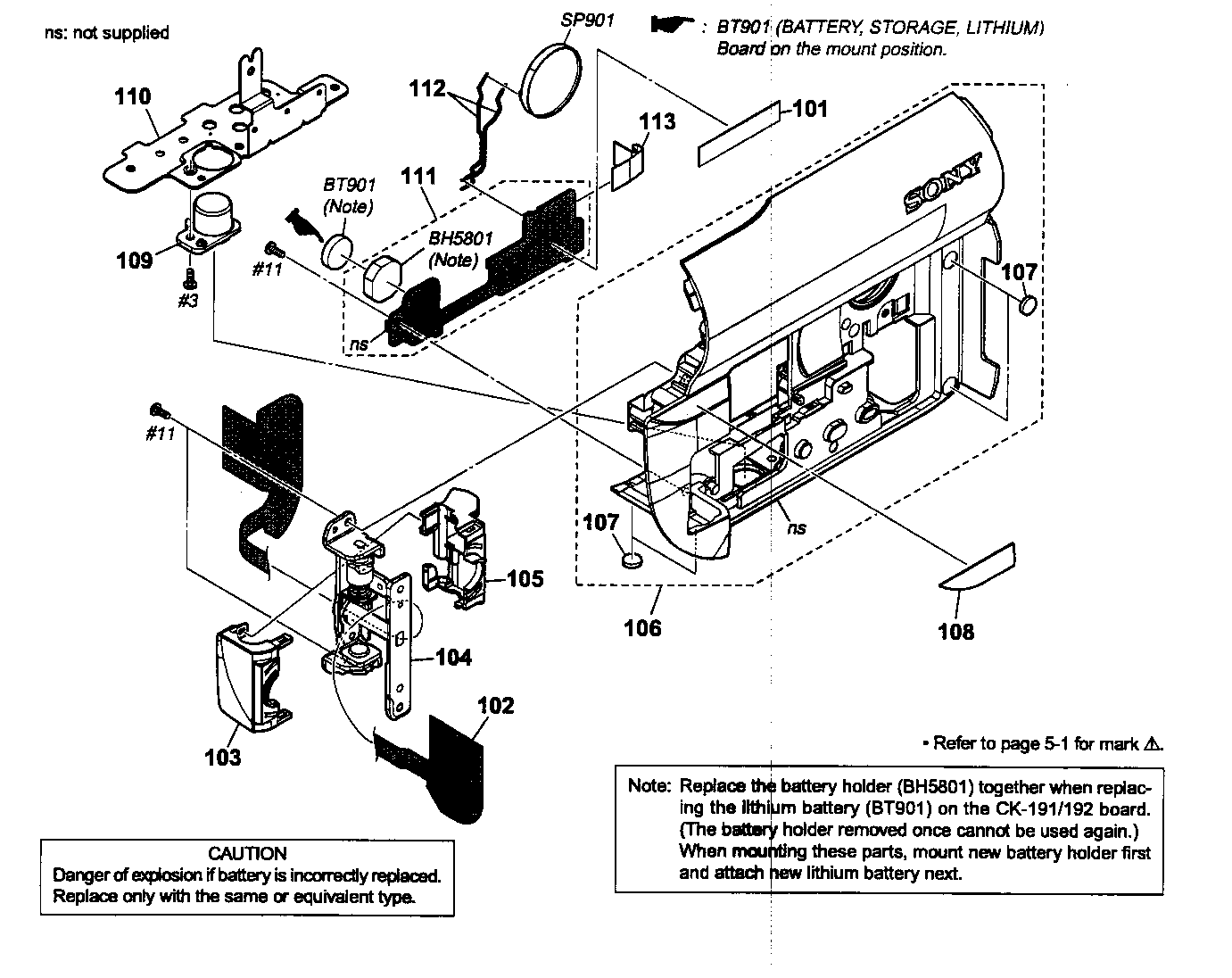

Cabinet parts rt diagram

Ck-191 pcb

Part #A1439630A

The manufacturer no longer makes this part, and there's no substitute part

Key Block 148049511
#217

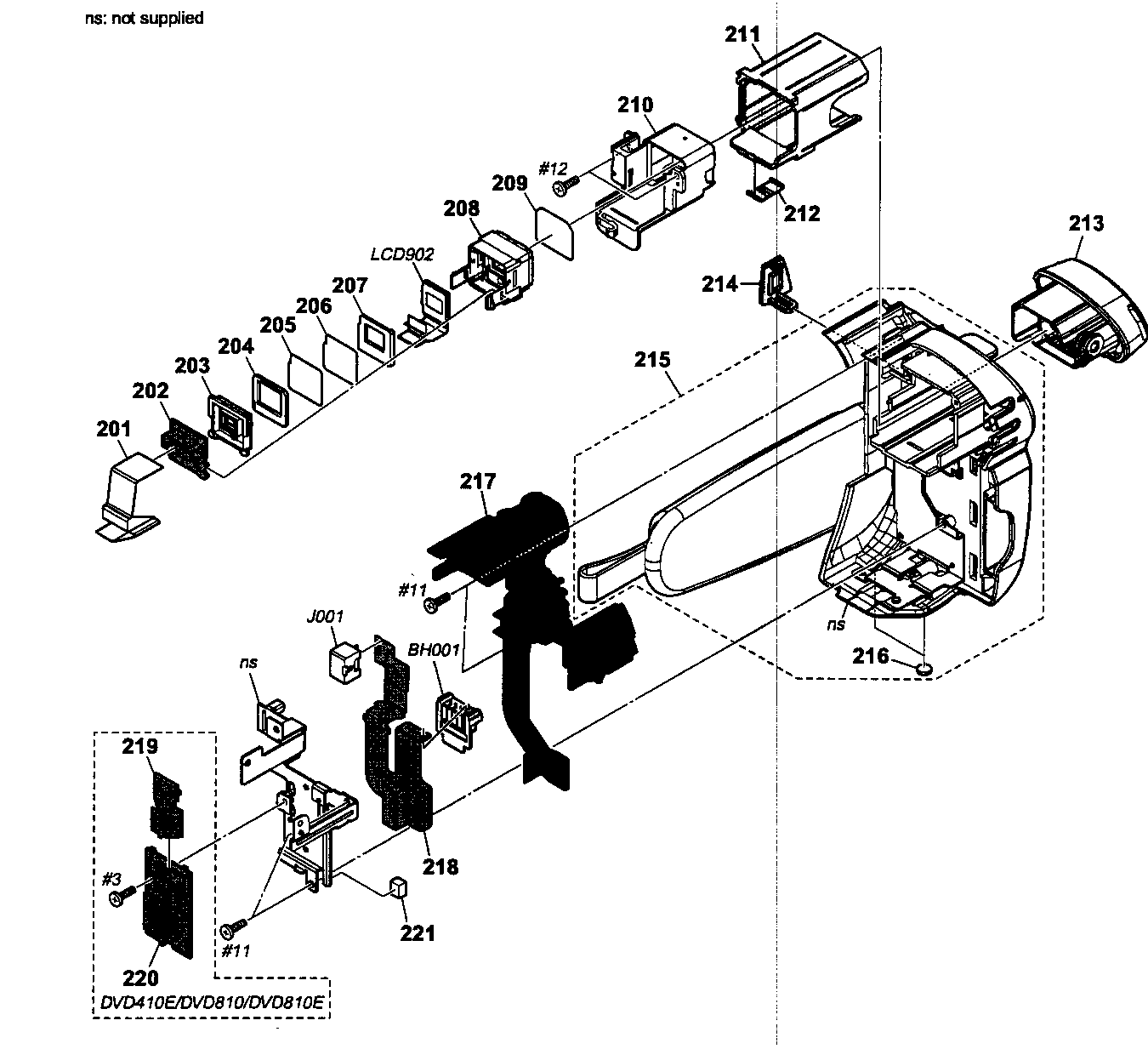

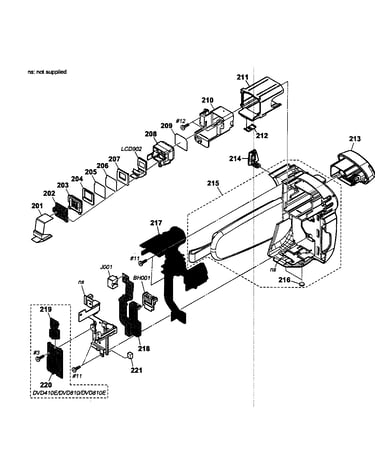

Bt/evf assy diagram

Key block

Part #148049511

The manufacturer no longer makes this part, and there's no substitute part

A/v Connec 183155311
#NI

Cabinet parts diagram

A/v connec

Part #183155311

The manufacturer no longer makes this part, and there's no substitute part

Frame 269451601
#160

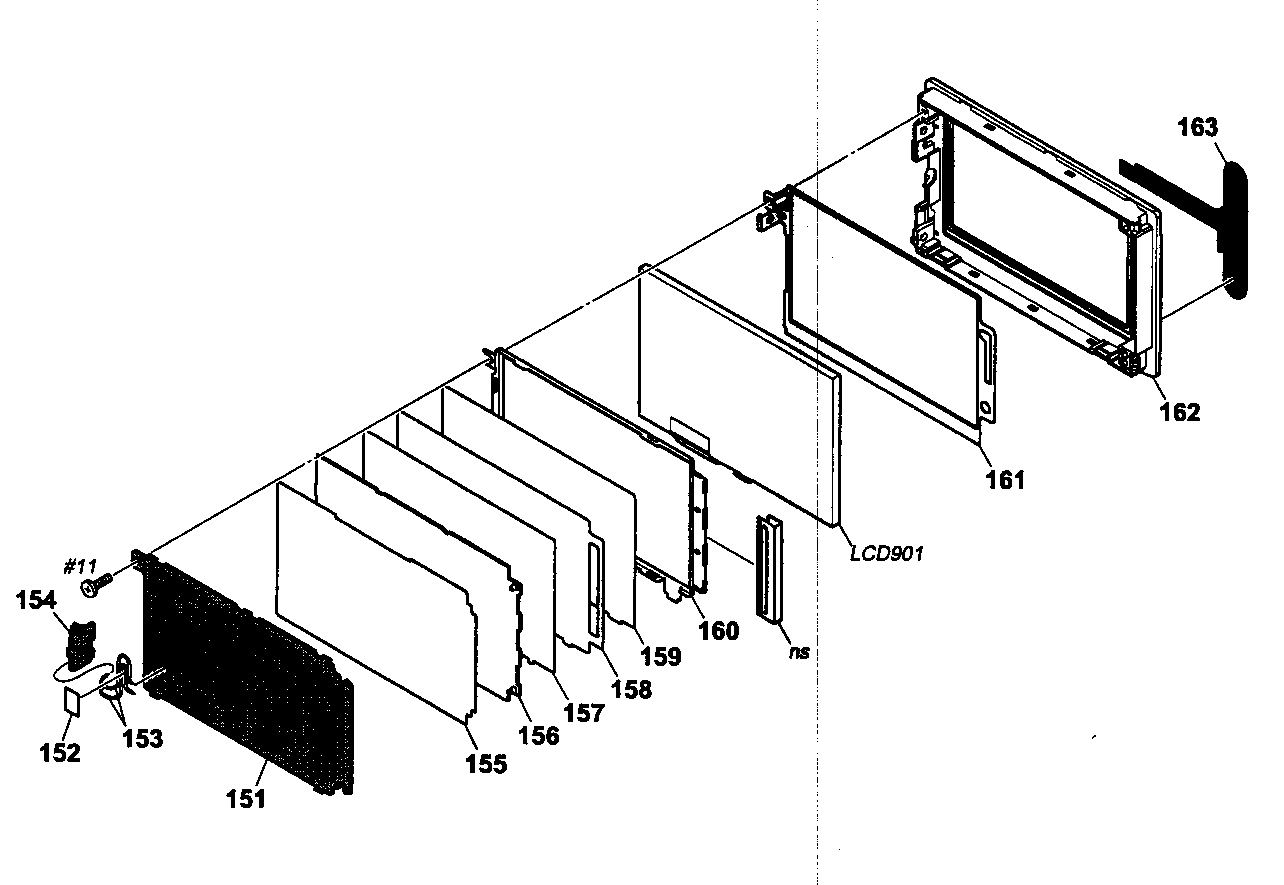

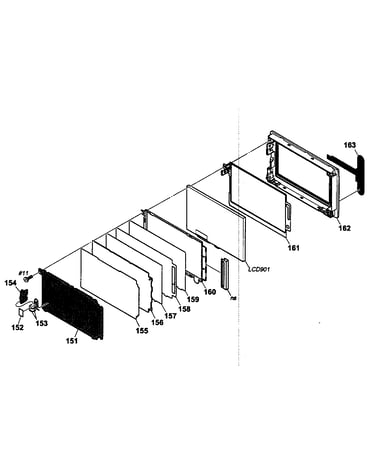

Lcd assy diagram

Frame

Part #269451601

The manufacturer no longer makes this part, and there's no substitute part

Termnl Brd 178006421
#BH1

Bt/evf assy diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Motor 178723711
#M903

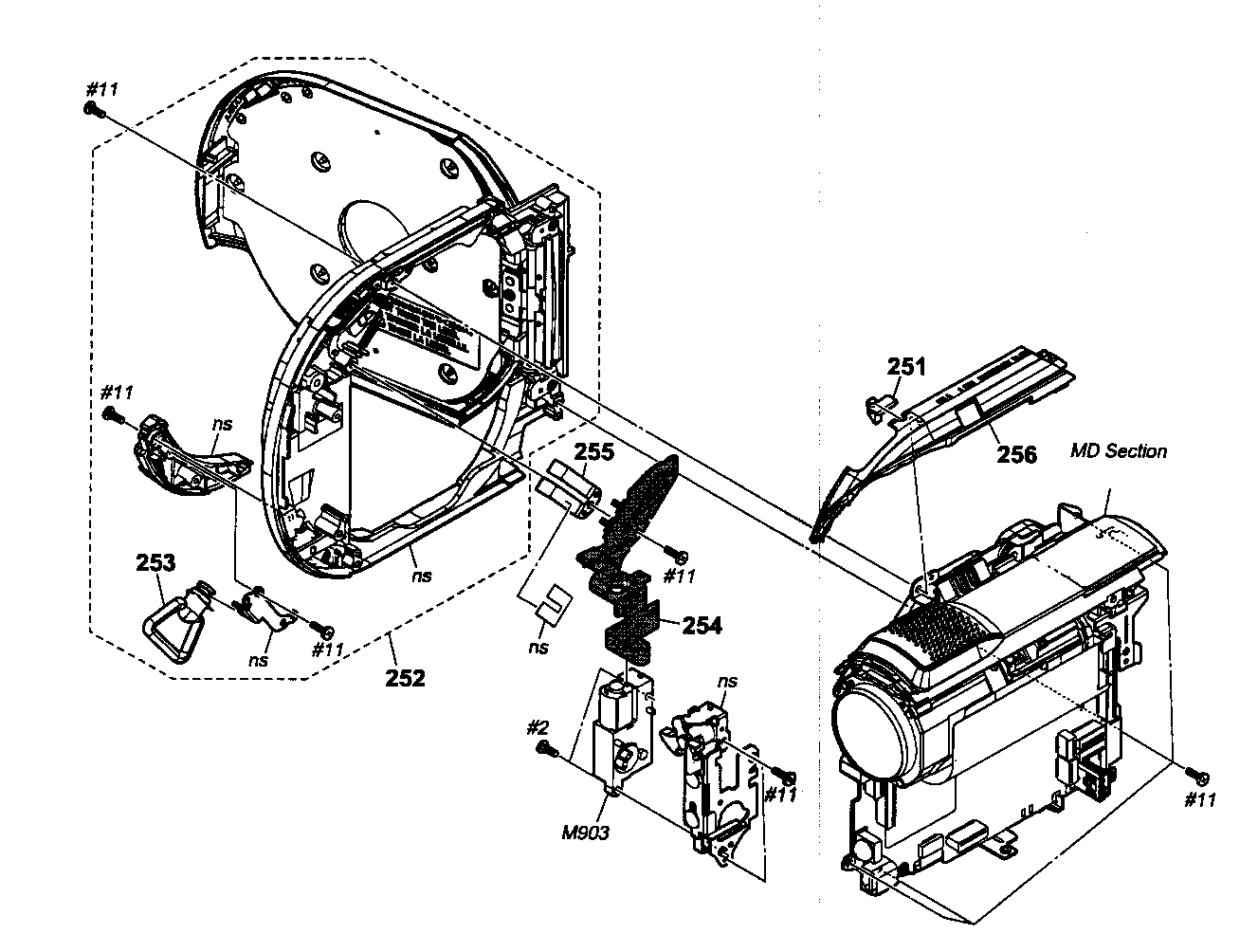

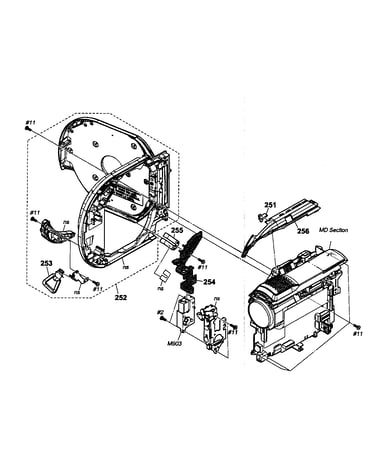

Cabinet parts lt diagram

Motor

Part #178723711

The manufacturer no longer makes this part, and there's no substitute part

Tape 308339301
#152

Lcd assy diagram

Tape

Part #308339301

The manufacturer no longer makes this part, and there's no substitute part

Holder Microphone 328180801
#363

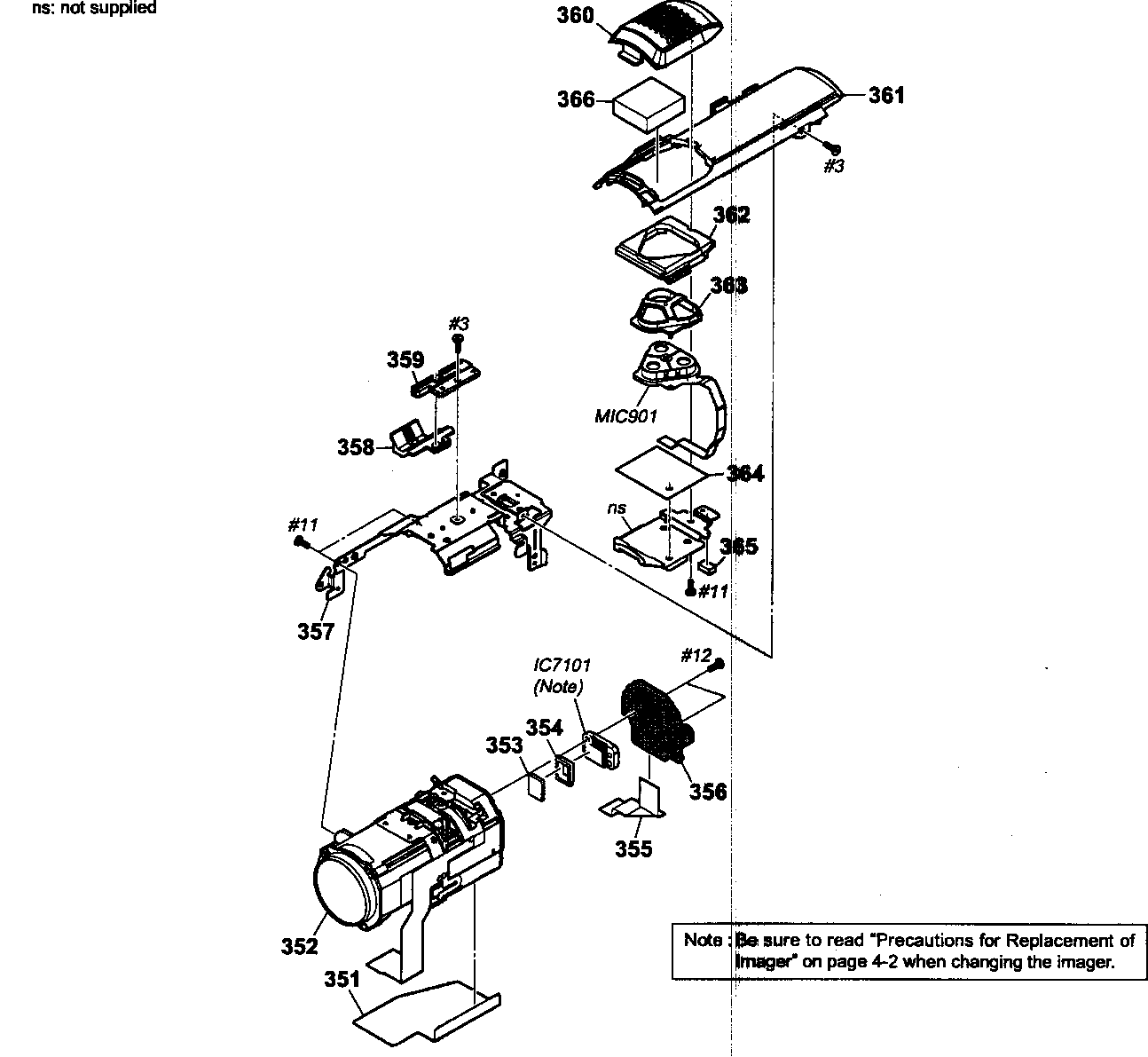

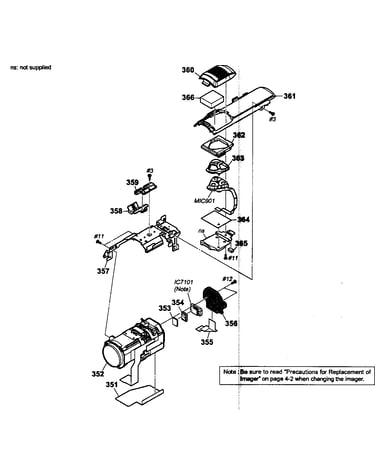

Lens assy diagram

Holder microphone

Part #328180801

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover 328184701
#105

Cabinet parts rt diagram

Hinge cover

Part #328184701

The manufacturer no longer makes this part, and there's no substitute part
