Amana
Electric Wall Oven

Model # AOCS3040E-P1132375NE Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AOCS3040E-P1132375NE wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

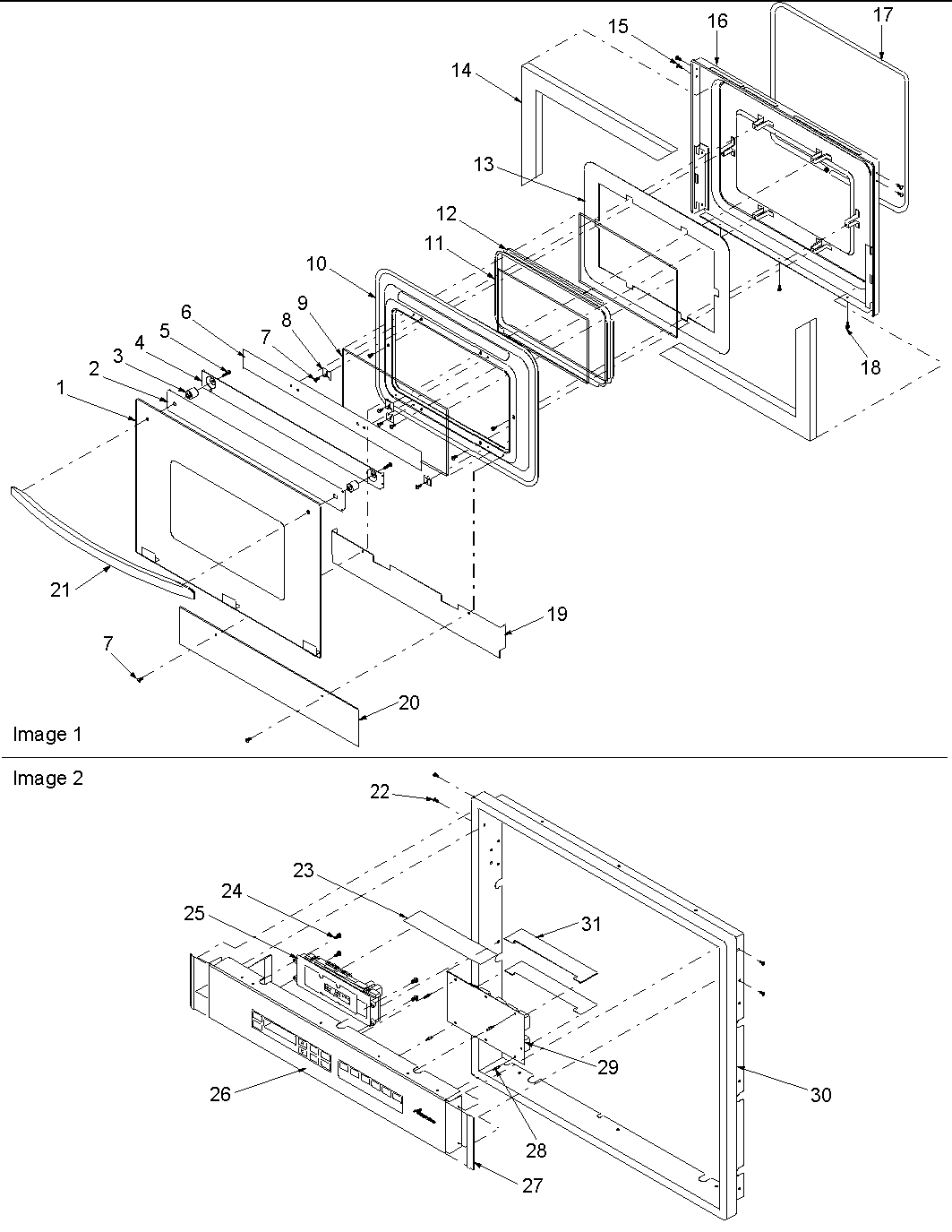

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Lamp 0042175
#14

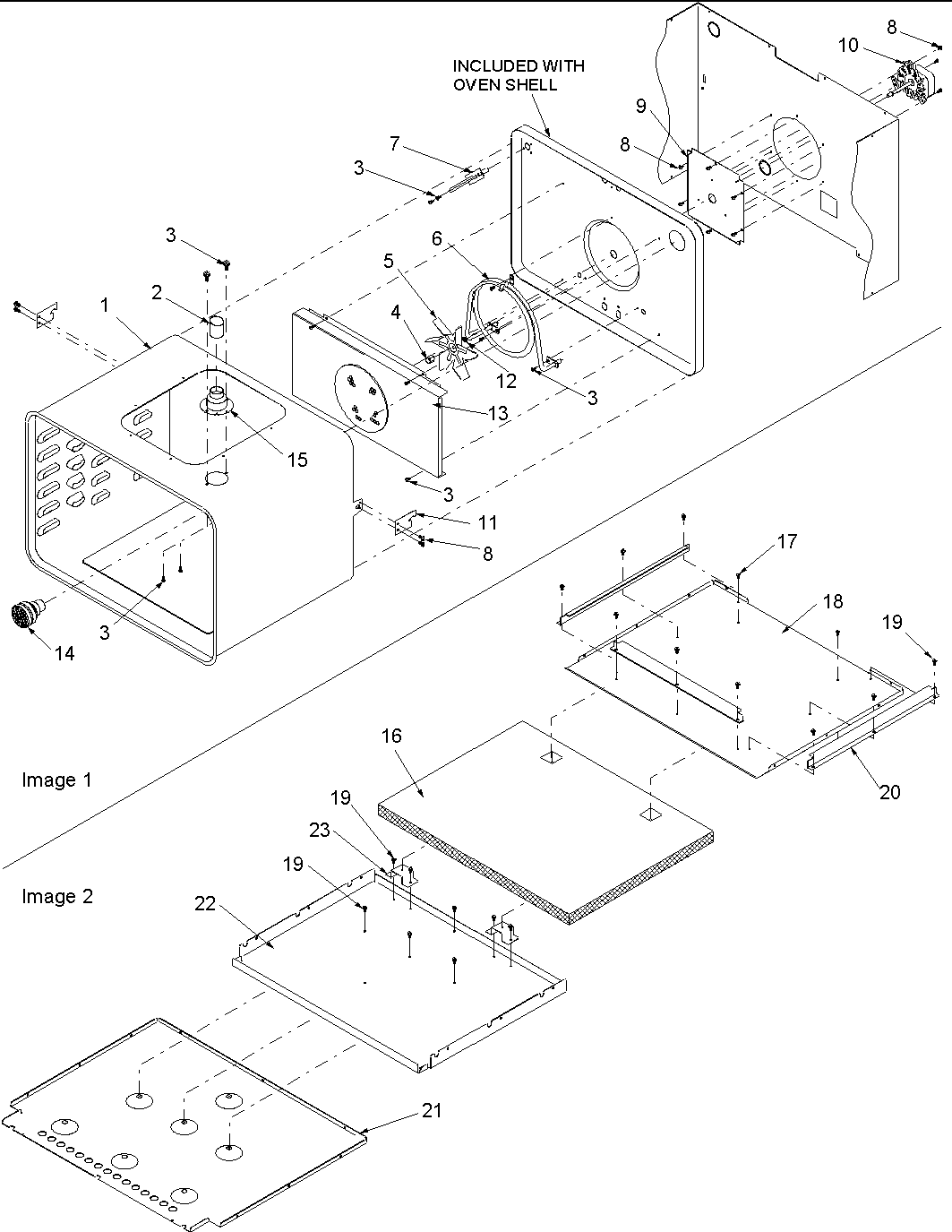

Oven assy/bottom insulation diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Oven Light 0314842
#14A

Oven assy/bottom insulation diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

Oven Sensor 0314907
#7

Oven assy/bottom insulation diagram

Oven sensor

Part #0314907

The manufacturer no longer makes this part, and there's no substitute part

"grid, Broile" 304451CG
#16

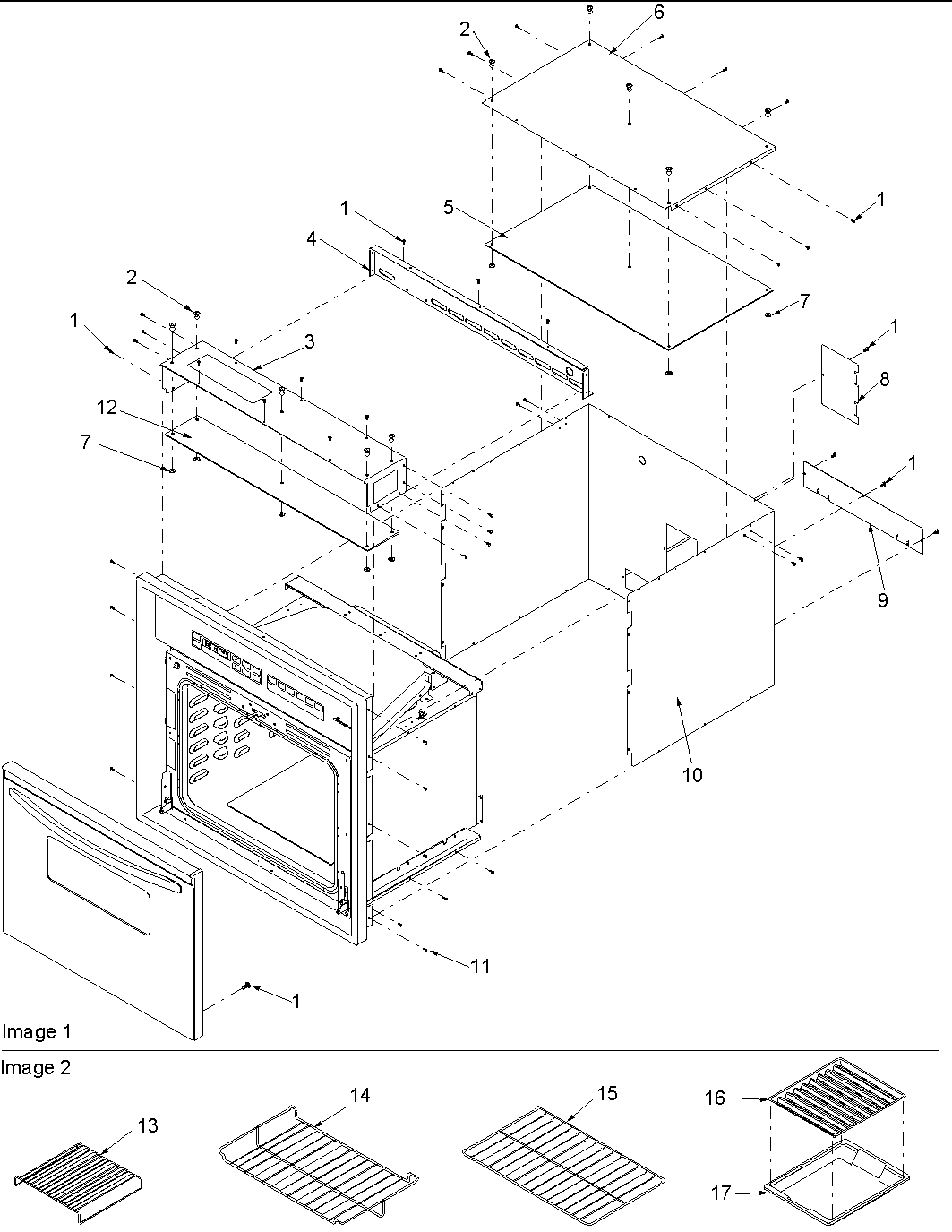

Outer cabinet/racks diagram

"grid, broile"

Part #304451CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 314175CG
#17

Outer cabinet/racks diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broil Element 0315451
#24

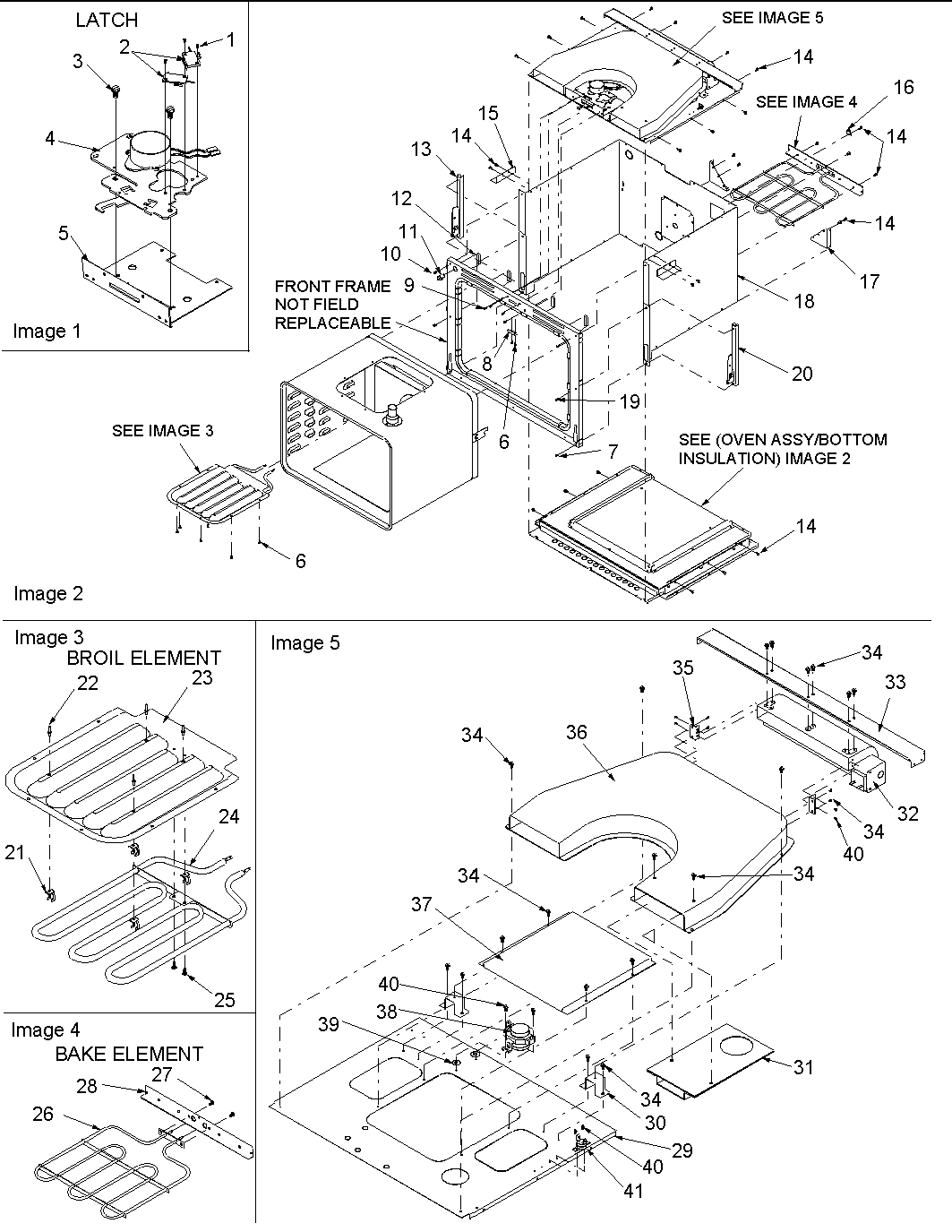

Inner cavity/blower/bake and broil assy diagram

Broil element

Part #0315451

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750701
#1

Inner cavity/blower/bake and broil assy diagram

Screw

Part #31750701

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750701. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Oven Rack 314763J
#15

Outer cabinet/racks diagram

Oven rack

Part #314763J

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 314763J. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Parts List RP2520005
#0

Miscellaeous information diagram

Parts list

Part #RP2520005

The manufacturer no longer makes this part, and there's no substitute part

Shield Outer Cabinet Bottom 0315480
#21

Oven assy/bottom insulation diagram

Shield outer cabinet bottom

Part #0315480

The manufacturer no longer makes this part, and there's no substitute part
