Model # TD6500 Official Thermador dishwasher

Here are the diagrams and repair parts for Official Thermador TD6500 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

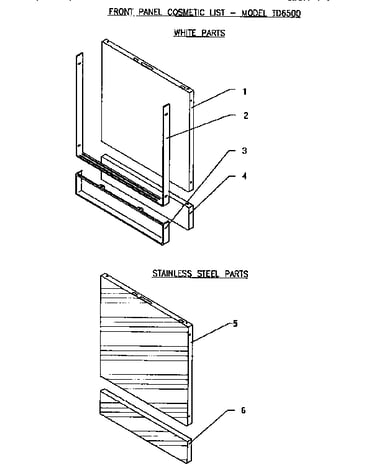

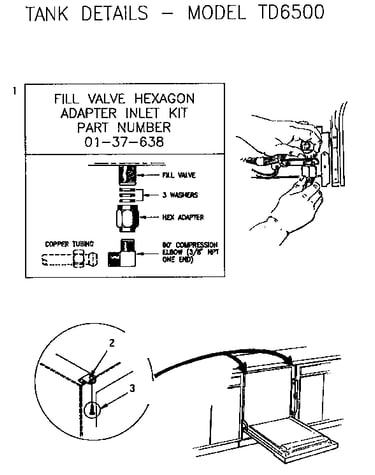

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Nut, Upper Arm 01-37-655
#26

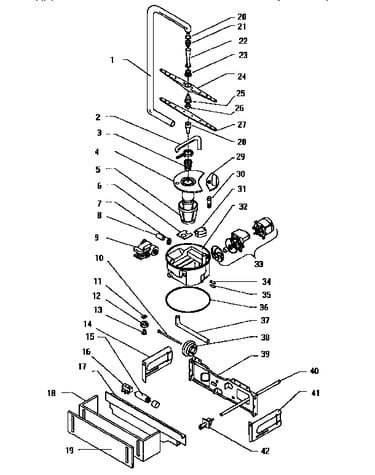

Motor diagram

Nut, upper arm

Part #01-37-655

The manufacturer no longer makes this part, and there's no substitute part

Wheel (8) 01-37-642
#4

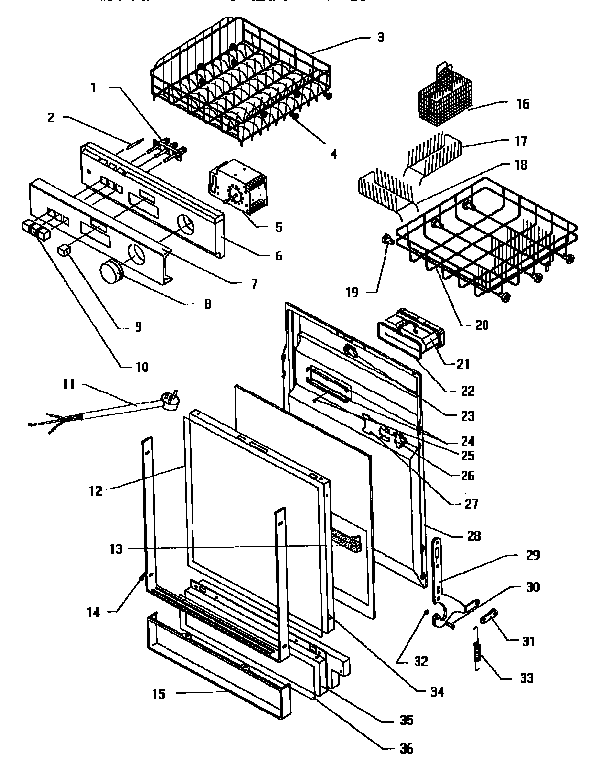

Control panel/racks diagram

Wheel (8)

Part #01-37-642

The manufacturer no longer makes this part, and there's no substitute part

Crosspiece 01-37-768
#21

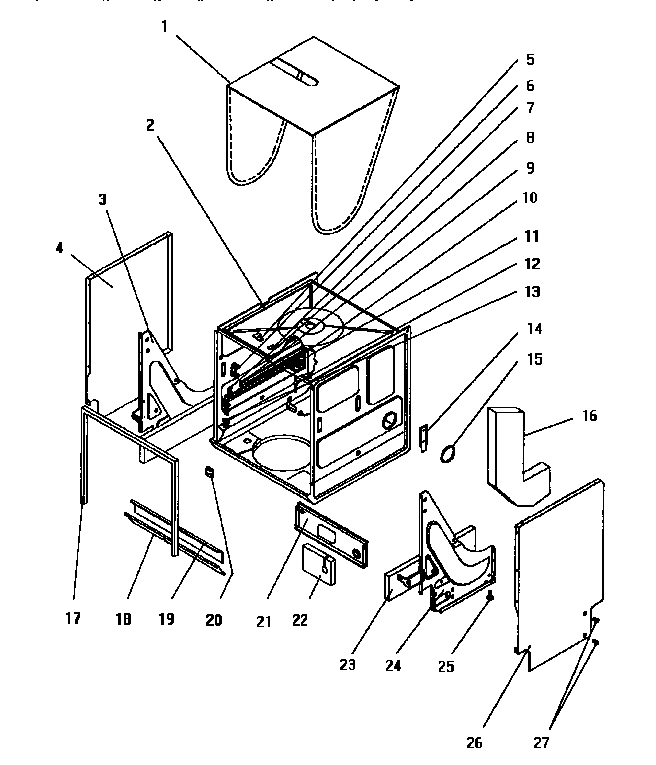

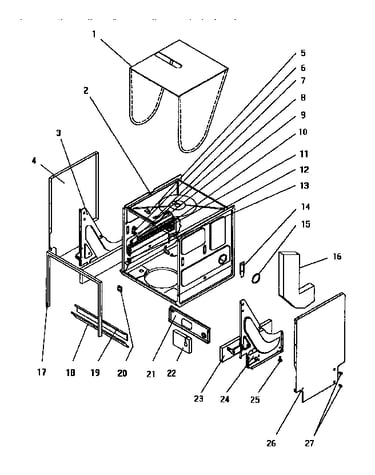

Panel/gaskets diagram

Crosspiece

Part #01-37-768

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Gasket 01-37-668
#12

Motor diagram

Thermostat gasket

Part #01-37-668

The manufacturer no longer makes this part, and there's no substitute part

Blanket, Insulation 01-37-699
#1

Panel/gaskets diagram

Blanket, insulation

Part #01-37-699

The manufacturer no longer makes this part, and there's no substitute part

Insert Panel, Upper 01-37-701
#12

Control panel/racks diagram

Insert panel, upper

Part #01-37-701

The manufacturer no longer makes this part, and there's no substitute part

Air Trap 01-37-727
#31

Motor diagram

Air trap

Part #01-37-727

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 01-37-677
#26

Control panel/racks diagram

Thermostat

Part #01-37-677

The manufacturer no longer makes this part, and there's no substitute part

Rack, Removable 01-37-641
#17

Control panel/racks diagram

Rack, removable

Part #01-37-641

The manufacturer no longer makes this part, and there's no substitute part

Handle, Filter 01-37-754
#2

Motor diagram

Handle, filter

Part #01-37-754

The manufacturer no longer makes this part, and there's no substitute part
