Model # SHU3306UC/06 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHU3306UC-06 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

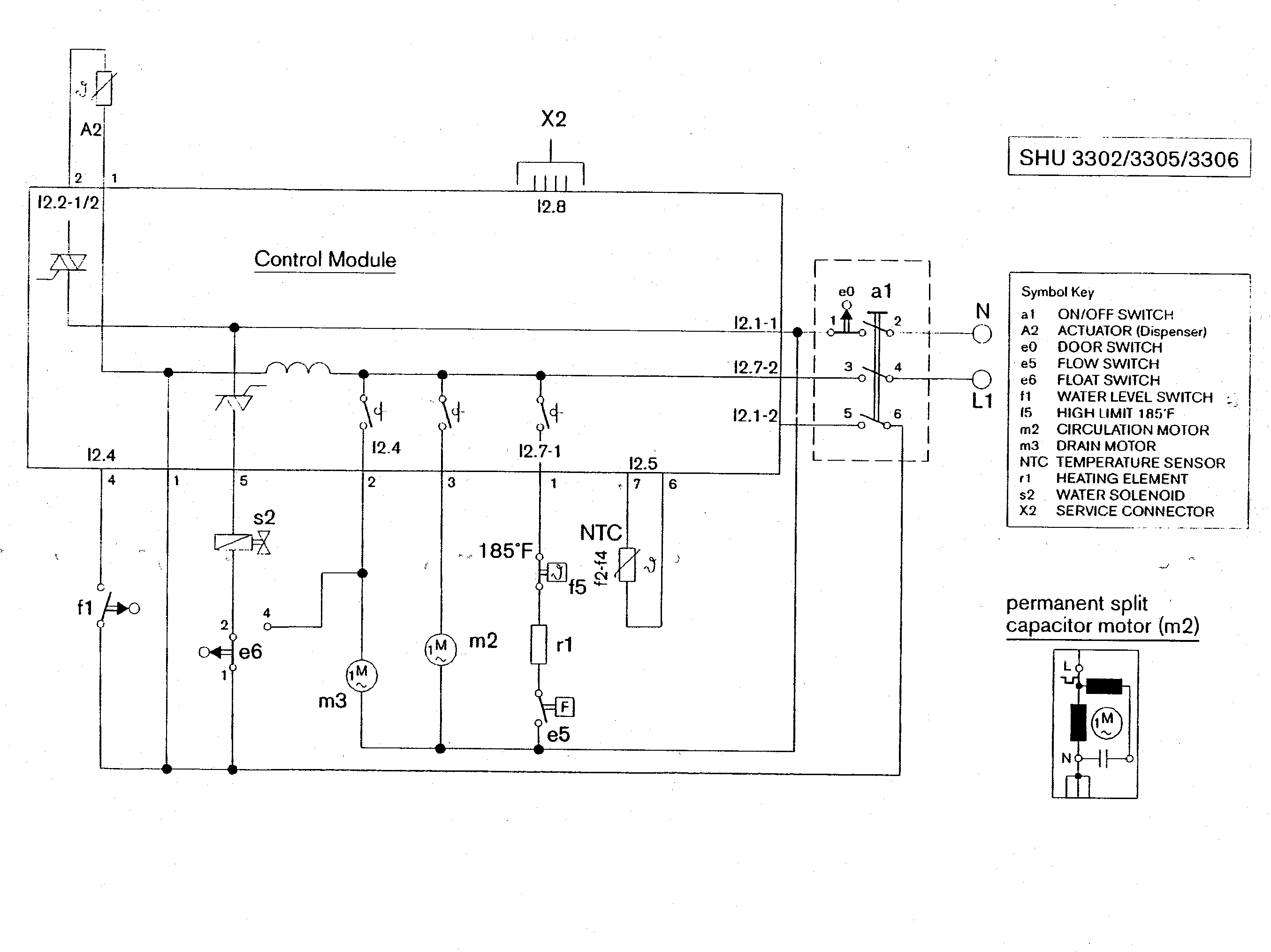

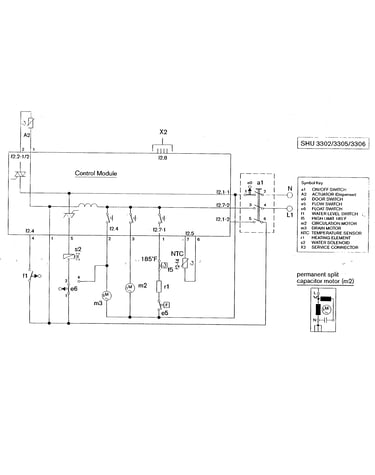

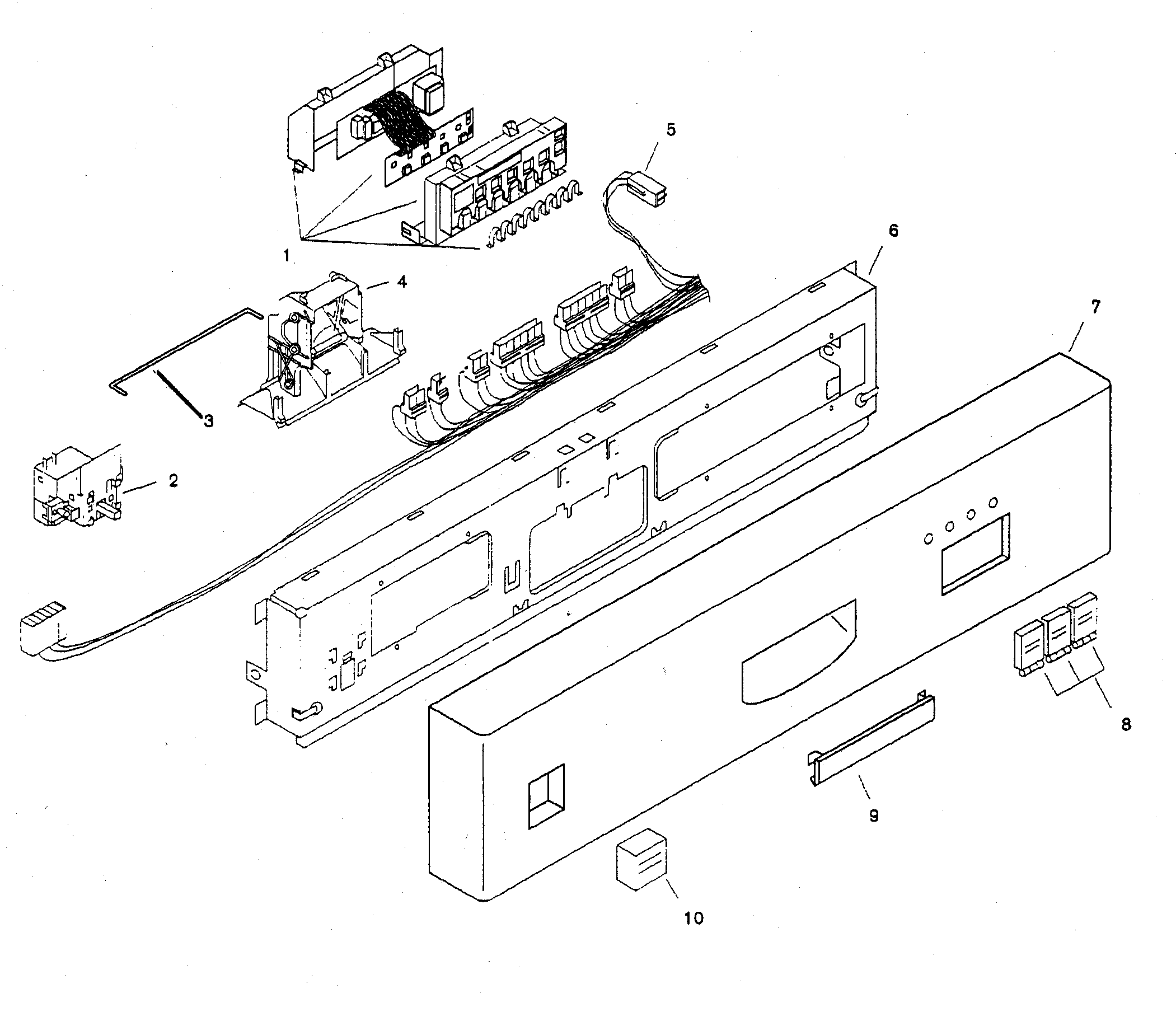

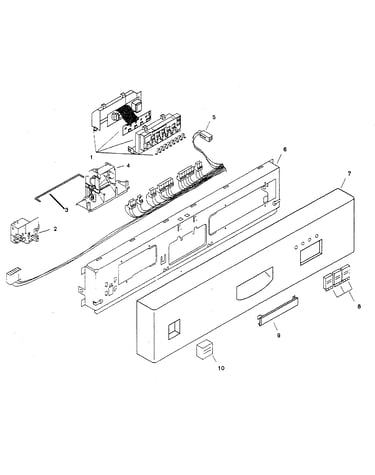

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Motor 167082
#13

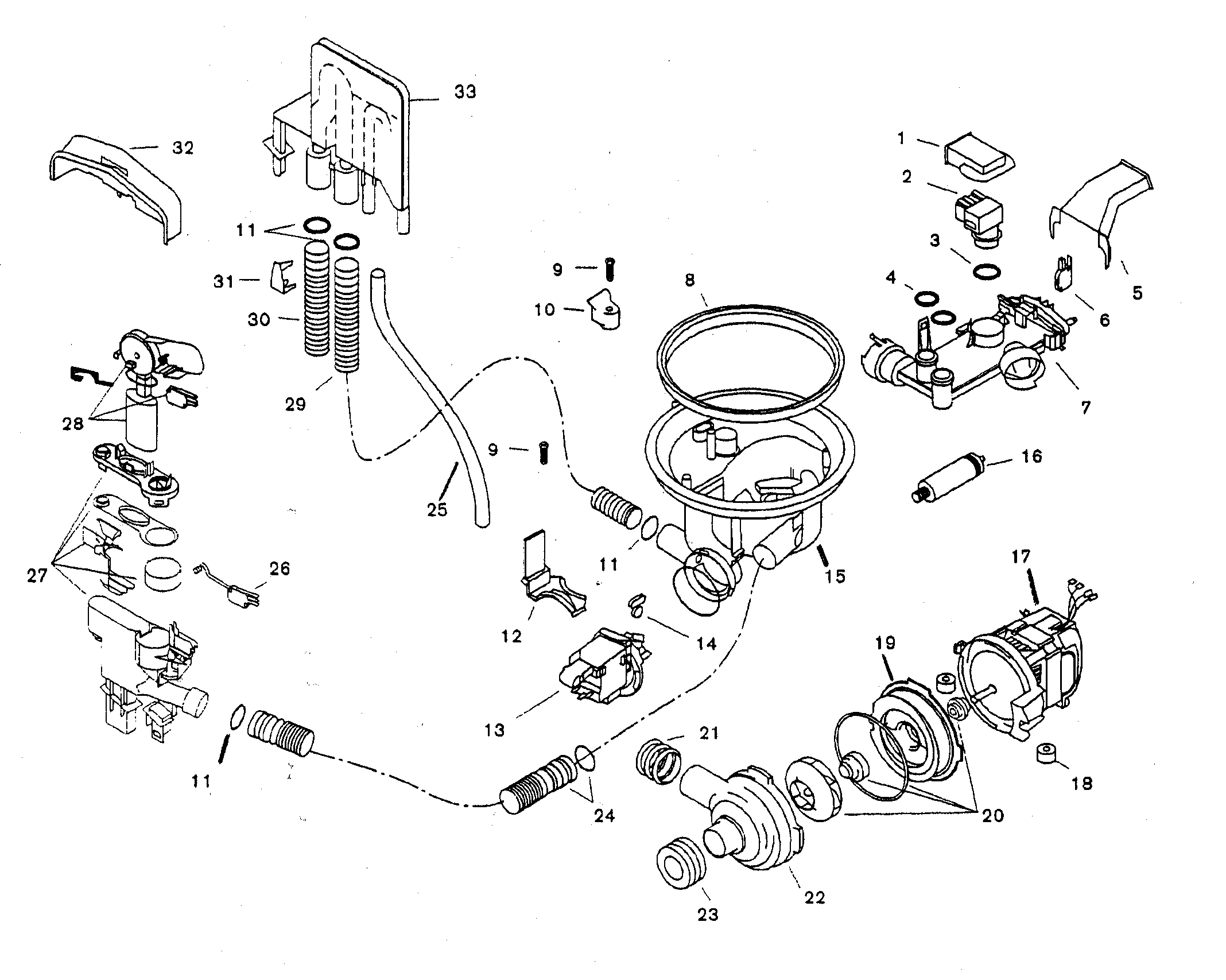

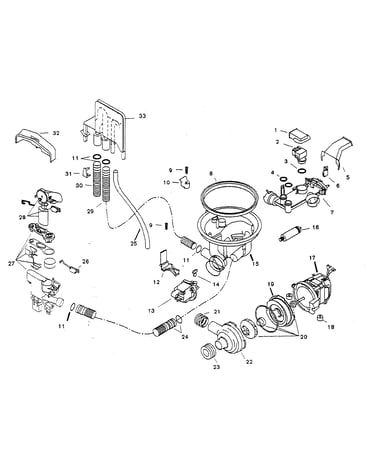

Component assy diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

L-rack 850007
#7

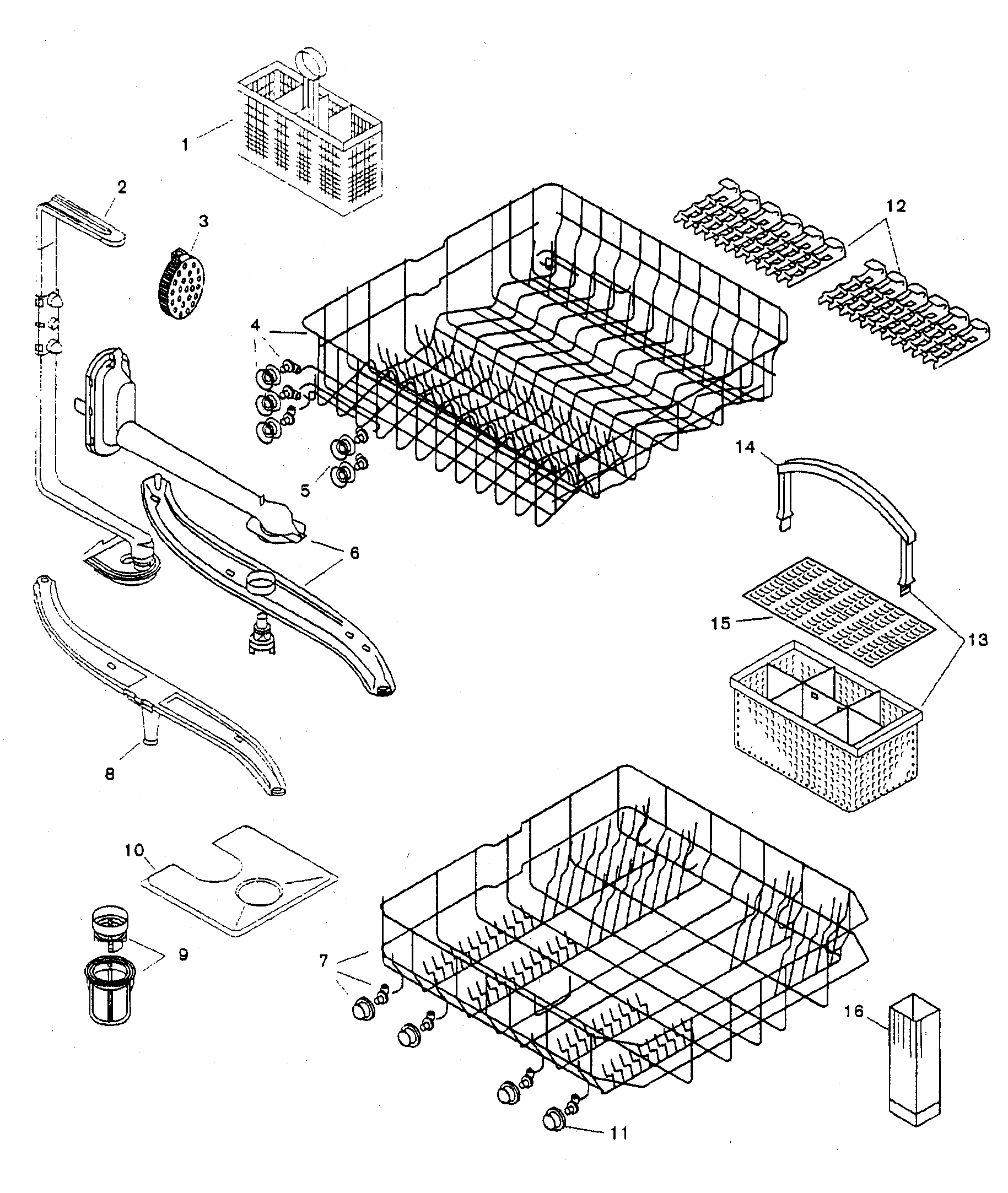

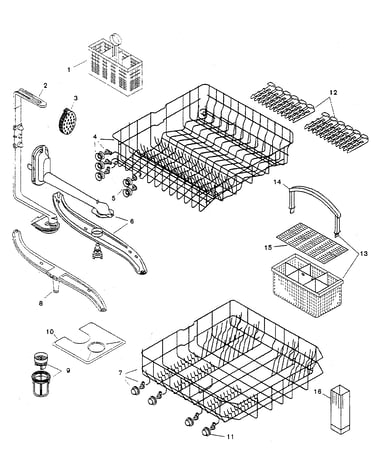

Racks diagram

L-rack

Part #850007

Replaced by #00249276

?
Manufacturer substitution
This part replaces 850007. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
In Stock
Dishwasher Water Inlet Valve 263833
#33

Component assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Dishwasher Screw 151703
#1

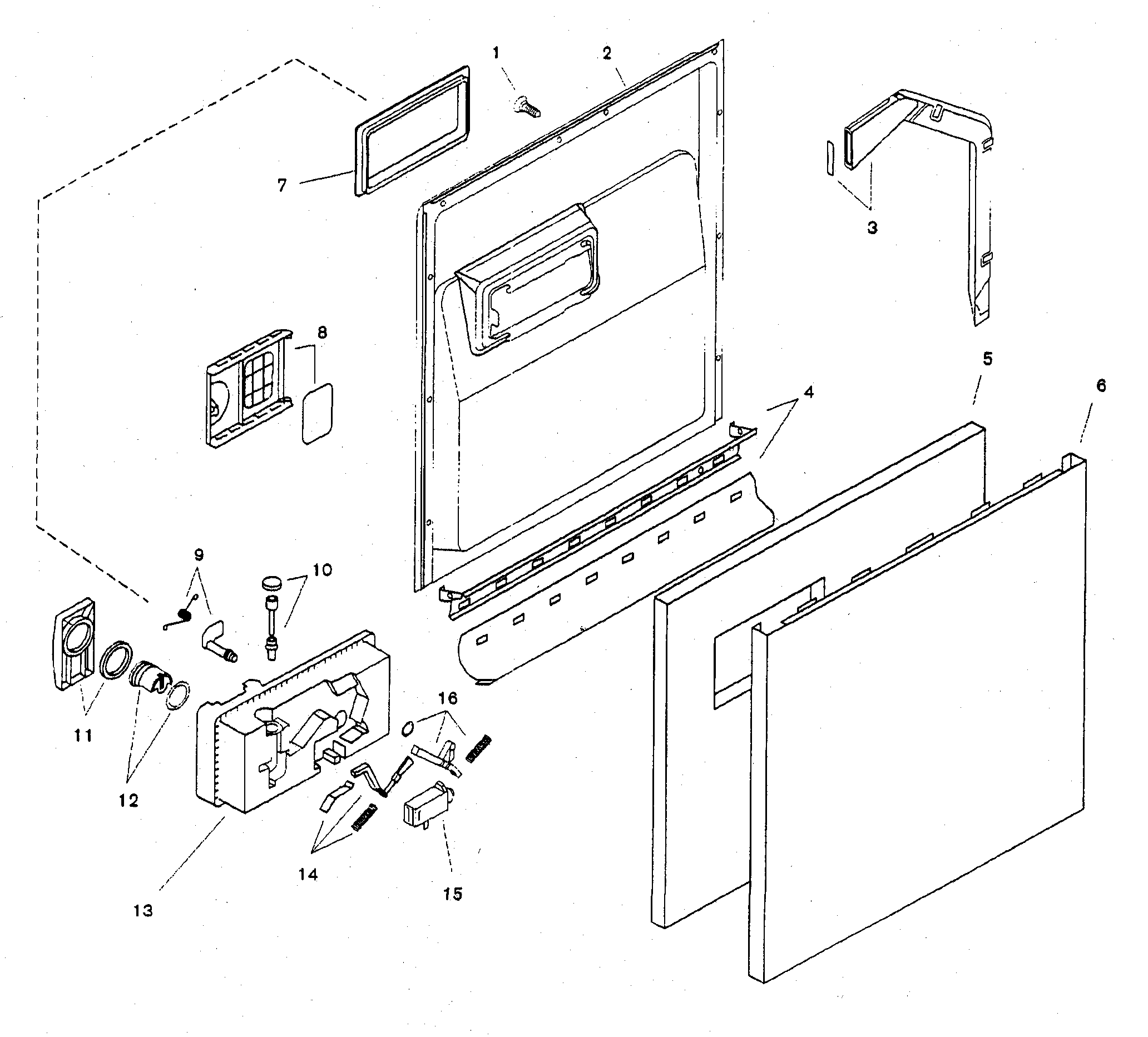

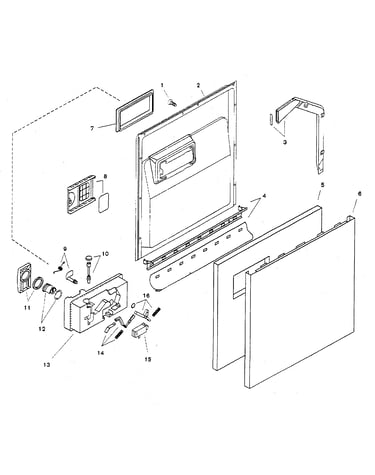

Door assy diagram

Dishwasher screw

Part #151703

Replaced by #00151703

?
Manufacturer substitution
This part replaces 151703. Substitute parts can look different from the original.
This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Dishrack Slide Rail Stop, Upper 165254
#8

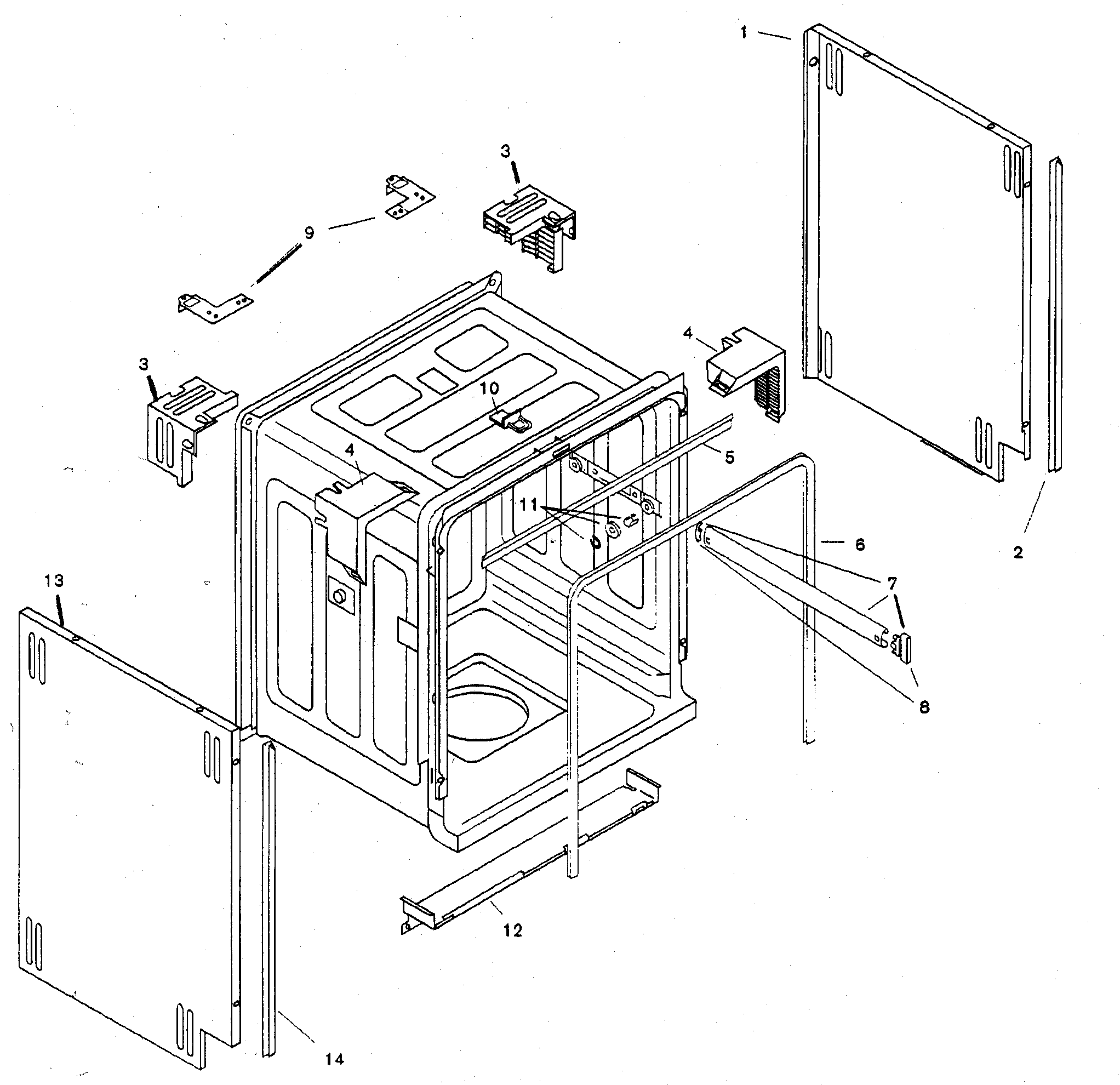

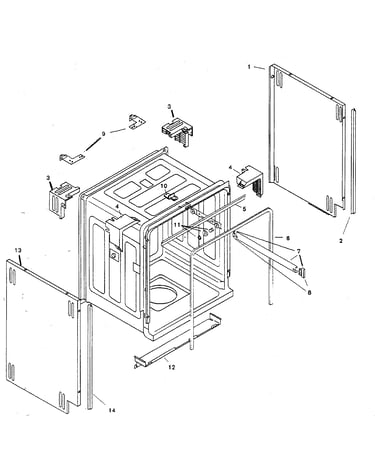

Tank assy diagram

Dishwasher dishrack slide rail stop, upper

Part #165254

Replaced by #00165254

?
Manufacturer substitution
This part replaces 165254. Substitute parts can look different from the original.
This item is not returnable
$15.56 |
11% OFF Phone Price : $17.56
In Stock
Door Gasket 263096
#6

Tank assy diagram

Door gasket

Part #263096

Replaced by #00263096

?
Manufacturer substitution
This part replaces 263096. Substitute parts can look different from the original.
$77.20 |
7% OFF Phone Price : $83.20
In Stock
Bearing 165296
#4

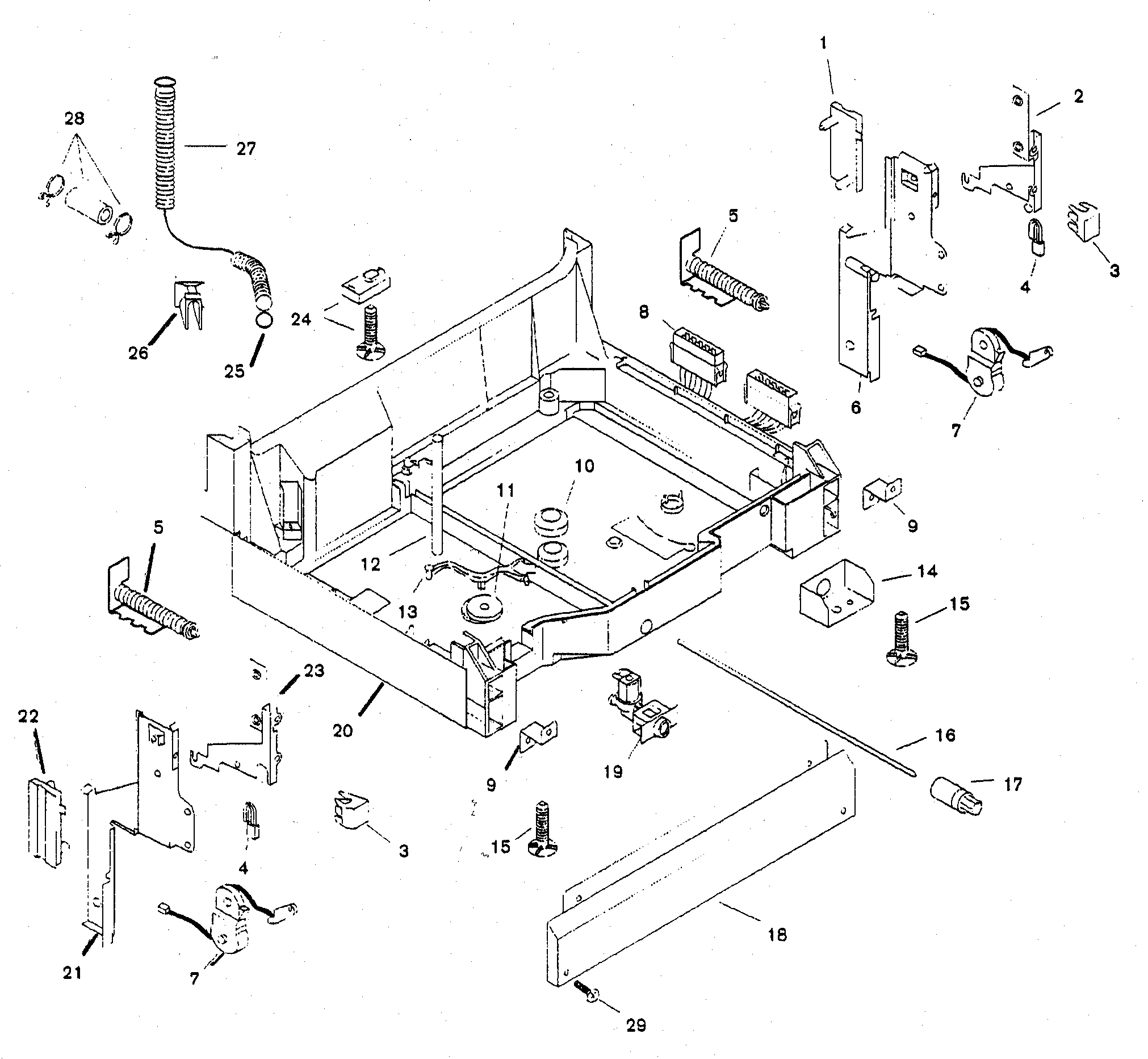

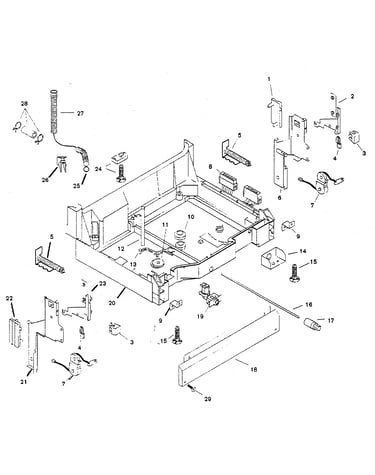

Base diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Drain Hose 263099
#29

Component assy diagram

Drain hose

Part #263099

Replaced by #00263099

?
Manufacturer substitution
This part replaces 263099. Substitute parts can look different from the original.
$17.16 |
10% OFF Phone Price : $19.16
In Stock
Reel 165298
#7

Base diagram

Reel

Part #165298

Replaced by #00618605

?
Manufacturer substitution
This part replaces 165298. Substitute parts can look different from the original.
$83.99 |
7% OFF Phone Price : $89.99
In Stock
Gasket 263102
#8

Component assy diagram

Gasket

Part #263102

Replaced by #00263102

?
Manufacturer substitution
This part replaces 263102. Substitute parts can look different from the original.
This item is not returnable
$26.59 |
18% OFF Phone Price : $32.59
In Stock
