KitchenAid
Blender

Model # 5KSB655WCA0 Official KitchenAid 5-speed blender with 48-oz glass jar

Here are the diagrams and repair parts for Official KitchenAid 5KSB655WCA0 5-speed blender with 48-oz glass jar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Coupling W10279256
#4

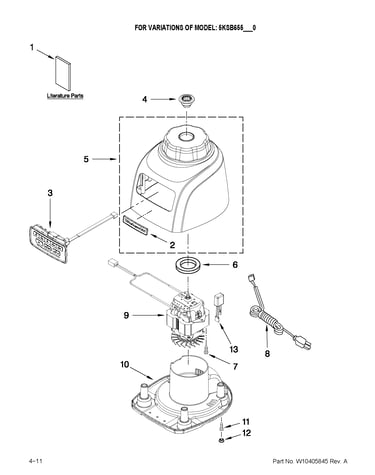

Unit parts diagram

Coupling

Part #W10279256

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces W10279256. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Blender Lid Assembly 9709363
#1

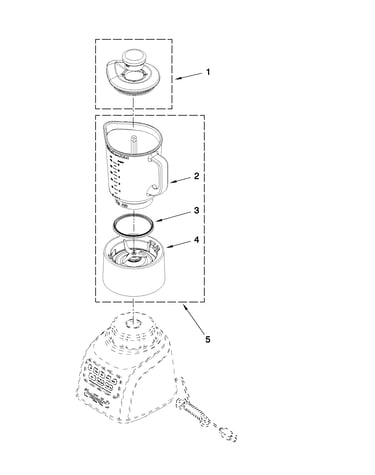

Attachment parts diagram

Blender lid assembly

Part #9709363

Replaced by #WP9709363

?
Manufacturer substitution
This part replaces 9709363. Substitute parts can look different from the original.
$26.27 |
19% OFF Phone Price : $32.27
Back Order
Base W10243482
#10

Unit parts diagram

Base

Part #W10243482

$47.20
In Stock
Housing W10321432
#5A

Unit parts diagram

Housing

Part #W10321432

$66.69 |
8% OFF Phone Price : $72.69
In Stock
Control W10371940
#3

Unit parts diagram

Control

Part #W10371940

$60.04
In Stock
Power Cord 9708931
#8A

Unit parts diagram

Power cord

Part #9708931

$39.70
In Stock
Blender Collar With Blade W10279518
#4

Attachment parts diagram

Blender collar with blade

Part #W10279518

Replaced by #WPW10500387

?
Manufacturer substitution
This part replaces W10279518. Substitute parts can look different from the original.
$64.89 |
8% OFF Phone Price : $70.89
In Stock
Seal 9709366
#6

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Motor W10290347
#9

Unit parts diagram

Motor

Part #W10290347

Replaced by #WPW10290347

?
Manufacturer substitution
This part replaces W10290347. Substitute parts can look different from the original.
$45.02
In Stock
Seal W10292571
#3

Attachment parts diagram

Seal

Part #W10292571

Replaced by #WPW10686132

?
Manufacturer substitution
This part replaces W10292571. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
