Model # 2581020210 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581020210 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Cotter Pin STD560907
#16

Grill and burner diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Retainer 10401-28
#33

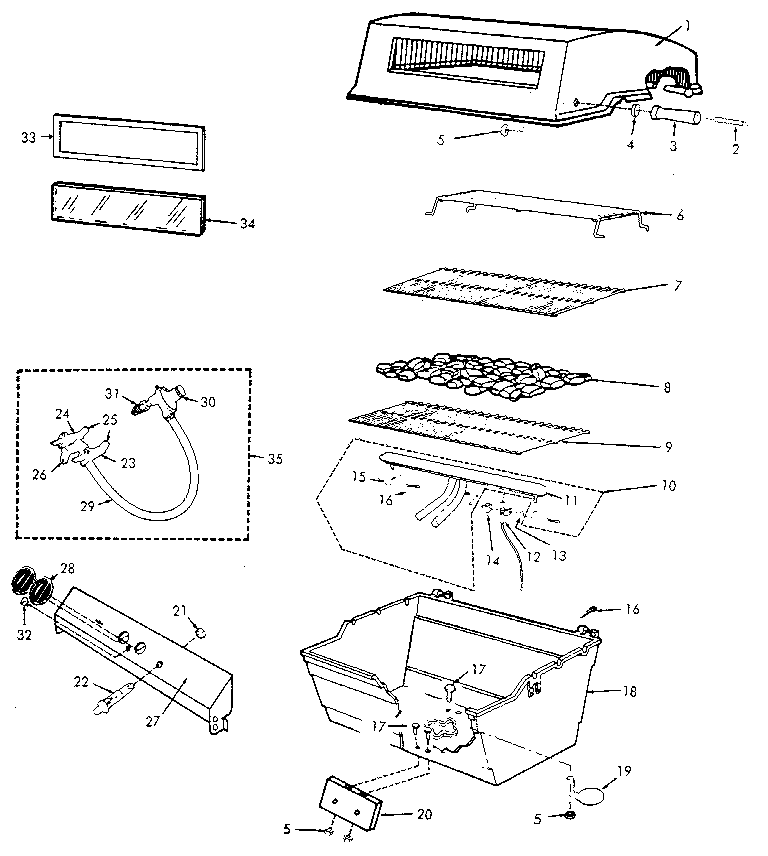

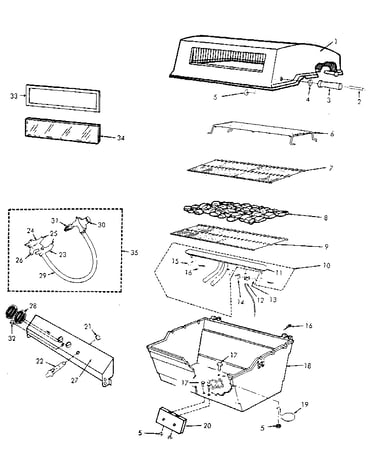

Grill and burner diagram

Retainer

Part #10401-28

The manufacturer no longer makes this part, and there's no substitute part

Support Brace 10184-322-1
#55

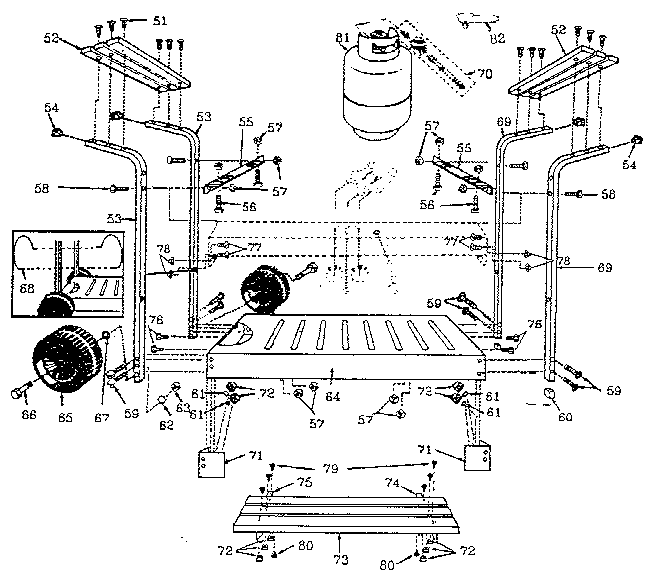

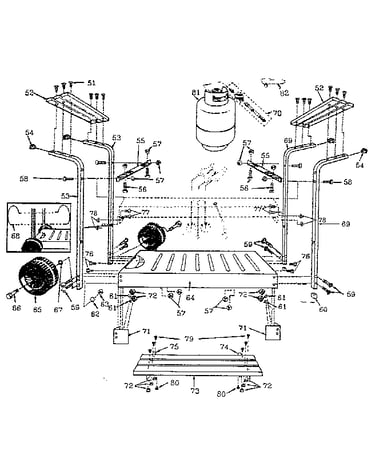

Cart diagram

Support brace

Part #10184-322-1

The manufacturer no longer makes this part, and there's no substitute part

Handle 10338-161-1
#69

Cart diagram

Handle

Part #10338-161-1

The manufacturer no longer makes this part, and there's no substitute part

Left Natural Gas Valve With Orifice 10691-145-3

#NI

All parts diagram

Left natural gas valve with orifice

Part #10691-145-3

The manufacturer no longer makes this part, and there's no substitute part

Conversion Label 10084-450

#NI

All parts diagram

Conversion label

Part #10084-450

The manufacturer no longer makes this part, and there's no substitute part

Shelf Board 10711-156-1
#64

Cart diagram

Shelf board

Part #10711-156-1

The manufacturer no longer makes this part, and there's no substitute part

Cover 10550-121
#27

Grill and burner diagram

Cover

Part #10550-121

The manufacturer no longer makes this part, and there's no substitute part

Switch 10342-21
#22

Grill and burner diagram

Switch

Part #10342-21

The manufacturer no longer makes this part, and there's no substitute part

Valve 10440-335
#35

Grill and burner diagram

Valve

Part #10440-335

The manufacturer no longer makes this part, and there's no substitute part
