Model # 45287182 Official Craftsman wheelbarrow

Here are the diagrams and repair parts for Official Craftsman 45287182 wheelbarrow, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

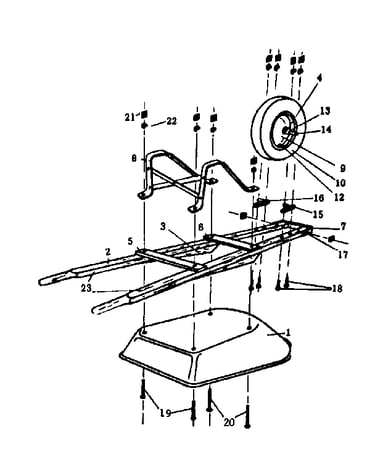

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Handle 00203100
#2

Unit parts diagram

Handle

Part #00203100

The manufacturer no longer makes this part, and there's no substitute part

Wood Frame 00074866
#23

Unit parts diagram

Wood frame

Part #00074866

The manufacturer no longer makes this part, and there's no substitute part

Wheel Assembly 122-01-SL
#9

Unit parts diagram

Wheel assembly

Part #122-01-SL

The manufacturer no longer makes this part, and there's no substitute part

Tire 122-02-2
#10

Unit parts diagram

Tire

Part #122-02-2

The manufacturer no longer makes this part, and there's no substitute part

Tray 011-17
#1

Unit parts diagram

Tray

Part #011-17

The manufacturer no longer makes this part, and there's no substitute part

Bolt 126657
#18

Unit parts diagram

Bolt

Part #126657

The manufacturer no longer makes this part, and there's no substitute part

Wheel Assembly 122-11
#12

Unit parts diagram

Wheel assembly

Part #122-11

The manufacturer no longer makes this part, and there's no substitute part

Crss Brace S 028-02-2
#6

Unit parts diagram

Crss brace s

Part #028-02-2

The manufacturer no longer makes this part, and there's no substitute part

Bolt 00925200
#20

Unit parts diagram

Bolt

Part #00925200

The manufacturer no longer makes this part, and there's no substitute part

Axle Brkt L 030-08-L
#15

Unit parts diagram

Axle brkt l

Part #030-08-L

The manufacturer no longer makes this part, and there's no substitute part
