Model # 13618-2G Official Bosch hammer drill

Here are the diagrams and repair parts for Official Bosch 13618-2G hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Brush Cover 2600508052
#11

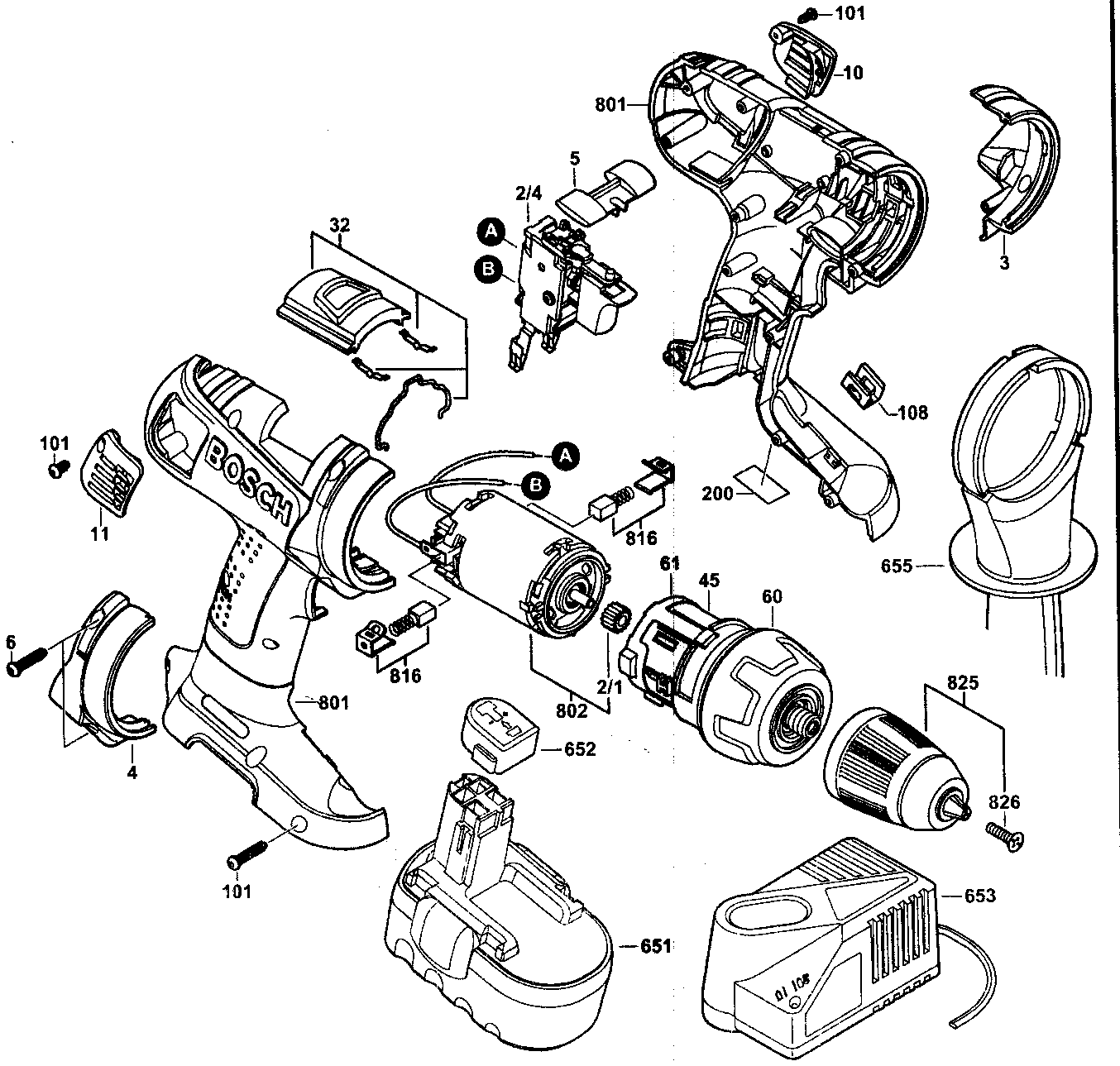

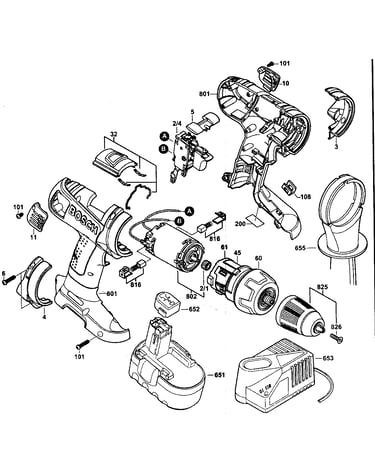

Drill assy diagram

Brush cover

Part #2600508052

The manufacturer no longer makes this part, and there's no substitute part

Auxiliary Handle 2602025126
#655

Drill assy diagram

Auxiliary handle

Part #2602025126

The manufacturer no longer makes this part, and there's no substitute part

Bosch Cover 2605500169
#4

Drill assy diagram

Bosch cover

Part #2605500169

The manufacturer no longer makes this part, and there's no substitute part

Switch 2607200457
#2/4

Drill assy diagram

Switch

Part #2607200457

The manufacturer no longer makes this part, and there's no substitute part

Bosch Gear 2606316222
#2/1

Drill assy diagram

Bosch gear

Part #2606316222

The manufacturer no longer makes this part, and there's no substitute part

Bosch Nameplate 2601116214
#200

Drill assy diagram

Bosch nameplate

Part #2601116214

The manufacturer no longer makes this part, and there's no substitute part

Bosch Housing 2605105920
#801

Drill assy diagram

Bosch housing

Part #2605105920

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2603410052
#6

Drill assy diagram

Bosch screw

Part #2603410052

The manufacturer no longer makes this part, and there's no substitute part

Lever 2601099127
#32

Drill assy diagram

Lever

Part #2601099127

The manufacturer no longer makes this part, and there's no substitute part

Chuck 2608572900
#825

Drill assy diagram

Chuck

Part #2608572900

The manufacturer no longer makes this part, and there's no substitute part
