Craftsman
Radial Arm Saw

Model # 113196221 Official Craftsman 10" radial saw

Here are the diagrams and repair parts for Official Craftsman 113196221 10" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Bolt STD533107
#28

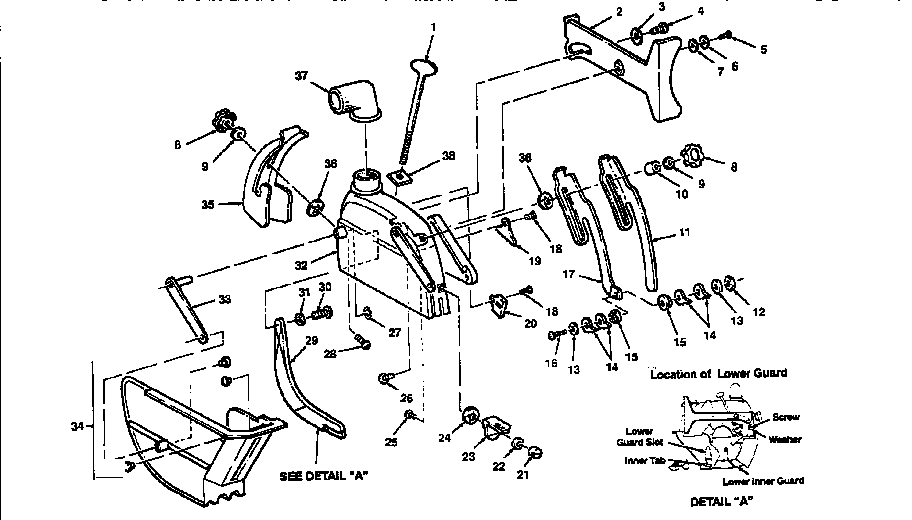

Guard assembly diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541431
#28

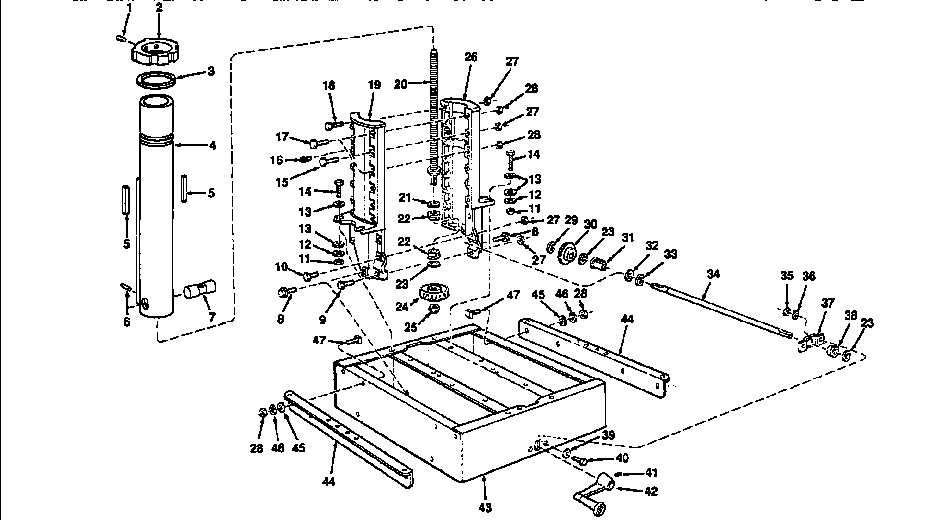

Base assembly diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Bevel Adjustment Knob 63660
#25

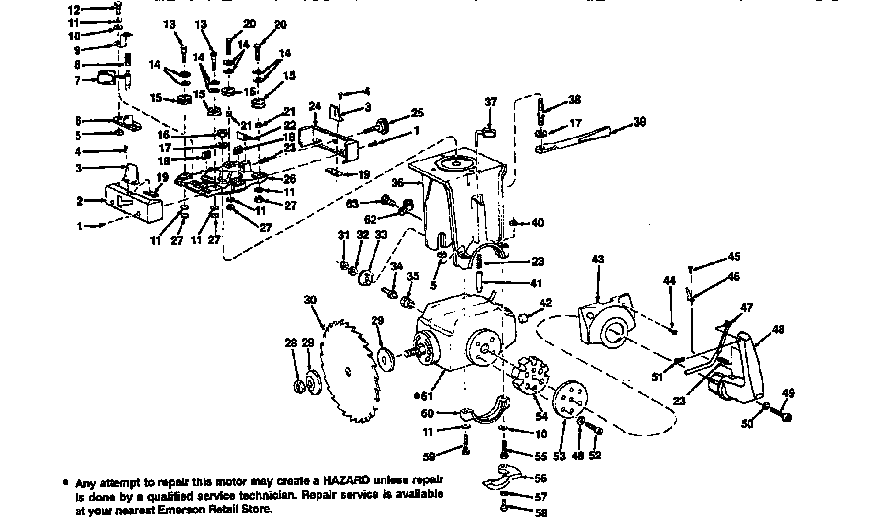

Yoke assembly diagram

Radial arm saw bevel adjustment knob

Part #63660

The manufacturer no longer makes this part, and there's no substitute part

Washer 805548-10
#31

Guard assembly diagram

Washer

Part #805548-10

The manufacturer no longer makes this part, and there's no substitute part

Screw 806214
#58

Yoke assembly diagram

Screw

Part #806214

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Bracket Clamp 818166
#36

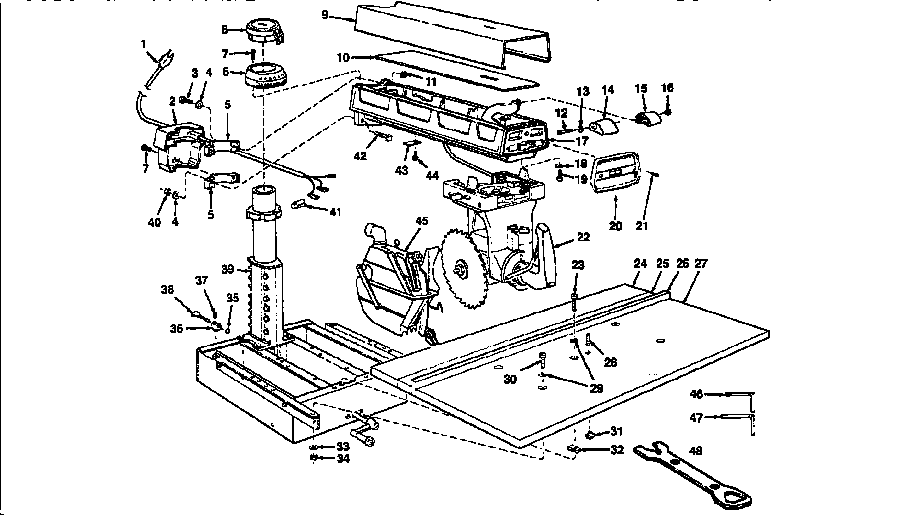

Main assembly diagram

Radial arm saw bracket clamp

Part #818166

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Bracket Clamp 818161
#35

Main assembly diagram

Radial arm saw bracket clamp

Part #818161

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Wrench 63682
#47

Main assembly diagram

Radial arm saw hex wrench

Part #63682

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#28

Yoke assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing (replaces 819039) 63777
#15

Yoke assembly diagram

Radial arm saw carriage bearing (replaces 819039)

Part #63777

The manufacturer no longer makes this part, and there's no substitute part
