Jenn-Air
Side-By-Side Refrigerator

Model # JS42SEDUDW14 Official Jenn-Air 42" built-in refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JS42SEDUDW14 42" built-in refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

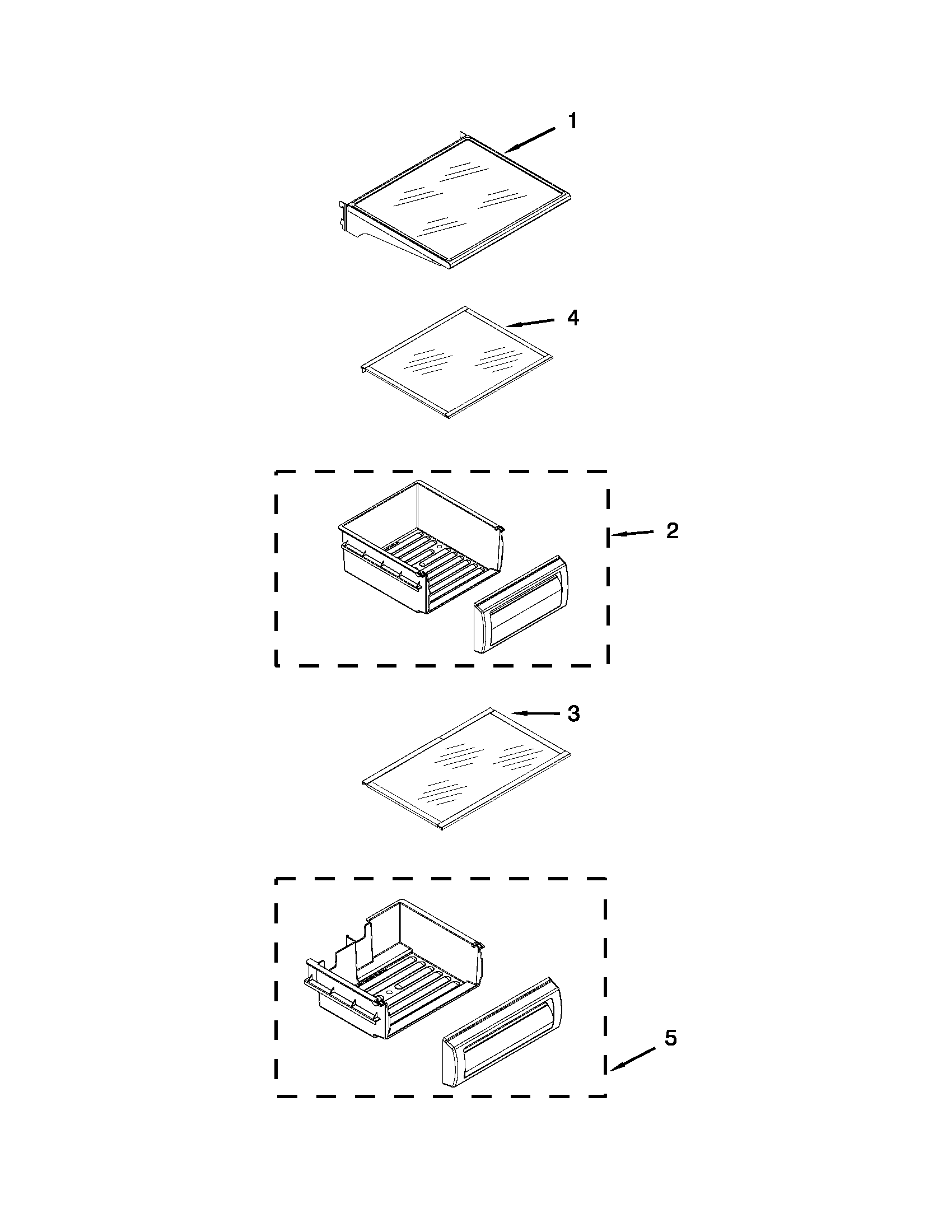

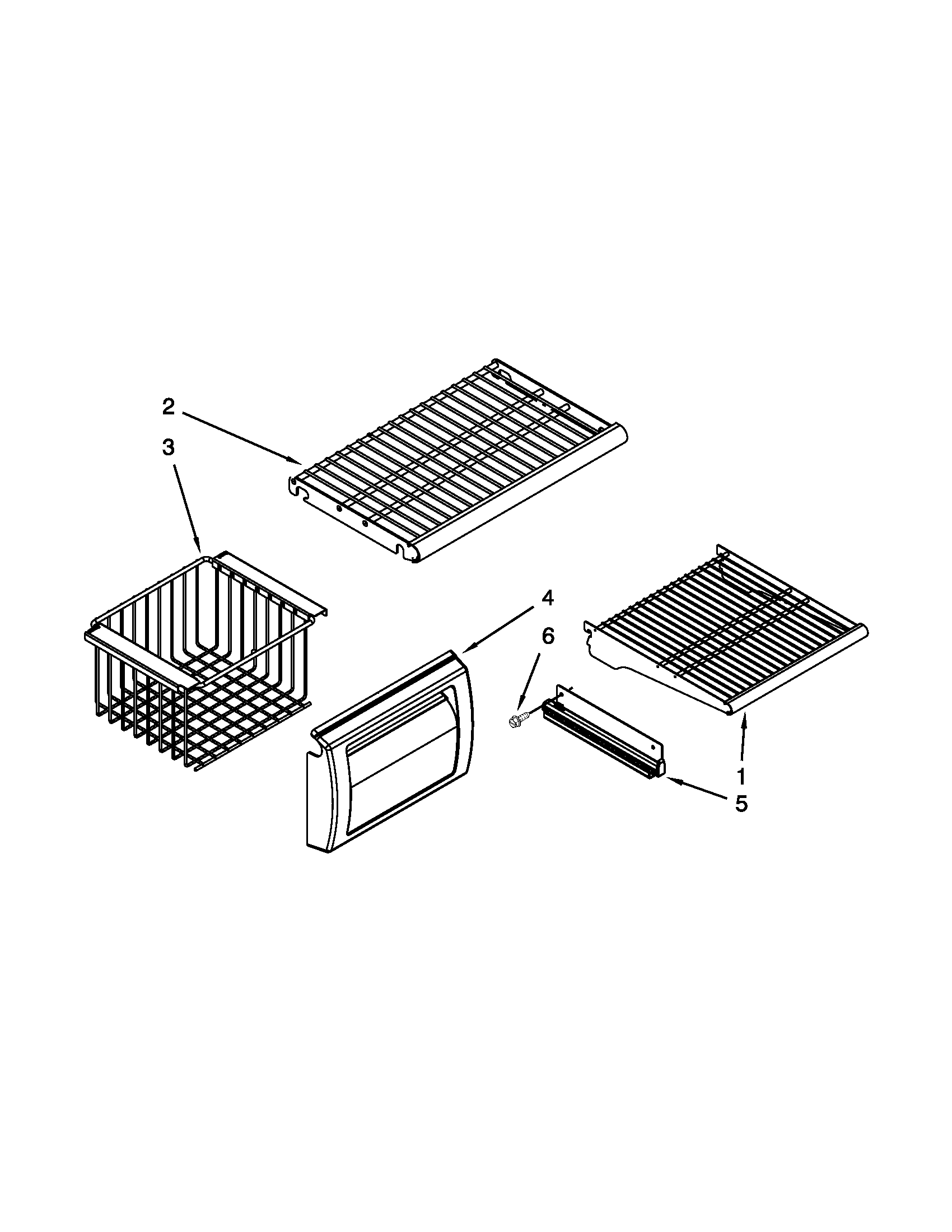

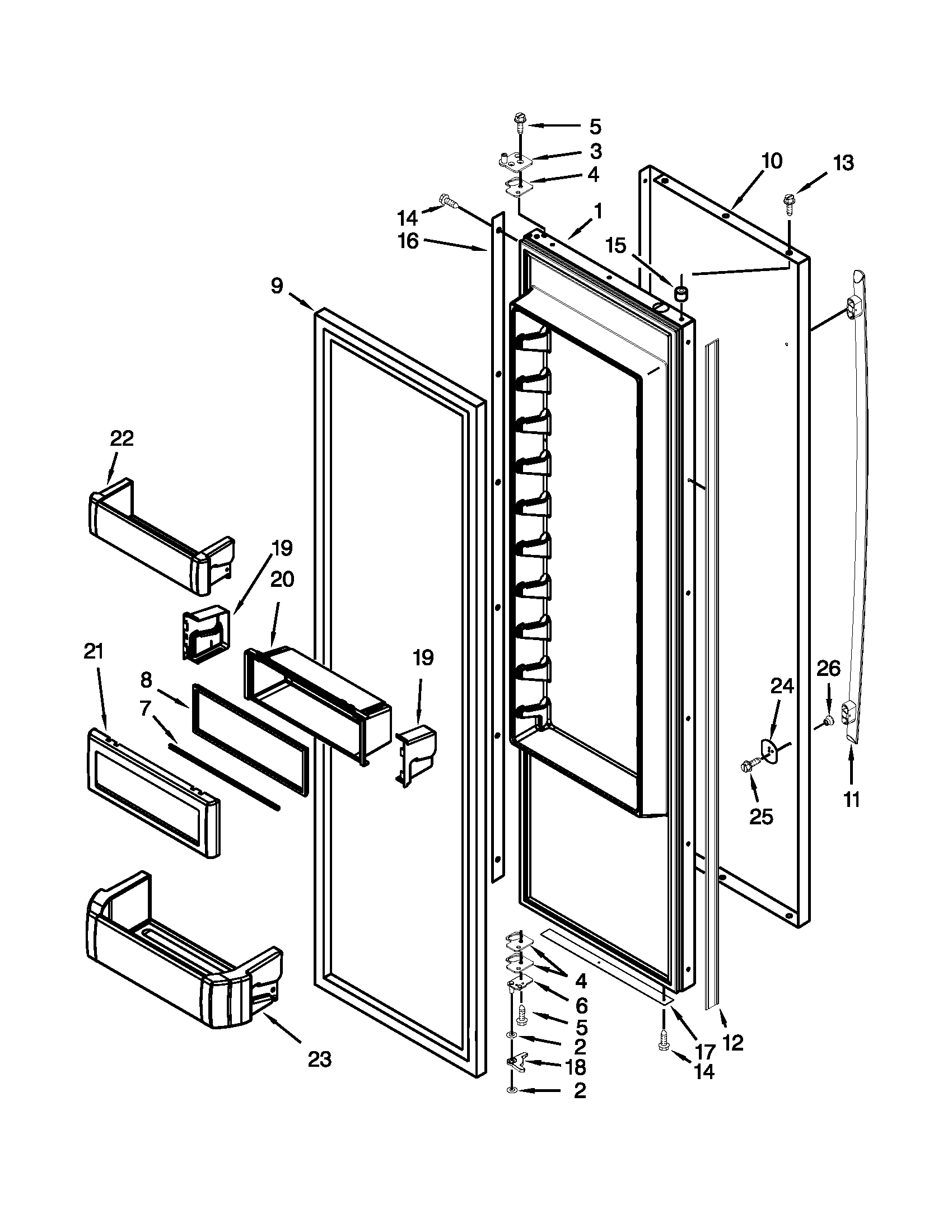

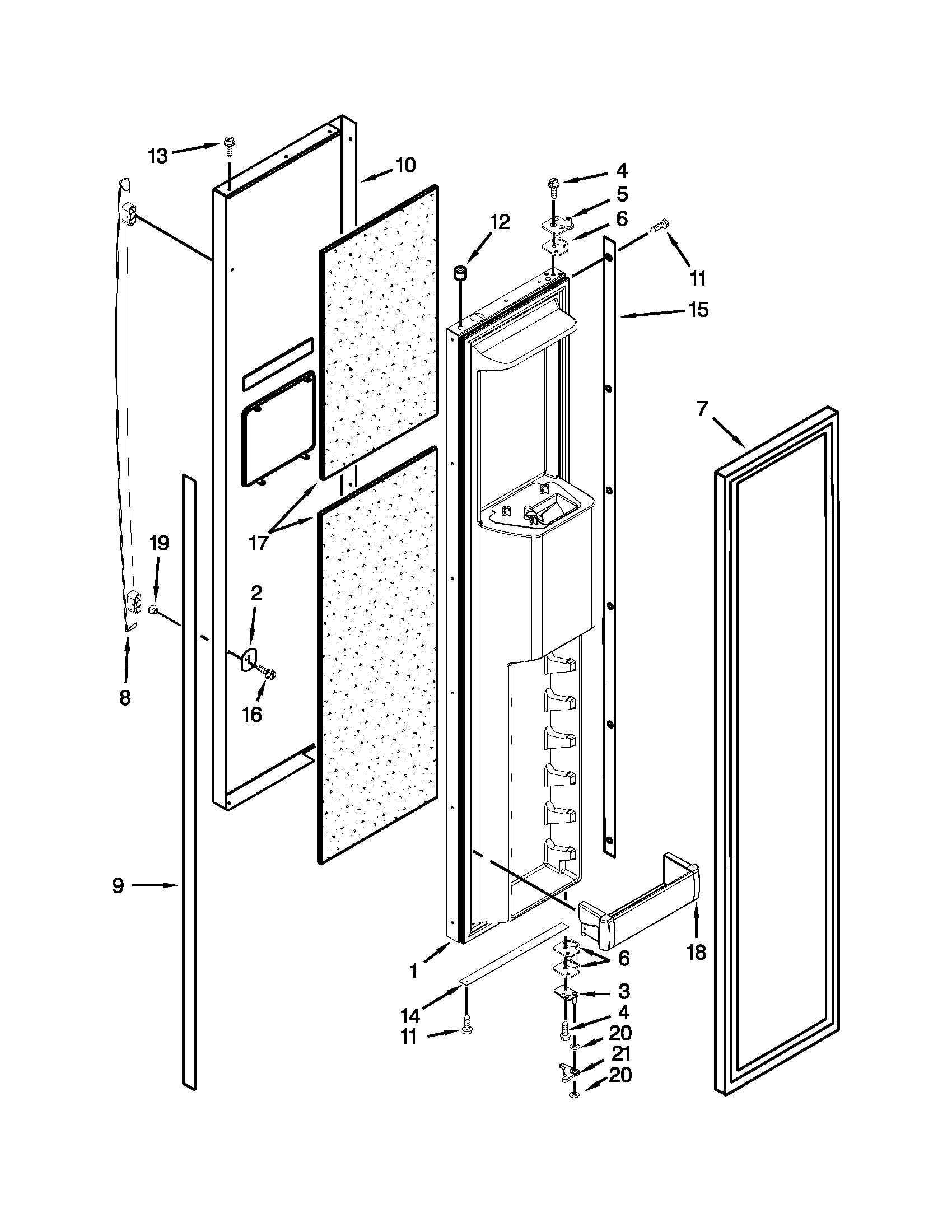

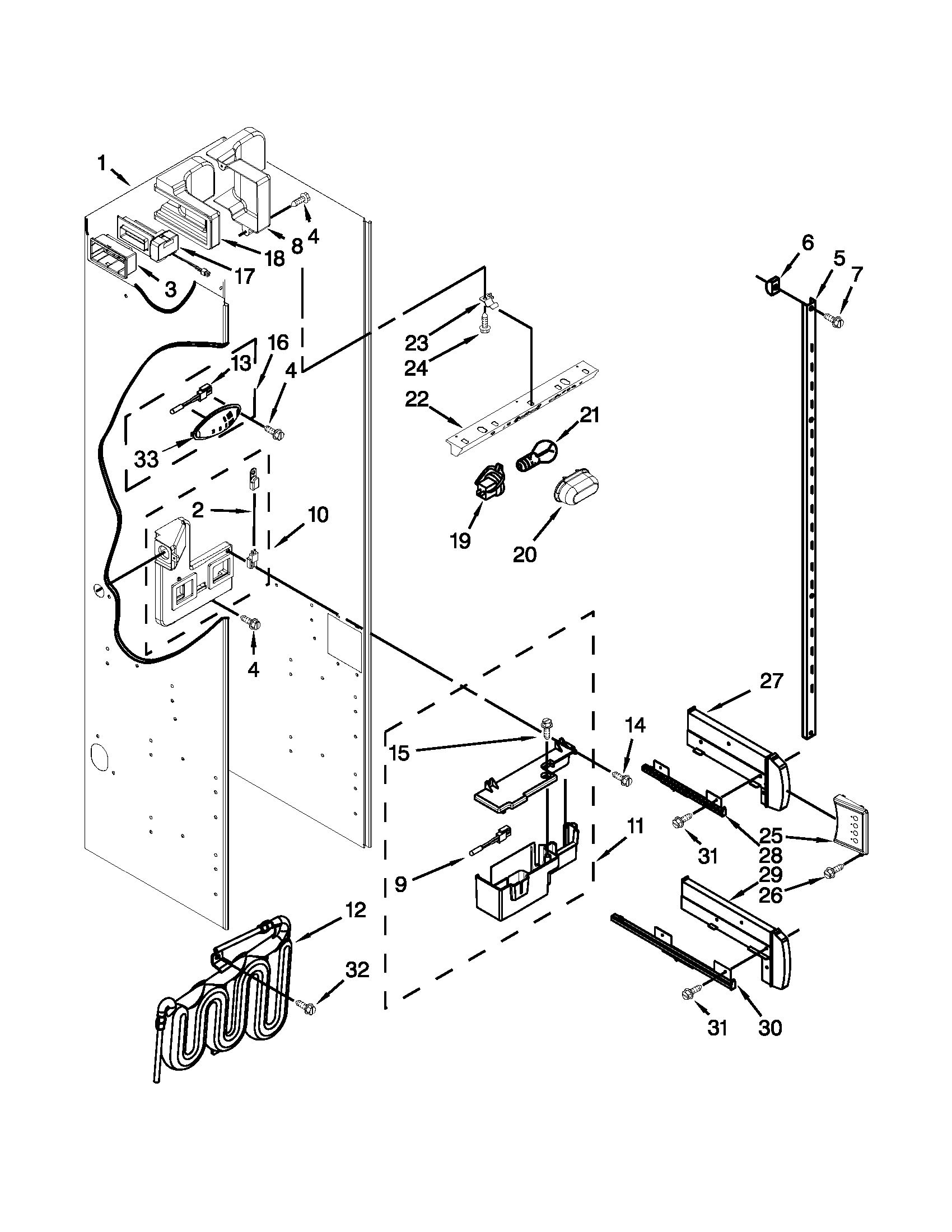

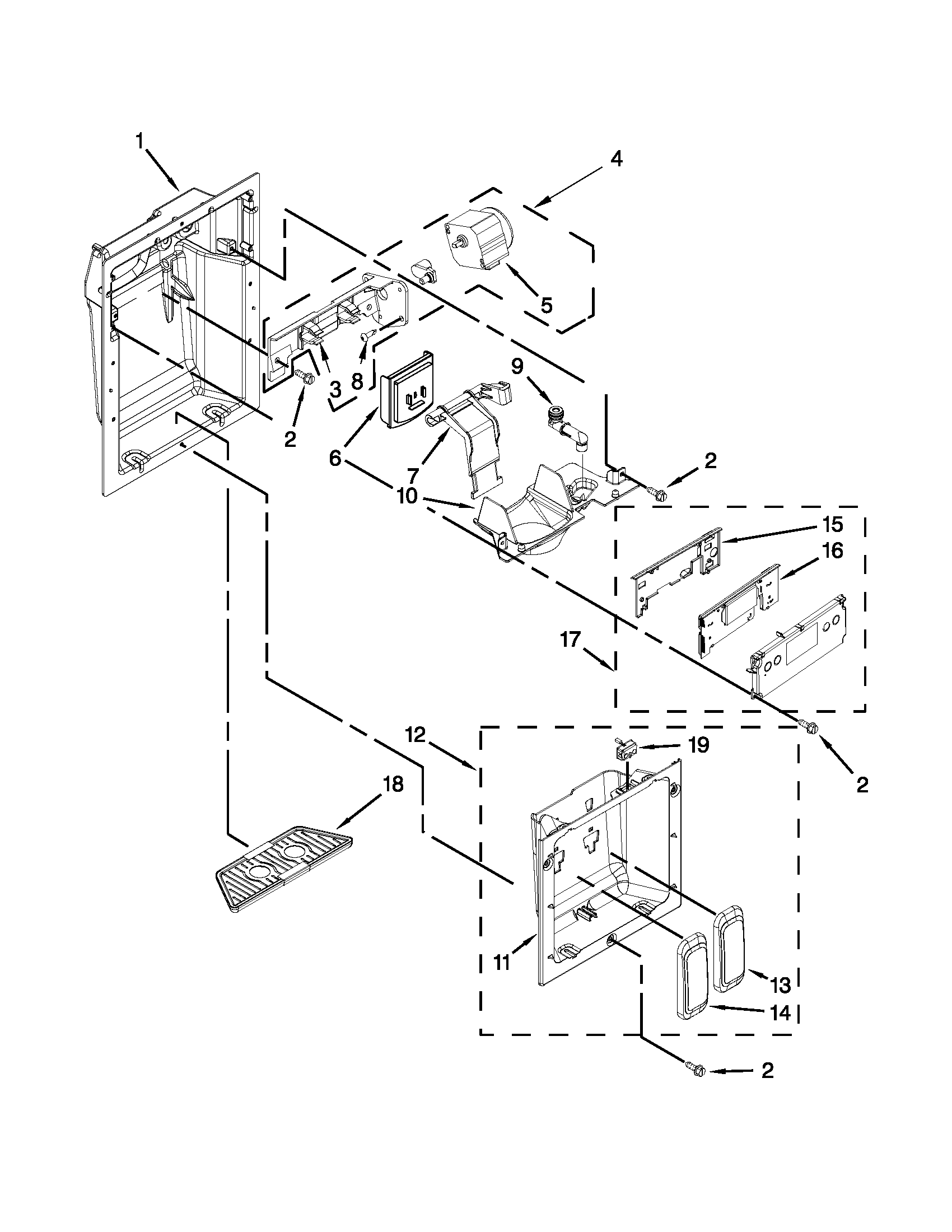

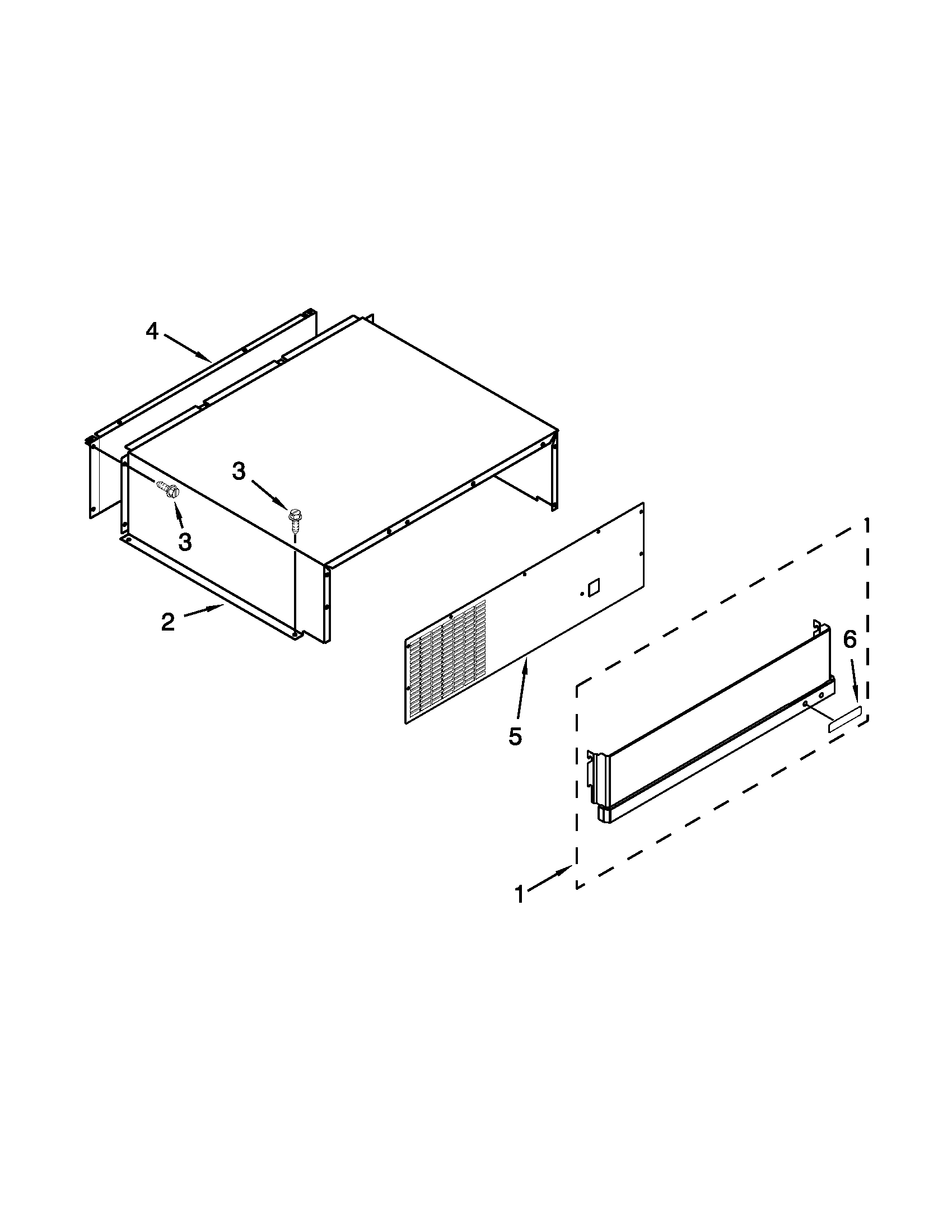

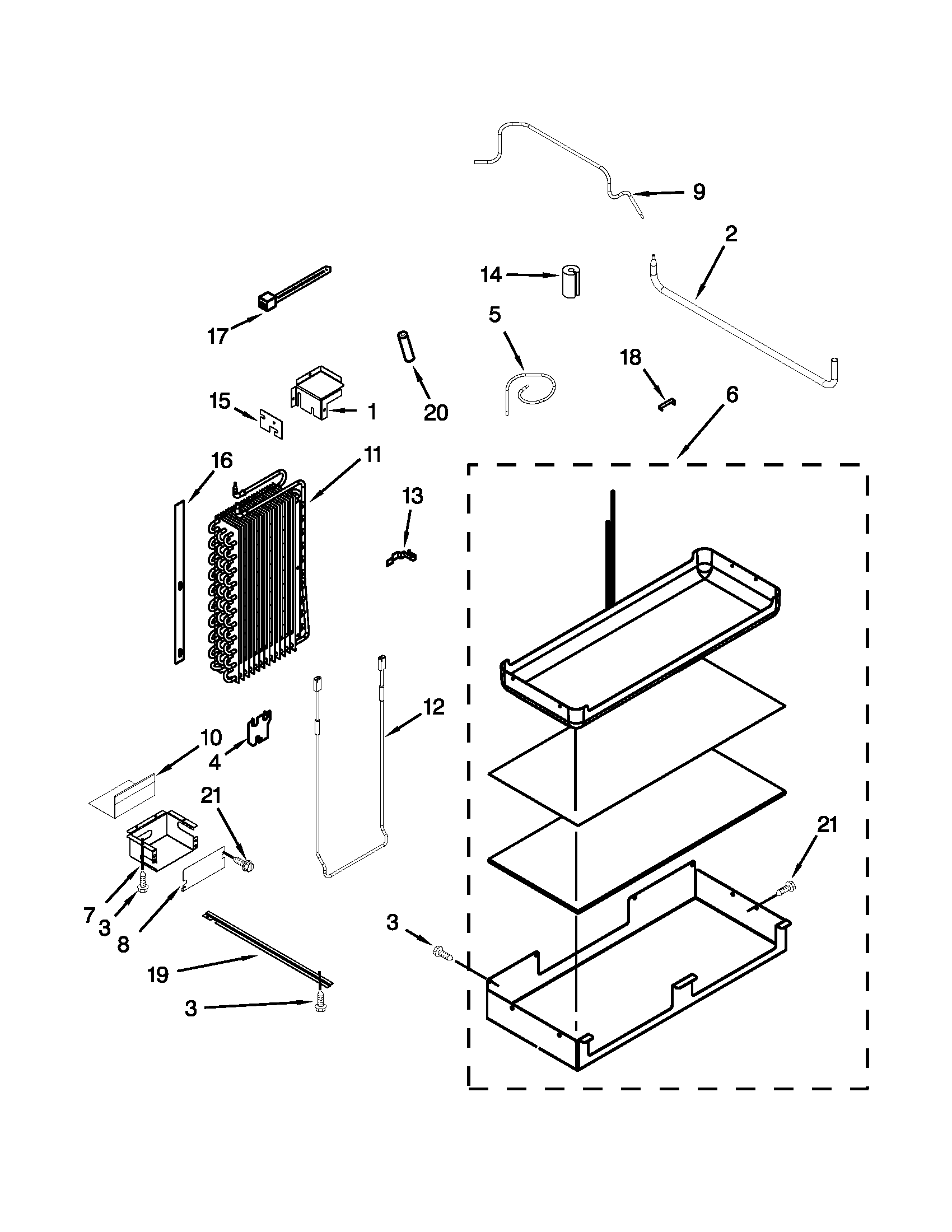

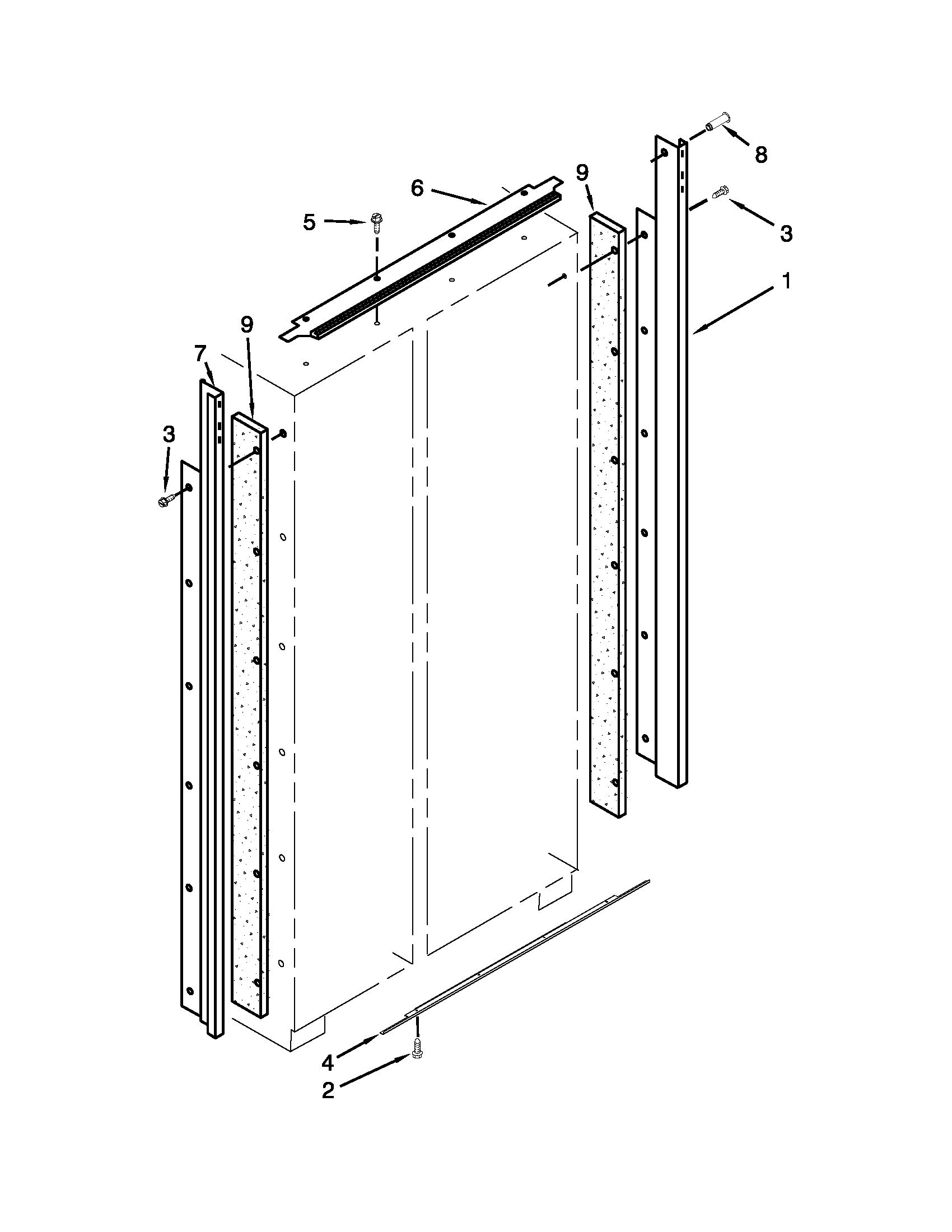

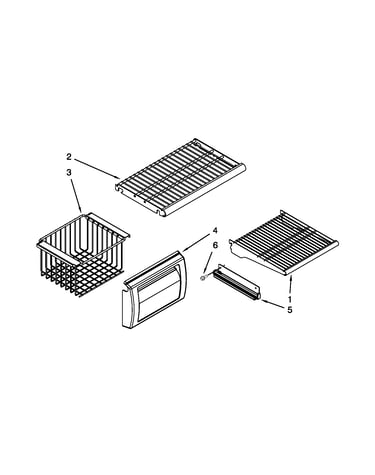

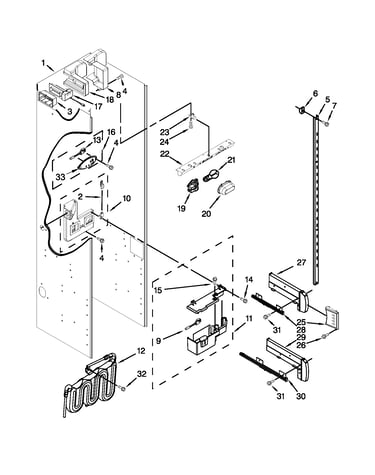

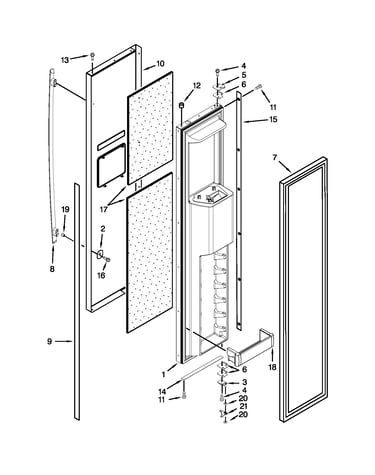

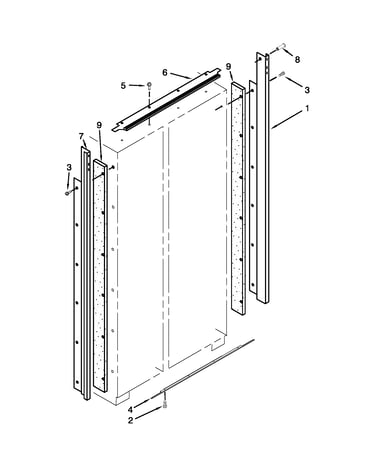

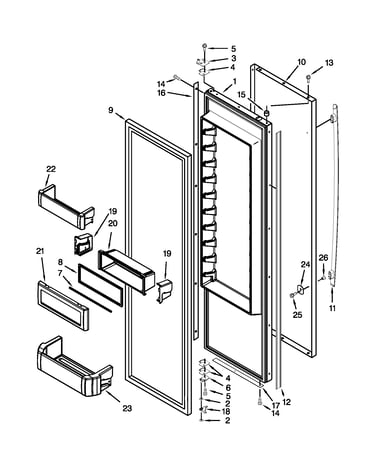

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 310 parts  |
Refrigerator Filter W10121146
#12

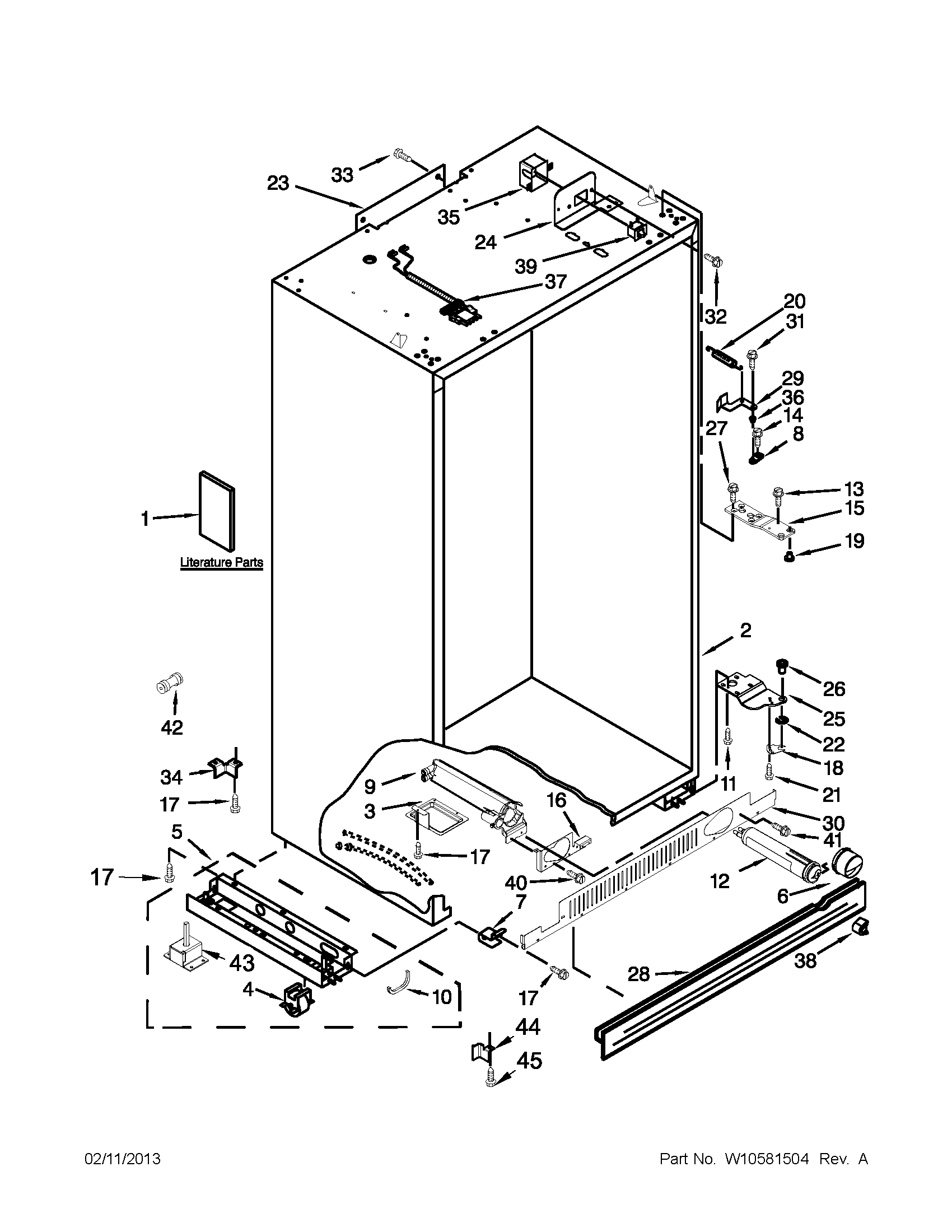

Cabinet parts diagram

Refrigerator filter

Part #W10121146

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces W10121146. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10175593
#21

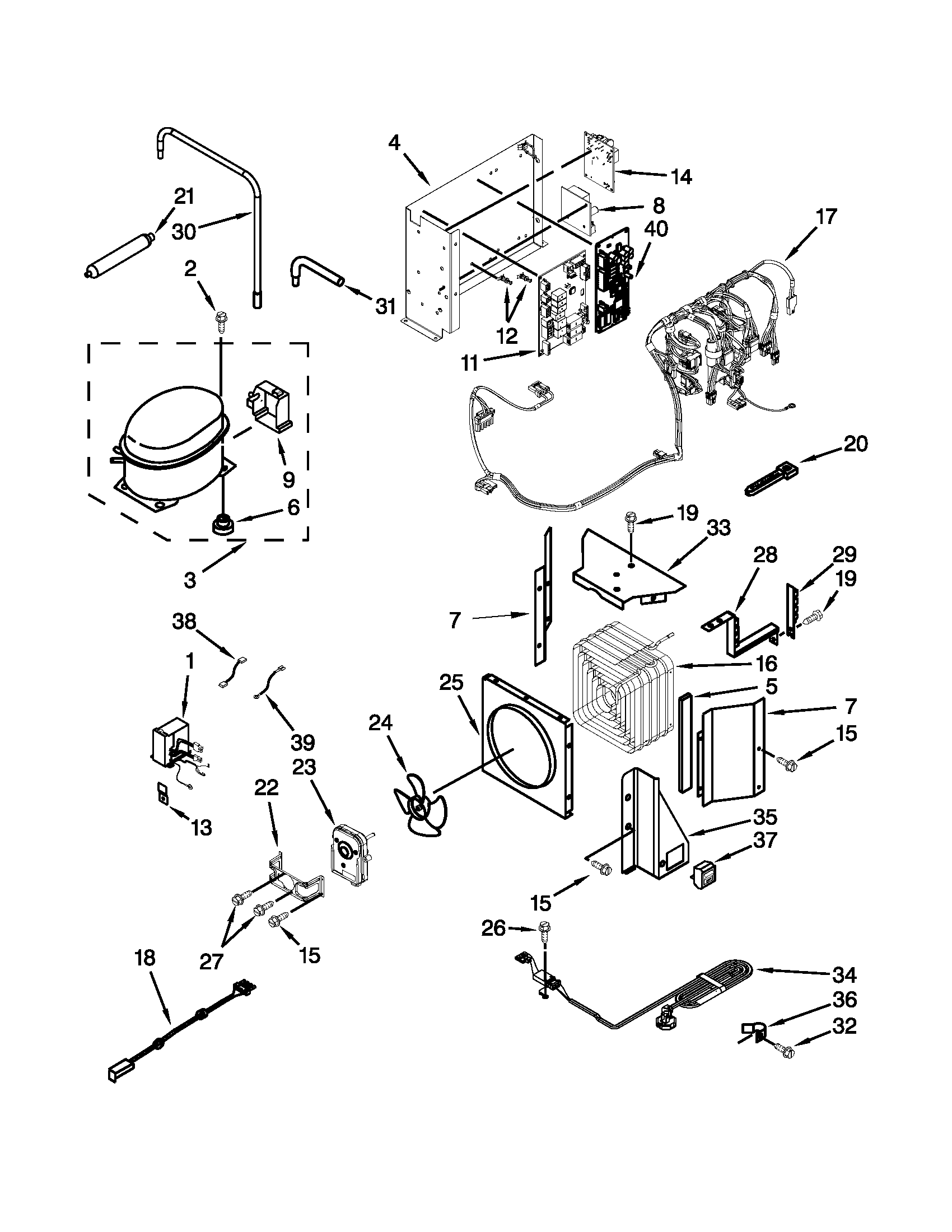

Upper unit parts diagram

Drier tube

Part #W10175593

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10175593. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Electronic Control W10290817
#11

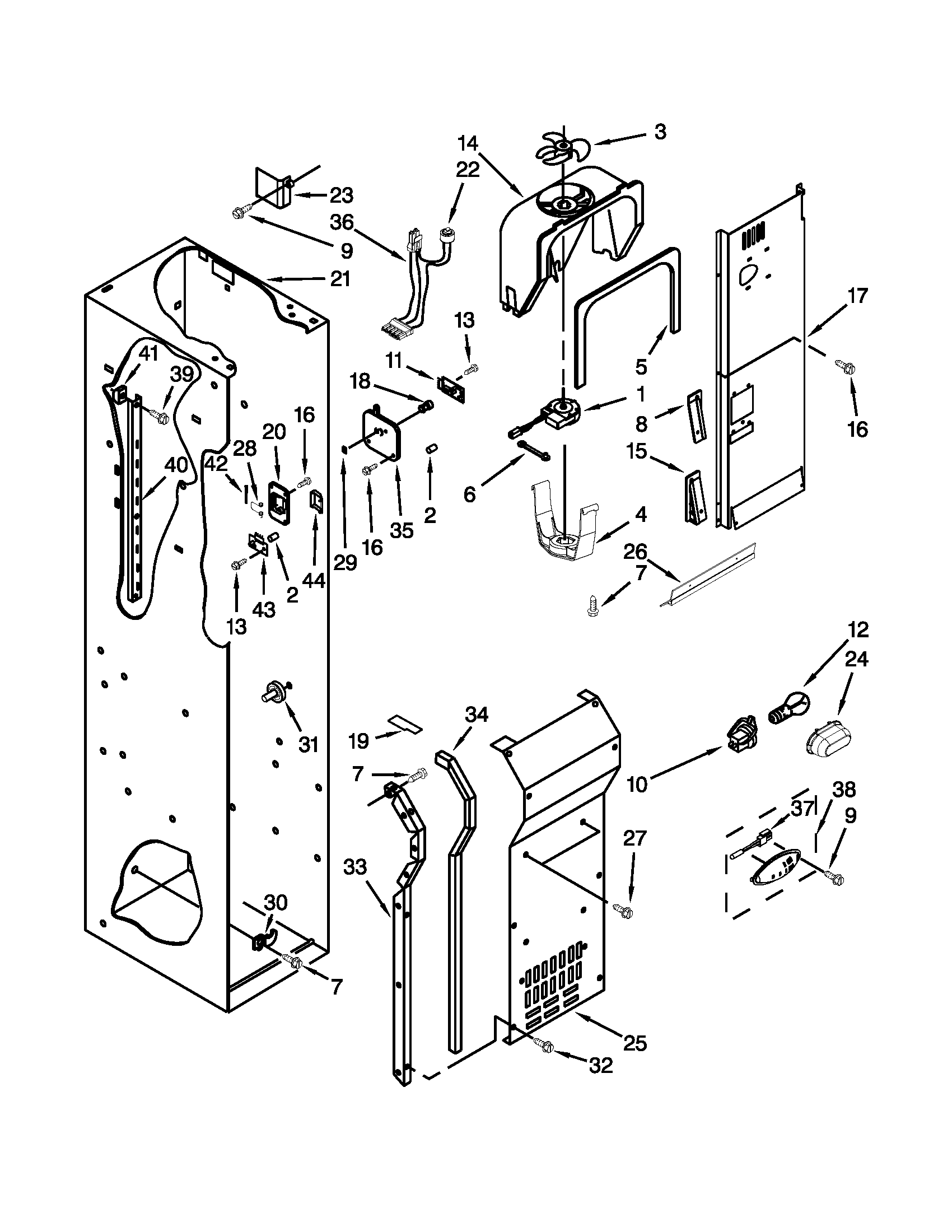

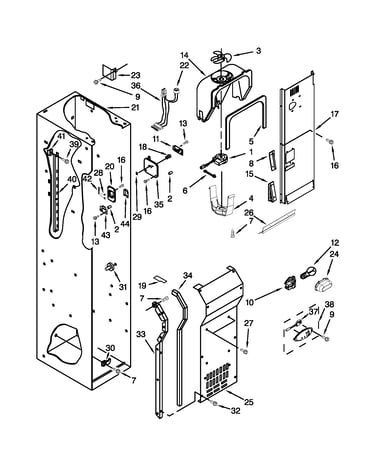

Freezer liner and air flow parts diagram

Refrigerator electronic control

Part #W10290817

Replaced by #W11629974

?
Manufacturer substitution
This part replaces W10290817. Substitute parts can look different from the original.
BEST SELLER
$233.12 |
5% OFF Phone Price : $245.12
In Stock
Refrigerator Electronic Control W10193840
#43

Freezer liner and air flow parts diagram

Refrigerator electronic control

Part #W10193840

Replaced by #W11629974

?
Manufacturer substitution
This part replaces W10193840. Substitute parts can look different from the original.
BEST SELLER
$233.12 |
5% OFF Phone Price : $245.12
In Stock
Refrigerator Light Switch 1118894
#39

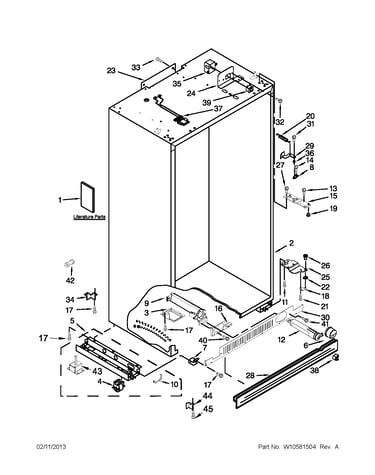

Cabinet parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Water Filter Cap (black) 2260518B
#6

Cabinet parts diagram

Refrigerator water filter cap (black)

Part #2260518B

Replaced by #WP2260518B

?
Manufacturer substitution
This part replaces 2260518B. Substitute parts can look different from the original.
BEST SELLER
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Refrigerator Ice Maker Assembly W10277448
#100

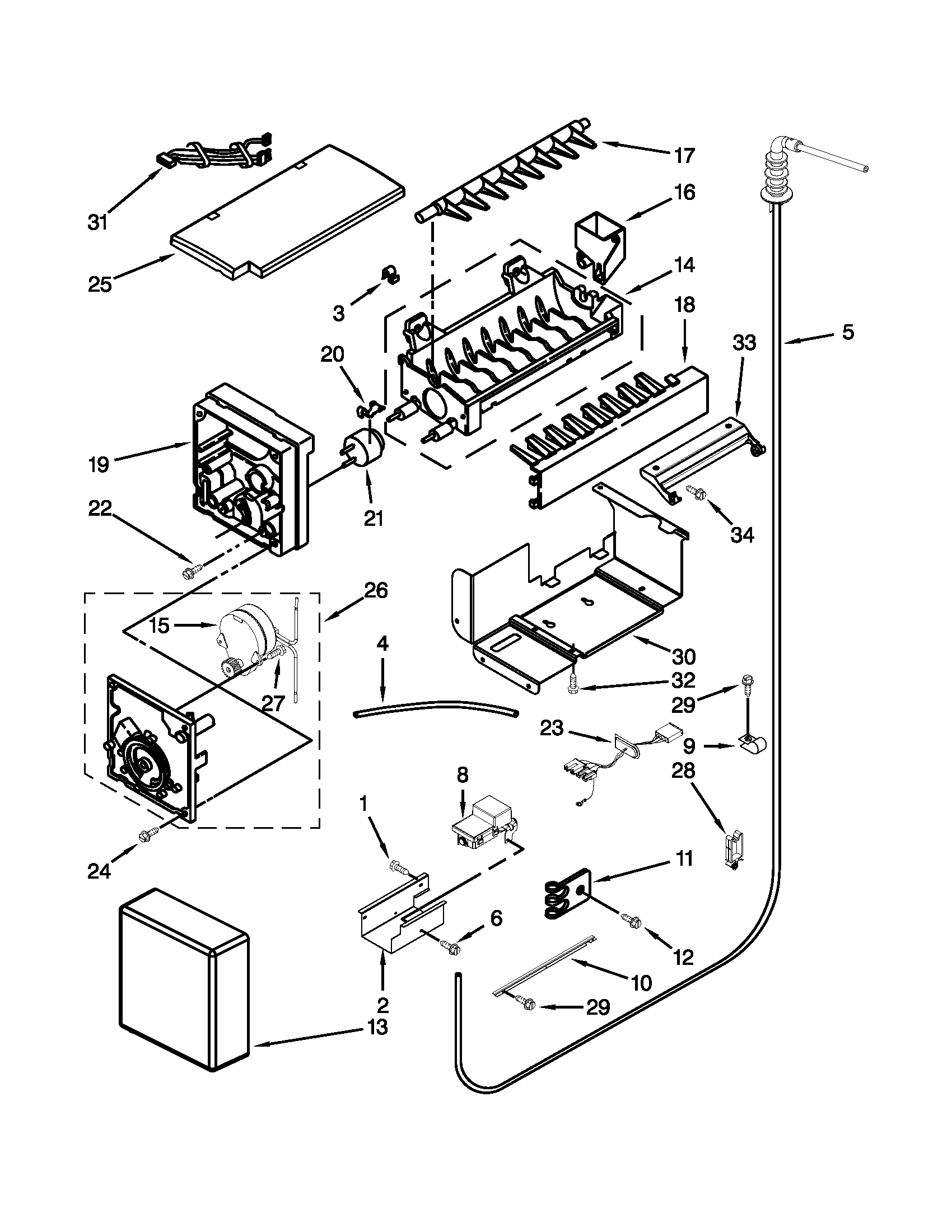

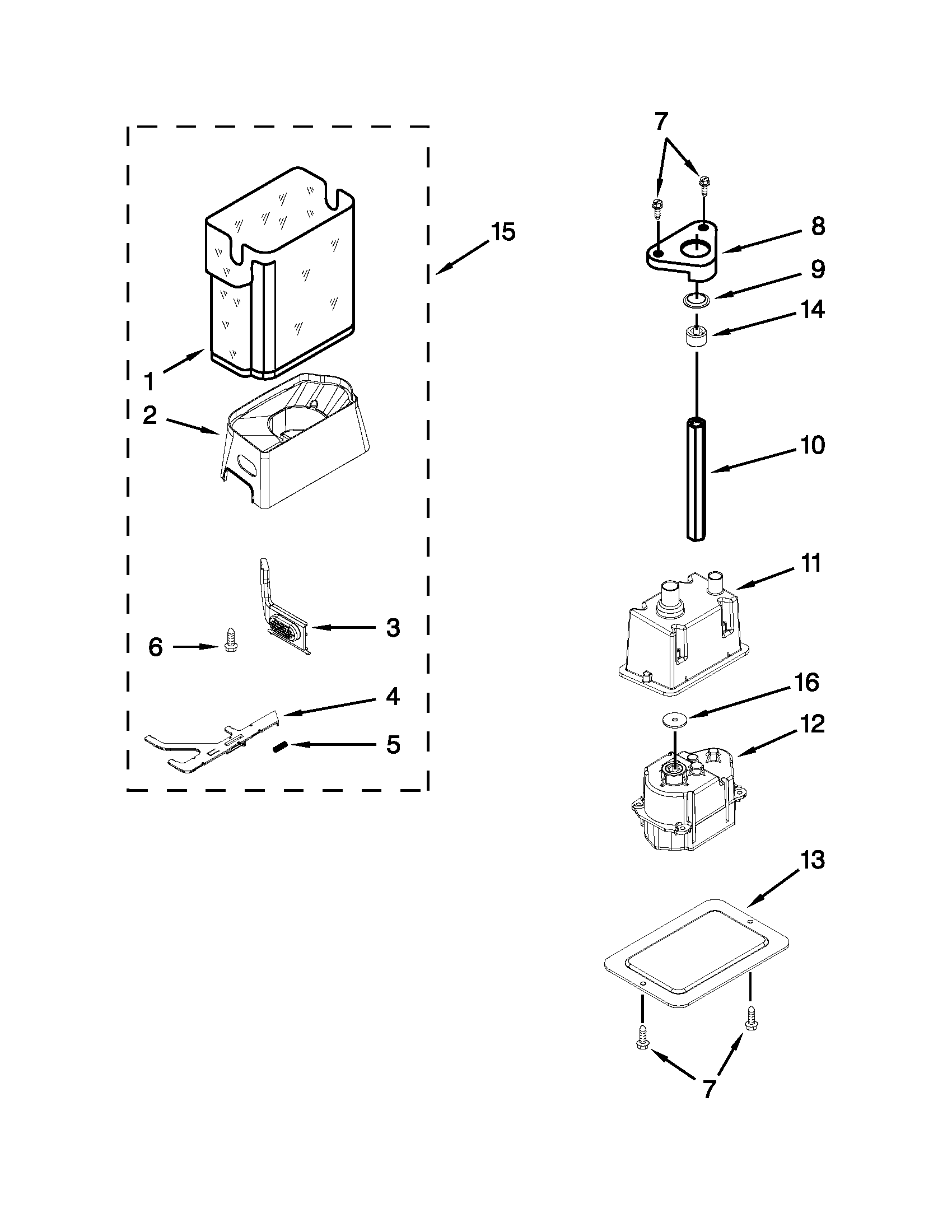

Icemaker diagram

Refrigerator ice maker assembly

Part #W10277448

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Water Filter Housing W10121140
#9

Cabinet parts diagram

Refrigerator water filter housing

Part #W10121140

Replaced by #WPW10121140

?
Manufacturer substitution
This part replaces W10121140. Substitute parts can look different from the original.
BEST SELLER
$98.42 |
11% OFF Phone Price : $110.42
In Stock
Refrigerator Emitter Cover 2198633
#44

Freezer liner and air flow parts diagram

Refrigerator emitter cover

Part #2198633

Replaced by #WP2198633

?
Manufacturer substitution
This part replaces 2198633. Substitute parts can look different from the original.
BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Refrigerator Freeer Door Switch 1115373
#39A

Cabinet parts diagram

Refrigerator freeer door switch

Part #1115373

Replaced by #W11457217

?
Manufacturer substitution
This part replaces 1115373. Substitute parts can look different from the original.
BEST SELLER
$24.79 |
19% OFF Phone Price : $30.79
In Stock
