Flotec
Water Pump

Model # FP4157 Official Flotec well pump

Here are the diagrams and repair parts for Official Flotec FP4157 well pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

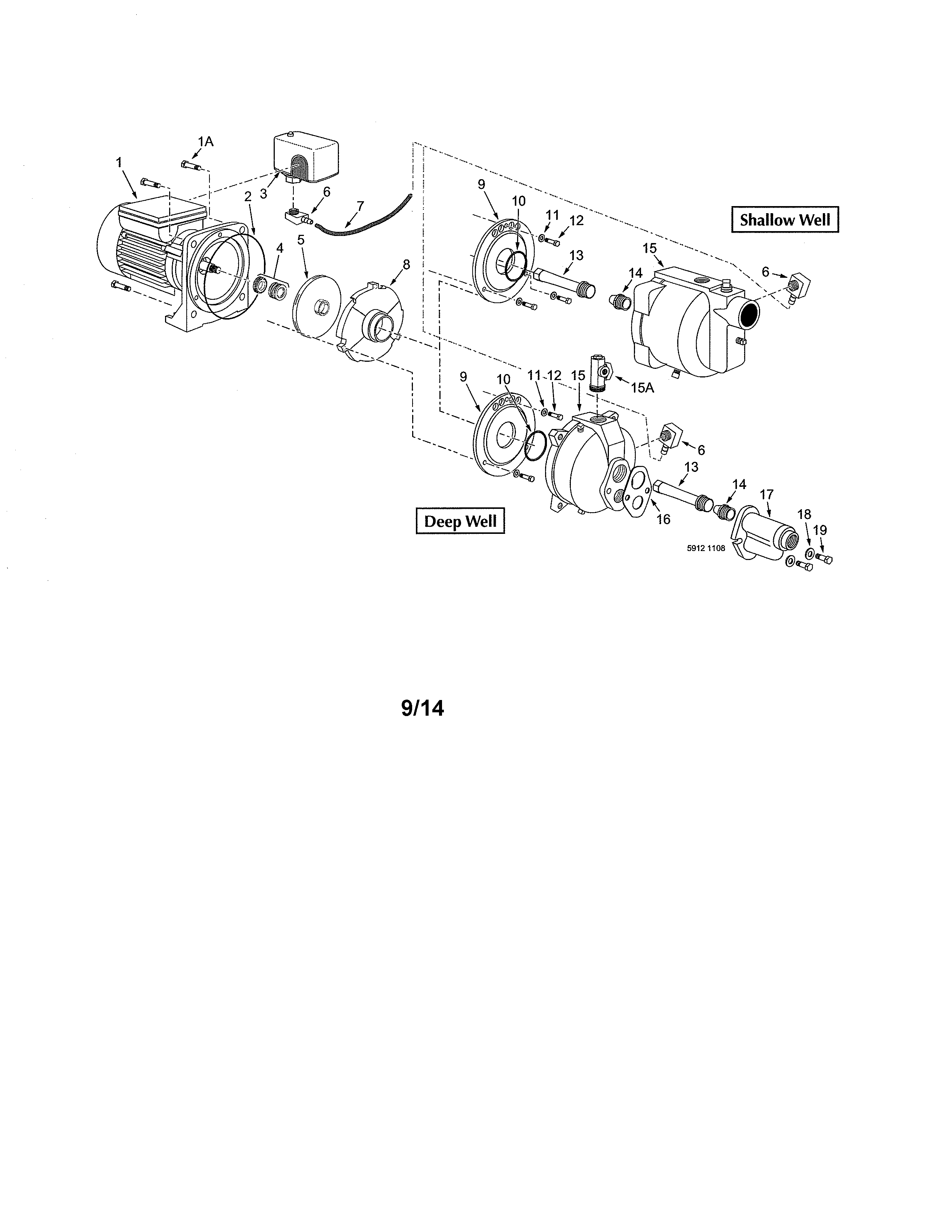

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Seal & O-ring Kit (includes Key #'s 2,4,10,16) RPK-35

#NI01

All parts diagram

Seal & o-ring kit (includes key #'s 2,4,10,16)

Part #RPK-35

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit 1 Hp (fp4150) (includes Key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14) RPK-210SW

#NI04

All parts diagram

Overhaul kit 1 hp (fp4150) (includes key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14)

Part #RPK-210SW

The manufacturer no longer makes this part, and there's no substitute part

Pressure Switch (30-50)(includes Key #3) TC2151

#NI06

All parts diagram

Pressure switch (30-50)(includes key #3)

Part #TC2151

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit 1/2 Hp (fp4155) (includes Key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14) RPK-205SW

#NI02

All parts diagram

Overhaul kit 1/2 hp (fp4155) (includes key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14)

Part #RPK-205SW

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit 3/4 Hp (fp4157) (includes Key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14) RPK-207SW

#NI03

All parts diagram

Overhaul kit 3/4 hp (fp4157) (includes key #'s 1a,2,4,5,8,9,10,11(3),12(3),13,14)

Part #RPK-207SW

The manufacturer no longer makes this part, and there's no substitute part

Body Pump Assembly (313) (incl. Key #'s 2,6,10,15,16,1/4" Npt Plug(2), 1/2" Npt Plug/(312)(incl. Key #'s 2,6,13,14,15,1/4" Npt Plug(2), 1/2" Npt Plug) R176-73

#NI05

All parts diagram

Body pump assembly (313) (incl. key #'s 2,6,10,15,16,1/4" npt plug(2), 1/2" npt plug/(312)(incl. key #'s 2,6,13,14,15,1/4" npt plug(2), 1/2" npt plug)

Part #R176-73

The manufacturer no longer makes this part, and there's no substitute part

Pressure Switch Tubing (includes Key #'s 6(3),7) FPASFK

#NI07

All parts diagram

Pressure switch tubing (includes key #'s 6(3),7)

Part #FPASFK

The manufacturer no longer makes this part, and there's no substitute part
