Model # 70462064A Official Ikea electric cooktop

Here are the diagrams and repair parts for Official Ikea 70462064A electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

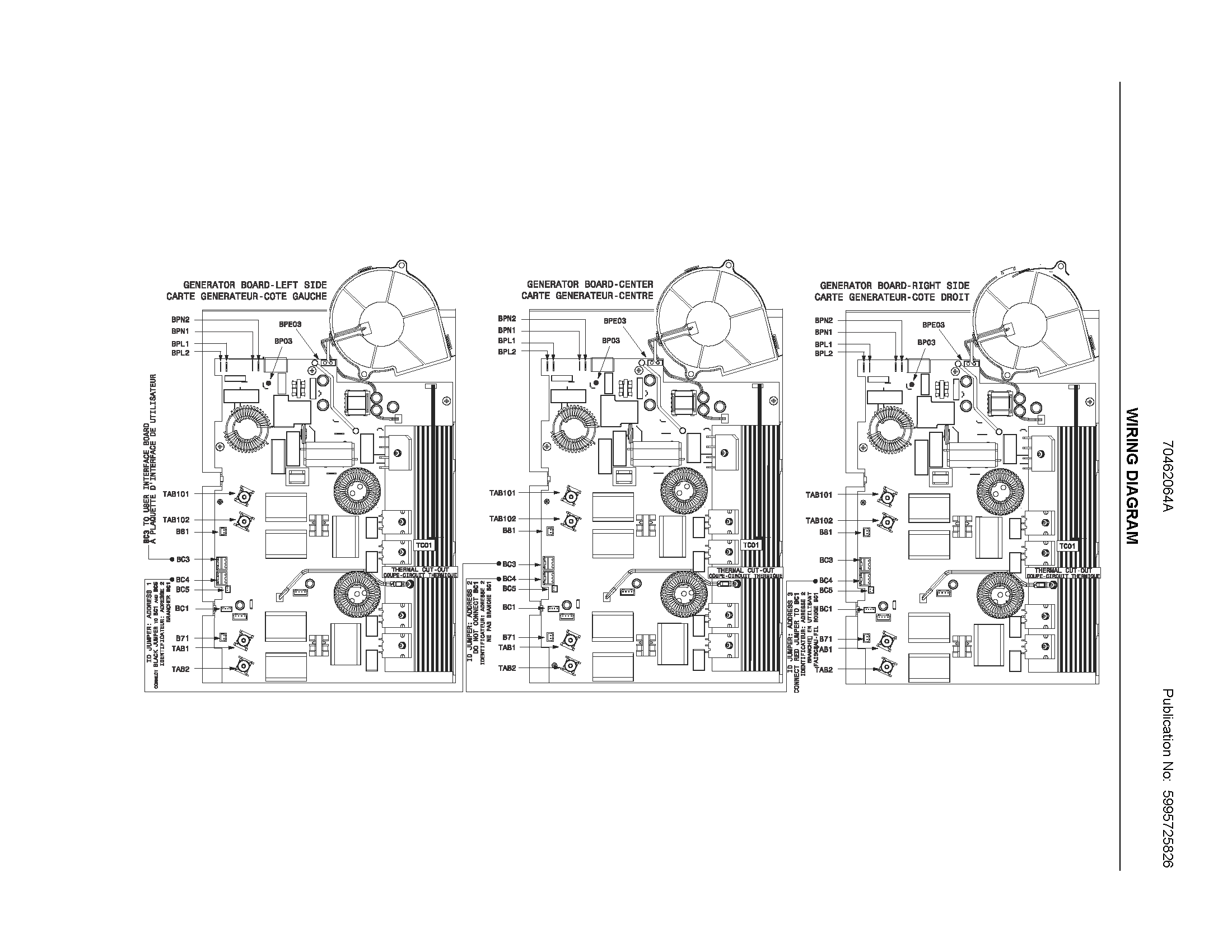

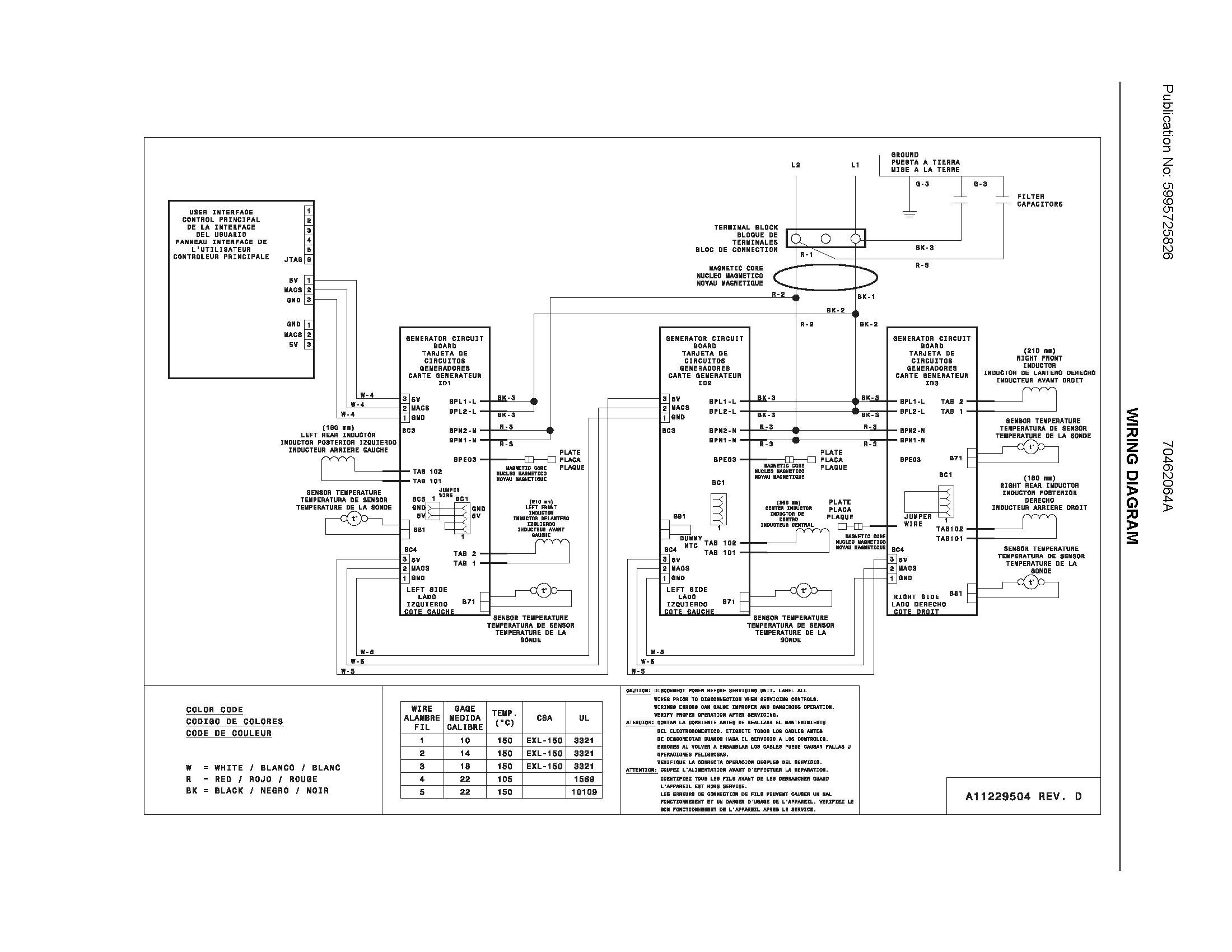

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 33 parts |

#62

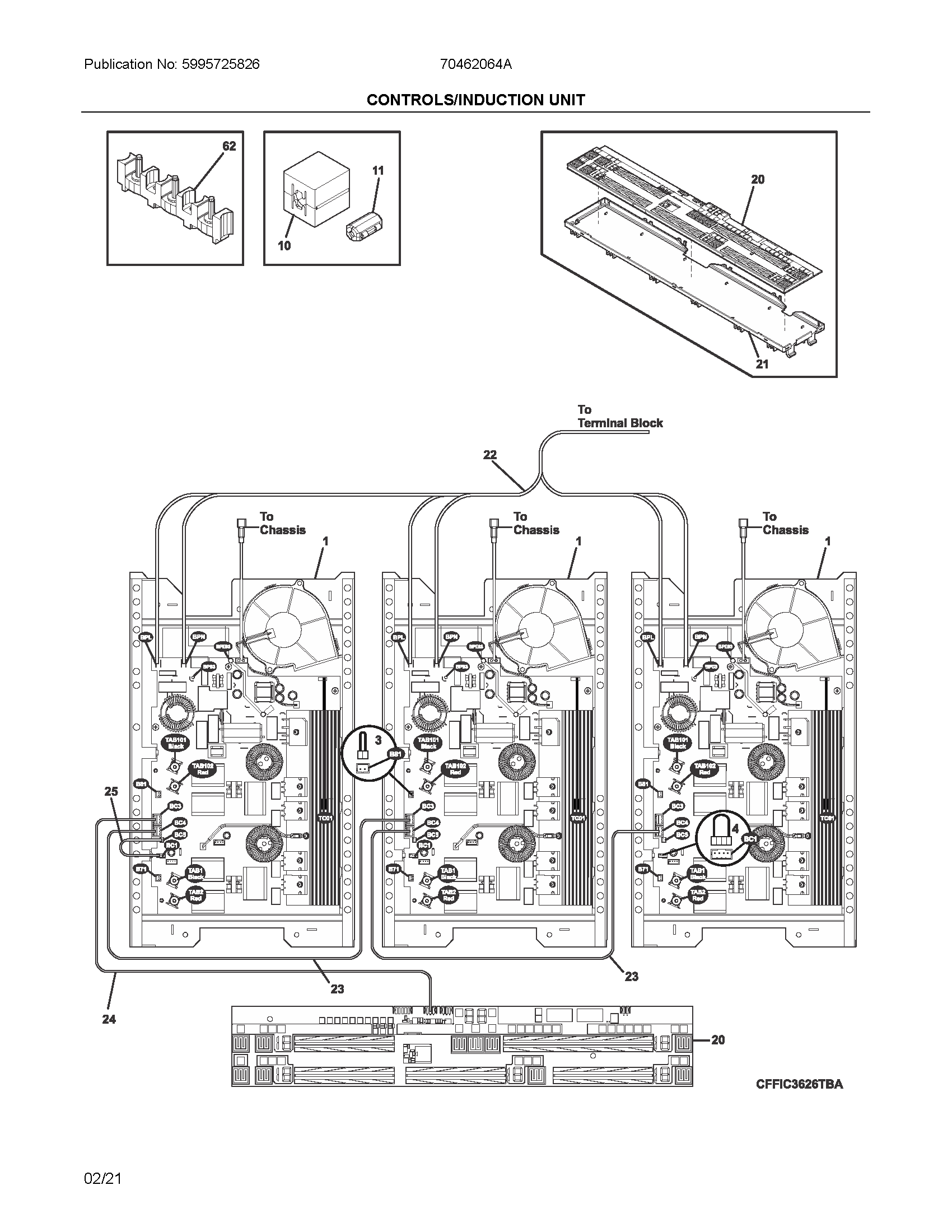

Controls/induction unit diagram

Terminal block

Part #316056000

Replaced by #5304409888

$9.64 |

9% OFF Phone Price : $10.64

In Stock

Qty

Controls/induction unit diagram

Cooktop induction module (replaces 357266087)

Part #357266088

$371.60

In Stock

Qty

Controls/induction unit diagram

Kenmore harness

Part #318578302

$18.17

In Stock

Qty

Controls/induction unit diagram

Electrolux cooktop bridge

Part #387540300

This item is not returnable

$3.51

In Stock

Qty

#21

Controls/induction unit diagram

Carrier,user interface

Part #561630814

$38.64

In Stock

Qty

Element,induction Coil ,260 Mm 5304514341

#15B

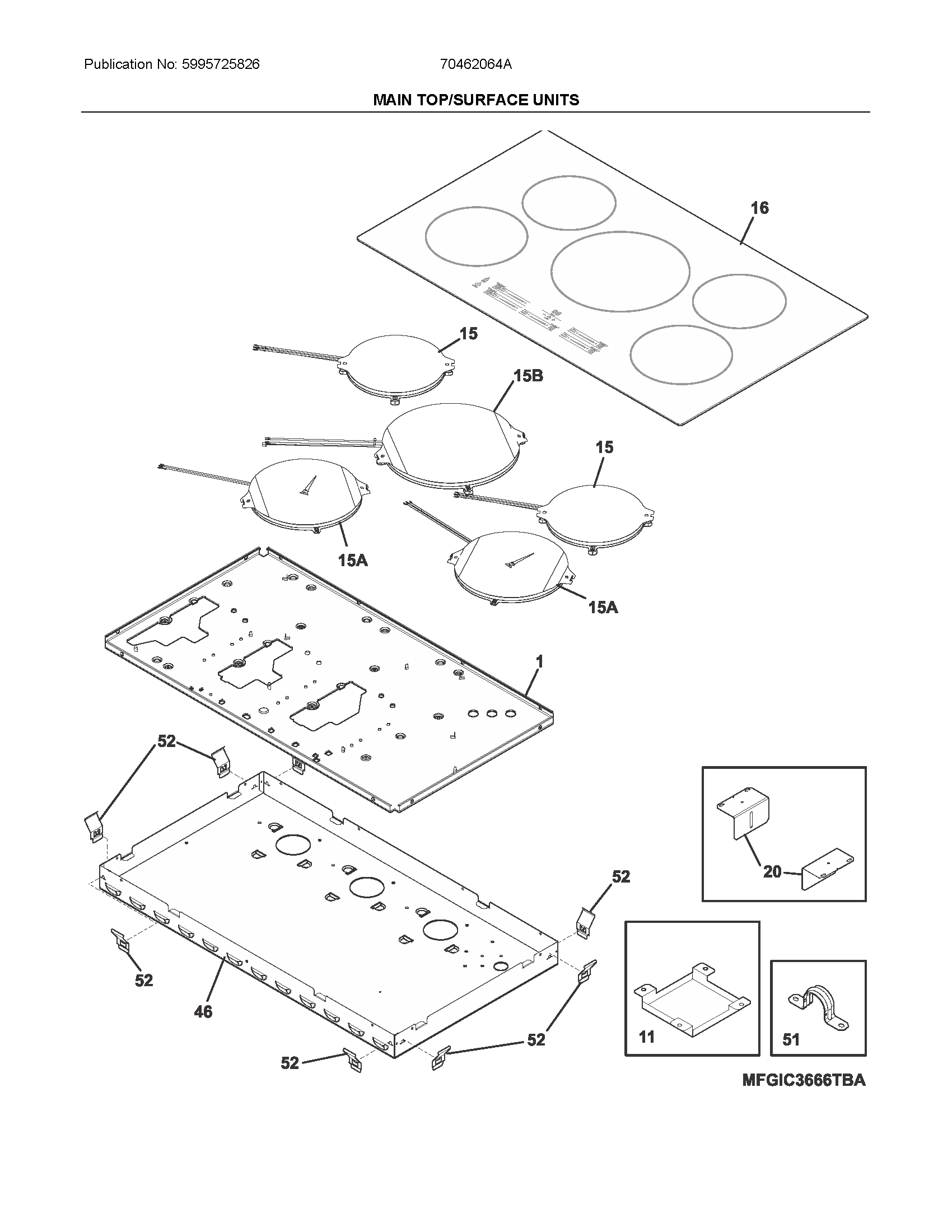

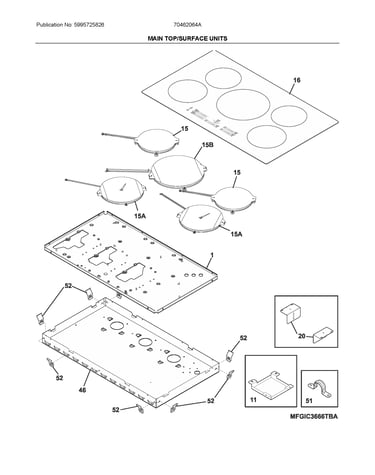

Main top/surface units diagram

Element,induction coil ,260 mm

Part #5304514341

$162.55 |

7% OFF Phone Price : $174.55

In Stock

Qty

#NI

Controls/induction unit diagram

Nut

Part #305376201

This item is not returnable

$5.80

In Stock

Qty

#10

Controls/induction unit diagram

Filter,ferrite choke

Part #5304506076

$31.02

In Stock

Qty

#23

Controls/induction unit diagram

Cooktop wire harness

Part #318578332

$38.11

In Stock

Qty

Ikea Harness,wiring ,bc3-ui Board 5304514389

#24

Controls/induction unit diagram

Ikea harness,wiring ,bc3-ui board

Part #5304514389

$21.71

In Stock

Qty
