Model # FUF20DHBRWW Official GE upright freezer

Here are the diagrams and repair parts for Official GE FUF20DHBRWW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 77 parts |

#316

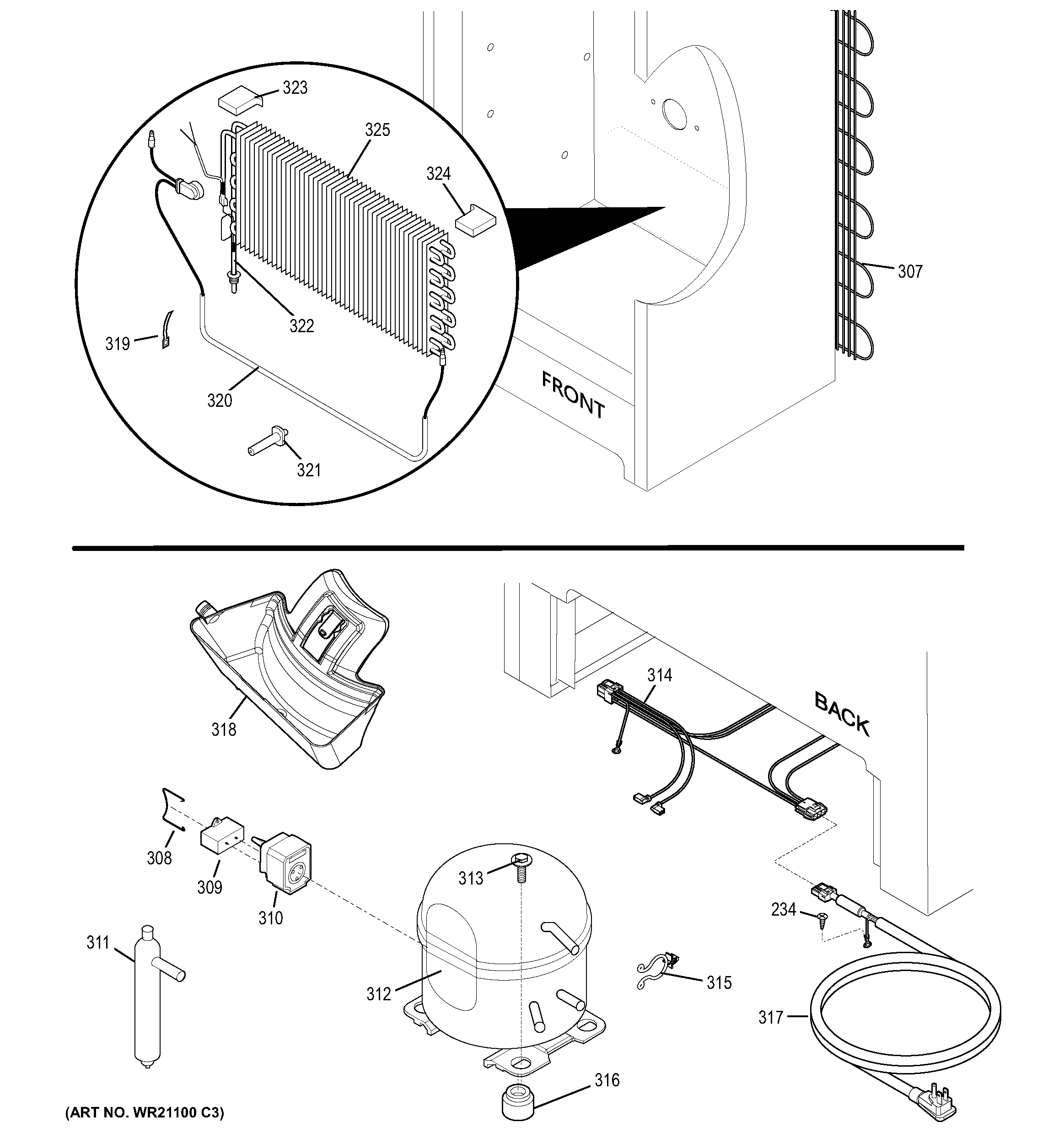

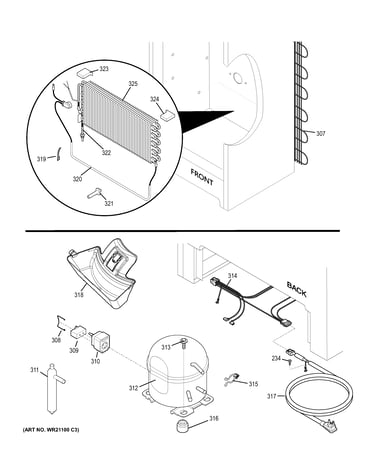

Machine compartment diagram

Screw, hwh,

Part #WR01X10888

$7.51

In Stock

Qty

#320

Machine compartment diagram

Defrost heat

Part #WR51X24019

$124.74

In Stock

Qty

#203

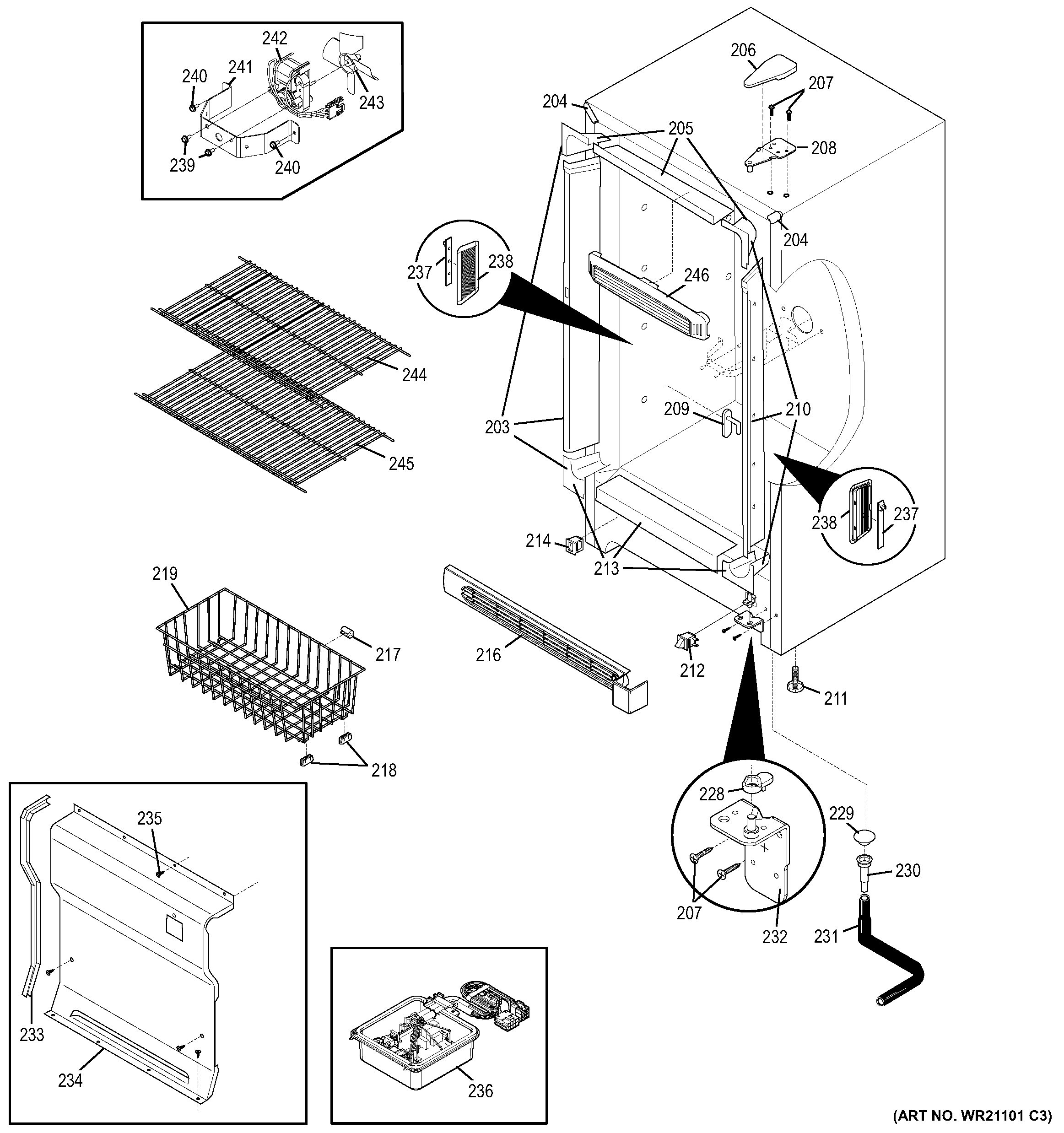

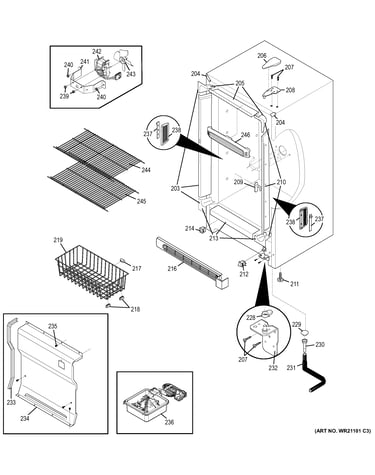

Cabinet diagram

Breaker

Part #WR40X23511

$83.36

In Stock

Qty

#110

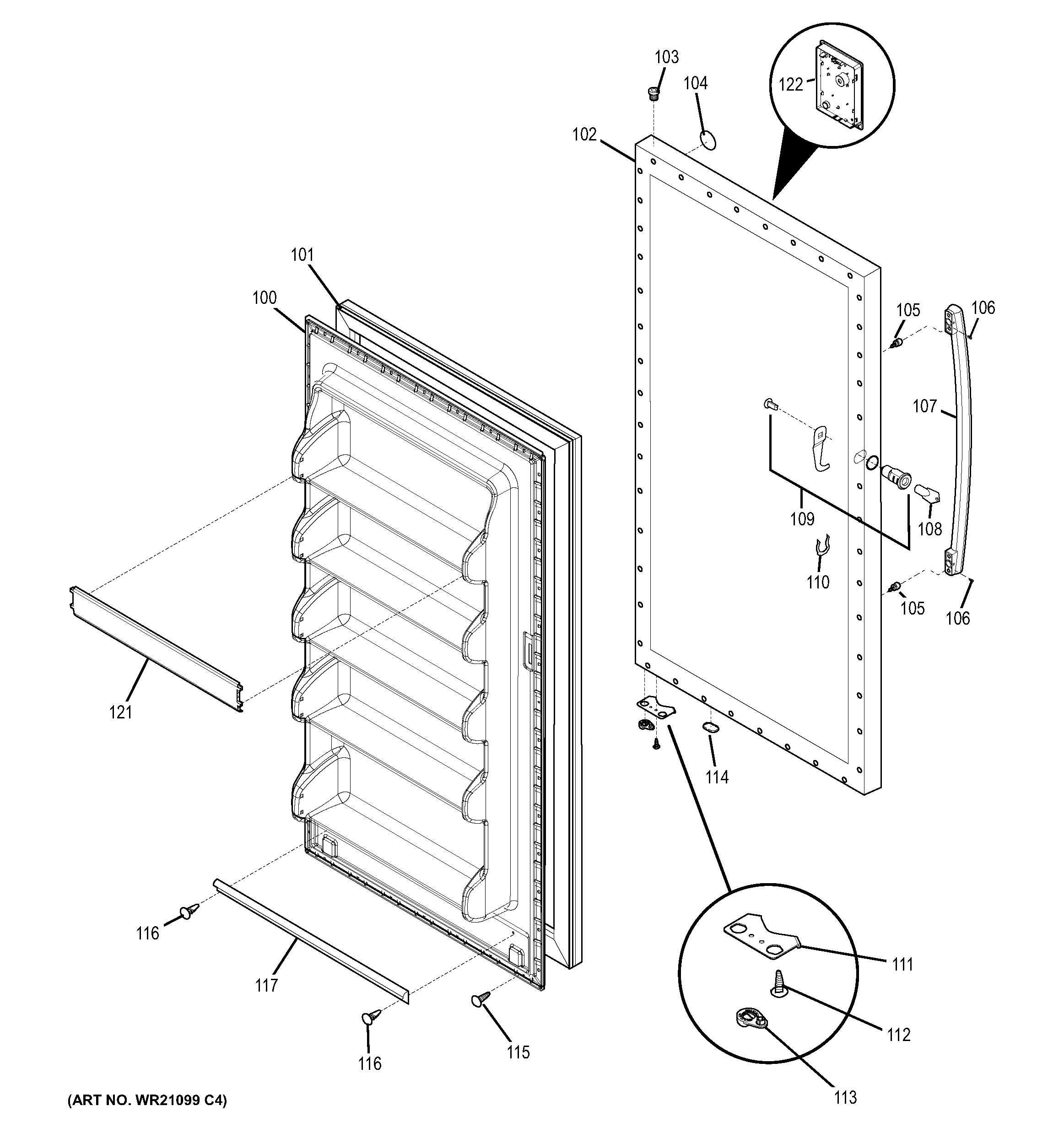

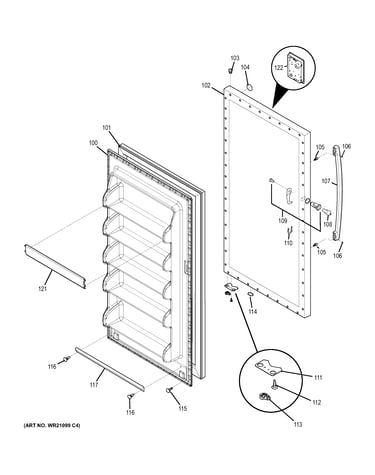

Door diagram

Spring clip

Part #WR01X10870

This item is not returnable

$5.00

In Stock

Qty

#323

Machine compartment diagram

Insulator evaporator

Part #WR02X13243

$27.60

In Stock

Qty

#205

Cabinet diagram

Breaker

Part #WR40X23513

$99.35

In Stock

Qty

Evaporator cover

Part #WR17X12665

$81.85

In Stock

Qty

#103

Door diagram

Hinge bearing

Part #WR02X23506

$26.60

In Stock

Qty

#243

Cabinet diagram

Fan blade

Part #WR60X24020

$25.55

In Stock

Qty

#111

Door diagram

Door stop

Part #WR02X23525

$28.70

In Stock

Qty

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Freezer leveling leg
$20.43 |
23% OFF Phone Price : $26.43
Qty

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
