Model # CFEF3014LWD Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF3014LWD electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

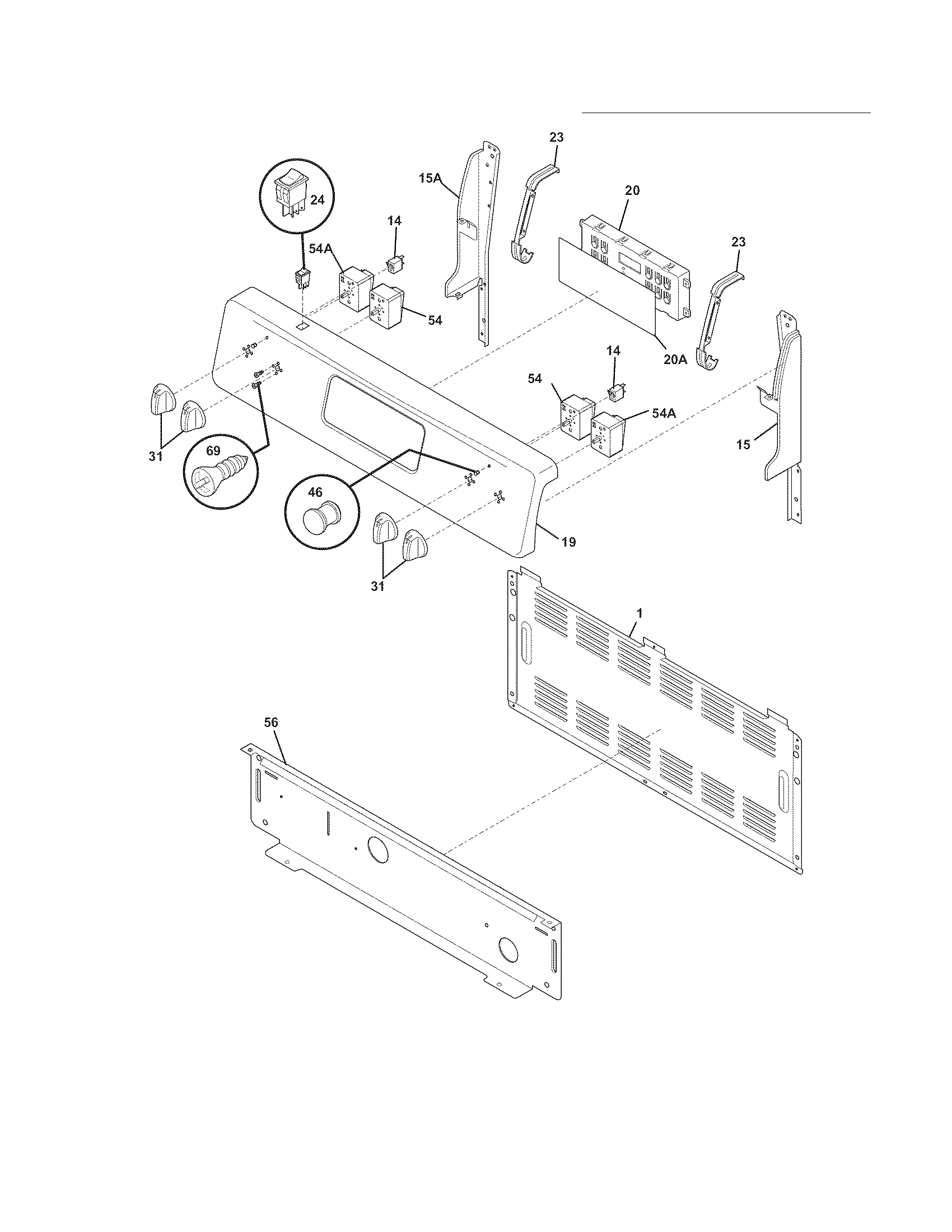

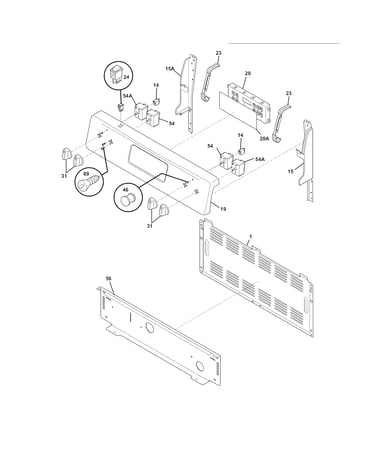

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Range Bake Element 316075104
#67

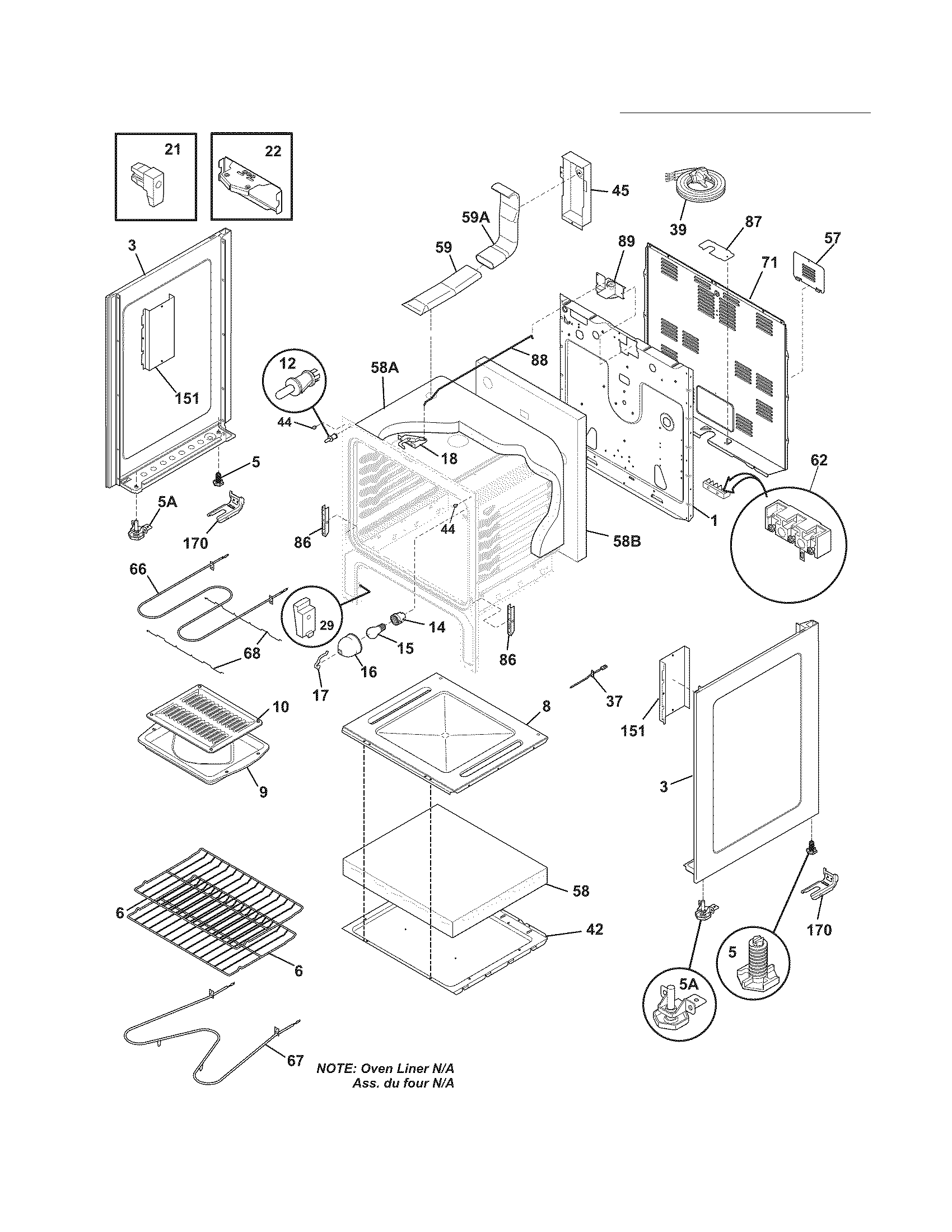

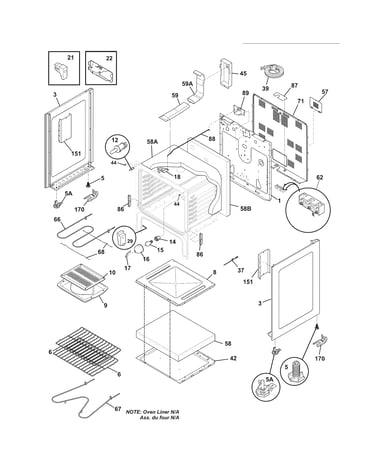

Body diagram

Range bake element

Part #316075104

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316075104. Substitute parts can look different from the original.
BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Control Board And Clock 316557115
#20

Backguard diagram

Range oven control board and clock

Part #316557115

Replaced by #5304509493

?
Manufacturer substitution
This part replaces 316557115. Substitute parts can look different from the original.
BEST SELLER
$158.92 |
7% OFF Phone Price : $170.92
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

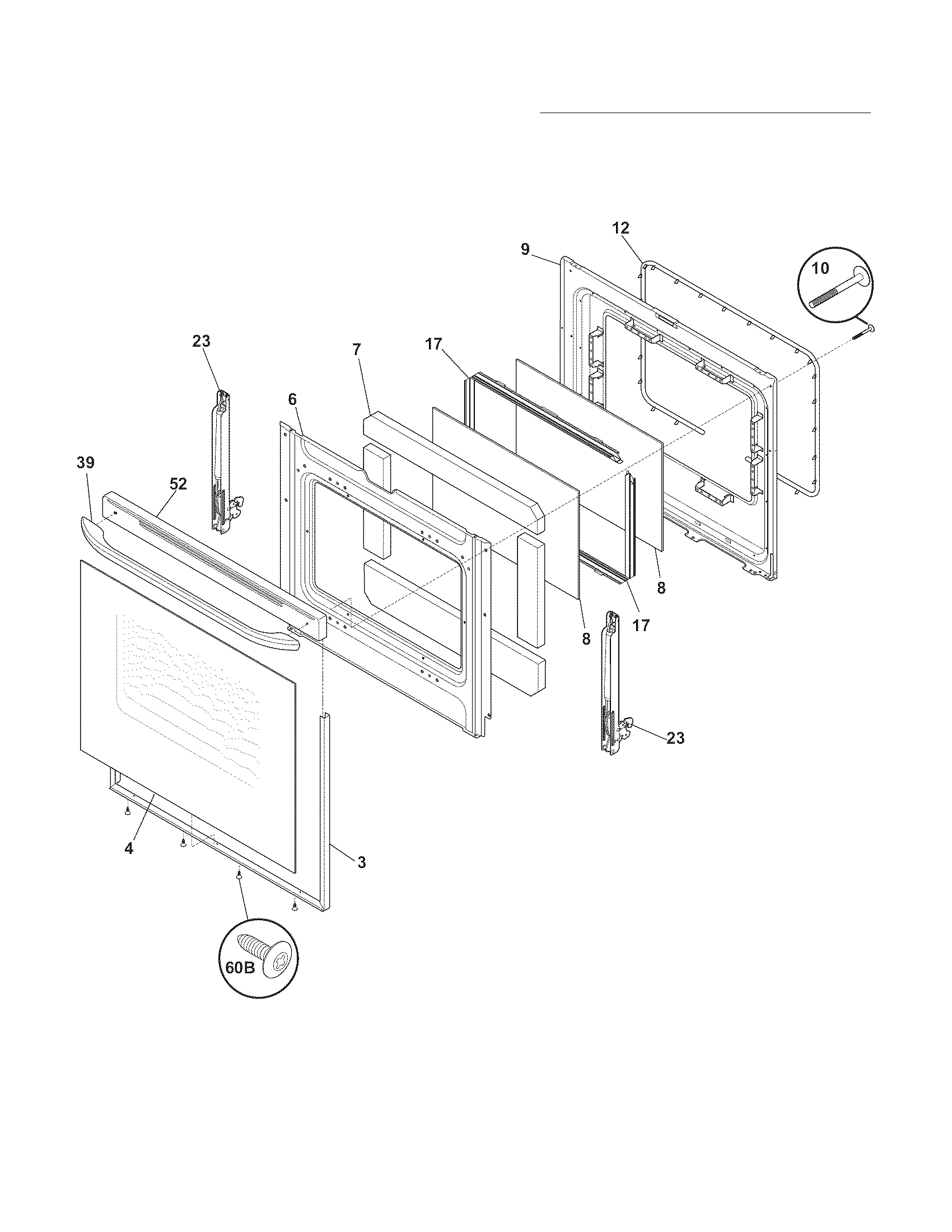

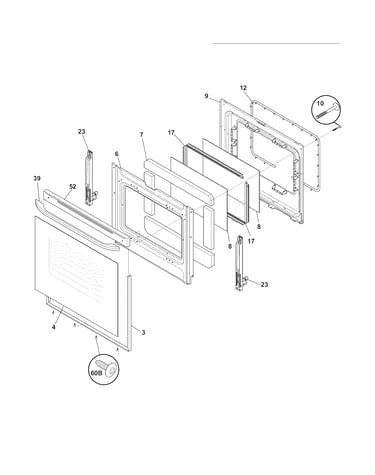

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Tappan Range Radiant Surface Element, 9-in (replaces 316224200, 316224201) 316135401
#15A

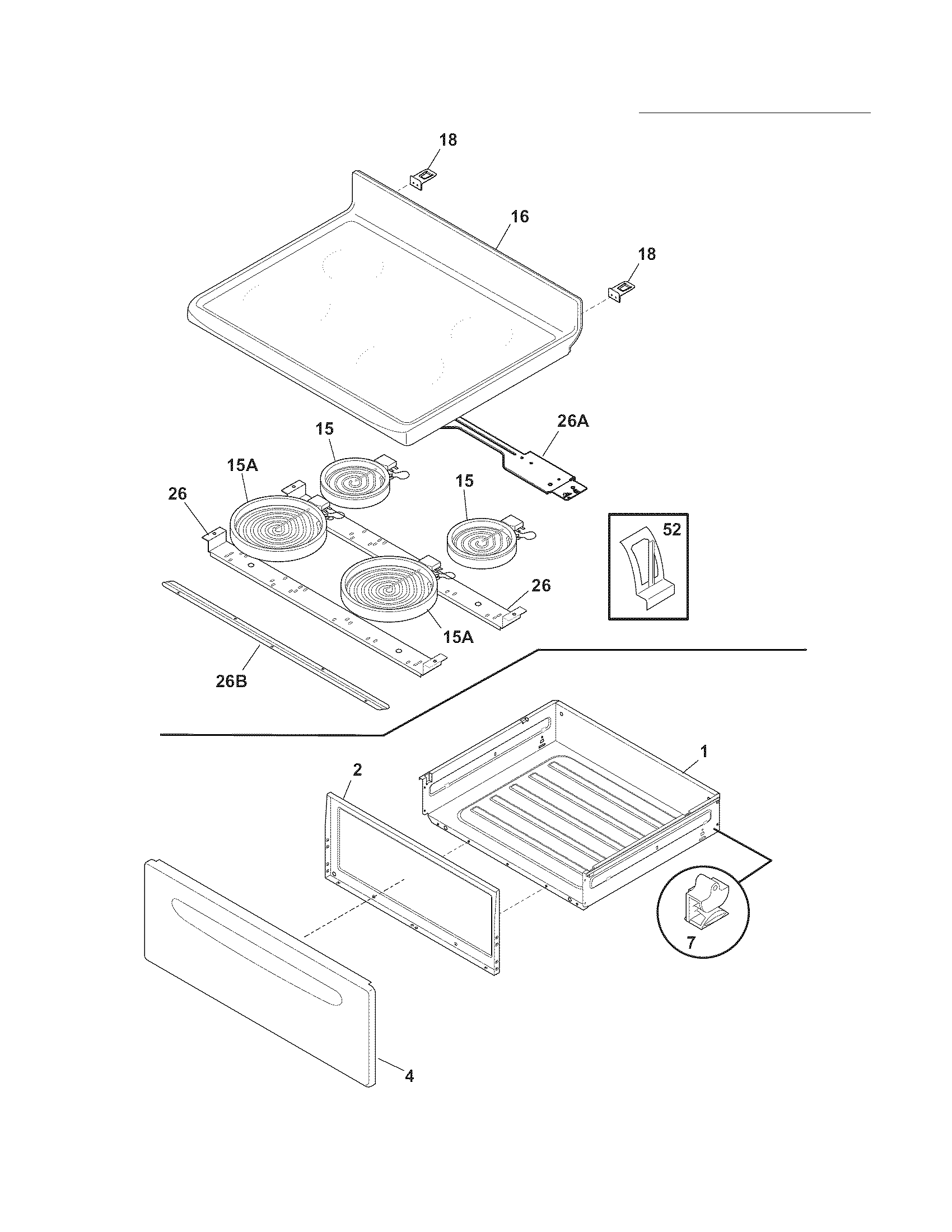

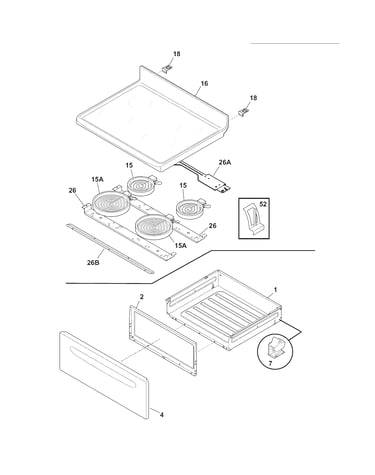

Top/drawer diagram

Tappan range radiant surface element, 9-in (replaces 316224200, 316224201)

Part #316135401

BEST SELLER
$166.95 |
7% OFF Phone Price : $178.95
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
