Heating & Cooling Combined Unit

Model # NPGAB24C1K1 Official ICP package gas/electric combination unit

Here are the diagrams and repair parts for Official ICP NPGAB24C1K1 package gas/electric combination unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Relay Tm Dly 1054636
#10

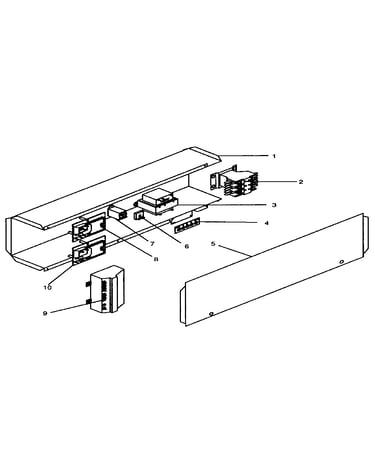

Control box diagram

Relay tm dly

Part #1054636

Replaced by #7070

?
Manufacturer substitution
This part replaces 1054636. Substitute parts can look different from the original.
$86.18 |
7% OFF Phone Price : $92.18
In Stock
Control Fan 1065188
#8

Control box diagram

Control fan

Part #1065188

Replaced by #7070

?
Manufacturer substitution
This part replaces 1065188. Substitute parts can look different from the original.
$86.18 |
7% OFF Phone Price : $92.18
In Stock
Board Termin 612254
#4

Control box diagram

Board termin

Part #612254

$20.06
In Stock
Support Flue 1054511
#12

Cabinet parts diagram

Support flue

Part #1054511

$202.76
In Stock
Gasket Restr 1065214
#24

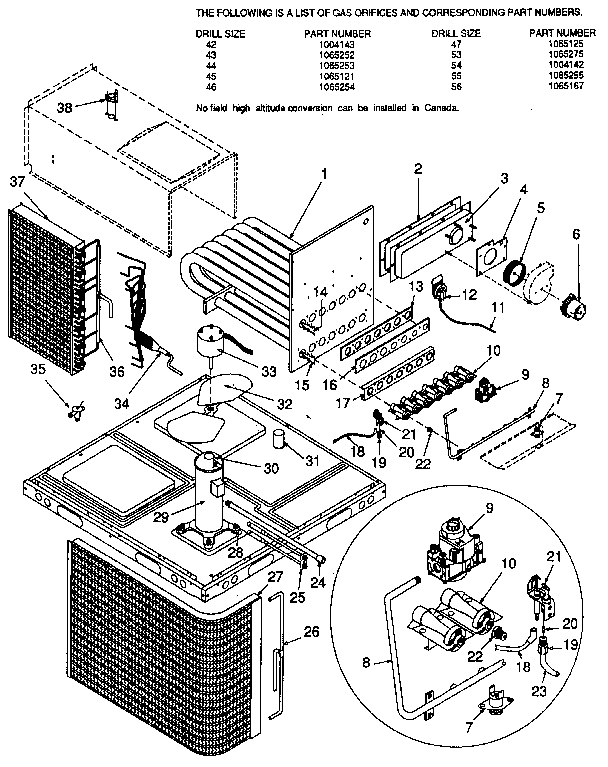

Functionial replacement parts diagram

Gasket restr

Part #1065214

$11.77
In Stock
Extension Bl 1054461
#14

Cabinet parts diagram

Extension bl

Part #1054461

$158.46
In Stock
Furnace Blower Fan Wheel 611795
#10

Blower diagram

Furnace blower fan wheel

Part #611795

$168.16
In Stock
Plate Restri 1054396
#16

Functionial replacement parts diagram

Plate restri

Part #1054396

$54.11
In Stock
Shield Burne 1054435
#8

Cabinet parts diagram

Shield burne

Part #1054435

$148.78
In Stock
Mtr Blr / / 1054630
#2

Blower diagram

Mtr blr / /

Part #1054630

$551.53
In Stock
