Kenmore
Canister Vacuum

Model # 1162297180 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162297180 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Cover 706147
#13

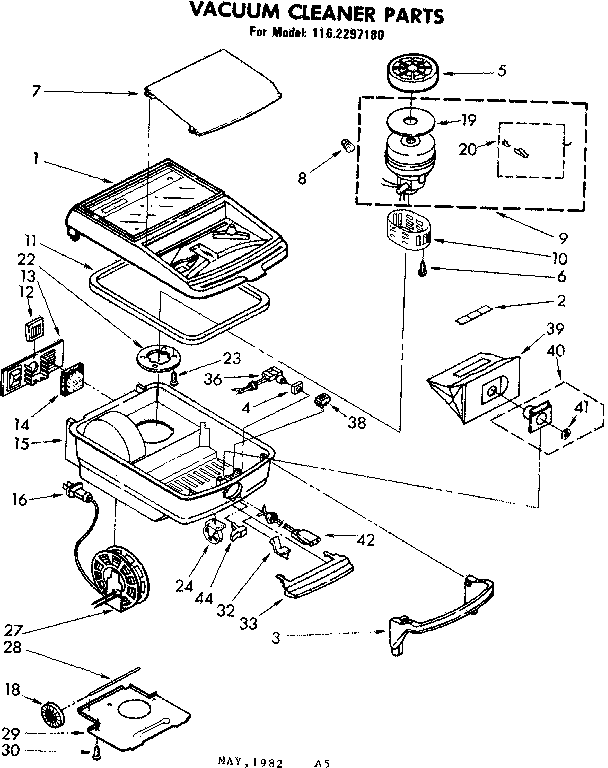

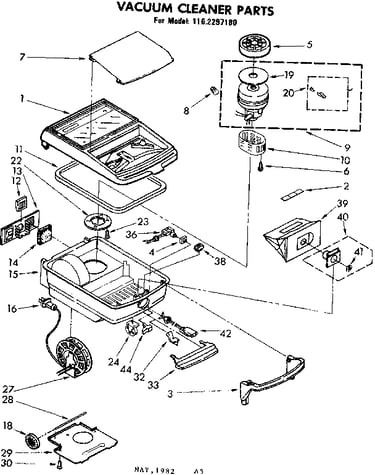

Base assembly diagram

Cover

Part #706147

The manufacturer no longer makes this part, and there's no substitute part

Cover 742781
#33

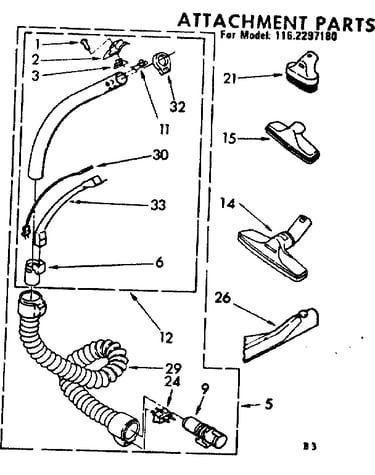

Attachment parts diagram

Cover

Part #742781

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 700334
#5

Base assembly diagram

Filtr-sfty

Part #700334

The manufacturer no longer makes this part, and there's no substitute part

Brush 742723
#21

Attachment parts diagram

Brush

Part #742723

The manufacturer no longer makes this part, and there's no substitute part

Diverter 706148
#12

Base assembly diagram

Diverter

Part #706148

The manufacturer no longer makes this part, and there's no substitute part

Screw 681405
#30

Base assembly diagram

Screw

Part #681405

The manufacturer no longer makes this part, and there's no substitute part

Base 706149
#15

Base assembly diagram

Base

Part #706149

The manufacturer no longer makes this part, and there's no substitute part

Hose 742869
#5

Attachment parts diagram

Hose

Part #742869

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 742749
#42

Base assembly diagram

Receptacle

Part #742749

The manufacturer no longer makes this part, and there's no substitute part

Adapter 742857
#6

Attachment parts diagram

Adapter

Part #742857

The manufacturer no longer makes this part, and there's no substitute part
