Jenn-Air
Side-By-Side Refrigerator

Model # JCB2585WEP01 Official Jenn-Air refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JCB2585WEP01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Refrigerator Water Filter 4396841
#27

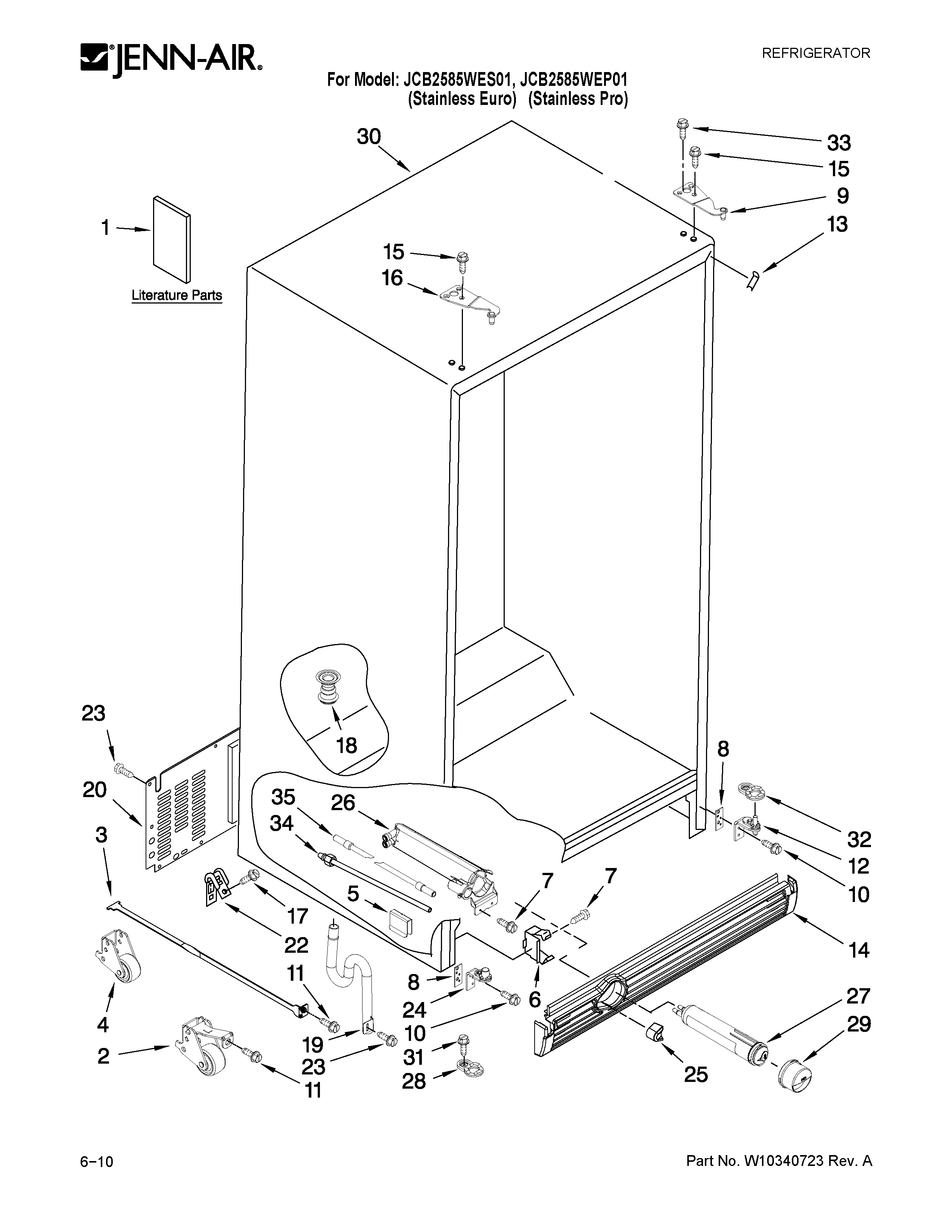

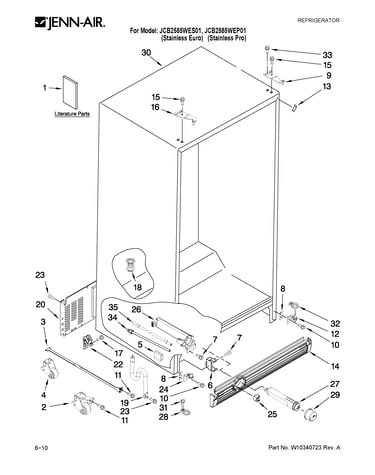

Cabinet parts diagram

Refrigerator water filter

Part #4396841

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces 4396841. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10177049
#22

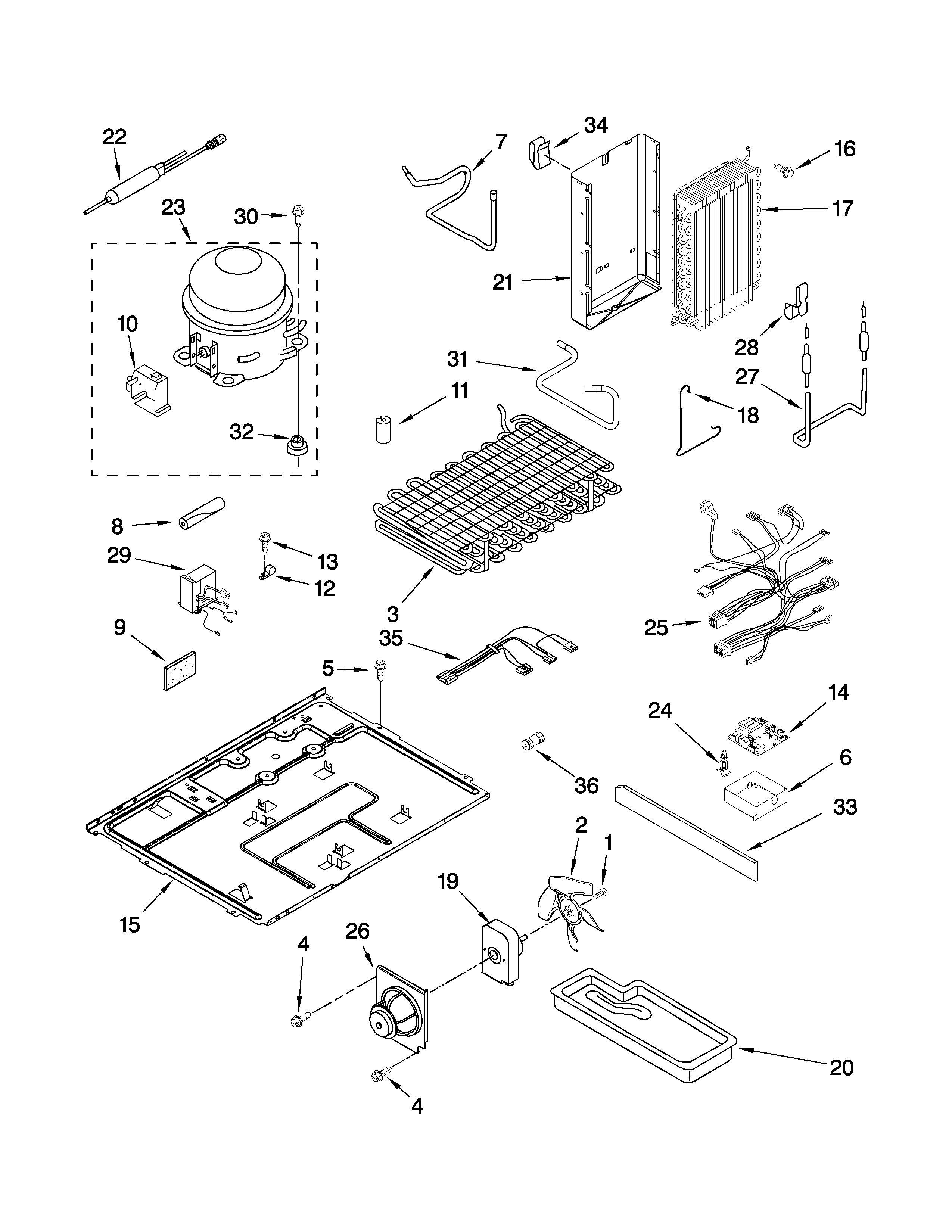

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Defrost Bi-metal Thermostat W10225581
#6

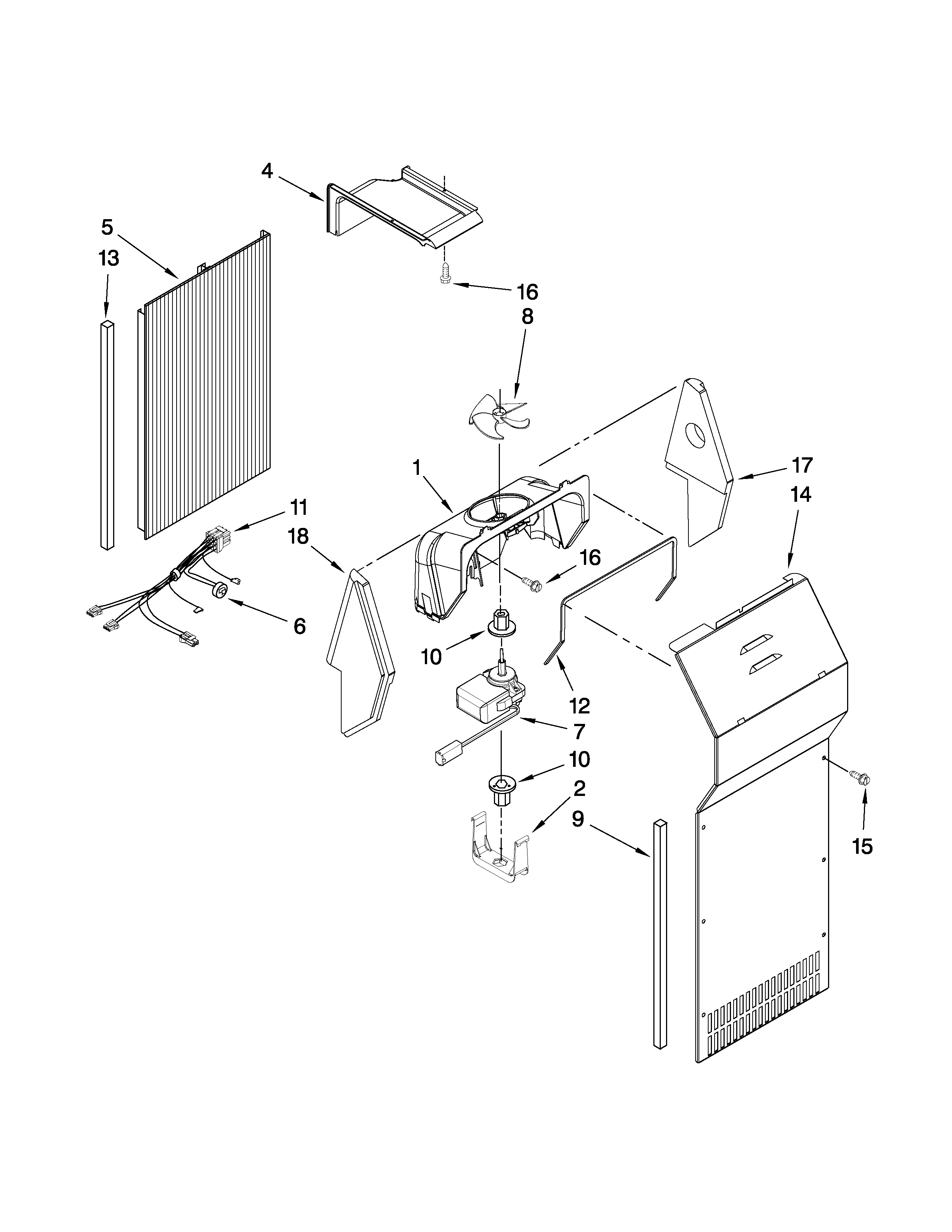

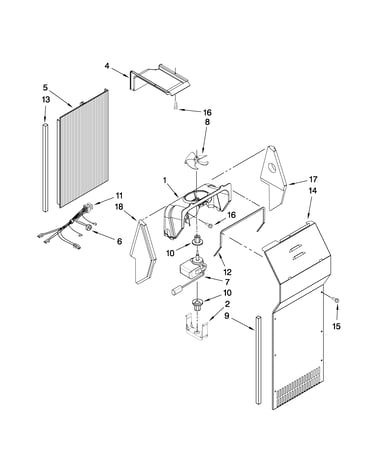

Air flow parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10225581

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces W10225581. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Refrigerator Light Bulb W10311505
Refrigerator light bulb

Part #W10311505

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#4

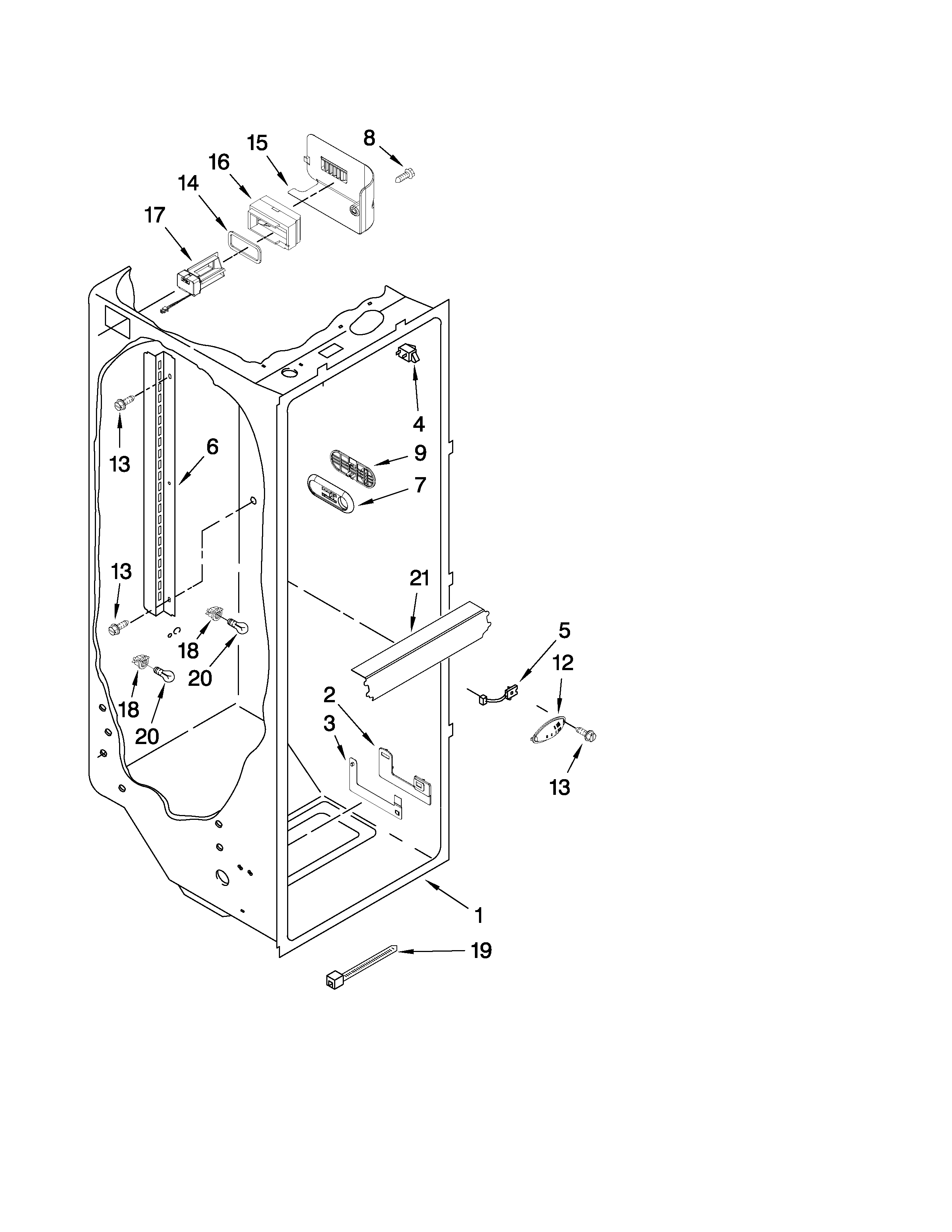

Refrigerator liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator 2188823
#17

Unit parts diagram

Refrigerator evaporator

Part #2188823

Replaced by #WP2188823

?
Manufacturer substitution
This part replaces 2188823. Substitute parts can look different from the original.
BEST SELLER
$293.72 |
$12.00 OFF Phone Price : $305.72
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

Air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Compressor W10183959
#23

Unit parts diagram

Refrigerator compressor

Part #W10183959

Replaced by #W10276644

?
Manufacturer substitution
This part replaces W10183959. Substitute parts can look different from the original.
BEST SELLER
$549.78 |
$12.00 OFF Phone Price : $561.78
In Stock
Refrigerator Water Tube 2224020
#34

Cabinet parts diagram

Refrigerator water tube

Part #2224020

Replaced by #W11496481

?
Manufacturer substitution
This part replaces 2224020. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.09 |
21% OFF Phone Price : $28.09
In Stock
Refrigerator Condenser Fan Motor 2188874
#19

Unit parts diagram

Refrigerator condenser fan motor

Part #2188874

Replaced by #WP2188874

?
Manufacturer substitution
This part replaces 2188874. Substitute parts can look different from the original.
BEST SELLER
$89.96 |
6% OFF Phone Price : $95.96
In Stock
