Model # HA1200 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen HA1200 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

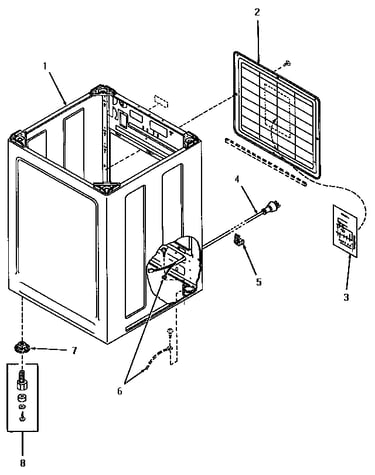

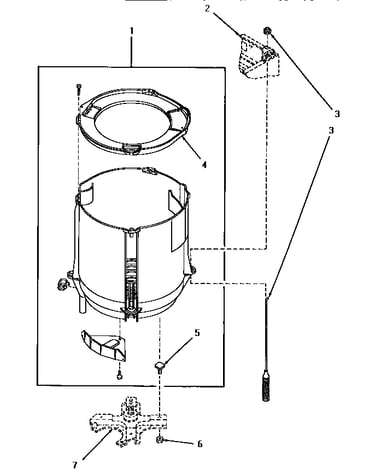

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Program Control Board Assembly 13666
#5

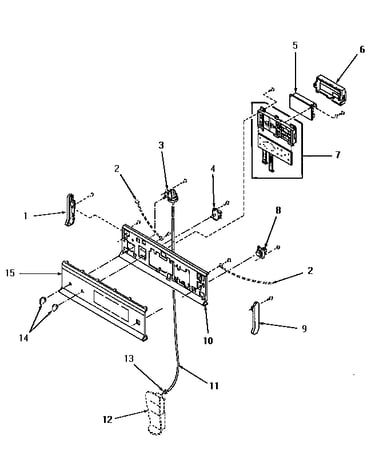

Control panel and controls diagram

Program control board assembly

Part #13666

The manufacturer no longer makes this part, and there's no substitute part

Bolt Assembly 13525
#1

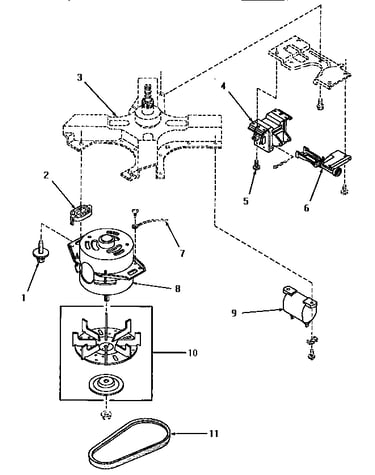

Motor, belt and solenoid diagram

Bolt assembly

Part #13525

The manufacturer no longer makes this part, and there's no substitute part

Tube Clamp 13545
#13

Control panel and controls diagram

Tube clamp

Part #13545

The manufacturer no longer makes this part, and there's no substitute part

Screw 13568
#8

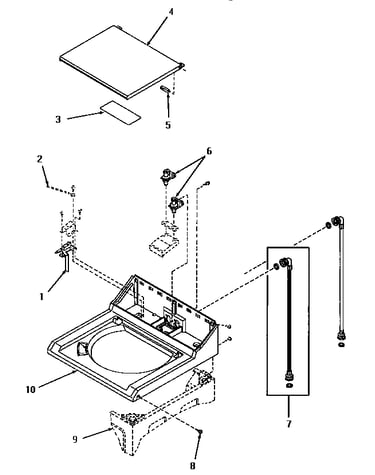

Cabinet top, lid, switch, inlet valve and hoses diagram

Screw

Part #13568

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 13662
#15

Control panel and controls diagram

Control panel

Part #13662

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 13581
#13

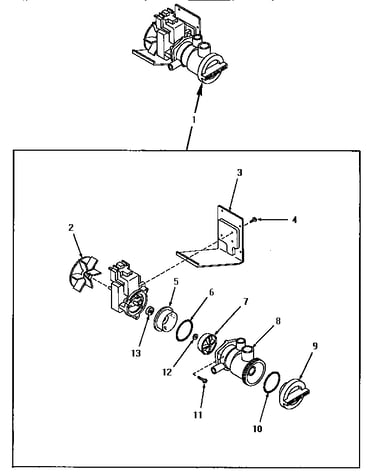

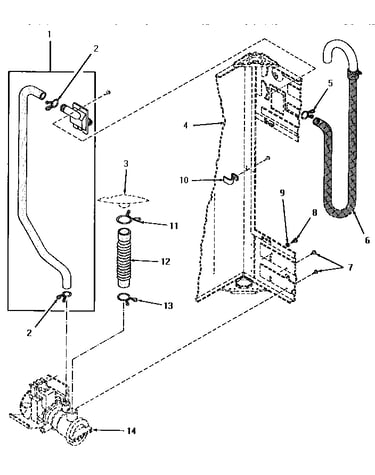

Drain pump and hoses diagram

Hose clamp

Part #13581

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Top, Almond 13656L
#10

Cabinet top, lid, switch, inlet valve and hoses diagram

Cabinet top, almond

Part #13656L

The manufacturer no longer makes this part, and there's no substitute part

Washtub 13813
#9

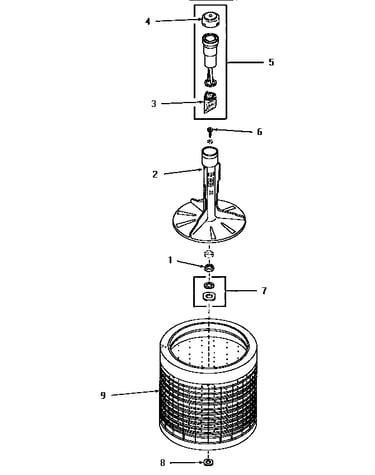

Agitator and washtub diagram

Washtub

Part #13813

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cover 13508
#8

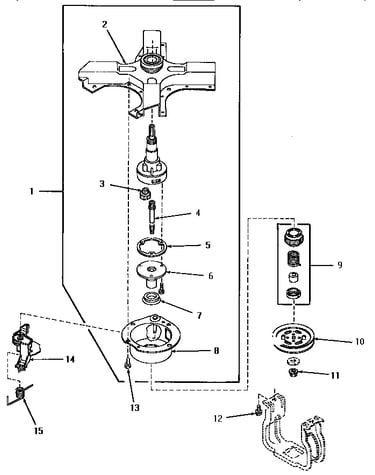

Clutch base and clutch assembly diagram

Clutch cover

Part #13508

The manufacturer no longer makes this part, and there's no substitute part

Bolt 13532
#5

Motor, belt and solenoid diagram

Bolt

Part #13532

The manufacturer no longer makes this part, and there's no substitute part
