Kenmore
Top-Mount Refrigerator

Model # 25378299892 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 25378299892 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 270 parts  |
Ice Maker Mold 5303320545
#17

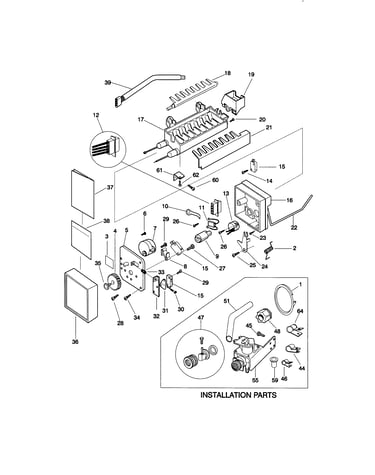

Icemaker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Drier-r12 218541000
#4

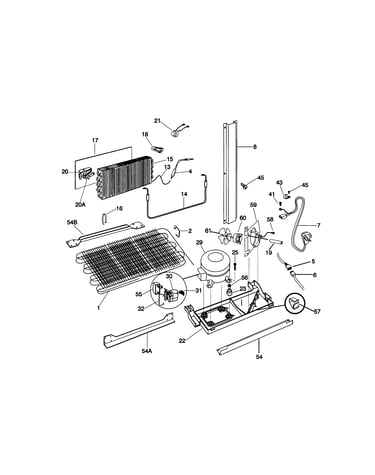

System diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

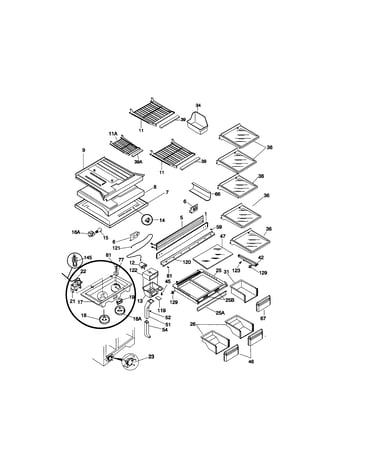

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Water Valve 218720400
#55

Icemaker diagram

Refrigerator water valve

Part #218720400

Replaced by #242252603

?
Manufacturer substitution
This part replaces 218720400. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Compr-r134a 5303917934
#29

System diagram

Compr-r134a

Part #5303917934

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 5303917934. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Refrigerator Thermostat 5316269001
#21

System diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
#73

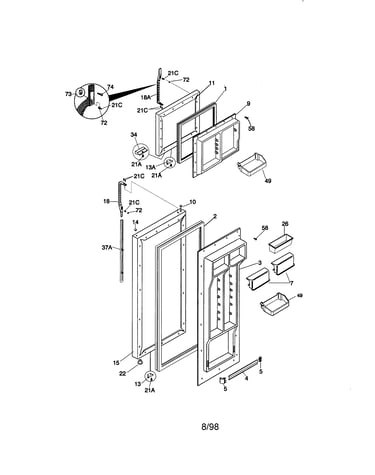

Door diagram

Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
Ikea Refrigerator Evaporator Fan Shaft Washer 215474201
#13A

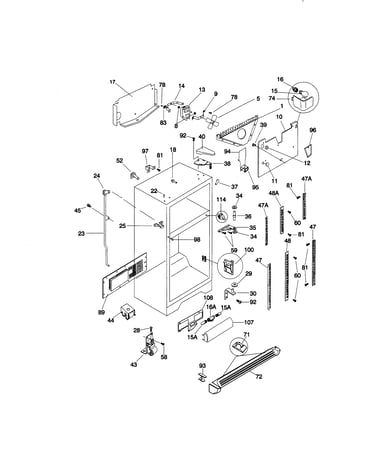

Cabinet diagram

Ikea refrigerator evaporator fan shaft washer

Part #215474201

This item is not returnable
$19.39 |
9% OFF Phone Price : $21.39
In Stock
Upright Freezer Door Handle Screw 218252200
#21C

Door diagram

Upright freezer door handle screw

Part #218252200

Replaced by #218252201

?
Manufacturer substitution
This part replaces 218252200. Substitute parts can look different from the original.
This item is not returnable
$16.44 |
11% OFF Phone Price : $18.44
In Stock
Refrigerator Hinge Screw 218188000
Refrigerator hinge screw

Part #218188000

Replaced by #240442708

?
Manufacturer substitution
This part replaces 218188000. Substitute parts can look different from the original.
This item is not returnable
$7.69
In Stock
