Model # MD20Q42 Official Toshiba tv/dvd combo

Here are the diagrams and repair parts for Official Toshiba MD20Q42 tv/dvd combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Toshiba Coil 72796616
#NI

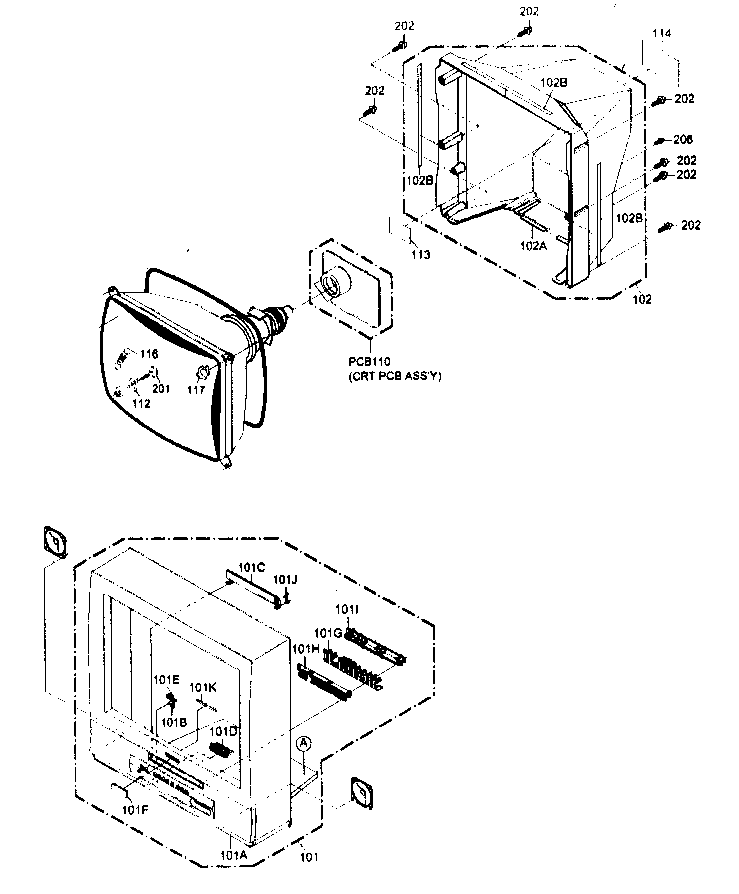

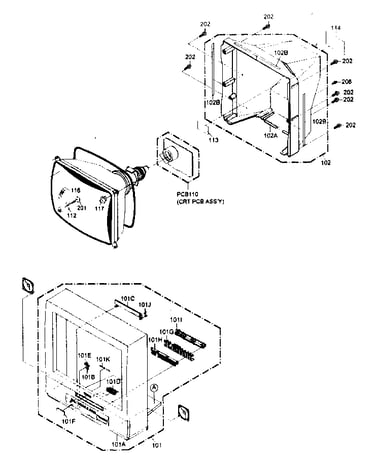

Cabinet parts diagram

Toshiba coil

Part #72796616

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Cabinet Assembly 72783199
#101

Cabinet parts diagram

Toshiba cabinet assembly

Part #72783199

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Button 72783194
#101H

Cabinet parts diagram

Toshiba button

Part #72783194

The manufacturer no longer makes this part, and there's no substitute part

Ic Pcm1753 72795922
#NI

Cabinet parts diagram

Ic pcm1753

Part #72795922

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Button 72783195
#101G

Cabinet parts diagram

Toshiba button

Part #72783195

The manufacturer no longer makes this part, and there's no substitute part

Diode Scho 72794480
#NI

Cabinet parts diagram

Diode scho

Part #72794480

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 72795573
#NI

Cabinet parts diagram

Capacitor

Part #72795573

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 72795570
#NI

Cabinet parts diagram

Capacitor

Part #72795570

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Pcb Assembly 72783204
#NI

Cabinet parts diagram

Toshiba pcb assembly

Part #72783204

The manufacturer no longer makes this part, and there's no substitute part

Headphones 72794516
#NI

Cabinet parts diagram

Headphones

Part #72794516

The manufacturer no longer makes this part, and there's no substitute part
