Model # U4689910 Official Hoover upright vacuum
Here are the diagrams and repair parts for Official Hoover U4689910 upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
U4689910 Vacuum Cleaners
#1
Motor assembly diagram
Vacuum screw
Part #214793DA
The manufacturer no longer makes this part, and there's no substitute part
#2

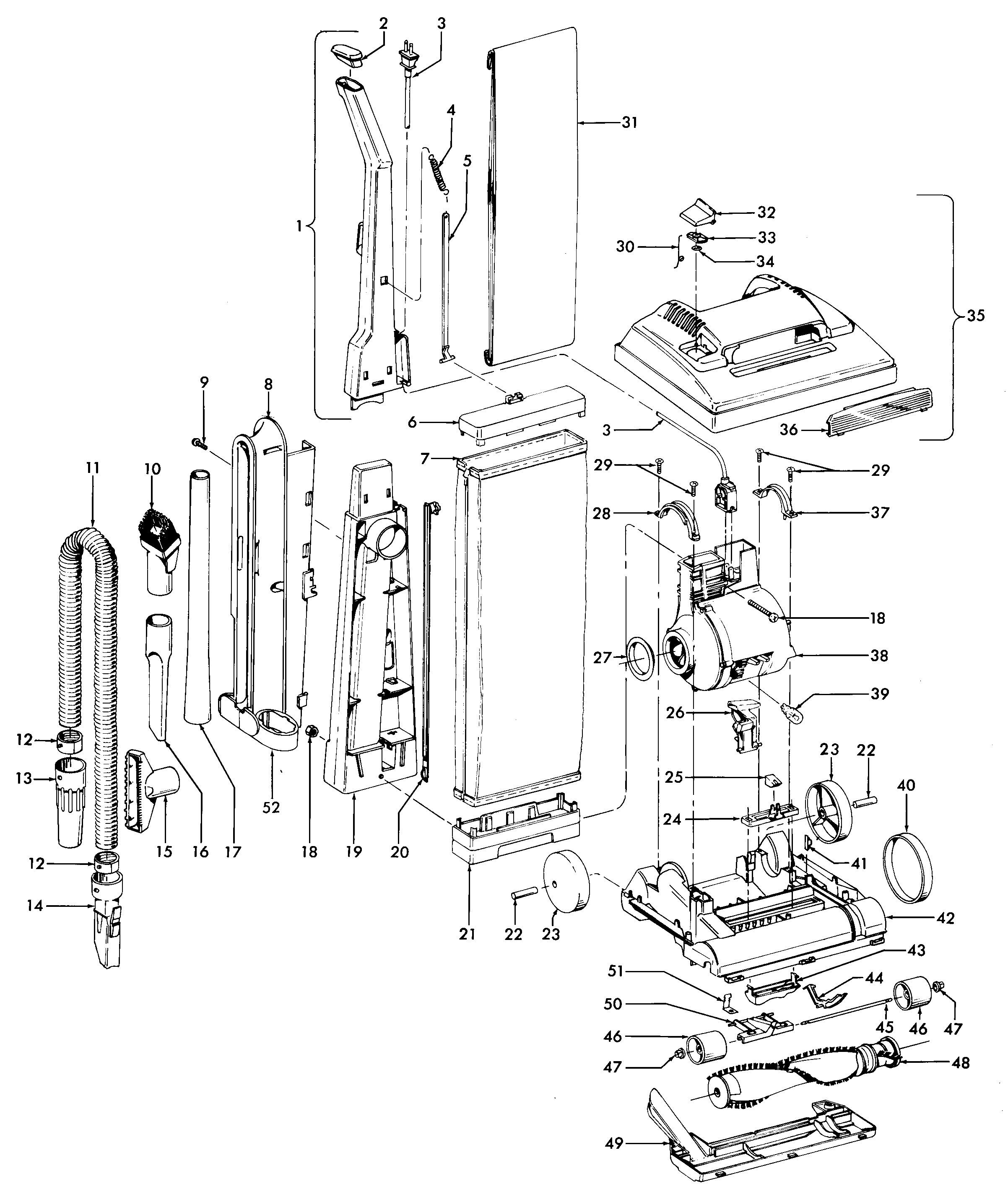

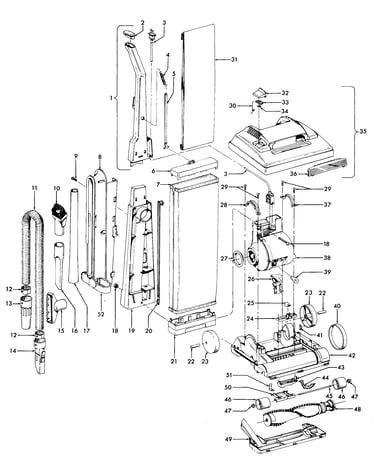

Mainbody, handle, outerbag diagram
Handle cap
Part #37911079
The manufacturer no longer makes this part, and there's no substitute part
Vacuum beater bar assembly
Part #48414081
The manufacturer no longer makes this part, and there's no substitute part
#21
Mainbody, handle, outerbag diagram
Lower jacket support
Part #36425063
The manufacturer no longer makes this part, and there's no substitute part
#1
Agitator diagram
Vacuum beater bar housing end cap, right
Part #36423016
The manufacturer no longer makes this part, and there's no substitute part
#9
Mainbody, handle, outerbag diagram
Upright vacuum screw
Part #21447220
The manufacturer no longer makes this part, and there's no substitute part
#4
Mainbody, handle, outerbag diagram
Spring
Part #38335020
The manufacturer no longer makes this part, and there's no substitute part
#3
Agitator diagram
Vacuum conical washer
Part #21347003
The manufacturer no longer makes this part, and there's no substitute part
#28
Mainbody, handle, outerbag diagram
Vacuum motor mount
Part #36131057
The manufacturer no longer makes this part, and there's no substitute part
#18
Mainbody, handle, outerbag diagram
Vacuum motor mounting bolt and nut
Part #40201085
The manufacturer no longer makes this part, and there's no substitute part
