Model # JES1131WC002 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1131WC002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

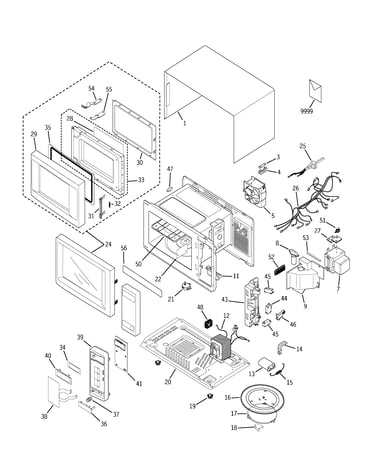

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Switch-micro WB24X10038
#45

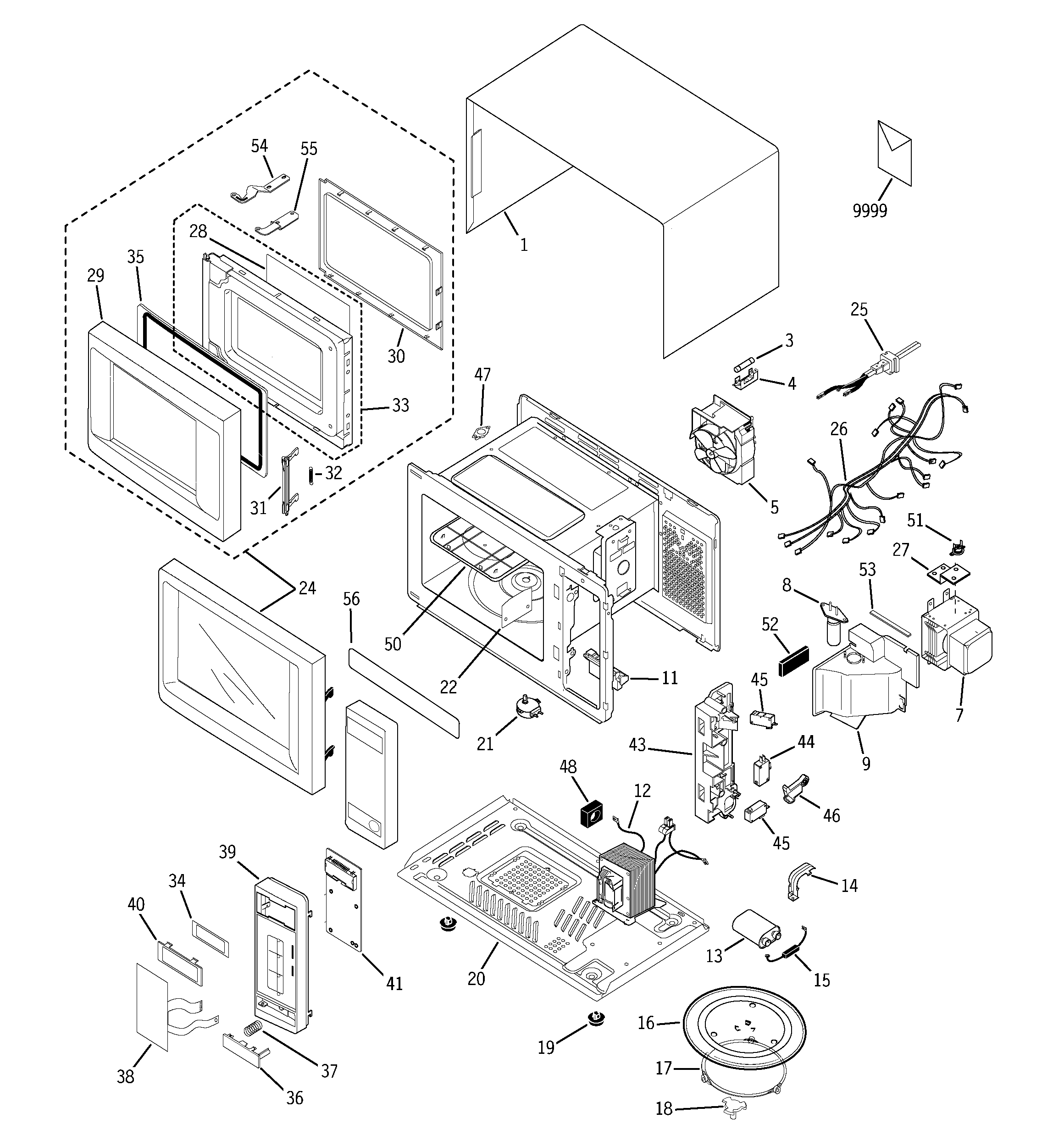

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#3

Microwave diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
High-voltage Diode WB27X10169
#15

Microwave diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
13% OFF Phone Price : $46.60
In Stock
Micro-switch WB24X10039
#44

Microwave diagram

Micro-switch

Part #WB24X10039

$17.99 |
10% OFF Phone Price : $19.99
In Stock
Microwave Thermostat WB20X10003
#51

Microwave diagram

Microwave thermostat

Part #WB20X10003

$30.39 |
16% OFF Phone Price : $36.39
In Stock
Coupler WB06X10059
#18

Microwave diagram

Coupler

Part #WB06X10059

$45.77 |
12% OFF Phone Price : $51.77
In Stock
Microwave Turntable Motor WB26X10024
#21

Microwave diagram

Microwave turntable motor

Part #WB26X10024

$27.49
In Stock
Door Lever WB06X10186
#11

Microwave diagram

Door lever

Part #WB06X10186

$9.77
In Stock
Magnetron WB27X10343
#7

Microwave diagram

Magnetron

Part #WB27X10343

Replaced by #WB27X10516

?
Manufacturer substitution
This part replaces WB27X10343. Substitute parts can look different from the original.
$263.24 |
$12.00 OFF Phone Price : $275.24
In Stock
Microwave High-voltage Capacitor WB27X10280
#13

Microwave diagram

Microwave high-voltage capacitor

Part #WB27X10280

The manufacturer no longer makes this part, and there's no substitute part

Effective articles & videos to help repair your microwaves
