Model # 11072792400 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11072792400 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

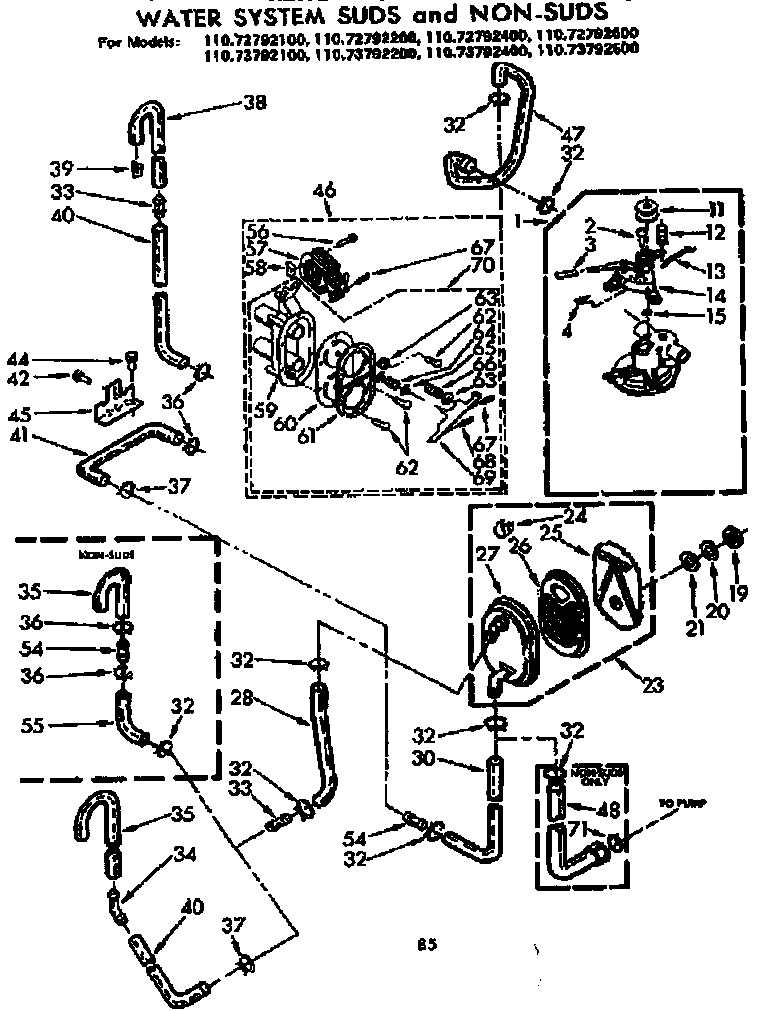

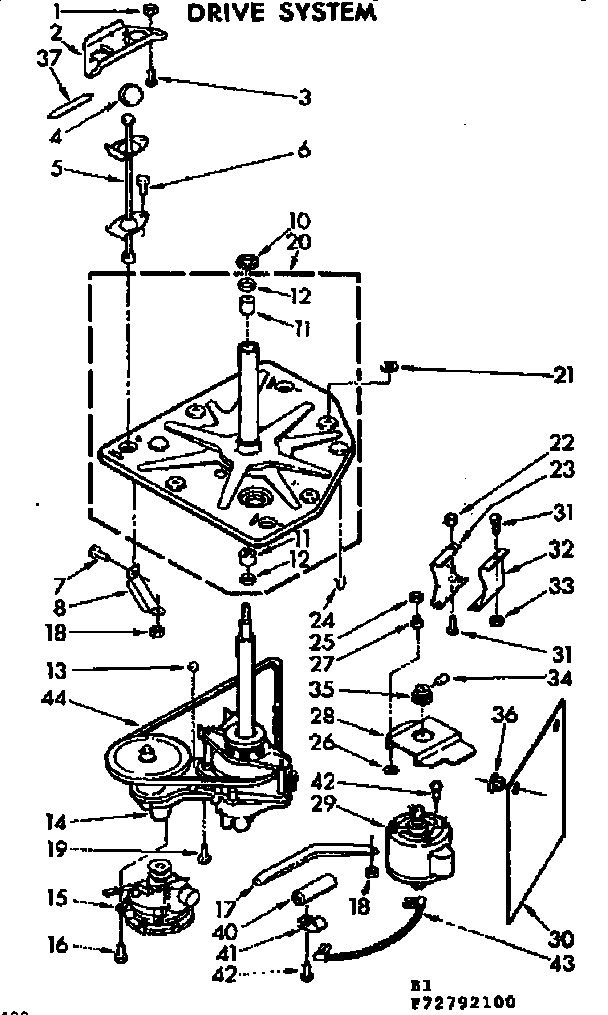

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 350 parts  |
Block 357782
#11

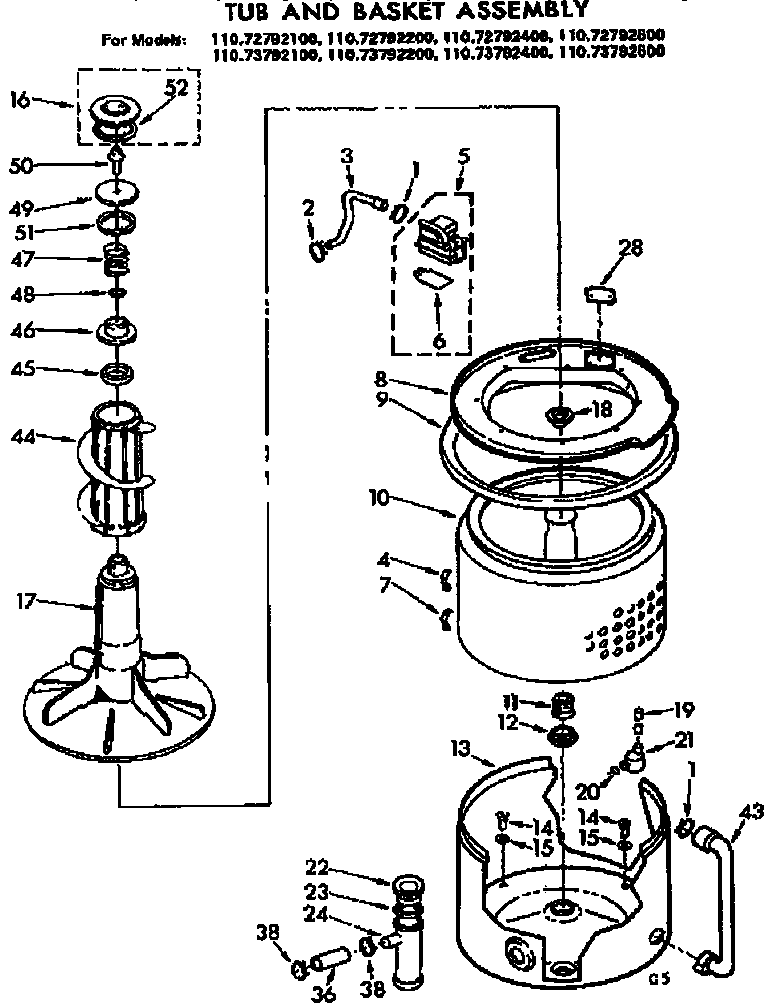

Tub and basket assembly diagram

Block

Part #357782

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 357782. Substitute parts can look different from the original.
BEST SELLER
$24.66 |
20% OFF Phone Price : $30.66
In Stock
Washer Spanner Nut 21366
#18

Tub and basket assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Agitator Bolt 358237
#50

Tub and basket assembly diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.92 |
14% OFF Phone Price : $6.92
In Stock
Gasket 96690
#12

Tub and basket assembly diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Screw 18724
#3

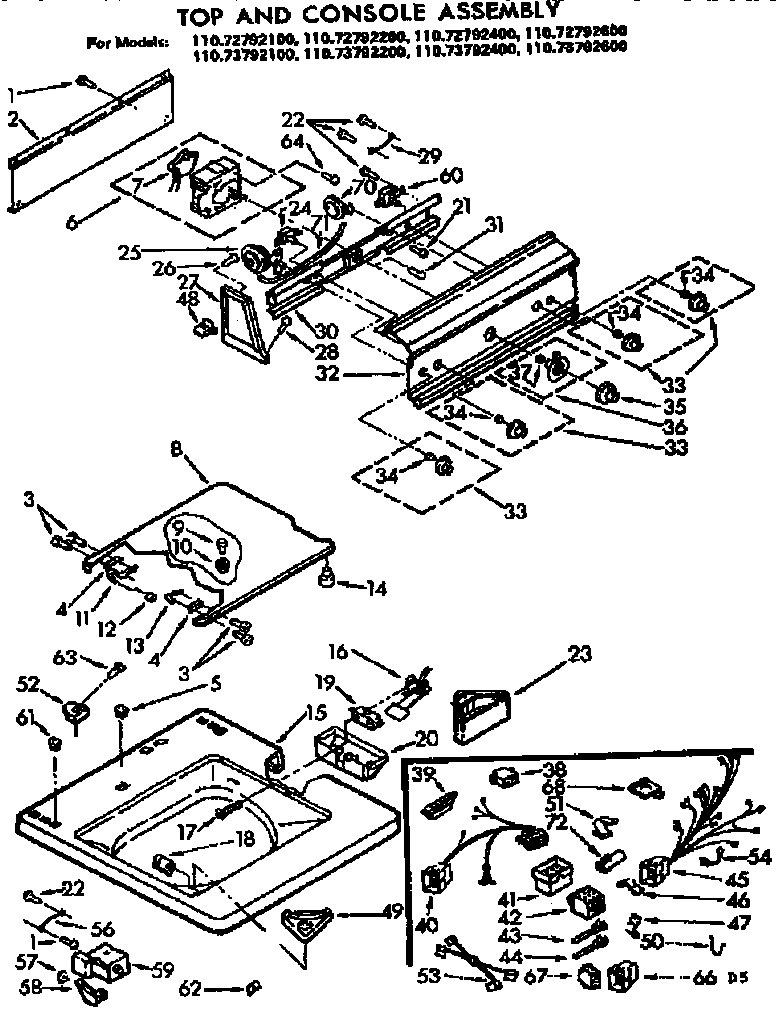

Top and console assembly diagram

Screw

Part #18724

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 18724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Tap Screw 90767
#21

Top and console assembly diagram

Tap screw

Part #90767

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 687128
#23

Cabinet parts diagram

Screw

Part #687128

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 687128. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 343641
Screw

Part #343641

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 343641. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bumper 354255
#10

Top and console assembly diagram

Bumper

Part #354255

Replaced by #WP354255

?
Manufacturer substitution
This part replaces 354255. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Dryer Top Panel Clip 18776
#41

Cabinet parts diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
