Kenmore
Countertop Microwave

Model # 5648898310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5648898310 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

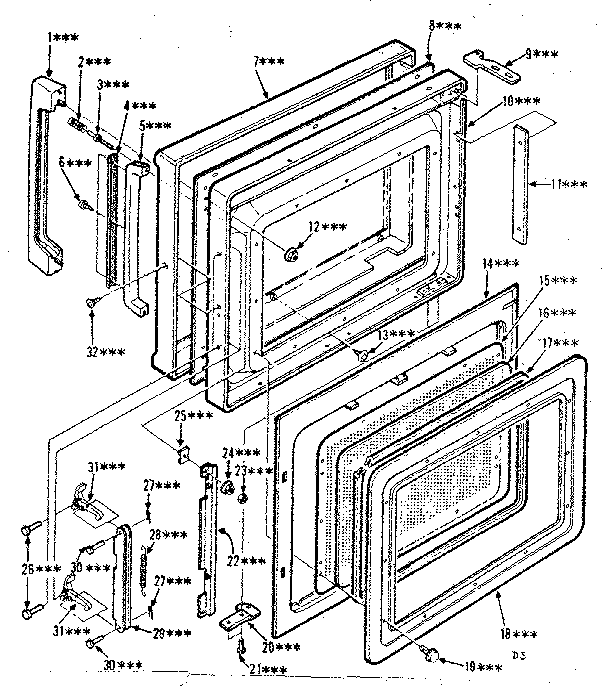

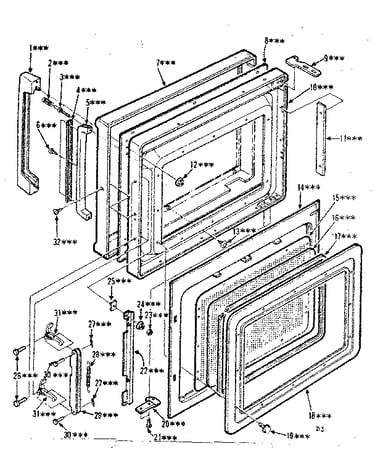

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Microwave Door Latch Lever 11090
#28

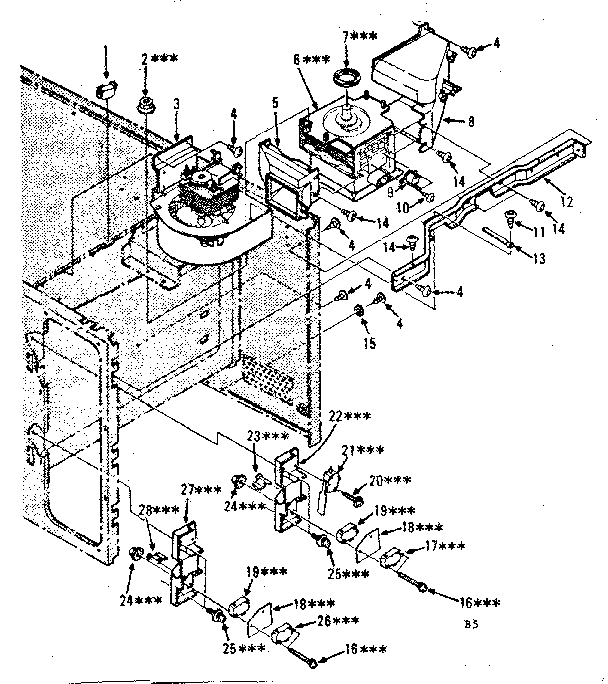

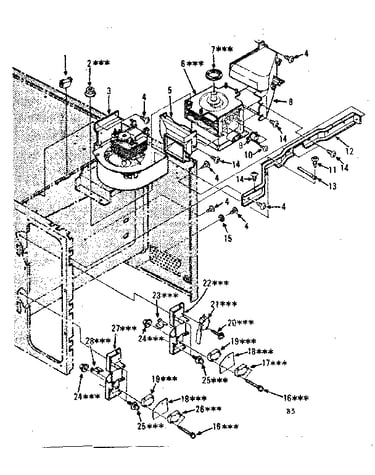

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

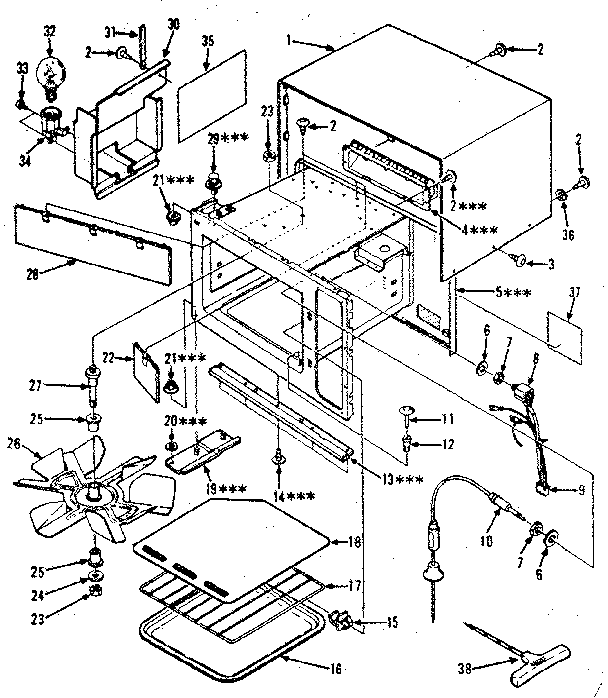

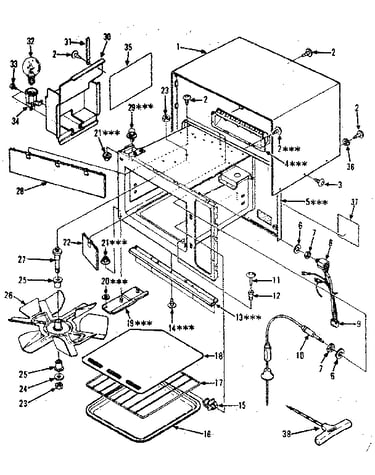

Microwave Fuse, 15-amp 11255
#15

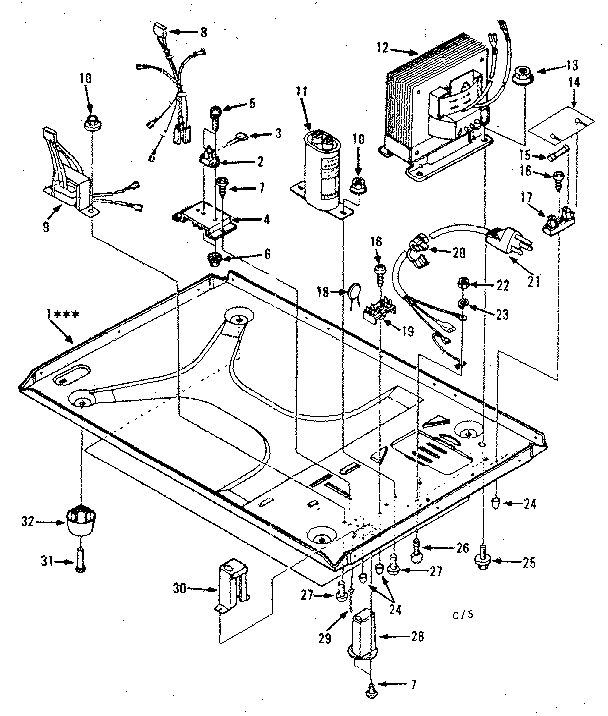

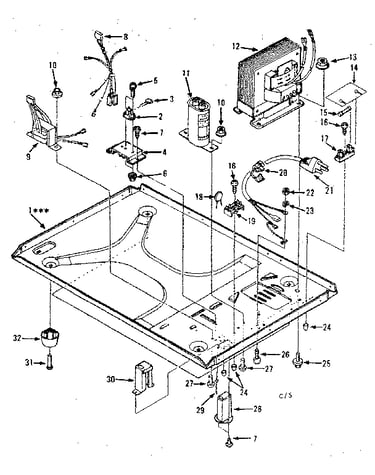

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#17

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Resistor 11730
#5E

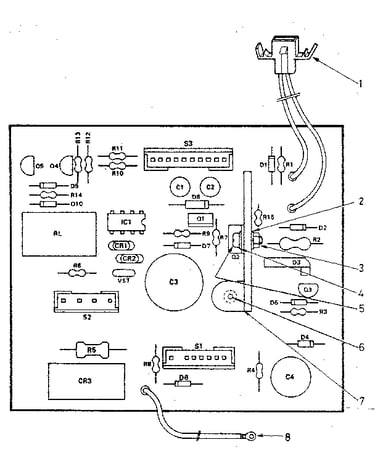

Power control circuit board (part no. 11692) diagram

Resistor

Part #11730

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11800
#4D

Power control circuit board (part no. 11692) diagram

Capacitor

Part #11800

The manufacturer no longer makes this part, and there's no substitute part

Diode 11181
#3A

Power control circuit board (part no. 11692) diagram

Diode

Part #11181

The manufacturer no longer makes this part, and there's no substitute part

Screw 10305
Screw

Part #10305

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11253
#11

Microwave parts diagram

Capacitor

Part #11253

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11654
#6F

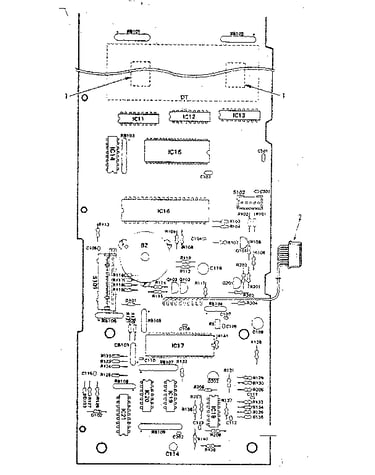

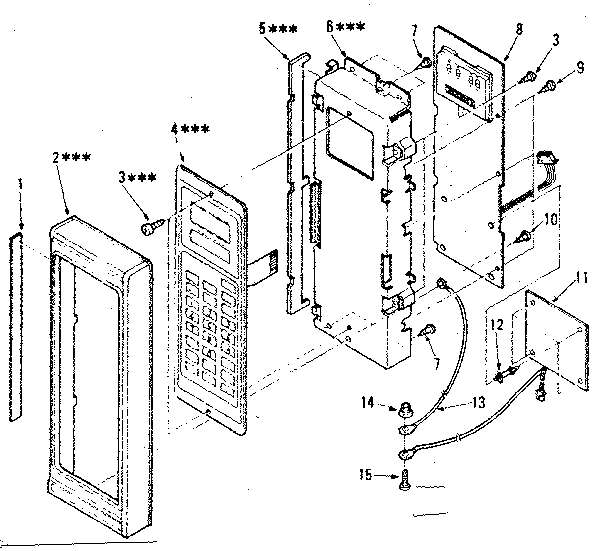

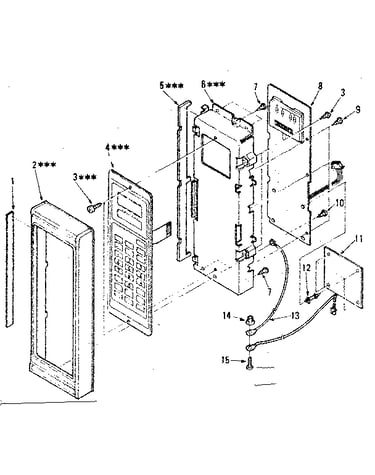

Main control circuit board 11691r diagram

Capacitor

Part #11654

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 11154
#3H

Main control circuit board 11691r diagram

Intg circuit

Part #11154

The manufacturer no longer makes this part, and there's no substitute part
