Model # 990 Official Stamina 990 stepper

Here are the diagrams and repair parts for Official Stamina 990 990 stepper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Washer 70069-00
#36

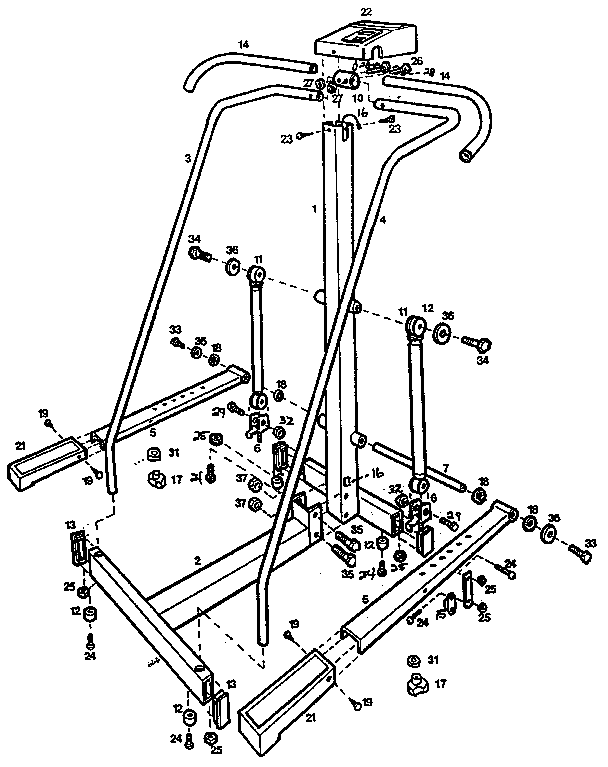

Unit parts diagram

Washer

Part #70069-00

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 70040-00
#29

Unit parts diagram

Hex bolt

Part #70040-00

The manufacturer no longer makes this part, and there's no substitute part

Computer 70840-10
#22

Unit parts diagram

Computer

Part #70840-10

The manufacturer no longer makes this part, and there's no substitute part

End Plug 70511-30
#13

Unit parts diagram

End plug

Part #70511-30

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 70369-00
#37

Unit parts diagram

Lock nut

Part #70369-00

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 70836-10
#2

Unit parts diagram

Base assembly

Part #70836-10

The manufacturer no longer makes this part, and there's no substitute part

Pedal Assembly 70845-10
#5

Unit parts diagram

Pedal assembly

Part #70845-10

The manufacturer no longer makes this part, and there's no substitute part

Fastener 70839-30
#19

Unit parts diagram

Fastener

Part #70839-30

The manufacturer no longer makes this part, and there's no substitute part

No. 8 X 5/8" Lg. Slotted Pan Head Screw 70678-00
#23

Unit parts diagram

No. 8 x 5/8" lg. slotted pan head screw

Part #70678-00

The manufacturer no longer makes this part, and there's no substitute part

Magnet 70051-00
#15

Unit parts diagram

Magnet

Part #70051-00

The manufacturer no longer makes this part, and there's no substitute part
