GE
Electric Cooktop

Model # JP989BD1BB Official GE counter unit

Here are the diagrams and repair parts for Official GE JP989BD1BB counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Range Halogen Surface Element WB30T10044
#58

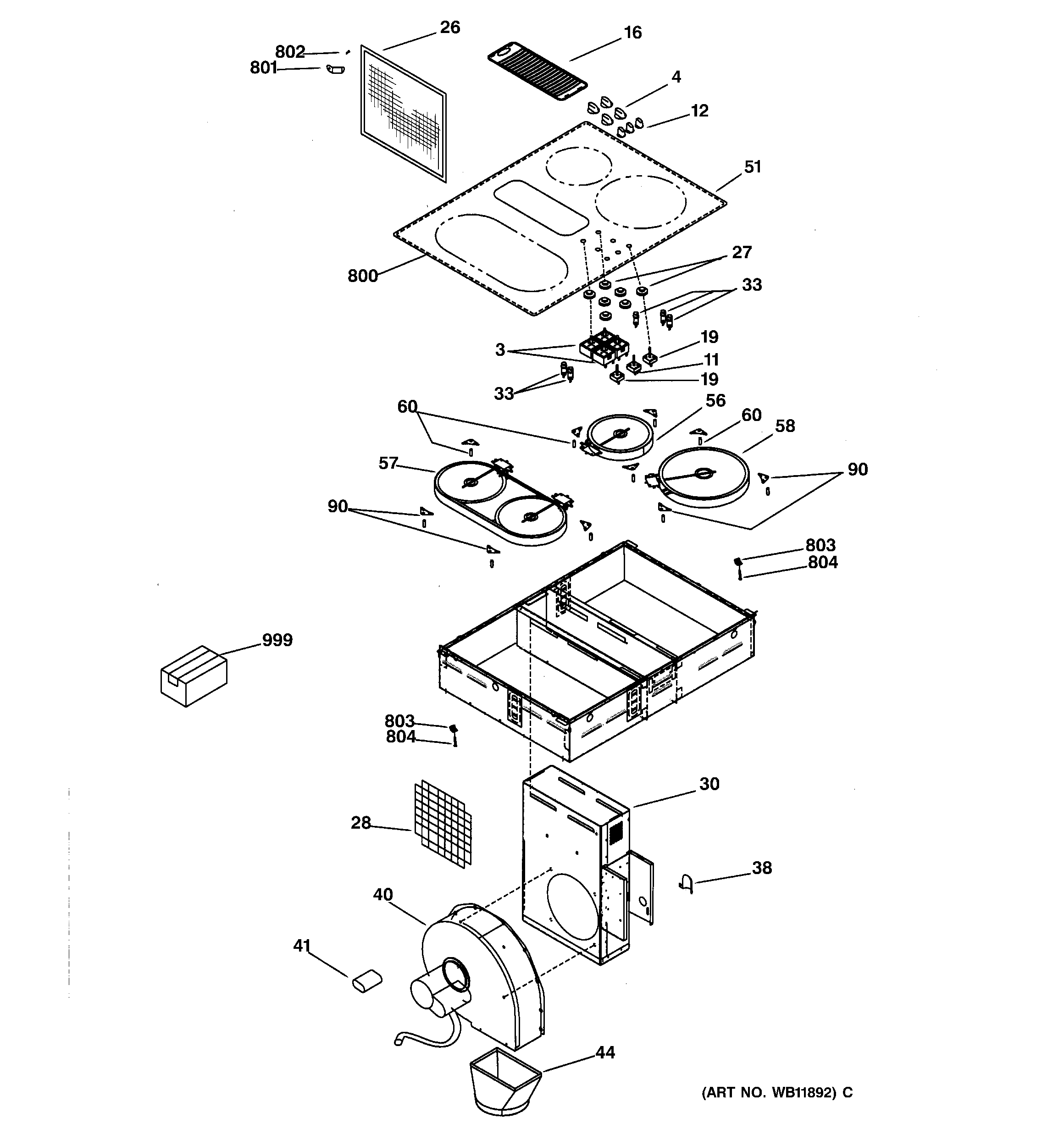

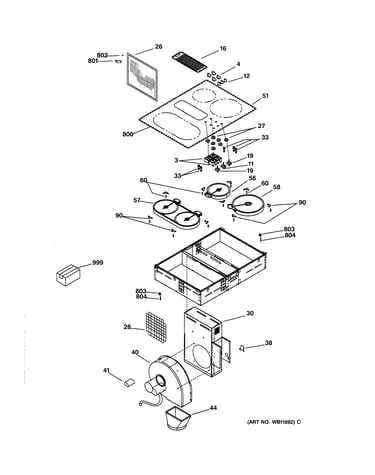

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
BEST SELLER
$100.57
11% OFF Phone Price : $112.57
In Stock
Selector Switch WB24X0449
#19

Cooktop diagram

Selector switch

Part #WB24X0449

Replaced by #WB24X449

?
Manufacturer substitution
This part replaces WB24X0449. Substitute parts can look different from the original.
$71.47
8% OFF Phone Price : $77.47
In Stock
Halogen Element WB30T10057
#57

Cooktop diagram

Halogen element

Part #WB30T10057

Replaced by #WB30T10046

?
Manufacturer substitution
This part replaces WB30T10057. Substitute parts can look different from the original.
$313.84
$12.00 OFF Phone Price : $325.84
In Stock
Cooktop Fan Switch WB24X10055
#11

Cooktop diagram

Cooktop fan switch

Part #WB24X10055

$69.75
8% OFF Phone Price : $75.75
In Stock
Cerama Bryte Cooktop Cleaner (replaces Wb02x11121) WX10X300
#999

Cooktop diagram

Cerama bryte cooktop cleaner (replaces wb02x11121)

Part #WX10X300

Replaced by #PM10X310

?
Manufacturer substitution
This part replaces WX10X300. Substitute parts can look different from the original.
In Stock
Cooktop Scraper (replaces Wx10x0302) WX10X302
#999

Cooktop diagram

Cooktop scraper (replaces wx10x0302)

Part #WX10X302

This item is not returnable

Get free shipping with Automatic Reorder

$18.63
10% OFF Phone Price : $20.63
In Stock
Cooktop Owner's Manual 31-20776
#999

Cooktop diagram

Cooktop owner's manual

Part #31-20776

$18.59
10% OFF Phone Price : $20.59
In Stock
Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#12

Cooktop diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

This item is not returnable
$7.69
12% OFF Phone Price : $8.69
In Stock
Guard Wire WB02X10652
#28

Cooktop diagram

Guard wire

Part #WB02X10652

$31.11
16% OFF Phone Price : $37.11
In Stock
Thumb Screw WB01X10080
#804

Cooktop diagram

Thumb screw

Part #WB01X10080

Replaced by #WB01X24463

?
Manufacturer substitution
This part replaces WB01X10080. Substitute parts can look different from the original.
In Stock
