Model # 217586220 Official Craftsman 9.9-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586220 9.9-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

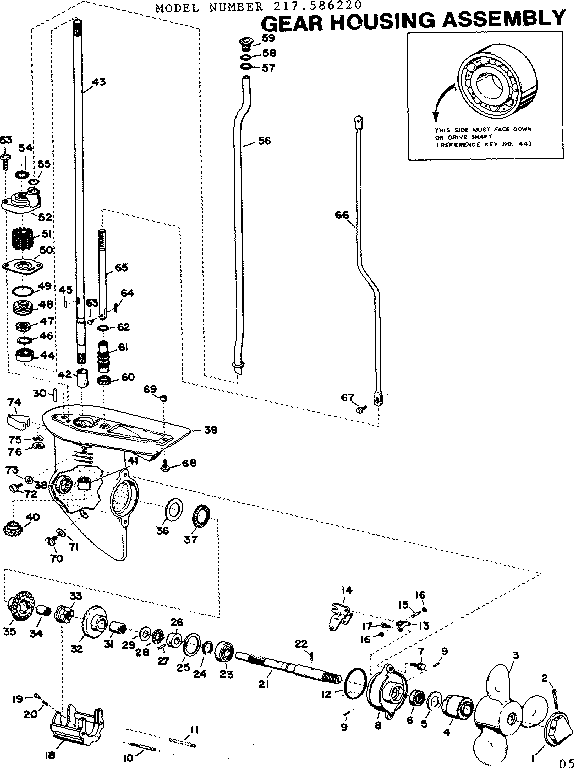

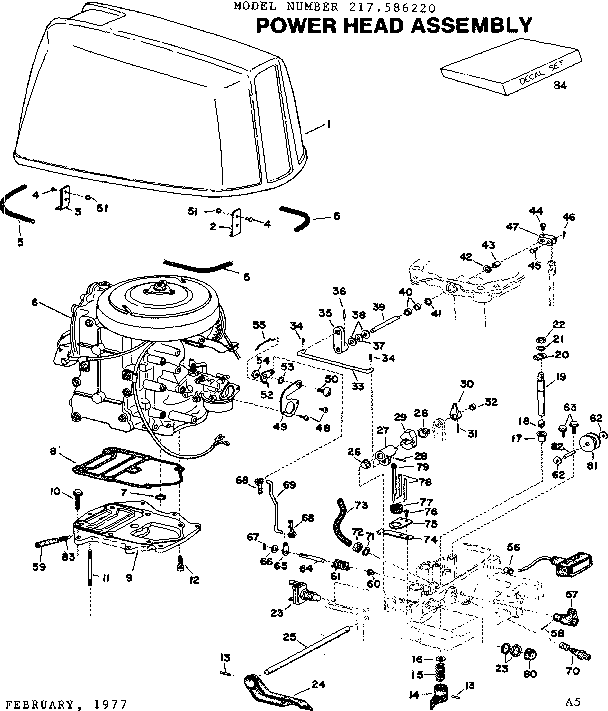

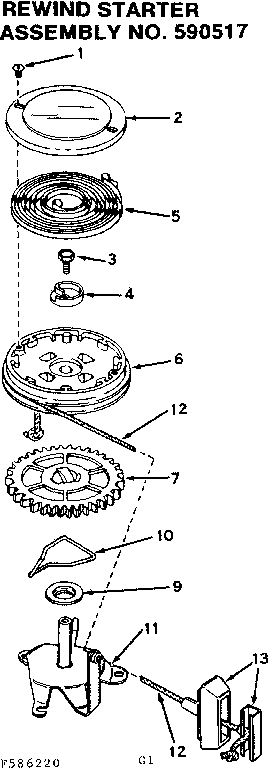

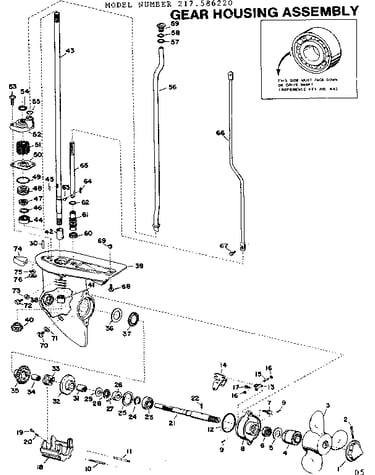

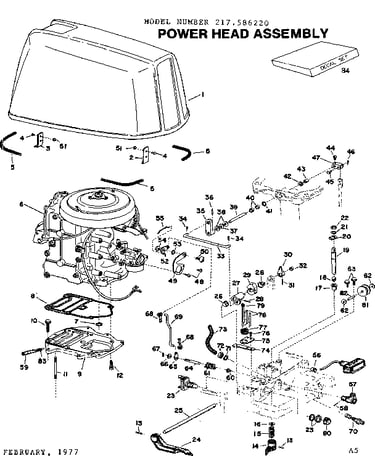

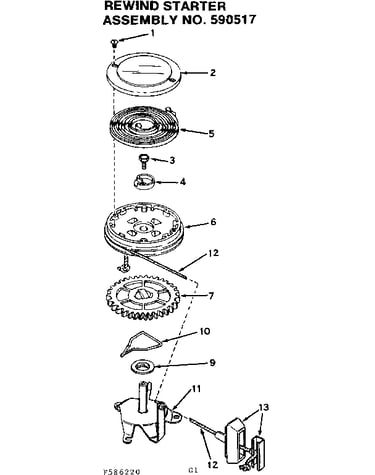

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 342 parts  |
Gasket 631028
#25

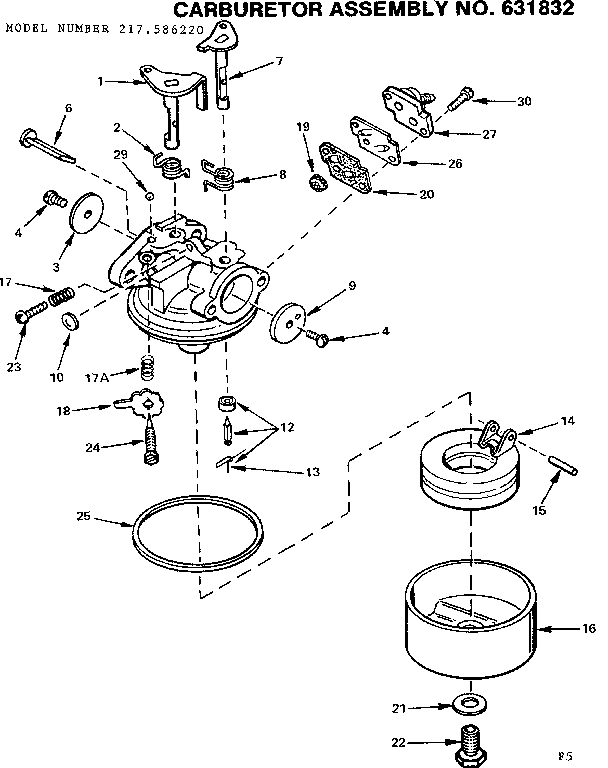

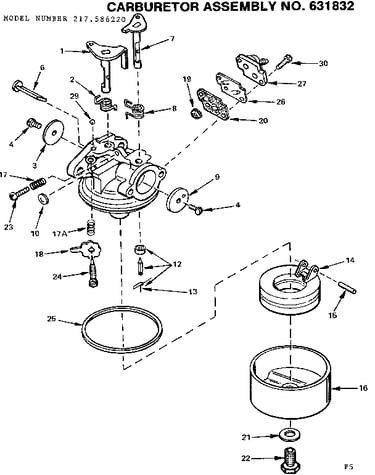

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Float 631023
#14

Carburetor assembly diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#24

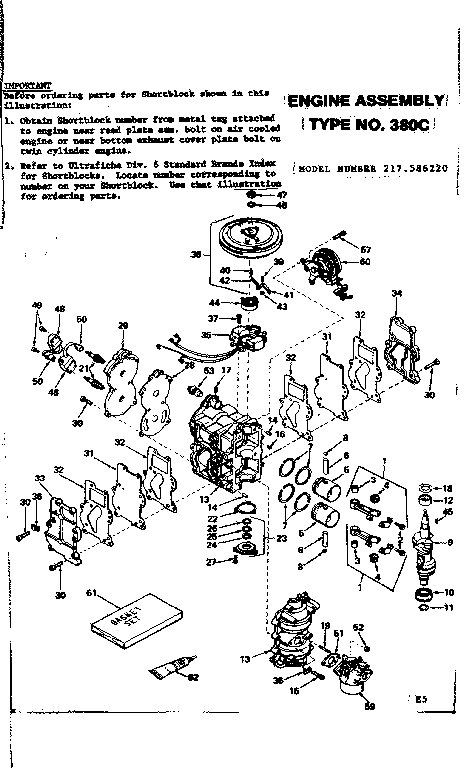

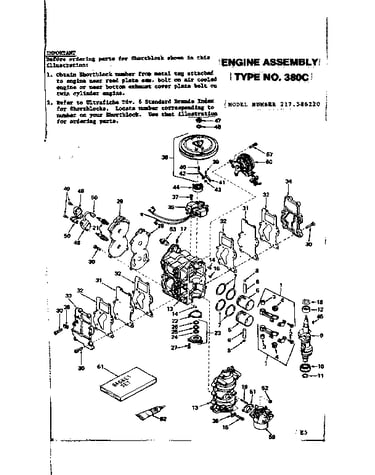

Engine assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 2632
#23

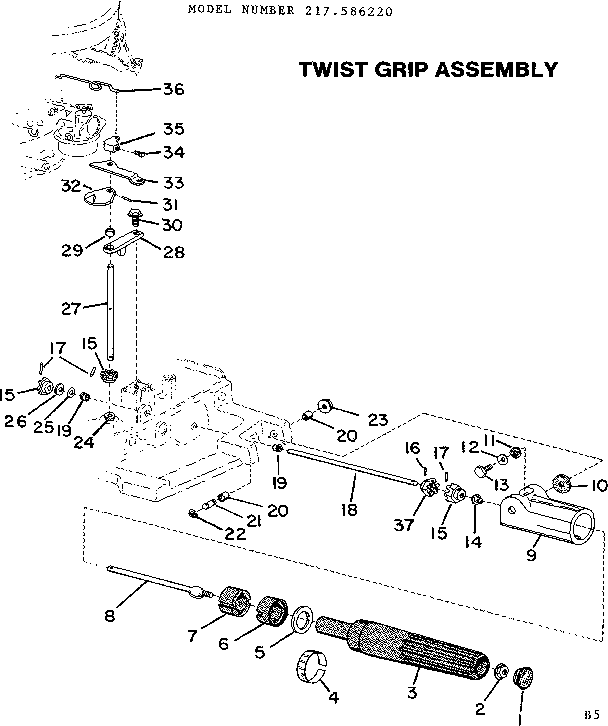

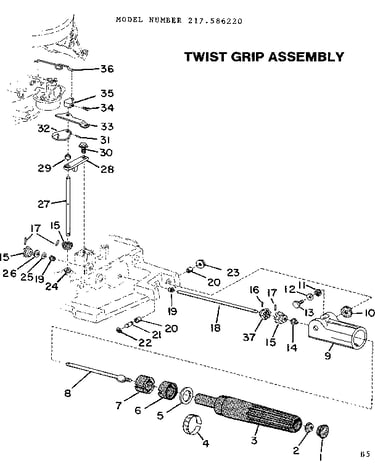

Twist grip assembly diagram

Lock nut

Part #2632

The manufacturer no longer makes this part, and there's no substitute part

Nut 2629
#12

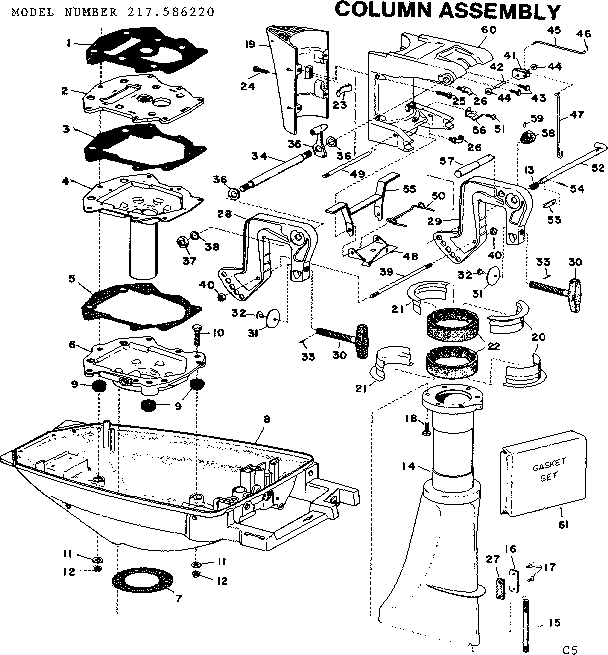

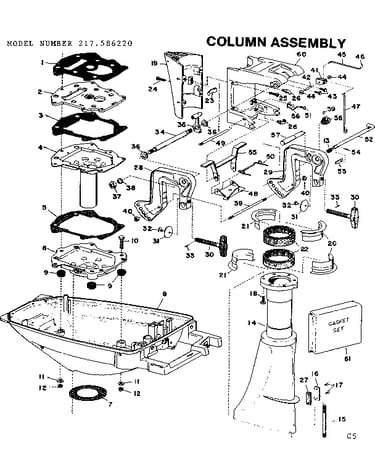

Column assembly diagram

Nut

Part #2629

The manufacturer no longer makes this part, and there's no substitute part

Sealer 510304A
#62

Engine assembly diagram

Sealer

Part #510304A

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Gasket (gray) 26352
#27

Column assembly diagram

Tecumseh gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Bushing 66072
#29

Twist grip assembly diagram

Tecumseh bushing

Part #66072

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 6417
Cotter pin

Part #6417

The manufacturer no longer makes this part, and there's no substitute part
