Model # 917298350 Official Craftsman 5-hp tiller
Here are the diagrams and repair parts for Official Craftsman 917298350 5-hp tiller, as well as links to manuals and error code tables, if available.
 Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
917298350 Tillers
#2

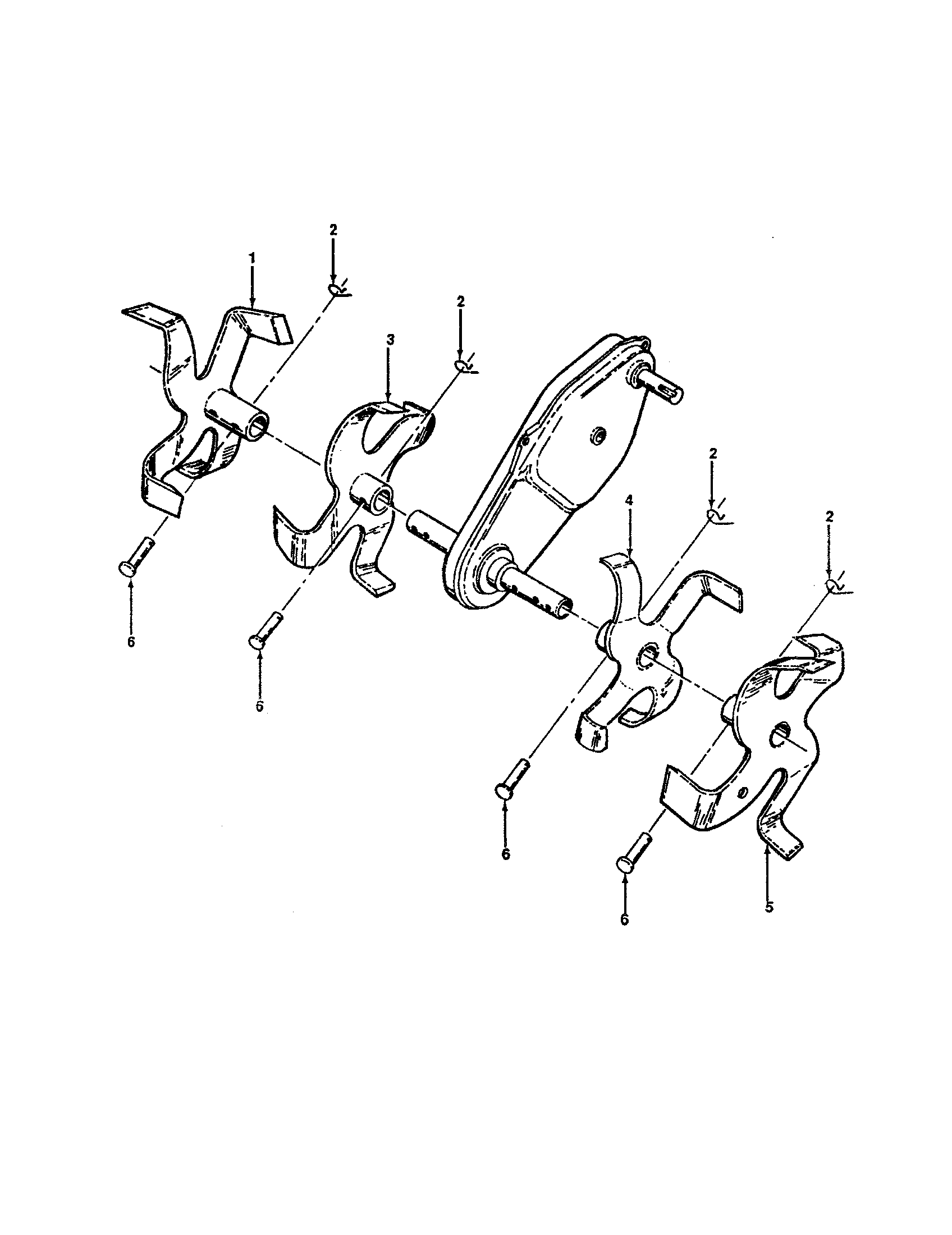

Tine diagram
Spring retainer
Part #3146R
Replaced by #532003146
?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
This item is not returnable
$4.31 |Â
19% OFFÂ Phone Price : $5.31
In Stock
#4

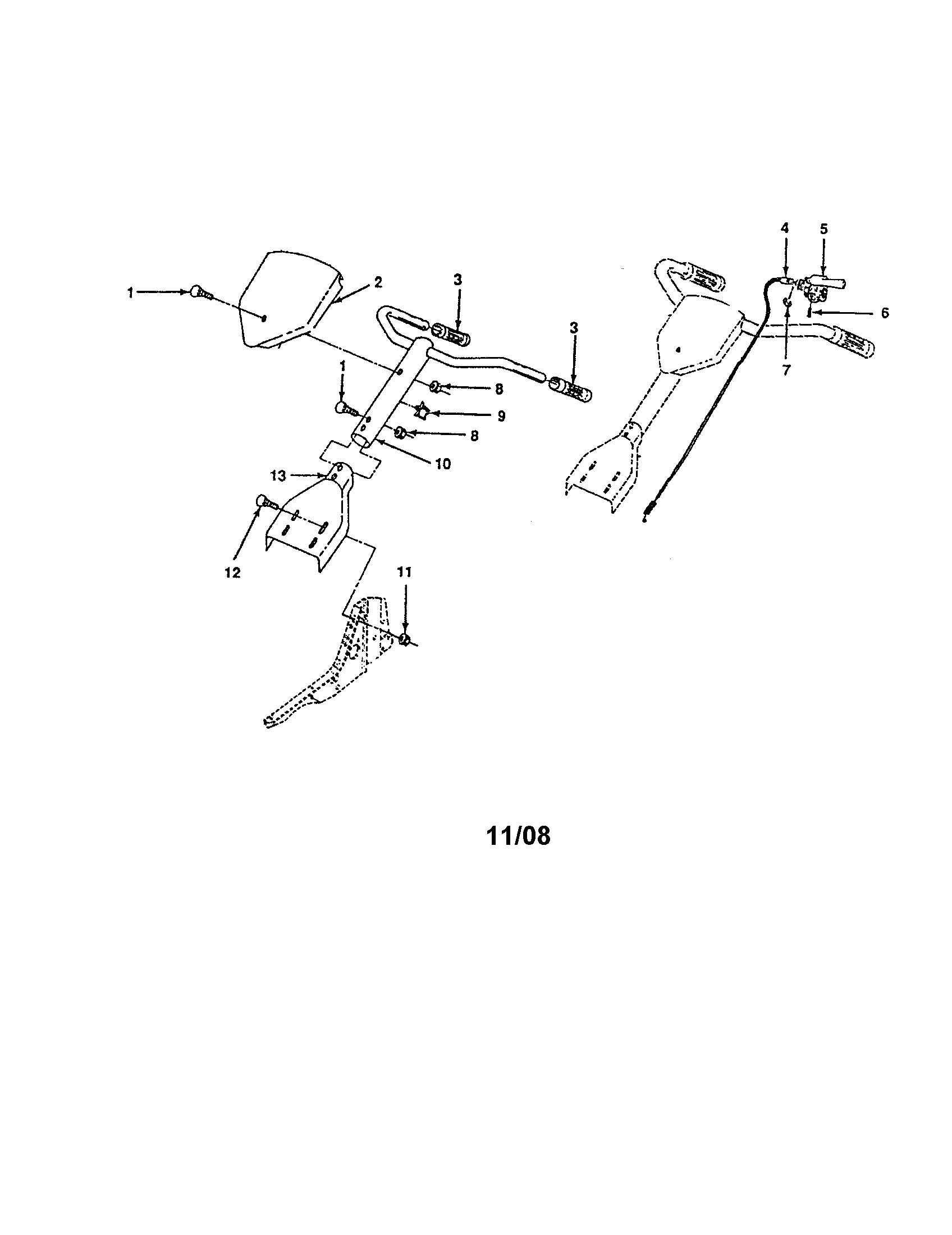

Handle diagram
Cbl/cltch t
Part #3066J
Replaced by #583731701
?
Manufacturer substitution
This part replaces 3066J. Substitute parts can look different from the original.
$13.96 |Â
13% OFFÂ Phone Price : $15.96
In Stock
#11

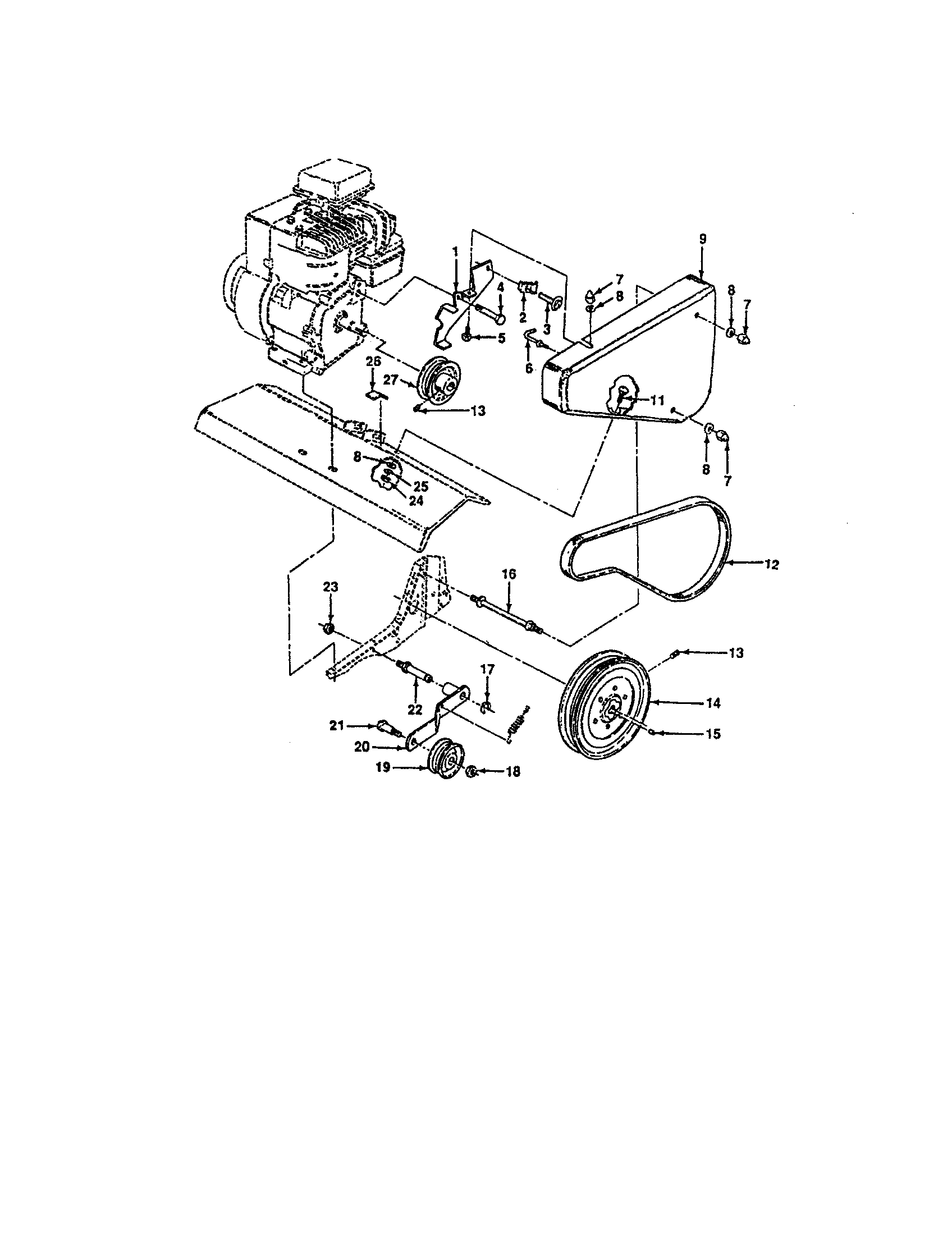

Belt guard/pulley diagram
Bolt
Part #72140405
Replaced by #872140405
?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$4.31 |Â
19% OFFÂ Was : $5.31
In Stock
#12
Belt guard/pulley diagram
Tiller drive belt, 1/2 x 41-11/16-in
Part #9180R
Replaced by #532009180
?
Manufacturer substitution
This part replaces 9180R. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$34.56 |Â
15% OFFÂ Phone Price : $40.56
In Stock
#12
Handle diagram
Carriage bolt, 5/16-18 x 3/4-in
Part #STD533107
The manufacturer no longer makes this part, and there's no substitute part
#16
Belt guard/pulley diagram
Bolt
Part #110528X
Replaced by #583660001
?
Manufacturer substitution
This part replaces 110528X. Substitute parts can look different from the original.
This item is not returnable
$25.69
In Stock
#7

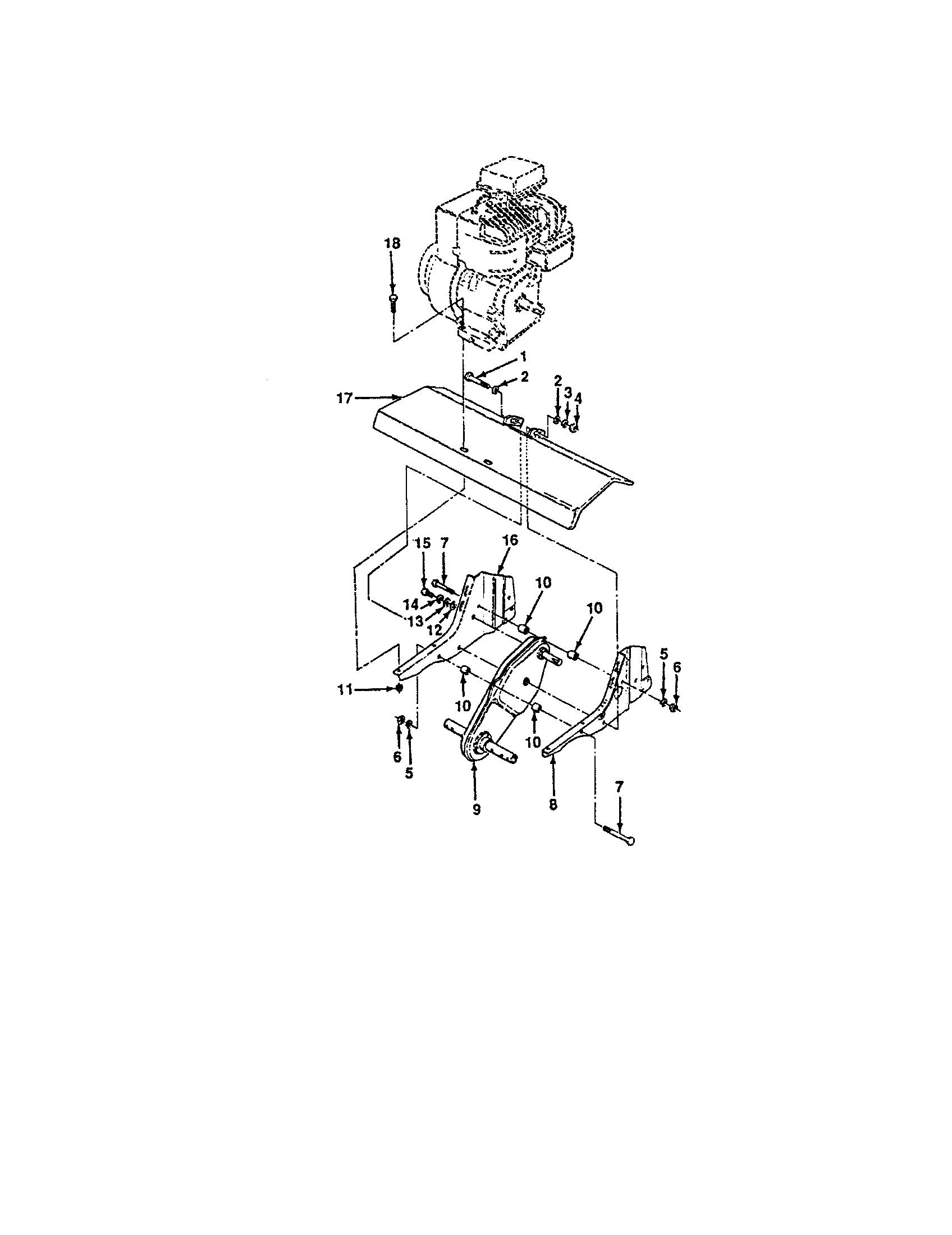

Transmission/tine shield diagram
Bolt
Part #74760544
Replaced by #596218601
?
Manufacturer substitution
This part replaces 74760544. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
#5
Tine diagram
Weld tine
Part #674A65
Replaced by #584971602
?
Manufacturer substitution
This part replaces 674A65. Substitute parts can look different from the original.
$110.48
In Stock
#1

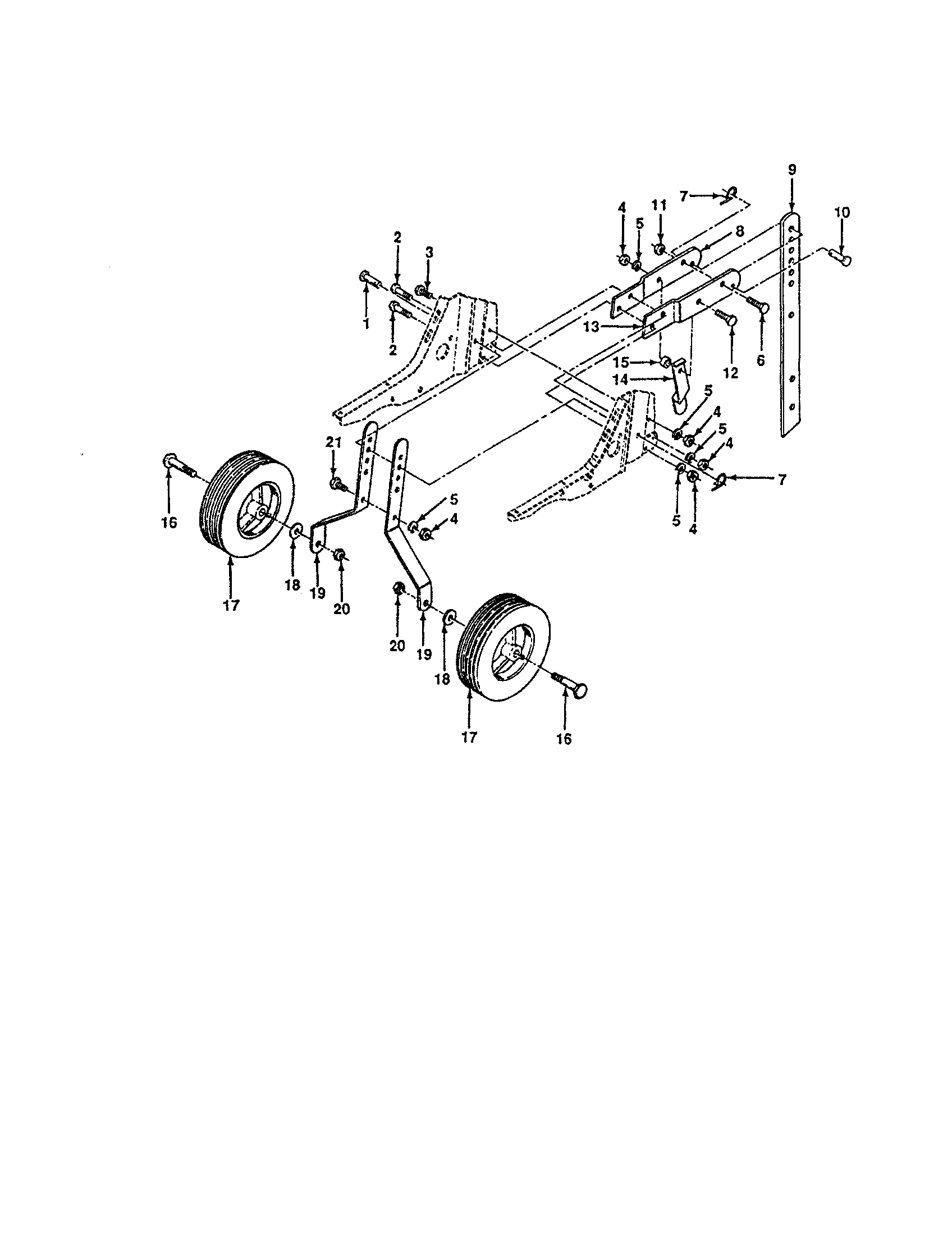

Wheel/depth stake diagram
Tiller clevis pin
Part #9194R
Replaced by #532443676
?
Manufacturer substitution
This part replaces 9194R. Substitute parts can look different from the original.
$18.54
In Stock
#11
Handle diagram
Nut
Part #98000129
Replaced by #585802801
?
Manufacturer substitution
This part replaces 98000129. Substitute parts can look different from the original.
$9.26
In Stock
Most common symptoms to help you fix your tillers
Choose a symptom to see related tiller repairs.
Main causes: clutch cable problems, faulty transmission…
Main causes: damaged tines, broken clevis pins, worn drive belt, faulty transmission, clutch cable problems, improper de…
Main causes: worn or broken drive belts, bad transmission, clutch cable problems…
Main causes: leaky engine head gasket, damaged sump gasket, damaged oil drain plug seal, loose or cracked fuel line, lea…
Main causes: broken shaft clevis pins, transmission failure…
Main causes: dirty carburetor, engine needs tune up, stale gas…
Main causes: carburetor failure, bad gasoline, dirty spark plug, broken recoil starter…
Most common repair guides to help fix your tillers
These step-by-step repair guides will help you safely fix what’s broken on your tiller.
How to replace a tiller recoil starter
The recoil starter spins the engine when you pull the starter rope, and the rope retracts when released. If the recoil s…
Repair difficulty
Time required
 15 minutes or less
