Frigidaire
Electric Wall Oven

Model # PCWS3080AFA Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire PCWS3080AFA electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

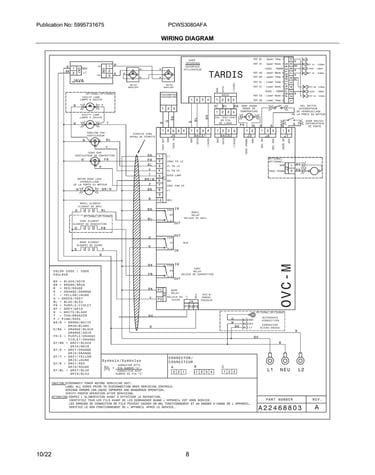

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Range Oven Door Handle Screw 316513301
#10

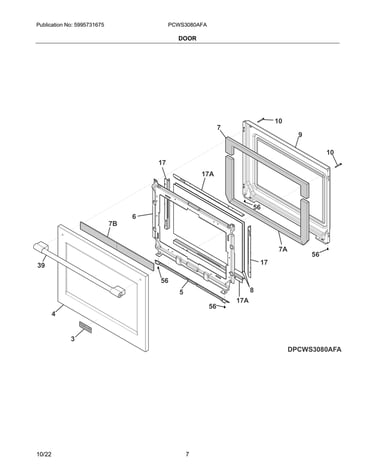

Door|dpcws3080afa.svg diagram

Range oven door handle screw

Part #316513301

Replaced by #5304507924

?
Manufacturer substitution
This part replaces 316513301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Range Door Light Switch 318394802
#12

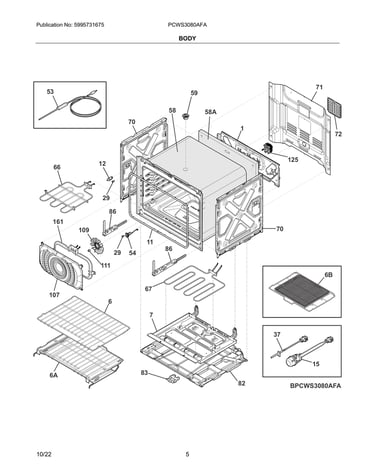

Body|bpcws3080afa.svg diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Range Screw 316001003
#NI

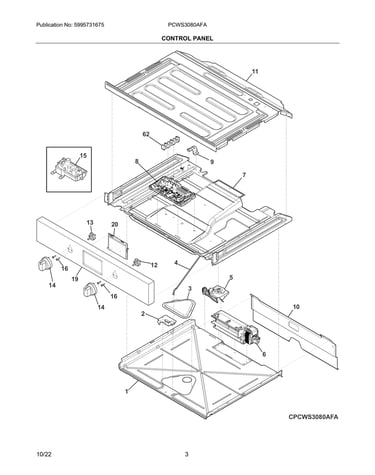

Control panel|cpcws3080afa.svg diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Motor Assemb 5304526552
#5

Control panel|cpcws3080afa.svg diagram

Motor assemb

Part #5304526552

$90.69
In Stock
Board Assemb 5304526480
#8

Control panel|cpcws3080afa.svg diagram

Board assemb

Part #5304526480

Replaced by #5304536397

?
Manufacturer substitution
This part replaces 5304526480. Substitute parts can look different from the original.
This item is not returnable
$103.18
In Stock
Range Oven Door Middle Glass 5304526387
#8

Door|dpcws3080afa.svg diagram

Range oven door middle glass

Part #5304526387

$107.28
In Stock
Motor 5304526375
#125

Body|bpcws3080afa.svg diagram

Motor

Part #5304526375

$125.94
In Stock
Blade 5304525455
#109

Body|bpcws3080afa.svg diagram

Blade

Part #5304525455

$15.80
In Stock
Harness 5304525431
Harness

Part #5304525431

$100.16
In Stock
Element 5304526565
#161

Body|bpcws3080afa.svg diagram

Element

Part #5304526565

$94.60
In Stock
